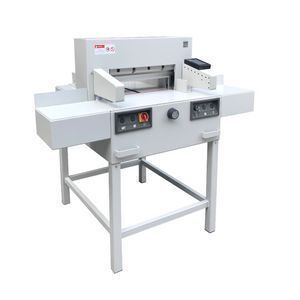

Sysform 480EP Electric Guillotine Paper Cutter with Automatic Clamp and Programmable Backgauge with Display
- 3550.00 unit
| Dimension(L*W*H): | 960x780x1260mm; | Place of Origin: | Guangdong China (Mainland); |
| Certification: | CE; | Type: | Paper Cutting Machine; |
| Packaging Detail: | Gross Weight: 280KGS Dimension: 100x100x86cm Package Type: Pallet; | Brand Name: | Sysform; |
| Warranty: | 1 Year; | Option: | Side Tables; |
| After-sales Service Provided: | Overseas third-party support available; | Narrow Cut: | 25mm / 0.98"; |
| Cutting Height: | 80mm / 3.15"; | Safety: | Cutting Light, Infrared Sensor, Two-hand Operation, Key Lock, etc.; |
| Payment Terms: | T/T,Western Union; | Automatic Grade: | Automatic; |
| Weight: | 240KGS; | Cutting Width: | 485mm / 19.09"; |
| Application area: | For Print Shop, Graphic Design, Printing House; | Function: | Cutting Paper Stack; |
| Voltage: | 230V / 115V; | Condition: | New; |
| Port: | Guangzhou / Hong Kong / Keelung; | Supply Ability: | 20 Unit/Units per Month; |
| Memory: | 99 programs with 10 steps each; | Cutting Depth: | 450mm / 17.72"; |
| After-sales Service Provided: | Online support,Video technical support; |
Sysform 480EP Electric Guillotine can cut 485mm wide paper.
The cutting thickness is 80mm.
Features:
1. Safety
A. Infrared beam for safety operation
B. Safety two-hand operation
C. Safe blade changing procedure
D. Automatically push out paper after cutting
2. Function
A. 99 programs with 10 steps each
B. Fine adjustment of blade cutting depth
C. Optical Cutting Line
D. Electronic hand wheel for backgauge position with variable speed
F. Color Touch Pad
3. Option
A. Side Tables
Specifications:
Model | 480EP | 650EP | 520HP |
Cutting Width | 485mm / 19.09" | 660mm / 25.98" | 520mm / 20.47" |
Cutting Height | 80mm / 3.15" | 80mm / 3.15" | 80mm / 3.15" |
Narrow Cut | 25mm / 0.98" | 35mm / 0.98" | 15mm / 0.59" |
Cutting Depth | 450mm / 17.72" | 610mm / 24.02" | 580mm / 22.84" |
Dimension (HxWxD) | 1260x780x960mm | 1250x1020x1250mm | 1396x946x1300mm |
Weight | 240KG | 331KG | 330KG |
