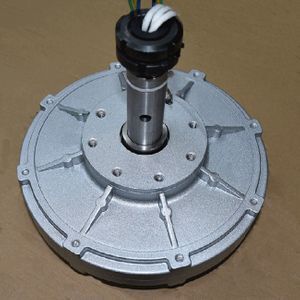

D330-0.2KW free energy rare earth permanent magnet generator Wind Turbine Magnetic Generator

Product details
Size:Dia 330 or customize size;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;

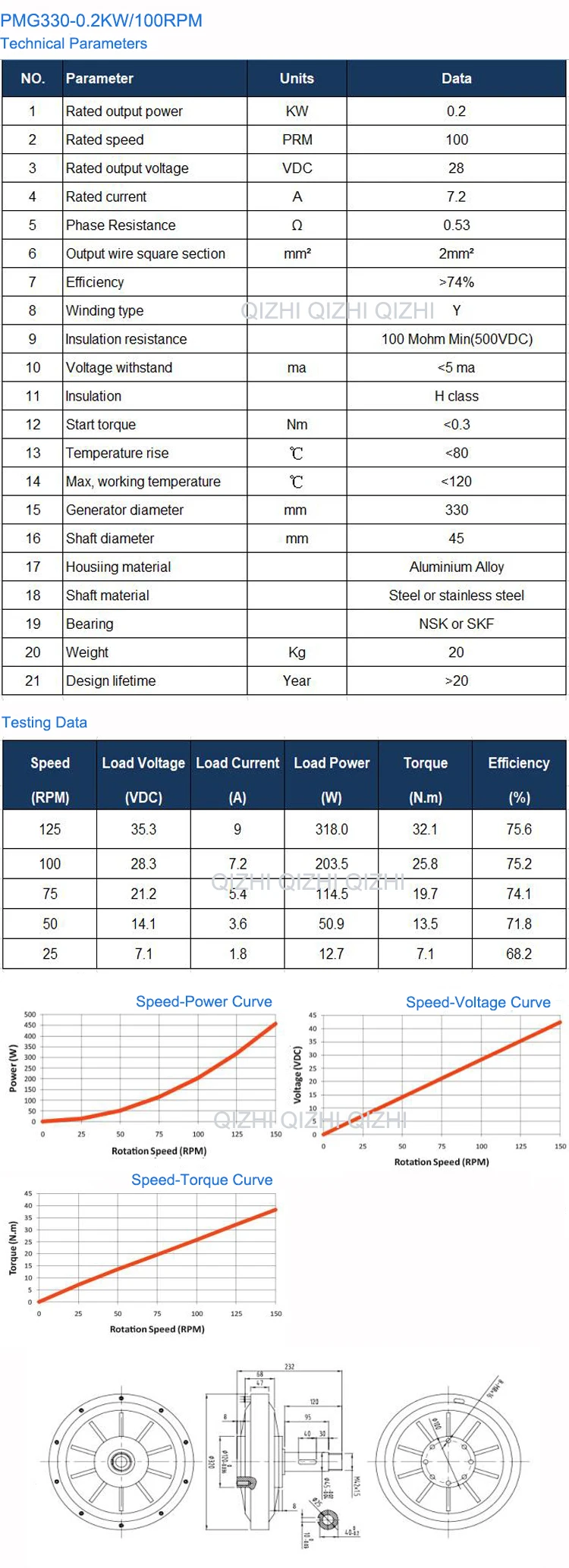

Model Number:AFPMG330-0.2KW;Supply Ability:1000 Set/Sets per Month;
Effciency:>85%;Port:Shanghai;
Rated Power:0.2KW;Brand Name:Qizhi;
Place of Origin:Zhejiang China (Mainland);Color:Black/ White/Custom;
Rated Voltage:Customized;Certificate:CE;
Type:Wind Power Generator;Rated Rotor Speed:100RPM;
Material:Aluminium body+ Copper wire+ Magnet;Packaging Detail:1 or 2 sets Magnetic Generator per wooden case;
MOQ:1 Set;

Permanent Magnet Generator is newly invented,The simple-structured, scientific-designed generator can make the most of teh wind power and efficiently generate electricity 24hours a day without hign wind speed.



Feature:



1. Coreless, anhysteresis, slotless, have low starting torque.

2. No iron loss, have high efficiency

3. Adopt unique coreless precision winding technology design precision coil

4. Adopt the rare earth permanent magnet, which is multiple, mean gap, high power density and high output power.

5. Low speed direct driving, no torque fluctuations

6. Compact structure, high ratio of power to volume

7. No iron loss, low calorific value, small temperature rise

8. Simple structure, easy to install

9. The brushless structure, free maintenance



Type:Wind Power Generator
Material:Aluminium body+ Copper wire+Neodymium magnet
Certificate:CE, ISO
Rated Voltage:Customized
Rated rotor speed:100RPM
Application:Wind system, wind solary hybird system





Products can be customized, pls tell us your specific requirement.  for example: Power requirement(KW), Rated speed (RPM), Rated voltage(V), Application.

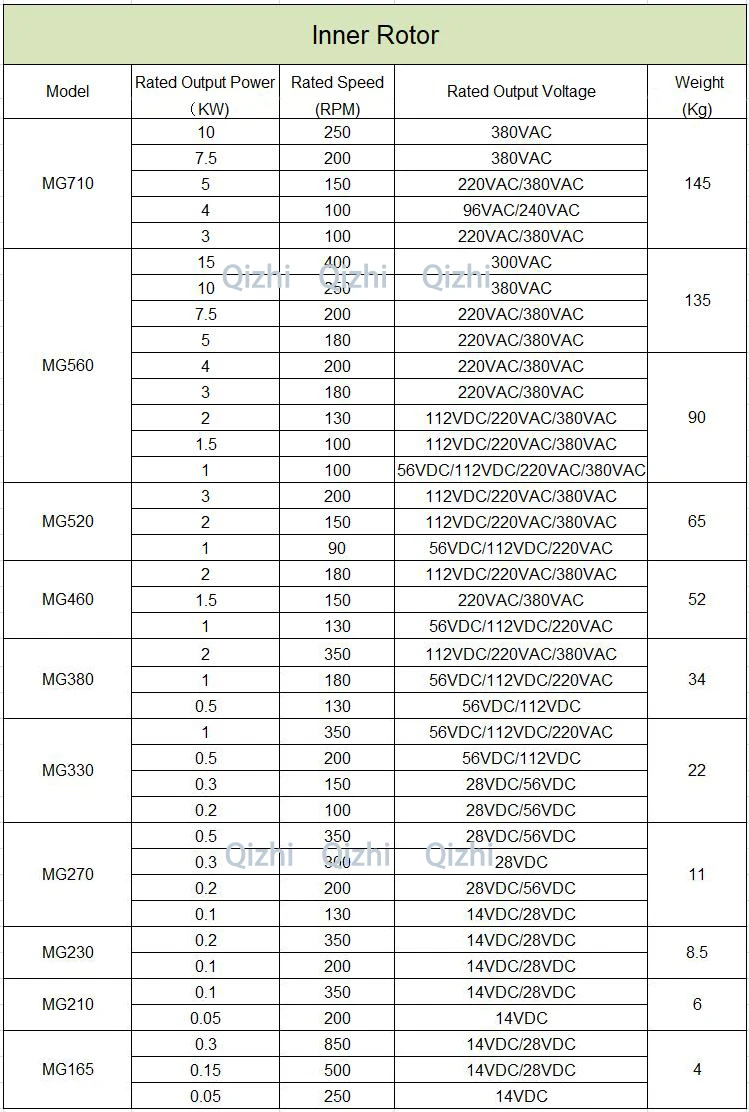

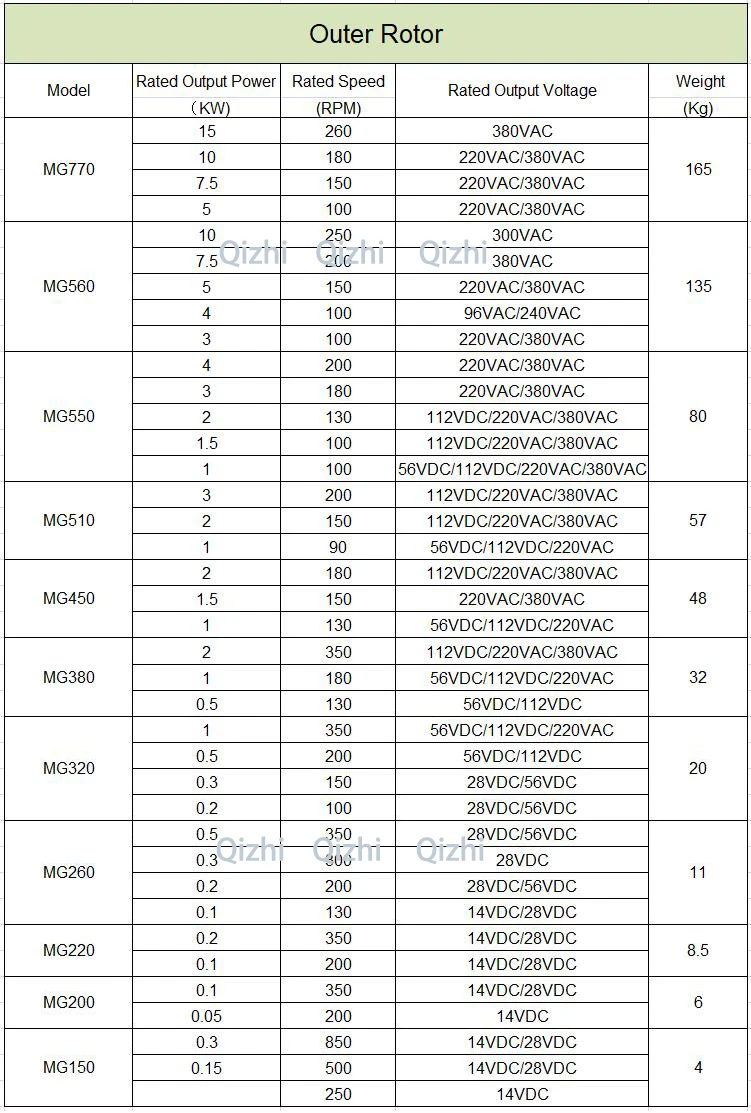

            PMG260-0.5KW/350RPM                              PMG270-0.1KW/130RPM

             PMG320-1.0KW/350RPM                              PMG330-0.2KW/100RPM

             PMG380-2.0KW/350RPM                              PMG380-0.5KW/130RPM

             PMG450-2.0KW/180RPM                              PMG460-1.0KW/130RPM

             PMG510-3.0KW/200RPM                              PMG520-1.0KW/90RPM

             PMG550-4.0KW/200RPM                              PMG560-1.0KW/100RPM

             PMG560-5KW/180RPM(Double-disk)            PMG560-15KW/400RPM (Double-disk)

             PMG700-10KW/250RPM                               PMG710-3.0KW/100RPM

             PMG770-5.0KW/100RPM                              PMG770-15KW/260RPM





Permanent Magnet Generators are free 2 years warranty, All lifelong  technical support and part cost supply.



1.The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
2.Free maintenance services during the warranty period, the cost involved be borne by our company, do not charge a fee to customers; if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
3.In the warranty period, product quality problems caused by the maintenance,  the freight borne by the company; if not under warranty or man-made damage, the freight charges by the customer.
