SS 304# screw press pig dung dewatering machine/cow manure separator/cow manure dewater/

Supplier: Henan Formend Imp. & Exp. Co., Ltd
Region: Henan, China
Contact: Mr Formend
Price: $3299.00 /set
Min. Order: 1 set

Click here to contact

Product details

Use:	to process poultry manure;	Usage:	manure solid and liquid separator;
Application:	Animal waste, pig, chicken, cow manure;	After-sales Service Provided:	Overseas third-party support available;
Product name:	cow manure dewater machine;	Supply Ability:	500 Set/Sets per Month;
Type:	Farm Equipment;	Brand Name:	Formend;
Place of Origin:	Henan China (Mainland);	Port:	Shanghai, Qingdao, Guangzhou;
Packaging:	Wooden box;	Function:	Processing animal dung;
Capacity:	5-15m3/h;	Raw material:	Carbon Steel and stainless steel;
Weight:	680-780kg;	Payment Terms:	L/C,D/P,T/T,MoneyGram,Escrow;
Color:	Customized;	Certification:	CE ISO;
Packaging Detail:	Wooden box packaging as export standard.;	Power:	5.5kw, 7,5kw;
Condition:	New;

Product Description

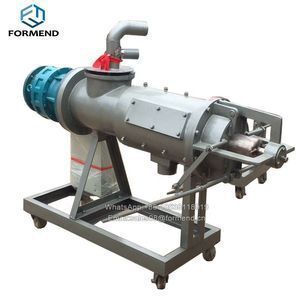

SS 304# screw press pig dung dewatering machine/cow manure separator/cow manure dewater/

Screw press cow dung manure dewater machine application:

The screw press cow dung manure dewater machine can process animal manure (such as pig manure, chicken manure, cow manure, )Dung dewater can separate the animal dung such as pig dung, duck dung, cow dung and chicken dung into liquid organic fertilizer and solid organic fertilizer. Also the machine can process larger fiber such as waste corn straw, etc.

1). Material dehydration;
2). Waste water purification
3). Fiber recovery
4). Separation of inviscid objects;
5). Sludge flotation, sludge deposition.

The screw press cow dung manure dewater machine technical parameters:

Model: FM-240

Motor power: 5.5kw
Capacity: 5-10 m3/h (1-3t/h)
Water consumption: 0.1m3/h
Filter screen size: >0.2mm
Inlet diameter: 76cm
Outlet diameter 108cm
Net weight: 680kg
Packaging size: 1775x760x1350mm

Model: FM-280

Motor power: 7.5kw
Capacity: 10-15m3/h (2-5t/h)
Water consumption: 0.1m3/h
Filter screen size: >0.2mm
Inlet diameter: 80cm
Outlet diameter: 120cm
Net weight: 780kg
Packaging size: 2300x800x1300mm

Main features of screw press cow dung manure dewater machine:

1). Reduce the subsequent CODcr content of dung waste water;
2). Isolated after the solid material containing dry matter can be 35-50%;
3). Low energy consumption, less investment, high efficiency;
4). Compact structure, the main parts adopt stainless steel manufacturing;
5). The stainless steel adopts imported materials;
6). Easy operation and maintenance.

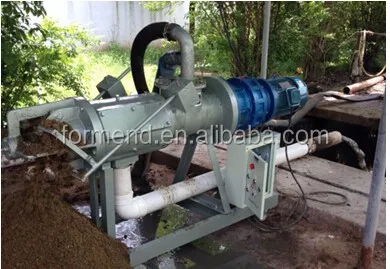

The working process of screw press cow dung manure dewater machine:

1). The pump upgrades the slurry into the solid-liquid separator;

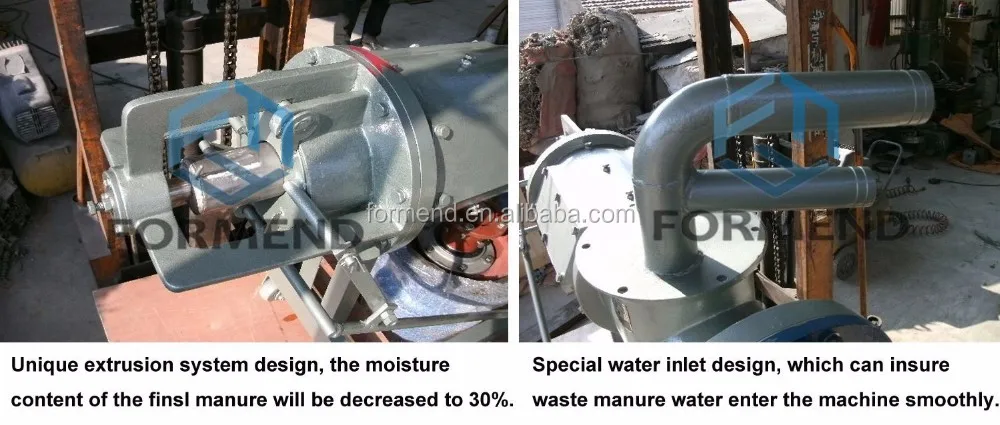

2). The extrusion screw push the residue to move forward by 46 rev/min speed. The pressure will separate the solid and liquid. There is a mesh under the extrusion screw, from which the liquid will flow out.
3). The solid will come out because of force of the extrusion. The final liquid will come out from the pump which under the solid-liquid separator.

Detailed Images

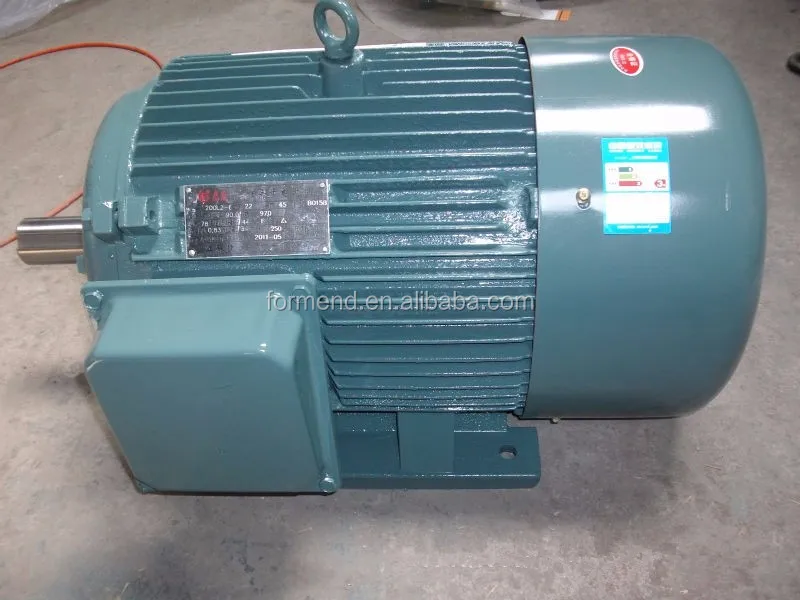

Machine motor:

Name: motor

Power: 5.5-7.5kw

Function: which can provide power for this screw press cow dung manure dewater machine and also the water pump. It is the key parts in the working of the machine.

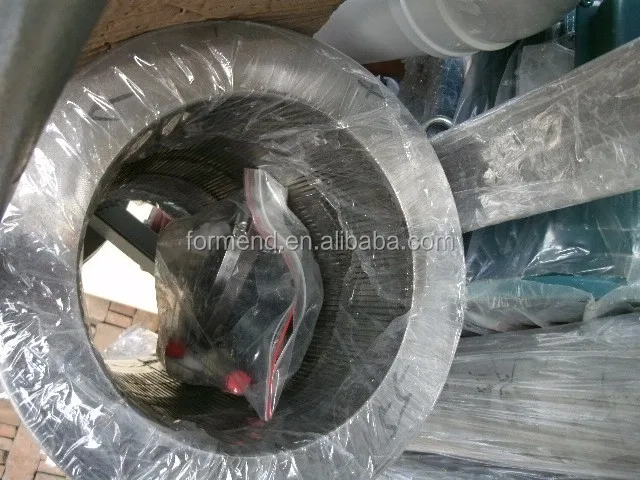

Machine filter mesh:

Name: filter mesh
Materials: stainless steel 304#
Mesh hole size: 0.2-1.1 mm (customized)

Function: the waste water coming out from this after being extruding.

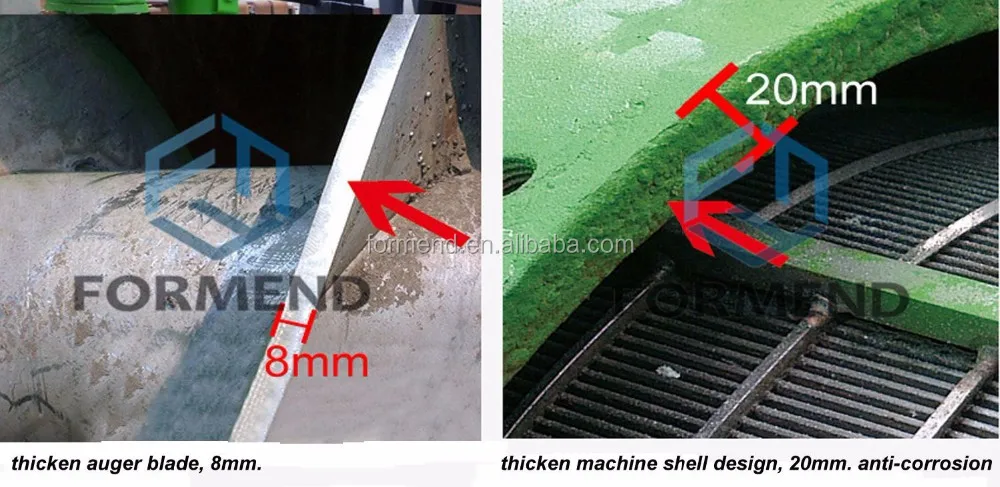

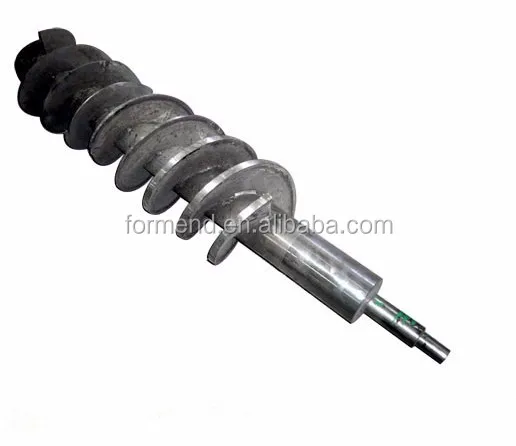

Machine auger:

Name: auger
Materials: stainless steel 304#
Features: anti-corrosion
Function: to squeeze raw materials into solid matter and liquid water.

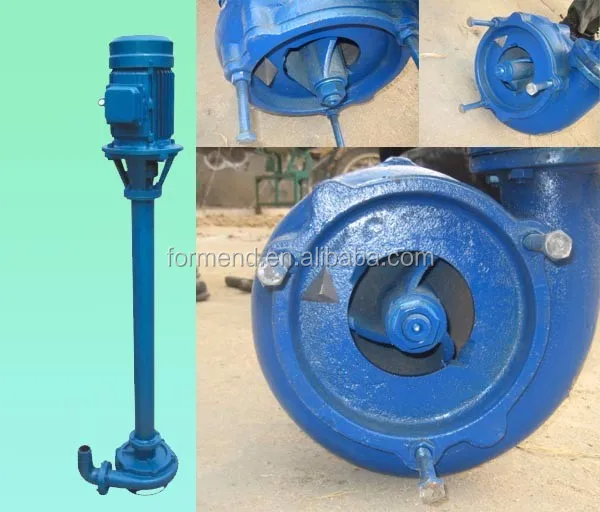

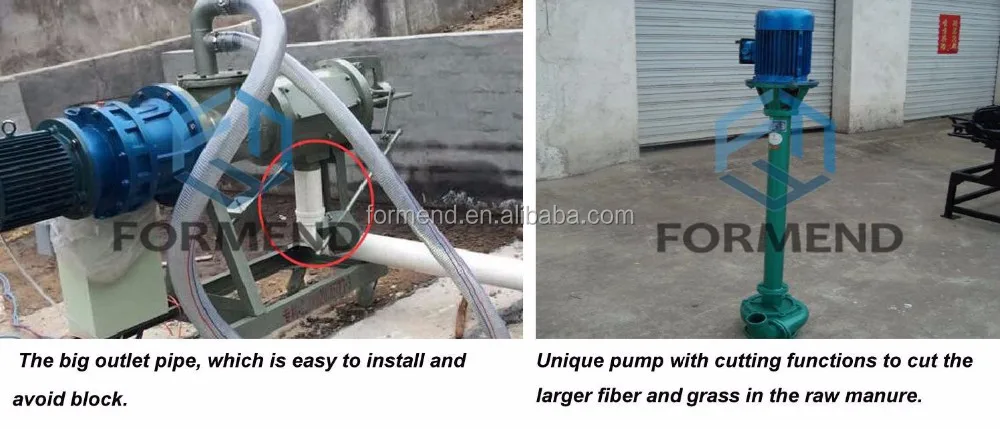

Machine water pump

Name: water pump
Power: 4kw
Function: to suck the waste water into the main dewater machine, at the same time, it can also cut the larger fiber in the waste water.

Advantages

Packing & Delivery

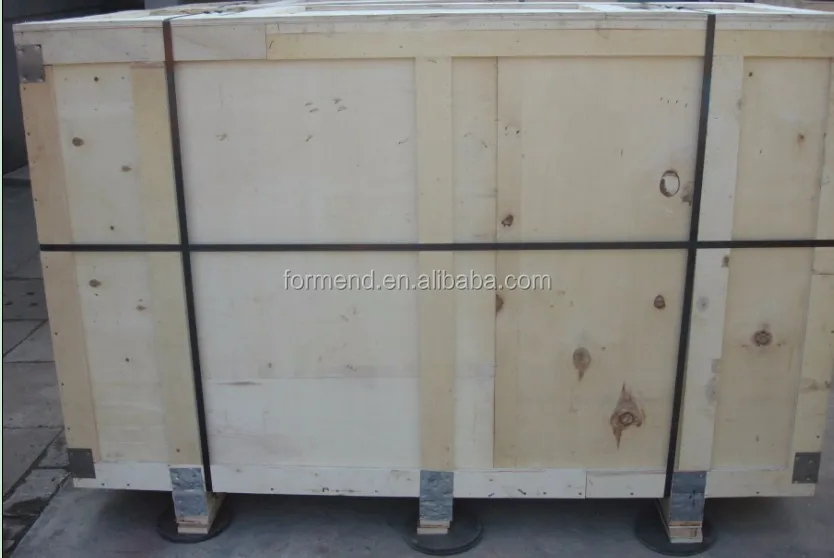

Packaging
Size	1775 (L) * 760 (W) * 1350 (D)
Weight	780kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries, the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

FAQ

1- What is the dimension of separator cylinder diameter and length, screen mesh size?
a, Outside Separator cylinder Diameter 370 mm, max part will be 400 mm And length 1.meters
b, Screen cylinder Diameter: 290 mm length:450 mm
c, Screen mesh size: 0.55 mm better size . (we can make screen mesh size according to your requirement )
2- Pump leg length.
1.3 meters
3- What is best pool dimension. should we execute as round or cubic.
Diameter: 2.5 meters depth:1.5-2 meters round or cubic both ok.
4- What is concentration of Manure with water for inlet feed:
concentration of manure: 30%-40% is the best condition. also 10%-20% is also ok to be processed.
5- What is solid content of outlet separated water:
solid content :55%-70%
6- what is solid concentration of outlet waste water. Is it possible to use for irrigation or need to do something before irrigation.
yes, it is ok.
7- What is material of wet part.
Internal materials of separator: SS 304
