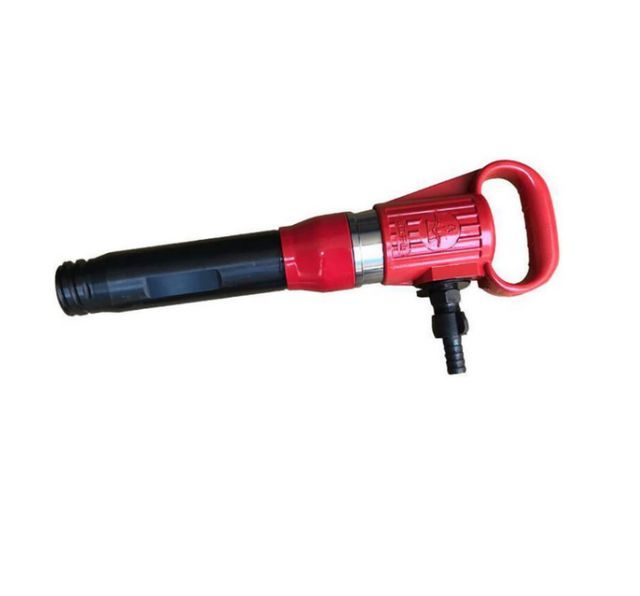

Kaishan G10 wind pick air shovel cement crusher pneumatic chisel hammer

Supplier: Xi'an Kaishan Kaitec Mechanical & Electrical Equipment Co., Ltd.
Region: Shaanxi, China
Contact: Ms Grace li
Price: $47.00 / 1 - 99 sets
$42.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

Power type:	Air	Water pipe inner diameter:	13mm
Physical Dimensions:	570250200mm	Shank size:	H22*108±1mm
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Drilling depth:	5 meters
Dimensions (LWH):	659248205mm	Customization support:	OEM production
Origin:	China	usage:	Rock drill
Impact energy:	78J	Warranty:	2 years
weight:	Net weight 10KG

Product Description

Using compressed air as a power tool, the compressed air is distributed to both ends of the cylinder in turn through the tubular distribution valve, so that the hammer body performs a re-impact movement, impacting the tail of the pickaxe and the drill bit, so that the pickaxe drill can be drilled into the rock or ore layer until it is completely Chop into pieces.

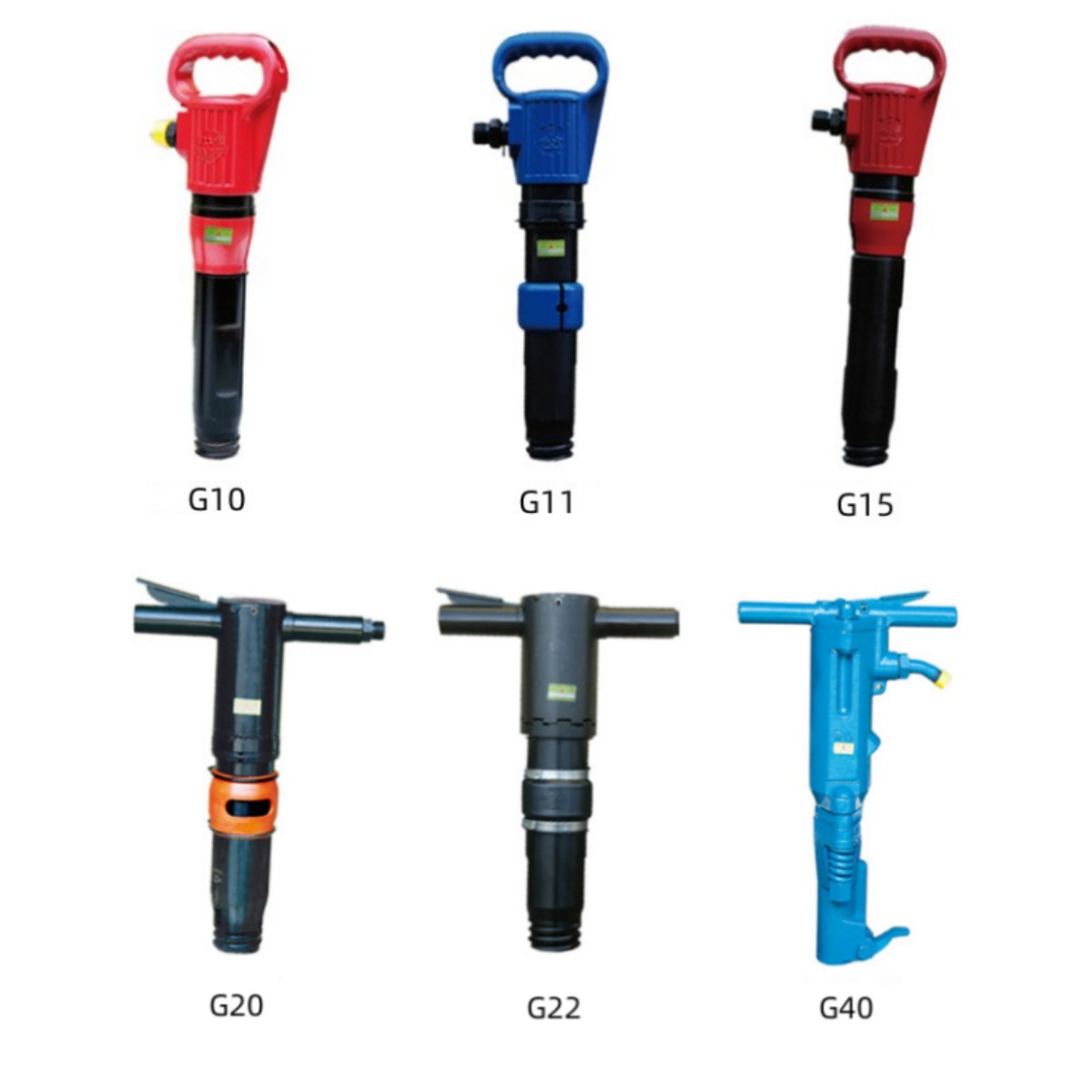

type	G10	G11	G15	G20	G22	G40
Weight (kg)	10	11	15	20	twenty two	40
Air pressure (MPa)	0.4-0.63	0.4-0.63	0.4-0.63	0.4-0.63	0.4-0.63	0.4-0.63
Accept air pressure (MPA)	0.5	0.5	0.5	0.5	0.5	0.5
Shock frequency (Hz)	≤15	≤15	≤15	≤15	≤15	≤15
Air consumption (L/s)	≤20	≤20	≤20	≤20	≤20	≤20

Product advantages

1. Light weight, easy operation, wide application

2. It is suitable for the excavation of old roadways and the excavation of the original concrete ground of mining enterprises.

3. It can be used to break hard and frozen ground in civil engineering, infrastructure engineering, civil air defense engineering, etc.

4. It can be used for cutting coal seams and crushing soft minerals in mining.
