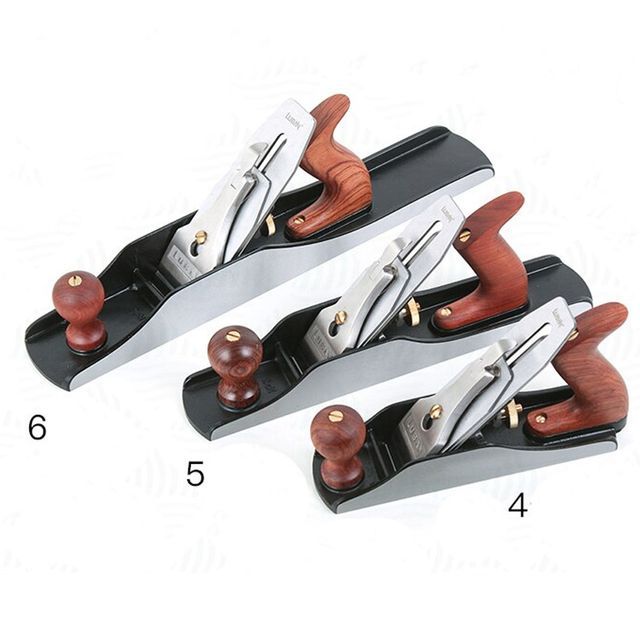

No.5-1/2 jack hand planer bedrock European iron planer hand planer professional woodworking planer stainless steel

Supplier: Yueqing Baym Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ding
Price: $230.00 / 2 - 49 sets
$200.00 / 50 - 99 sets
$170.00 / >=100 sets
Min. Order: 2 sets

Click here to contact

Product details

Body material:	iron	weight:	3300 grams
model:	5-1/2 Jack Plane	With bottom blade degree:	45 degree
port:	Ningbo/Shanghai	Rod cover material:	Stainless steel
payment terms:	L/C, Western Union, T/T, Paypal	Blade edge degree:	25 degree
Origin:	China	Blade material:	T10
Blade Hardness:	59-63	Blade size:	3mm thick, 60mm wide
grade:	DIY	angle:	25 degree
Customization support:	OEM production	Base (sole) dimensions:	380 mm long, 72 mm wide

describe:

The multi-jack plane is usually the first workbench plane to touch the rough wood. This is the 5-1/2 size version, which is slightly larger and heavier than the 5 - when you need more weight to cut through challenging grains, or a wider blade width for a challenge, this is the ideal choice
Edge planed thick wood. The comfortable tote and handle are made of solid sapele. The block plane has sharp angles and finely adjustable openings - ideal for adjusting miter joints, joinery and installing doors and drawers. The frog and base are a solid one-piece casting. Both plane blades are machined from thick 1/8" steel to minimize chatter and precision ground for flatness. Fine-grain castings are comparable to many top-of-the-line aircraft. Each aircraft includes a case, socks and an inspection certificate with measurements of sole flatness and blade hardness specific to your aircraft.
feature:
* Jack flats are great for flattening, squaring and initial smoothing
* Block pane is ideal for trimming and adjusting bevels, joinery and installing doors and drawers
* Simple depth of cut adjustment and lateral blade adjustment
* Solid brass cap iron and threaded fittings for smooth action
* Ductile iron body for superior strength and impact resistance
* Flat bottom and blade back are flat to tight tolerances
* The blade and sole are treated with an oil protection layer
*Each tool includes a certificate of inspection
* Requires minimal setup and adjustments before use

5-1/2 Jack Aircraft Specifications:
* Aircraft Model: 5-1/2 Jack Aircraft
* Aircraft weight: 7.27 lbs/3300 g
* Sole flatness: 0.002'' to 0.004'' tolerance
* Sole Length: 15"/380mm
* Sole Width: 2.83"/72mm
* Blade Width: 2.36"/60mm
* Blade Thickness: Approx. 0.11"/3mm
* Blade Bevel: 25°
* Blade Bevel Up/Down: Down
* Blade Hardness: 59-63 HRC
* Frog/knife seat angle: 45°
* Tote and Knob Material: Bubinga
* Main material: cast iron
* Blade Material: Hardened Carbon Steel
* Stem cap material: SStainless steel

Q: Is OEM available? A: Yes, OEM and customization are available. Also, we can provide label printing service. Q: Are samples available? A: Free samples are provided, freight collected. Q: What's your payment terms? A: T/T, L/C, D/A, D/P, Paypal for different situations. Q: What is your delivery method? A: Express, air, sea are available according to your requirements. Q: What's your delivery time? A: The usual delivery time is 5-10 days after receiving your advance payment; for customized products, 15-30 days after receiving your advance payment.
