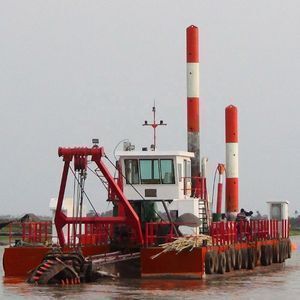

20 inch suction dredger/river sand cutter suction dredging machine/dredging boat

Supplier: Weifang Jin Meng Dredger Co., Ltd.
Region: Shandong, China
Contact: Ms Becky Lee
Price: $100000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Containers/ Bulks;	Supply Ability:	20 Set/Sets per Year Rive dredger can be custom made;
Dimension(LWH):	36x7.9x2.2m;	Hydraulic system:	Rexroth;
Place of Origin:	Shandong China (Mainland);	Applicable Industries:	Energy & Mining;
Dredging depth:	15m;	Type:	sand dredger;
Power Type:	Diesel;	Discharge distance:	1500m;
Control system:	PLC SIEMENS;	Diesel engine:	Cummins;
Draft:	1.5m;	Type:	Cutter Suction Dredger;
After-sales Service Provided:	Field installation, commissioning and training;	Certification:	ISO9001;
Warranty:	1 Year;	Draught:	150 cm;
Weight:	180t;	Condition:	New;
Port:	Tianjin Port;	Payment Terms:	L/C,T/T;
Dia. discharge distance:	500mm;	Brand Name:	JinMeng Dredger;
Dredging Depth:	15 m;	After-sales Service Provided:	Engineers available to service machinery overseas;
Name:	China hydraulic Sand cutter suction rive dredger in Bangladesh;

1. Weifang Jin Meng Dredger Co., Ltd.

Weifang Jin Meng Dredger Co.,Ltd. located in Qingzhou, Weifang City, is a manufacturer for suction dredger, work boat and gold dredging equipment,which is specialized in suction dredgerresearching, designing, production and sales.

We have professional R&D department, CAD drawing design center, quality control department and after sales service department. Our company has more than over 500 employees, including 5 professional senior engineers on suction dredger building and researching, 16 designers on suction dredger construction, 8 engineers on quality inspecting and controlling as well as 10 after sales service engineers.

The company is popular recognized by customers for strong technical strength, high quality suction dredger and good after-sale service. At home the suction dredger are sold to dozens of domestic provinces, municipalities and autonomous regions; in abroad the suction dredger are sold to India, Iran, Oman, the United Arab Emirates , Argentina, Colombia, Saudi Arabia, Bangladesh, Egypt, Nigeria, Mongolia, Russia and so on.

2. Suction dredger

The suction dredger we produce is self-propelled or non self-propelled,portable suction dredger. The hull uses dismantle and box-like structure, Its dismantle type can be assembly at working place easily and be transported by road, railway and container accordingly, convenient in installation and working place moving from one to another. The power system can be designed to electric system or diesel engine driving system according to customers’ requirements.Equipment on the suction dredgerare as bellows: traversing device, cutter ladder lifting device, spuds and deck crane. The suction dredger working process is as following: the cutter head cut the sand and mud underwater to mixture of slurry, then through dredging pump to the pipeline on suction dredger; at the end the slurry will be discharged by pipeline on land to the required place.

Functions of suction dredger: dredging river, dredging sand, desilting, reclamation for channels and land, and building roads.

Working site of suction dredger: sea, port, lake, and river.

Soil conditions for suction dredger: relative hard soil, harden sand, sludge, sea sand, river sand, clay, mud, and so on.

3. Specifications for suction dredger

JMD500 rive dredger
Dredging Pump		Dia. Discharge pipe	500mm
		Head	54m
		Max. Working capacity	1050m3/h
		Discharge distance	1500m
Dredging depth		15m
Diesel Engine		895KW	Cummins
Hydraulic Auxiliary engine		298KW	Cummins
Emergency Generator		30KW	Cummins
Total power		1223KW
Oil Consumption		183L/H
Hull Dismension		*LOAWD*	36m×7.9m×2.2m
Hydraulic system	Hydraulic pump	VICKERS America (Joint-venture)
	Hydraulic Motor	Italy SAI technology(Joint-venture)
	Valves	REXROTH Germany (Joint-venture)
	Operating system	SIEMENS PLC(Imported from Germany)
	Ladder winch	Tension	100KN
	Swing winch	Tension	100KN
	Cutter Head	Crown-like	Φ1750mm
		Power	170KW

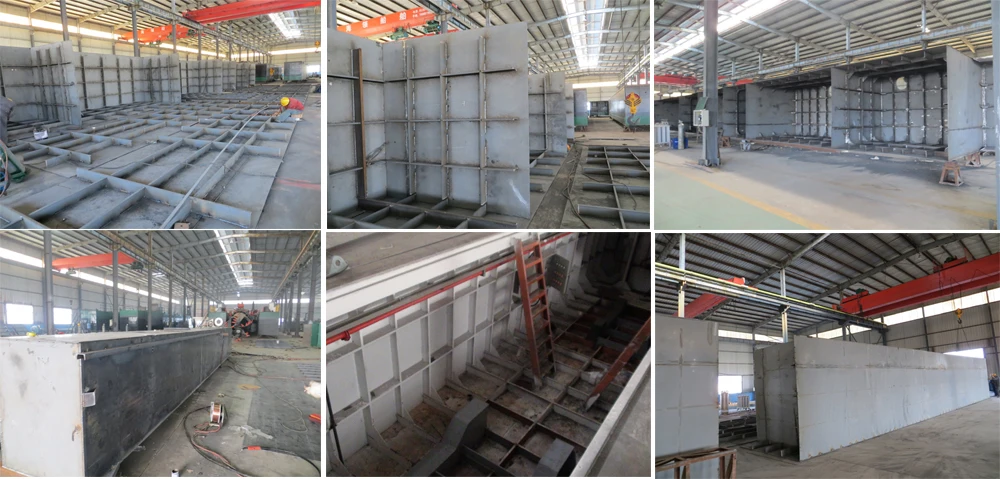

4. Workshops for suction dredger

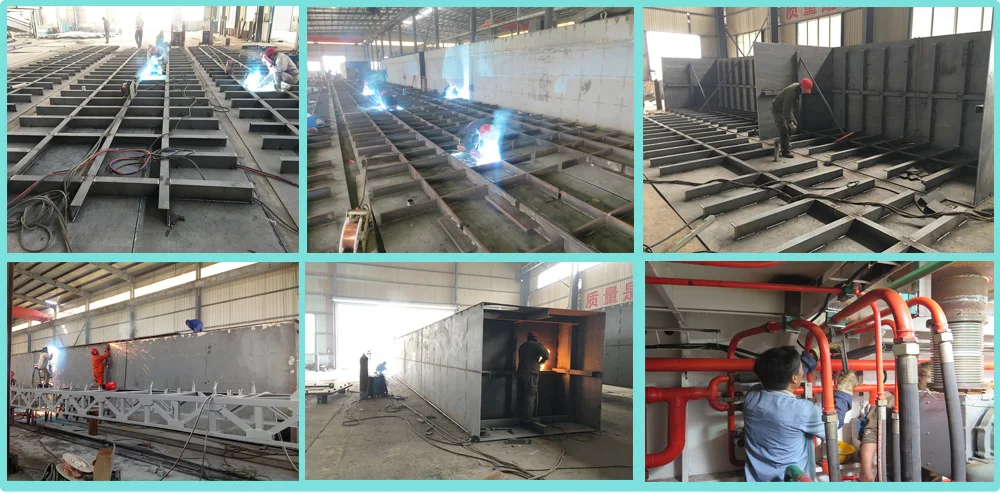

A. Hull Welding

1. Steel plates- Rust removal ,Antiseptic treatment.

2. Carbon-dioxide arc welding and Submerged-arc welding.

3. Tightness test and inspection

B. Deck machinery installation.

C. Main engine and auxiliary engine location installation.

D. Hydraulic system installation.

1. The pickling , phosphating treatment of the hydraulic pipes.

E. The electrical installation

F. The Whole suction dredger test.

5. Suction dredger Test before ex-factory

Each suction dredger must be tested well before delivery, before test we will send the invitations letter to the buyers to invite them and check the suction dredgerperformance by themselives.

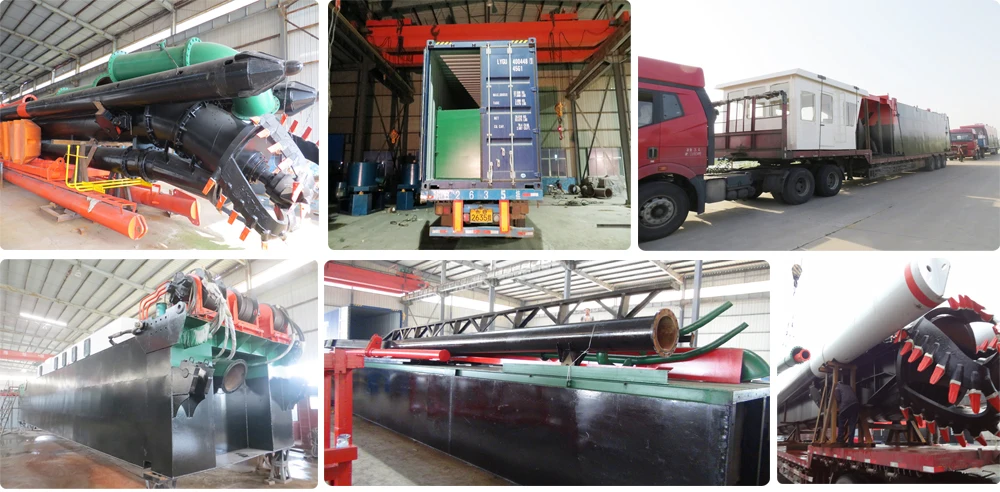

6. Suction dredger transportated by trucks on road

The suction dredger is dismantled, box-like structure, and can be transported easily by trucks on road.

7. Assembly in working sites and engineers are available for overseas service

After suction dredgerarrive at customers' working site, two experienced engineers will be sent within one week.With the assist work of 6-8 native workers, our engineers will finish the suction dredgerassembly work and give some training to the native workers.

8. Customers' Visit to see the suction dredger condition by themselves.

Welcome customers' visit to our factory , cars are available to pick up from train station or airport, we can talk more details of suction dredger face to face.

9. Company culture:

Profession, Innovation, and Integrity
