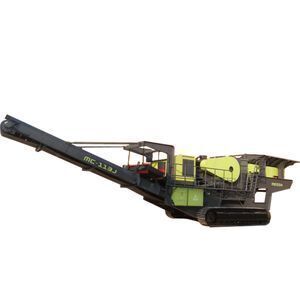

high quality crusher price used mine stone Construction Waste mobile jaw crusher

Click here to contact
Product details
Dimension(L*W*H):15700mm*3200mm*3700mm;Capacity(t/h):500t/h;
Max Feeding:750mm;Bucket capacity:5m3;
Packaging Detail:Nude & Carton & Steel Box in Container;After-sales Service Provided:Engineers available to service machinery overseas;
Port:SHENZHEN;Main thrust height:3200mm;
Place of Origin:Guangxi China (Mainland);Feeding Height:3900mm;
Feeding Capacity:500t/h;Weight:55T;
Application:Mining;Jaw crusher:C113;
Condition:New;Brand Name:MESDA;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Supply Ability:20 Set/Sets per Month;
Walking engine power:80KW;Warranty:1 Year;
Certification:CE ISO9000;Crushing length and width:750mm*1130mm;
Power(W):135kw;Type:Jaw Crusher;
tail thrust height:2300mm;blowdown size:70mm-200mm;
Motor Type:AC Motor;

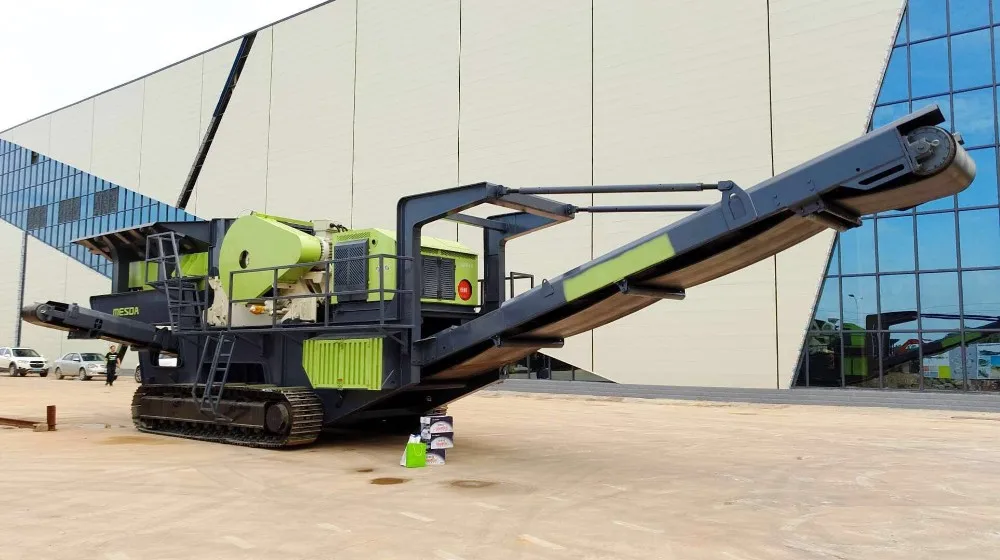

Product Description

When designing the C-type jaw crusher, we have fully considered its wide applicability, it can crush almost any stone.

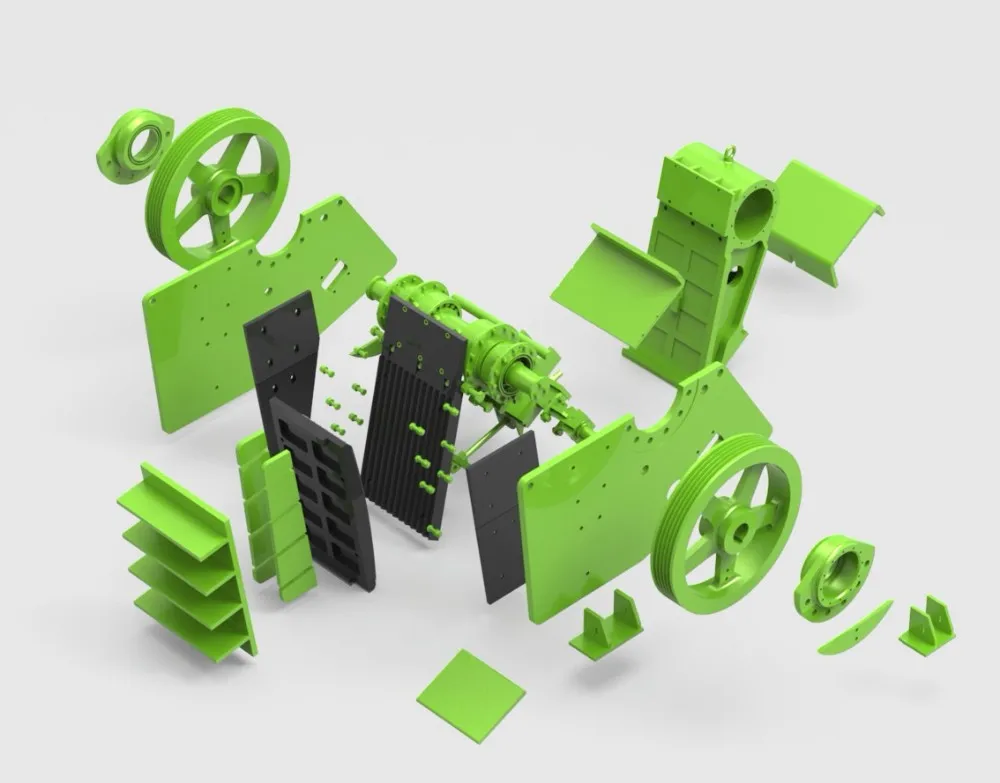

Modular and Weldless Structure

C-type jaw crusher can meet the user's need for continuous work day and night during the service period, but ultimately it needs some maintenance. Due to the use of cast steel components, the crusher can still be easily repaired after many years of operation. The same repair of crushers in other architectures will cost a huge amount of money, and even will be impossible to repair them. The modular, non-welded frame structure ensures excellent durability. The sturdy moving jaw guarantees maximum reliability even in the toughest crushing conditions.

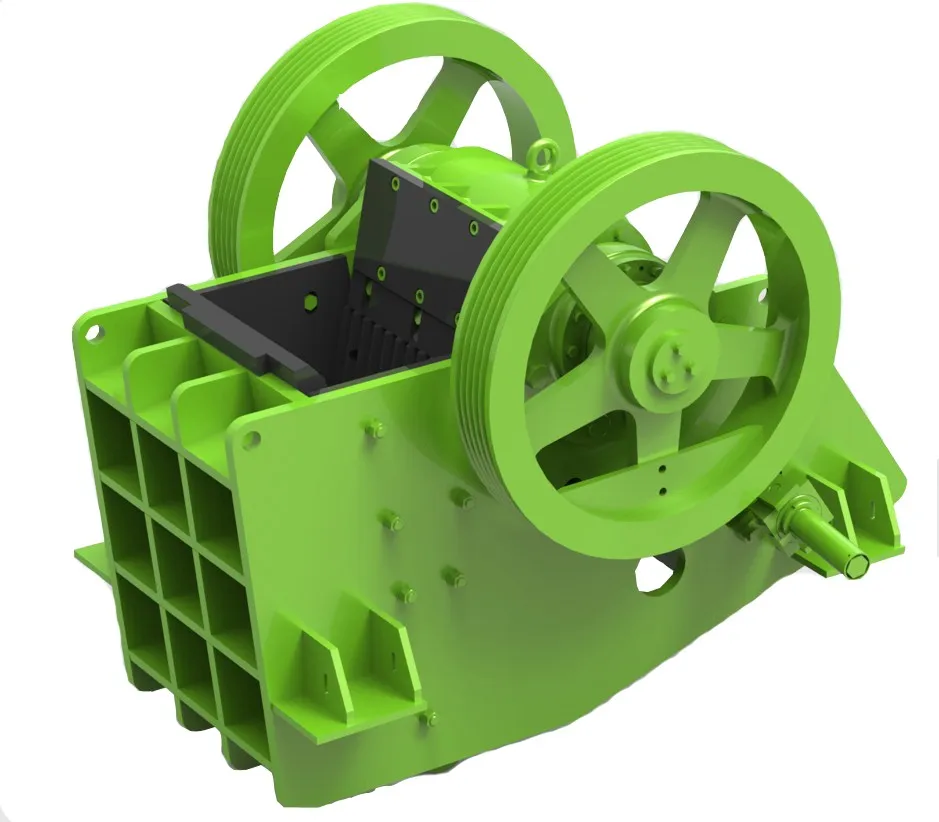

Durable Moving Jaw

Made of high-quality steel castings and driven by two large cast steel or cast iron flywheels. In addition, forged heavy-duty eccentric shafts of four large spherical ball bearings of comparable size give the C-type jaw crusher exceptional reliability. The labyrinth seal protects the bearing grease from contamination.

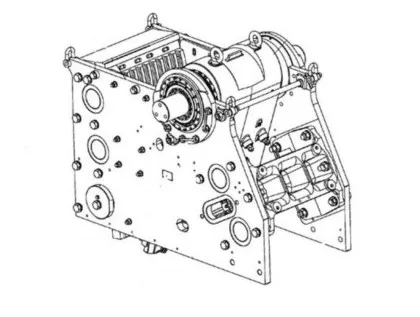

Integrated Steel Casted Bearing Box

The integral cast steel bearing housing ensures complete cooperation with the crushing frame and also avoids unnecessary load on the bearing frame, which is unavoidable in the conventional two-piece bearing housing structure.

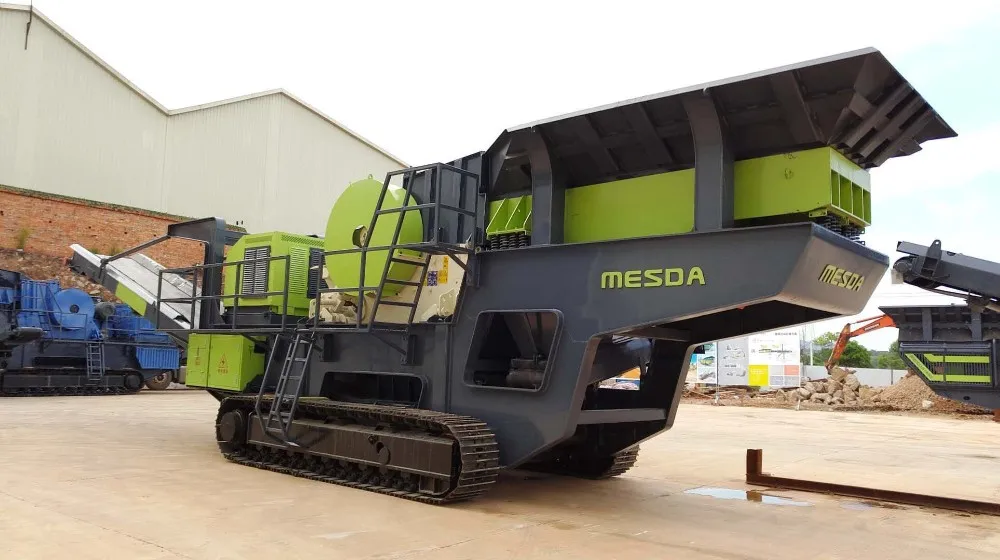

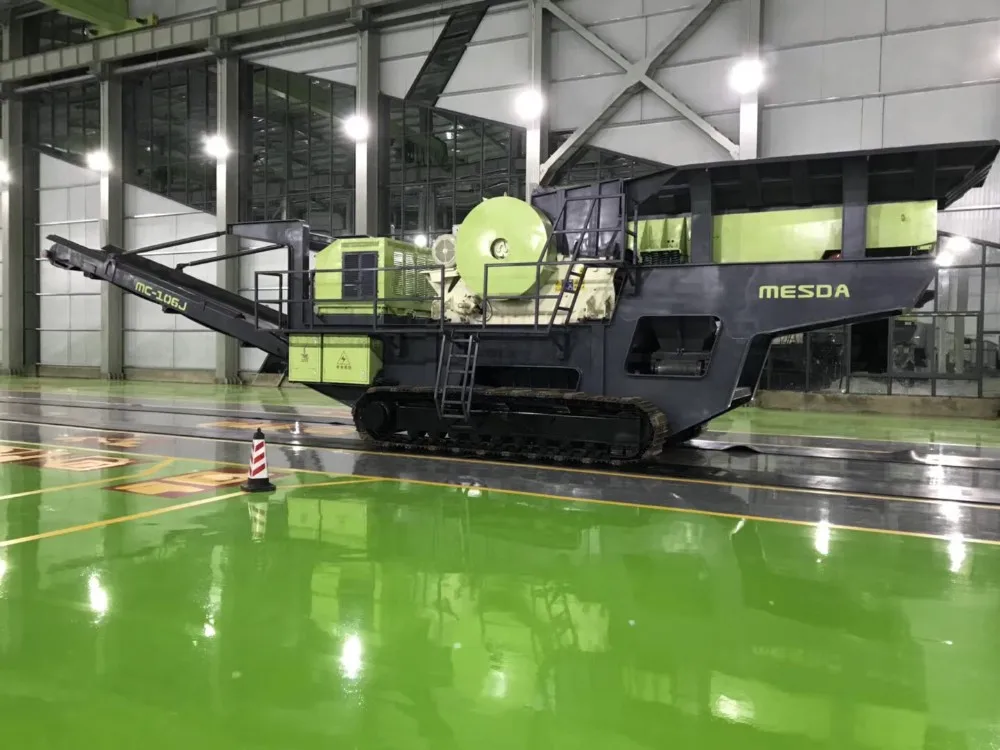

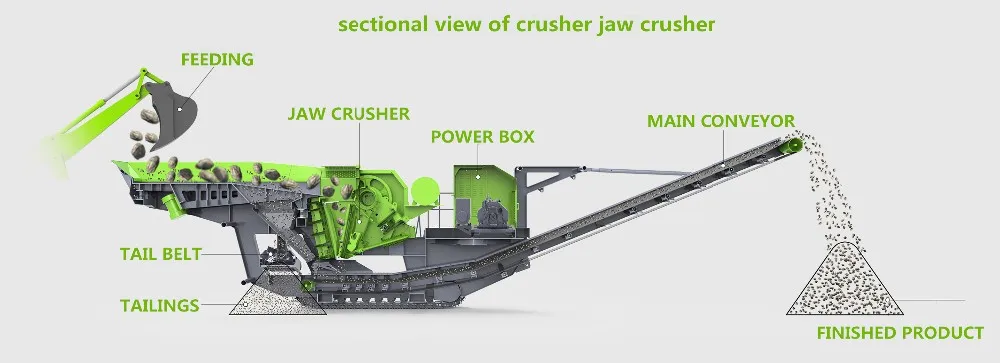

Detailed Images
Feeding Unit
Main discharge conveyor
Feed capacity(t/h)
500t/h
Stacking height (mm)
3200MM
Feed size max(mm)
750mm
Length × width (mm)
1300MM*1000MM
Feed height(mm)
3900mm
Power (kw)
11KW
Hopper capacity(m3)
5m³
Rear discharge conveyor
Vibrating feeder
Stacking height(mm)
2300MM,
Length × width (mm)
3600mm*1000mm
Length × width (mm)
2800MM*500MM
Power (kw)
11kw
Power (kw)
3.7KW
Crusher
Drive
Jaw crusher
C113
Power (kw)
80KW
Crusher inlet width depth(mm)
750mm*1130mm
Total weight(t)
55T
Max feed granularity(mm)
750mm
Processing capacity(t/h)
150-500T/H
Discharge size (mm)
70mm-200mm
Transportation size (m)
15700MM*3200MM*3700MM
Crusher weight(t)
22T
Plant total power(kw)
135KW
Crusher power(kw)
110kw

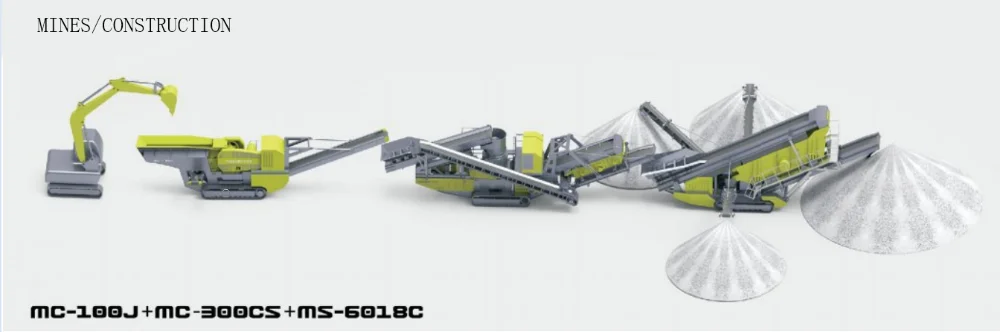

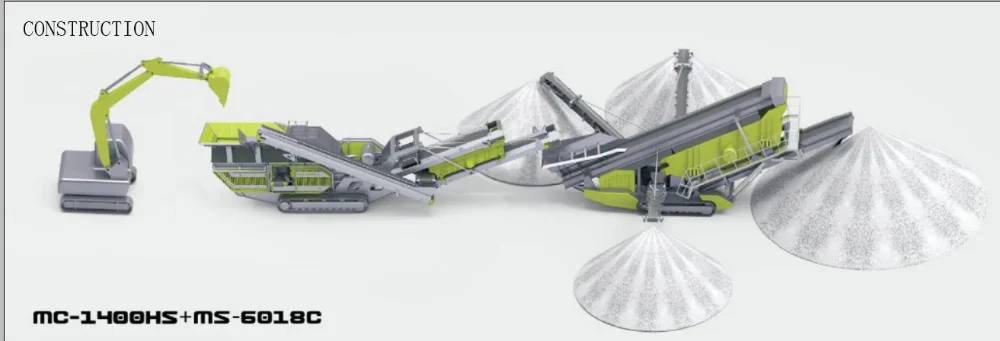

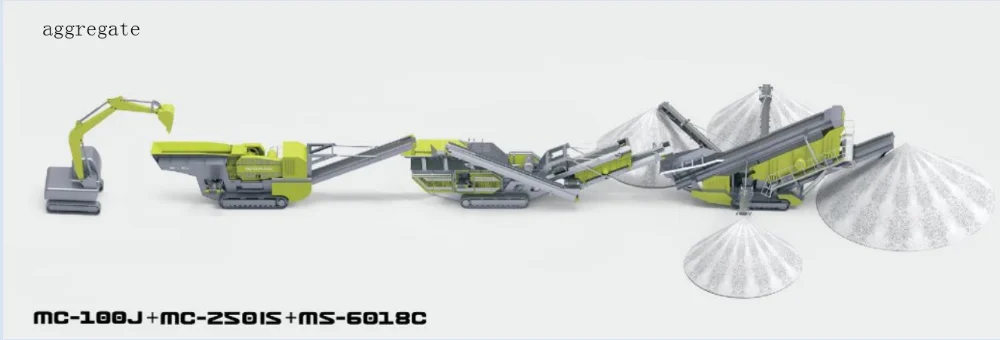

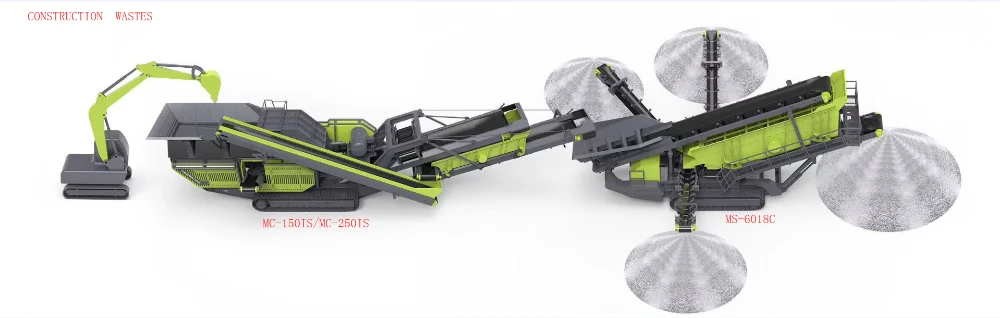

Recommended combination

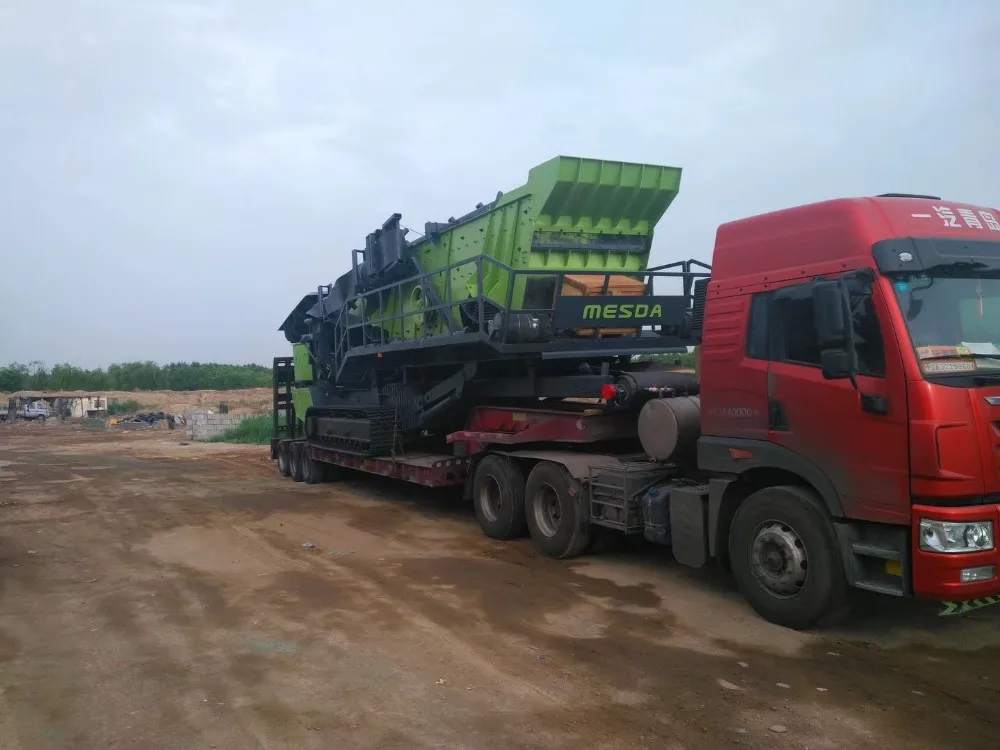

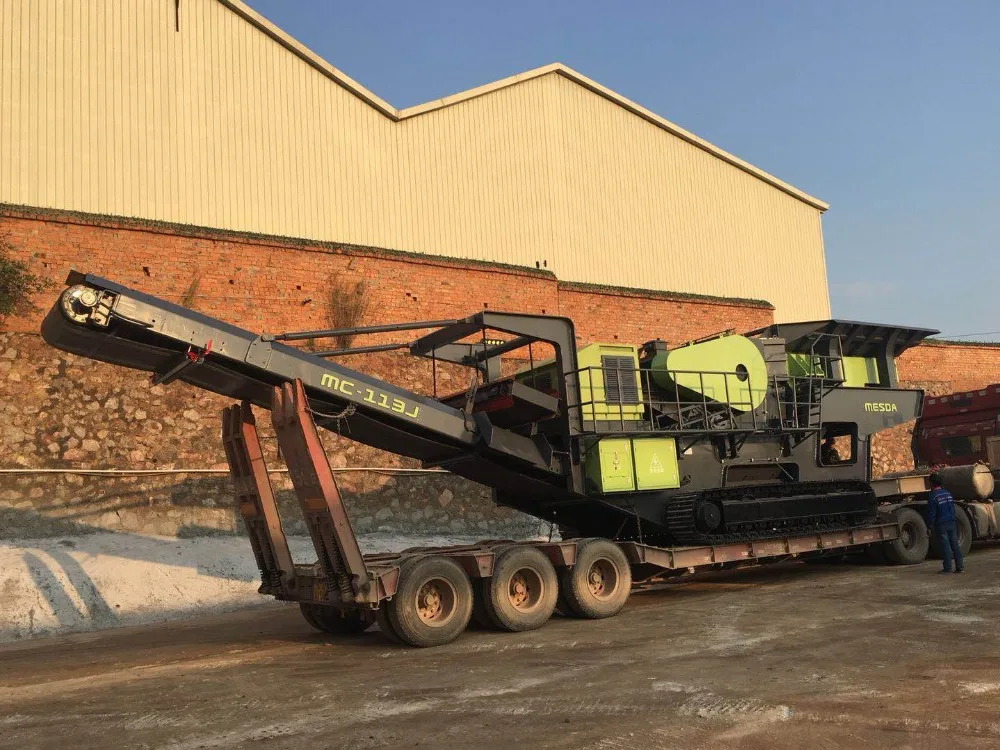

Packing & Delivery
Weight
55T
Siza (L*W*H)(MM)
15700MM*3200MM*3700MM
Packing
Nude & Carton & Steel Box in Container
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* English speaking service available 24*7

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Warranty for 1year ,free parts are available by sea or by air

* Tranining service in factory China or at job site oversea is available

* Customerize of special request of modify is available

About MESDA

If there is a revolution in the field of crushing and screening, it starts from MESDA.


MESDA is always the advocator and prompter of integrated mobile crushing, screening and magnetic separation system. In the past few years, MESDA has been independently developing mobile crushing and screening system by integrating advanced European ideas into domestic situations. Apart from being operated in large scale mines and quarries domestically, MESDA products and solutions have also been exported globally through various channels.


The mobile equipments of MESDA have now become an enormous power, breaking the old tradition of mineral exploitation and promoting a new revolution of mobile crushing and screening.

To achieve this, MESDA has pumped huge resources and capital into the R&D while combing many strong brands. Each brand has been integrated seamlessly into our products.


MESDA Mobile Equipments Applicable to
. processing of aggregates including limestone, granite, basalt and disbase
. crushing and screening of various mines

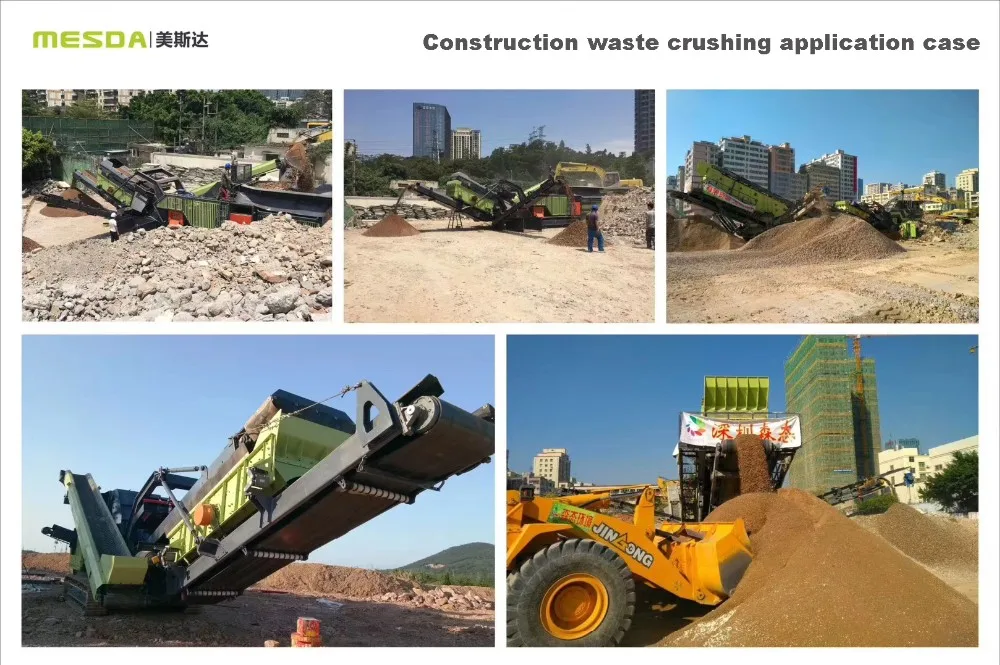

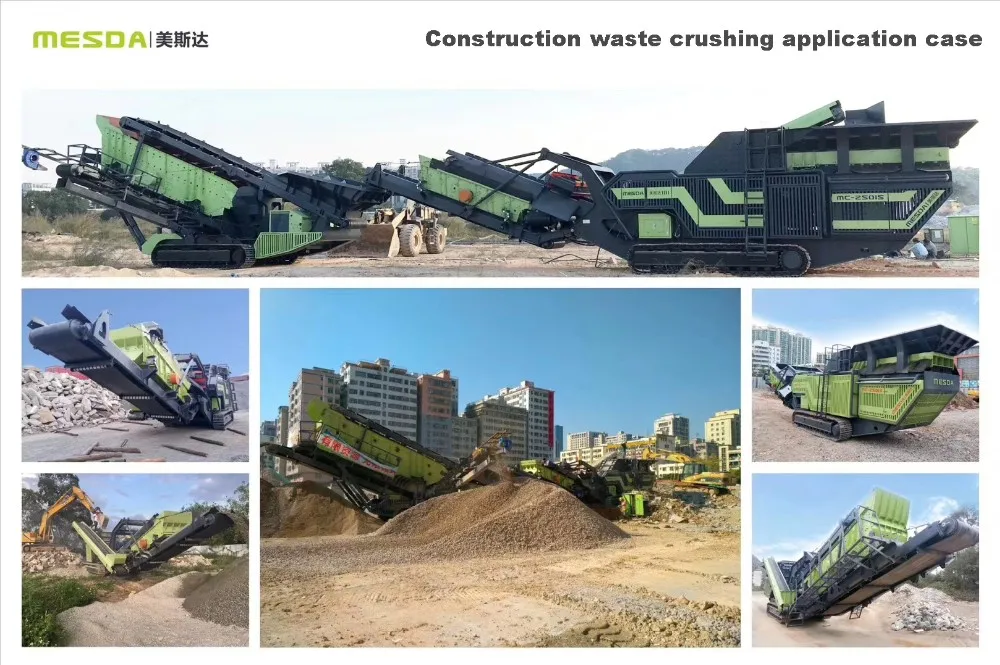

. processing and classification of construction waste

OUR MOTTO

WE OWE GUANGXI A WORLD FAMOUS BRAND!!

FAQ 1
What's the difference between mobile equipment and fixed equipment?
MESDA mobile equipment
Fixed equipment
Need to be solid concrete foundation fixed, investment is large, long cycle, investment based money can not be recovered
Need to be solid concrete foundation fixed, investment is large, long cycle, investment based money can not be recovered
MESDA mobile crusher can quickly enter the production state
Needs a long debugging time
MESDA mobile crushing plant has low production cost and can be moved at any time, reducing construction machinery such as puller
Needs a lot of construction machinery and vehicles, and the production cost is greatly increased
MESDA mobile crushing plant is easy to move and can be quickly put into production at other sites. The environment is adaptable and can be produced at any time and anywhere
The equipment transition is difficult, the process needs to be rectified, all the civil works need to be scrapped, the basic construction is repeated, and the investment is huge
MESDA mobile crushing plant old equipment maintenance (advanced equipment, fast second-hand market, high prices)
Can only be used as a used equipment and sold at a low price
The crawler support equipment can be moved from an uneven floor to a working position. Stable ground does not require additional support equipment
Site preparation requires preparation of a concrete base and a flattened site for the compaction of the rock surface
The output of the entire production line is the same as that of the fixed equipment. The power consumption of the mobile equipment is relatively fixed, and the equipment can reduce the power consumption.
The entire production line has a large capacity
MESDA mobile crushing equipment, power can choose to use dual-use power mode, power source diversity
The power needs to ensure the supply of electricity. In remote areas, it is necessary to build substations or generators to match the use of electric motors
The entire production line requires only 4 people to operate
The entire production line only needs 10 people to cooperate
FAQ 2

What's the difference between tracked mobile crushing plant and vehicle-mounted mobile crushing plant?

MESDA tracked mobile crushing plant
Vehicle-mounted mobile crushing plant
Transition fast
Difficulties in transition
Sites are easy to move on the site, with strong short-range mobile mobility, and powerful equipment
Inconvenient movement on the floor, lack of power, need other machines and heat assistance to move in the field
Heavy crawler chassis, stable and stable work, good stability
Poor stability, tires can not be loaded for a long time when working, often under pressure, hydraulic top will often have problems
Crushing equipment using the newest technology, with light weight, high efficiency, good stability
Crushing equipment still uses old type equipment, bulky and inefficient
The price of equipment is reasonable
The price is not cheap, and the tractor haulage cost of the working platform and equipment transportation is also not low
Transport vehicles can be rented
Tractor traction is not used often, causing vehicle waste
