Custom heights for horizontal wind turbine masts with zinc coating
-
Supplier: Wuxi Smaraad New Energy Technology Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Jenifer Ai -
Price: $433.00 /piece -
Min. Order: 1 piece
Product details
| Surface coating: | galvanized | warranty period: | 5 years |
| Upper mouth diameter: | 150mm | color: | custom made |
| custom made: | Yes | Wall thickness: | 5 mm |
| Accessory Type: | tower pole | Supply capacity: | 100 pieces per month |
| Packaging Details: | Carton/wooden box | Suitable: | Wind turbine |
| Main rod material: | Q235 carbon steel | port: | Shanghai/Ningbo/Guangzhou/Shenzhen |
| payment terms: | L/C, D/P, D/P, T/T | Material: | Stainless steel |
| high: | 6M or customized | Package preview: | |
| brand: | Smarade | Bottom diameter: | 200mm |
We provide: dropshipping/one-stop service/online customization/provide samples
Contact us for free for more services.
product | model | Voltage | type | Turbine Specifications | pole height | Upper mouth diameter | Lower mouth diameter | thickness |
horizontal wind turbine | SH-A1000 | 1KW | A | Blade length 1.4m | 6 meters | 150mm | 200mm | 5 mm |
horizontal wind turbine | SH-A2000 | 2KW | A | Blade length 1.55m | 6 meters | 150mm | 200mm | 5 mm |
horizontal wind turbine | SH-B2000 | 2KW | A | Blade length 1.68m | 6 meters | 160mm | 240mm | 5 mm |
horizontal wind turbine | SH-A2500 | 2.5KW | A | Blade length 1.80m | 6 meters | 160mm | 240mm | 5 mm |
horizontal wind turbine | SH-A3K | 3KW | A | Blade length 1.95m | 8 meters | 200mm | 300mm | 5 mm |
horizontal wind turbine | SH-B3K | 3KW | A | Blade length 2.3m | 8 meters | 200mm | 300mm | 5 mm |
horizontal wind turbine | SH-A5K | 5KW | A | Blade length 2.6m | 8 meters | 200mm | 300mm | 5 mm |
horizontal wind turbine | SH-A10K | S10KW | A | Blade length 2.78m | 10 m | 300mm | 450mm | 6 mm |
horizontal wind turbine | SH-B10K | 10KW | A | Blade length 3.1m | 10 m | 300mm | 450mm | 6 mm |
horizontal wind turbine | SH-A15K | 15KW | A | Blade length 3.8m | 12m | 300mm | 550mm | 8mm |
horizontal wind turbine | SH-A20K | 20KW | A | Blade length 4.5m | 15 meters | 400mm | 700mm | 8mm |
horizontal wind turbine | SH-30KW | 30KW | Man | Blade length 5.8m | 20 meters | 600mm | 1000mm | 10mm |
horizontal wind turbine | SH-50KW | 50KW | Man | Blade length 8.5m | 24m | 600mm | 1200mm | 12mm |
horizontal wind turbine | SH-60KW | 60KW | Man | Blade length 9m | 24m | 600mm | 1300mm | 12mm |
horizontal wind turbine | SH-80KW | 80KW | Man | Blade length 10.5m | 24m | 800mm | 1400mm | 14mm |
horizontal wind turbine | SH-100KW | 100KW | Man | Blade length 11.5m | 24m | 800mm | 1400mm | 14mm |
vertical wind turbine | SH-H2K | 2KW | h | 1550*2800 | 6 meters | 200mm | 300mm | 5 mm |
vertical wind turbine | SH-H3K | 3KW | h | 2000*3600 | 8 meters | 200mm | 300mm | 5 mm |
vertical wind turbine | SH-H5K | 5KW | h | 2200*4200 | 12m | 300mm | 550mm | 8mm |
vertical wind turbine | SH-DH5K | 5KW | h | 3000*5000 | 12m | 400mm | 700mm | 8mm |
vertical wind turbine | SH-H10K | 10KW | h | 3900*6000 | 15 meters | 600mm | 1000mm | 10mm |
vertical wind turbine | SH-H20K | 20KW | h | 4650*7000 | 20 meters | 800mm | 1200mm | 12mm |
vertical wind turbine | SH-H30K | 30KW | h | 5780*10000 | 24m | 600mm | 1300mm | 12mm |
vertical wind turbine | SH-H50K | 50KW | h | 6650*15000 | 24m | 800mm | 1400 mm | 14mm |
vertical wind turbine | SH-DH50K | L50KW | h | 8000*18000 | 24m | 800mm | 1400mm | 14mm |
vertical wind turbine | SH-Q1K | 1KW | ask | 1500*1700 | 6 meters | 160mm | 240mm | 5 mm |
vertical wind turbine | SH-Q2K | 2KW | ask | 2500*2410 | 6 meters | 200mm | 300mm | 5 mm |
vertical wind turbine | SH-Q3K | 3KW | ask | 3000*2890 | 8 meters | 200mm | 300mm | 5 mm |
vertical wind turbine | SH-Q5K | 5KW | ask | 3200*3200 | 12m | 300mm | 550mm | 8mm |
vertical wind turbine | SH-Q10K | 10KW | ask | 4000*4500 | 12m | 400mm | 700mm | 8mm |
feature
1. The material is stable Q235 carbon steel.
2. Customized size and standard size for you.
3. One-stop procurement of wind turbines.
Poland project
Australia project
Indian project
high quality
Application Scenario
generator core
1. Q: Is the system easy to install?
A: It's easy, every customer can do it by themselves, we will provide you with all installation components and a very detailed manual. If you are still in doubt, our technicians are on hand to support you via video to make sure there are no connection errors.

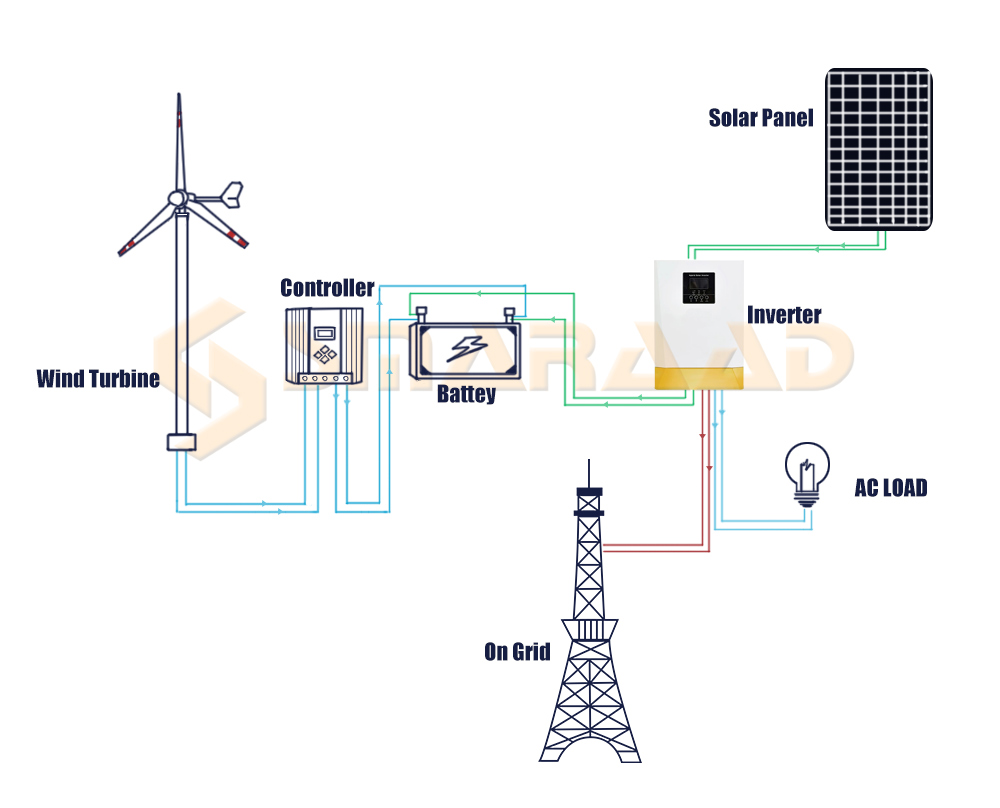

2.Q: What is the distance between the fan, controller and battery?
A: Generally, it is better within 10m from the fan to the controller, and within 20-50m from the controller to the battery, and the battery and inverter to the load.
3.Q: Horizontal axis wind turbine VS vertical axis wind turbine, which one is more efficient?
A: For the same wind speed and the same power, the output efficiency of the horizontal axis wind turbine is higher than that of the vertical axis wind turbine. But if your wind speed is very low, we recommend you to use our vertical SS type. If your wind speed exceeds 8m/s, the efficiency of our vertical wind turbines is also around 80-90%. No noise is the most welcome point.
4. Q: Is our wind enough for wind turbines?
A: Please contact our sales and provide the following information:
1. What equipment will the system run on? How many watts they have and how long they work.
2. Your annual average wind speed. You can look up your exact website on google
3. What kind of system do you want? On-grid or off-grid?
5. Q: Can I buy a complete wind and solar system from you?
A: Of course, Smaraad is a one-stop energy solution provider, we have a team of qualified technicians to design the system for you, including wind turbines, solar panel systems and storage systems, we will provide clear installation instructions, you only need Have a technician come and install it for you. For most parts, we have warehouses in Poland, Russia, Spain and the USA.
6. Q: Do your products have CE certification?
A: Of course, our products have been sold to more than 40 countries, and our products have been approved by local regulations and tested for very good function.
7. Q: What is the delivery date for each model?
A: Usually for wind turbines below 1kw, we have stock in China or our warehouse in EU, Russia, so delivery can be made within 1-3 days after payment received
8. Q: Can we be your agent or distributor?
A: Please discuss this with our sales, our company warmly welcomes more partners to join us, but you must double check some areas where we already have agents.
A: It's easy, every customer can do it by themselves, we will provide you with all installation components and a very detailed manual. If you are still in doubt, our technicians are on hand to support you via video to make sure there are no connection errors.
2.Q: What is the distance between the fan, controller and battery?
A: Generally, it is better within 10m from the fan to the controller, and within 20-50m from the controller to the battery, and the battery and inverter to the load.
3.Q: Horizontal axis wind turbine VS vertical axis wind turbine, which one is more efficient?
A: For the same wind speed and the same power, the output efficiency of the horizontal axis wind turbine is higher than that of the vertical axis wind turbine. But if your wind speed is very low, we recommend you to use our vertical SS type. If your wind speed exceeds 8m/s, the efficiency of our vertical wind turbines is also around 80-90%. No noise is the most welcome point.
4. Q: Is our wind enough for wind turbines?
A: Please contact our sales and provide the following information:
1. What equipment will the system run on? How many watts they have and how long they work.
2. Your annual average wind speed. You can look up your exact website on google
3. What kind of system do you want? On-grid or off-grid?
5. Q: Can I buy a complete wind and solar system from you?
A: Of course, Smaraad is a one-stop energy solution provider, we have a team of qualified technicians to design the system for you, including wind turbines, solar panel systems and storage systems, we will provide clear installation instructions, you only need Have a technician come and install it for you. For most parts, we have warehouses in Poland, Russia, Spain and the USA.
6. Q: Do your products have CE certification?
A: Of course, our products have been sold to more than 40 countries, and our products have been approved by local regulations and tested for very good function.
7. Q: What is the delivery date for each model?
A: Usually for wind turbines below 1kw, we have stock in China or our warehouse in EU, Russia, so delivery can be made within 1-3 days after payment received
8. Q: Can we be your agent or distributor?
A: Please discuss this with our sales, our company warmly welcomes more partners to join us, but you must double check some areas where we already have agents.
