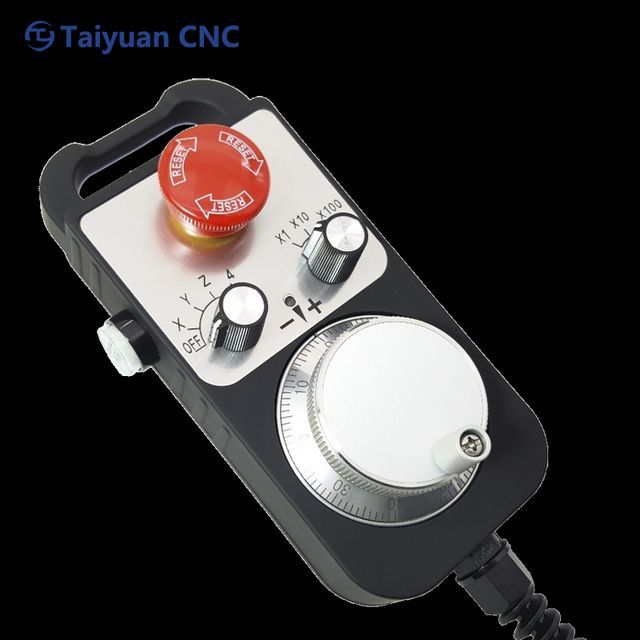

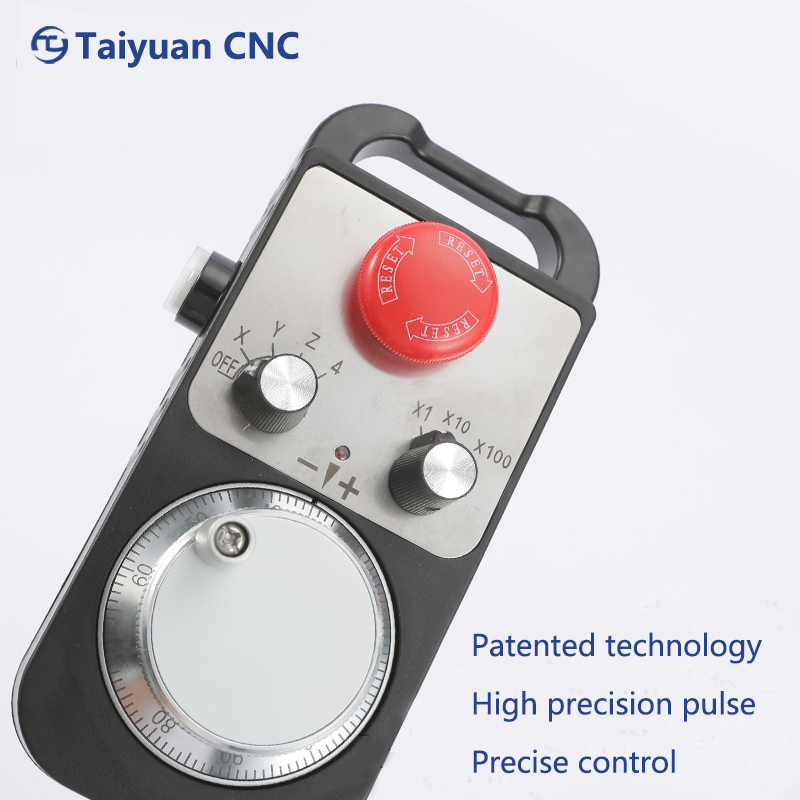

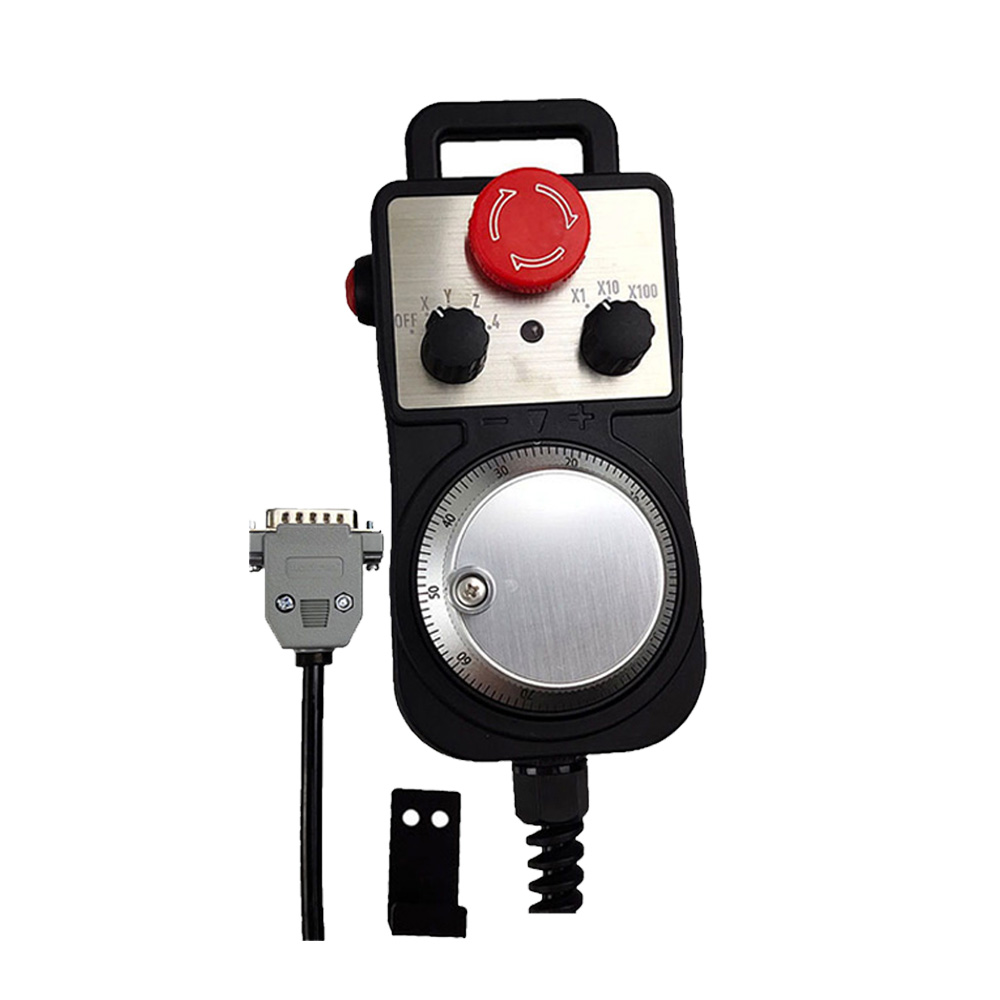

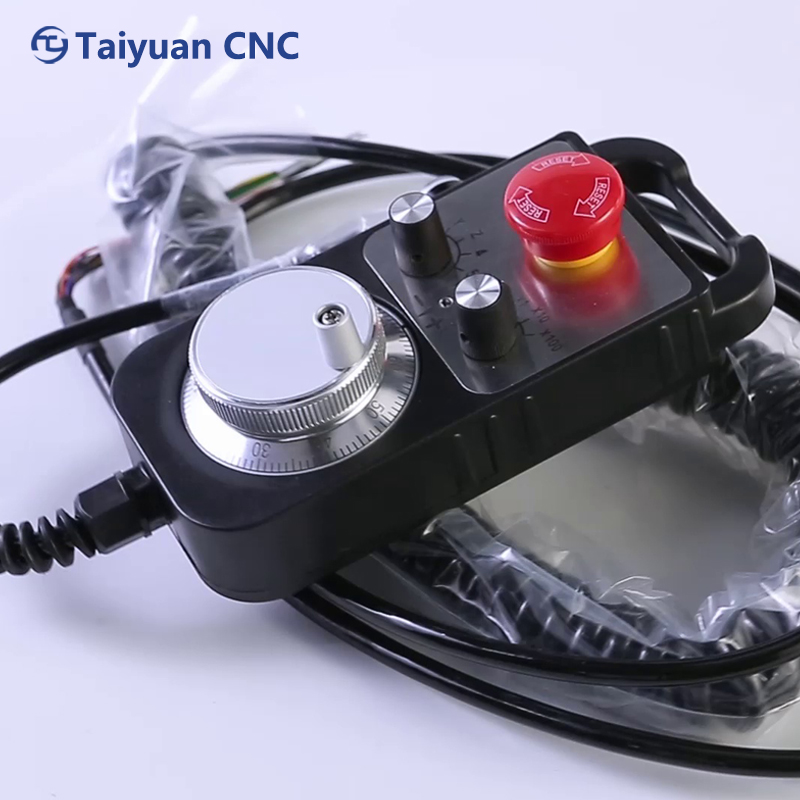

Wide Application Easy to Operate Pendant Mpg/Cnc Hand Wheel Manual Pulse Generator for Laser Processing Machine
-
Supplier: Guangzhou Taiyuan Numerical Control Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Jackly Li -
Price: $56.00 / 1 - 9 pieces
$53.00 / 10 - 29 pieces
$46.00 / >=30 pieces -
Min. Order: 1 piece
Product details
| Package preview: | Gross weight per piece: | 1.500 kg | |
| Line length: | 4.5m | Output form: | Voltage |
| Sales unit: | single product | Operating temperature: | -10~+60℃ |
| After-sales service provided: | online support | style: | hard |
| Core components: | Pulse, hand wheel encoder | Origin: | Guangdong, China |
| Showroom location: | not any | Video shipment inspection: | if |
| usage: | position sensor | axis: | 4 |
| MOQ: | 1 | Mechanical test report: | not available |
| application: | FANUC Siemens Mitsubishi | Voltage: | 5v/12v/24v |
| Health status: | new | Weight (kg): | 1.5 |
| Material: | plastic | Applicable industries: | Manufacturing plants, machine repair shops, CNC machine controllers, milling machines |
| After warranty service: | online support | Packaging Details: | 1. Put the foam board into the packaging box, 2. Wrap the product tightly with a bubble bag, 3. Put the packaged product into the foam box and fill it up, 4. Cover the top with double-layer foam board, 5. , Seal the product and paste the order to ship, 6, We use wooden case for heavier products |
| Single package size: | 30X18X10 cm | Marketing Type: | normal product |
| Warranty: | 1 year |
output circuit | Open collector output | voltage output | Push-pull complementary output | driver |
voltage | 5~26V | 5~26V | 5±0.25 5~26V | 5±0.25 5~26V |
current consumption | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
load current | 40mA | 40mA | 40mA | 60 mA |
output high | Minimum Vcc*70% | Minimum Vcc-2.5V | Minimum Vcc-1.5V | Minimum 3.4V |
output low | 0.4V max | 0.4V max | 0.8V max | 0.4V max |
Rise time Tr | Maximum 1us | Maximum 1us | Maximum 1us | 200ns max |
Fall time Tf | Maximum 1us | Maximum 1us | Maximum 1us | 200ns max |
highest frequency response | 10kHz | 10kHz | 10kHz | 10kHz |
Maximum speed r/min | starting torque | shaft load | Influence | Anti-vibration |
6000 | <0.05nm | Radial 25 N Axial 15 N | 50G/11ms | 10G 10-2000Hz |
moment of inertia | Operating temperature | Storage temperature | protection level | weight |
4 x 10.-8kgm² | -25~75℃ | -25~85℃ | IP50 | 250 grams |
Title here.
Wide application, easy to operate pendant Mpg/Cnc handwheel manual pulse generator for laser processing machines
