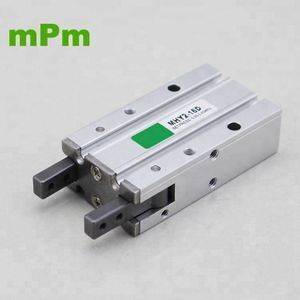

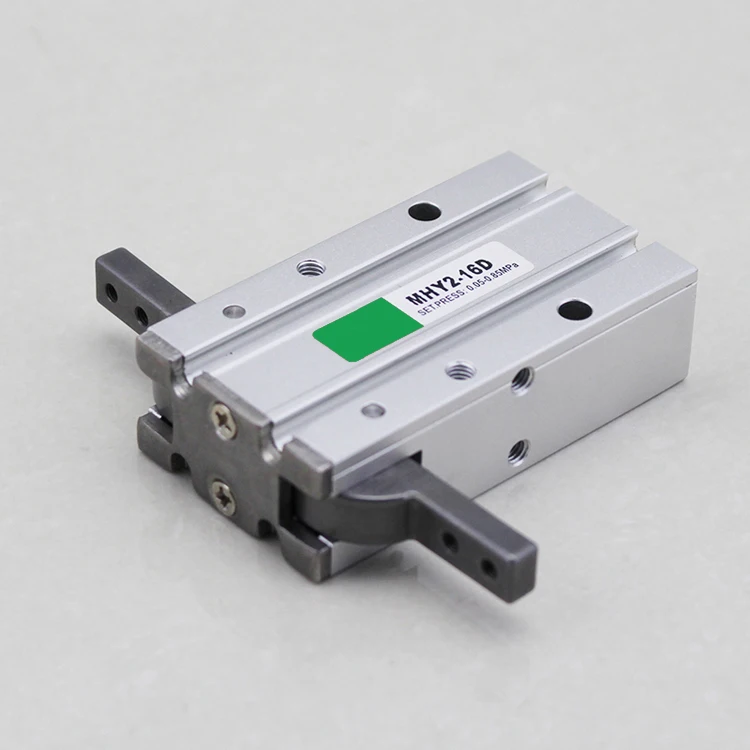

Finger Cylinders MHY2-16D 180 Degree Clamping Air Cylinder Pneumatic Gripper

Click here to contact

Product details

Body Material:	Aluminum;	Model Number:	MHY2-16D;
Supply Ability:	100000 Piece/Pieces per Month pneumatic gripper;	Working Pressure:	0.1~0.6Mpa;
Place of Origin:	Zhejiang China (Mainland);	Working angel:	180° open side, -3° close side;
Clamp force torque:	0.16N.m;	Port Size:	M5 x 0.8;
Shaft Diameter:	16mm;	Packaging Detail:	Finger Cylinders MHY2-16D 180 Degree Clamping Air Cylinder Pneumatic Gripper ; Each finger cylinder packed in a box then in a strong carton.;
Standard or Nonstandard:	Standard;	Product name:	MHY2-16D finger cylinder;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Power:	Pneumatic;
Brand Name:	MPM;	Maximum Stroke:	As required;
Working Temperature:	-10~60℃;	Port:	Shanghai or Ningbo;
Lubricant:	No need;	Structure:	Air Gripper;
Action:	Double Action;	Fluid:	Filtered compressed air;

Finger Cylinders MHY2-16D 180 Degree Clamping Air Cylinder Pneumatic Gripper

Product Description

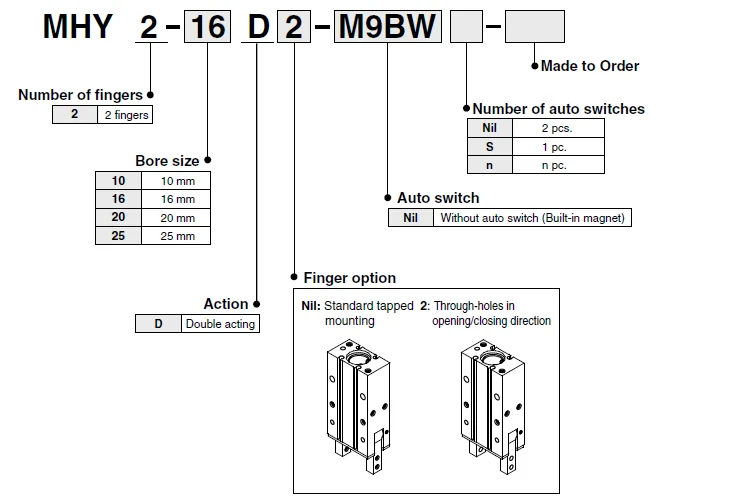

Model

Fluid			Air
Operating pressure			0.1 to 0.6 MPa
Ambient and fluid temperature			-10 to 60℃
Repeatability			±0.2 mm
Max. operating frequency			60 c.p.m.
Lubrication			Not required
Action			Double acting
Auto switch (Option)			Solid state auto switch (3-wire, 2-wire)

Specification

Model	Bore Size (mm)	Thread Size	Clamping Force Torque (N.m) (Note 1)	Working Angle (Both Sides)		Opening Weight (g)
				Opening Side	Closing Side
MHY2-10D	10	M5x0.8	0.16	180°	-3°	70
MHY2-16D	16	M5x0.8	0.54			150
MHY2-20D	20	M5x0.8	1.1			320
MHY2-25D	25	M5x0.8	2.28			560

Note 1: At the pressure of 0.5Mpa.

Note 2: Weight excluding auto switch.

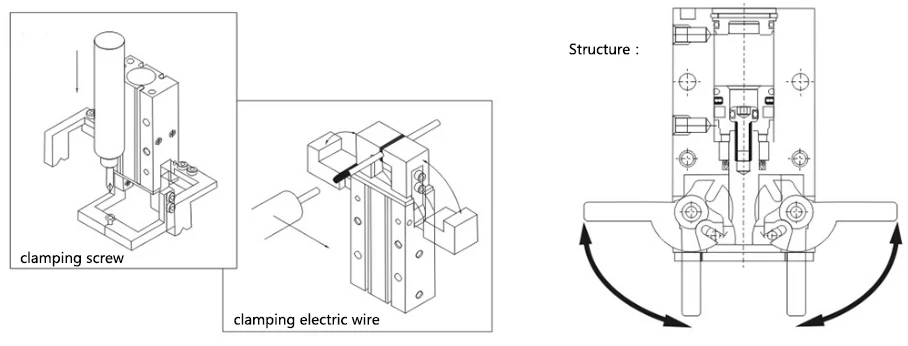

Applications & Structure

Related Products

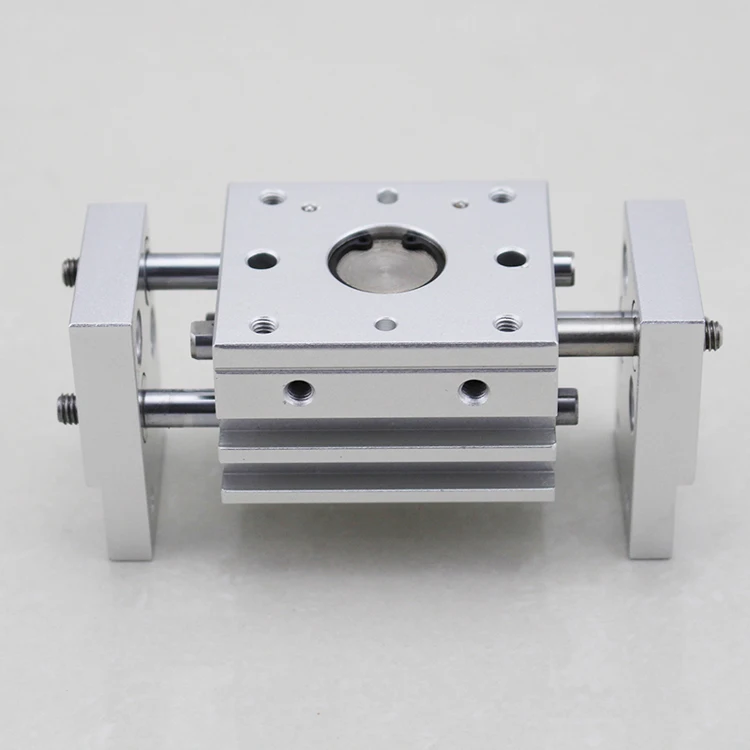

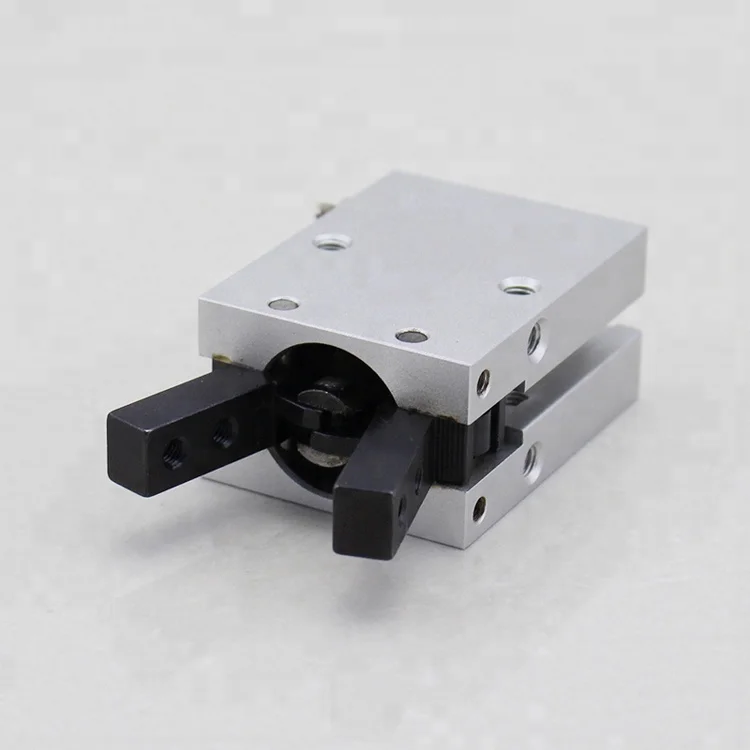

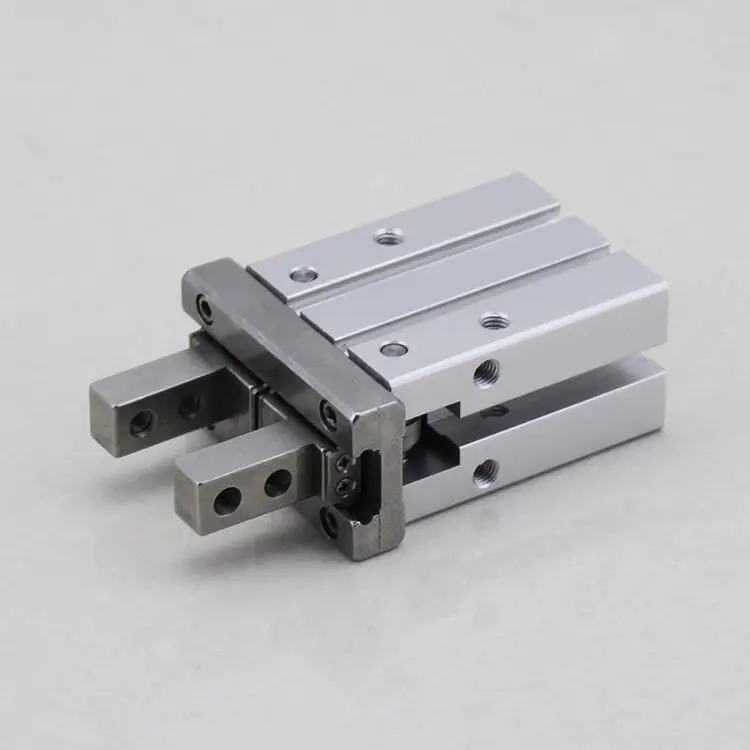

MHZ2		MHC2		MHY2		MHL2
