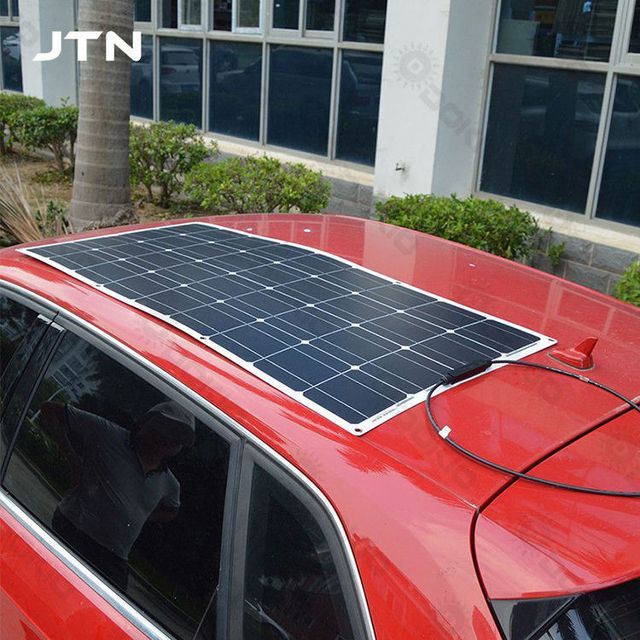

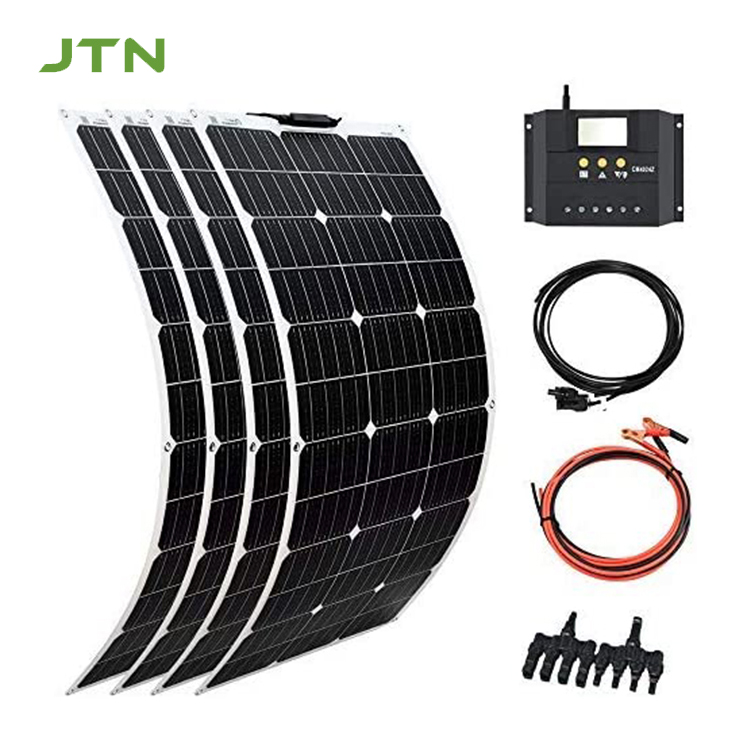

Solar charging small system kit 500w car off grid solar power system

Supplier: Shenzhen JTN Solar Energy Co., Ltd.
Region: Guangdong, China
Contact: Mr Hao Luo
Price: $0.15 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

work:	3 years warranty	Solar battery:	single crystal
Supply capacity:	5,000,000 pieces per month	weight:	2KG
Panel size:	11755403mm	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Unit size:	125mmx125mm	Package preview:
Size(CM):	220643	support:	OEM/Design and Manufacturing

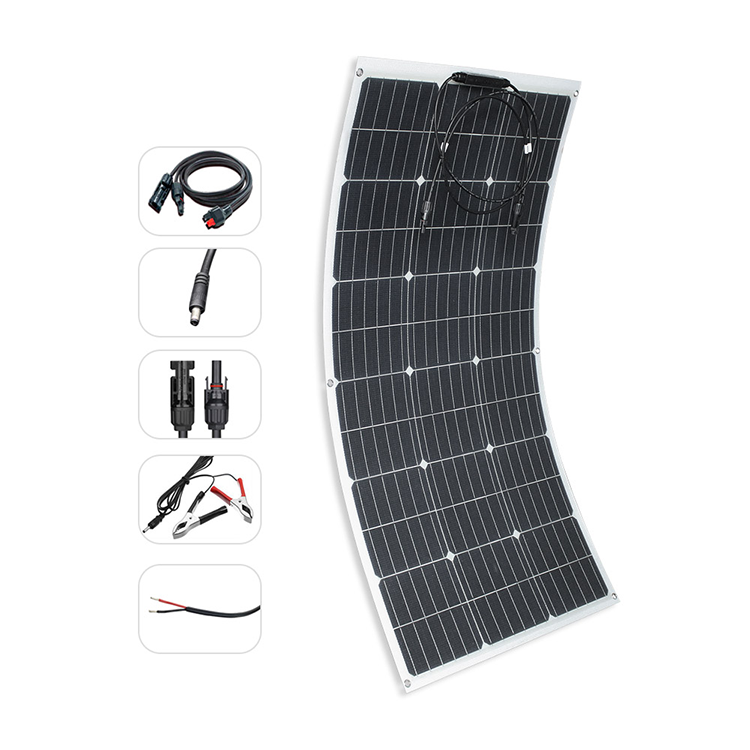

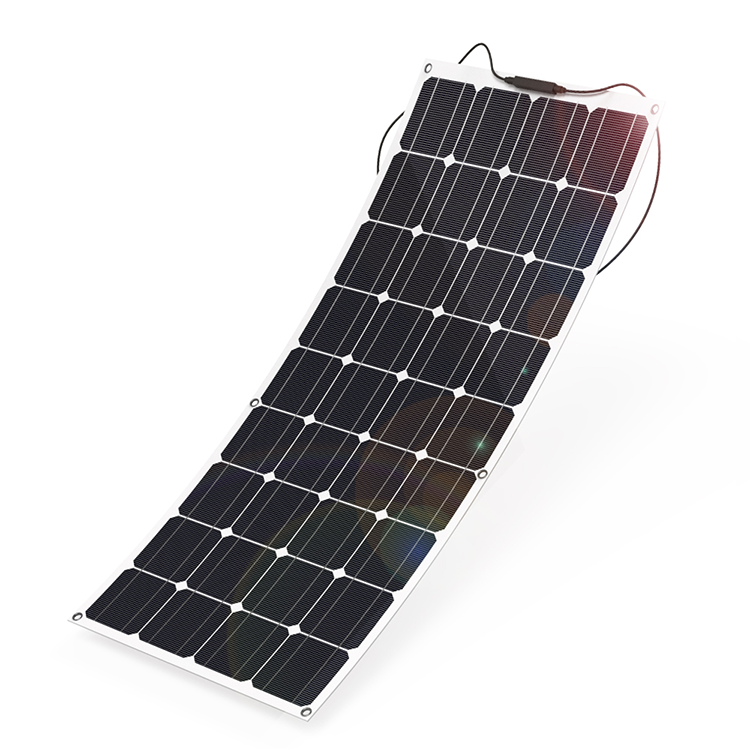

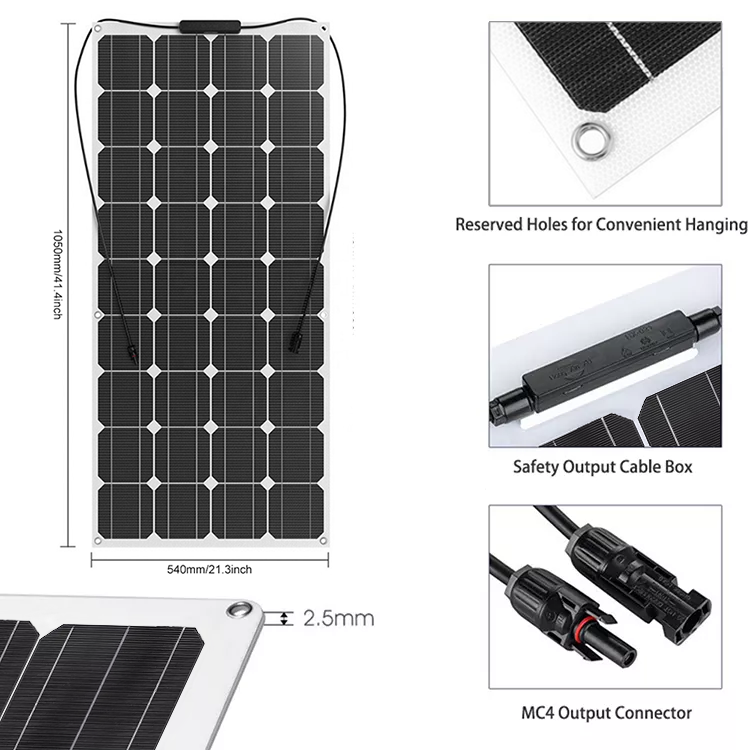

Panel Efficiency:	19-22.5%	product name:	flexible solar panels
brand:	OEM, JTN	port:	Shenzhen

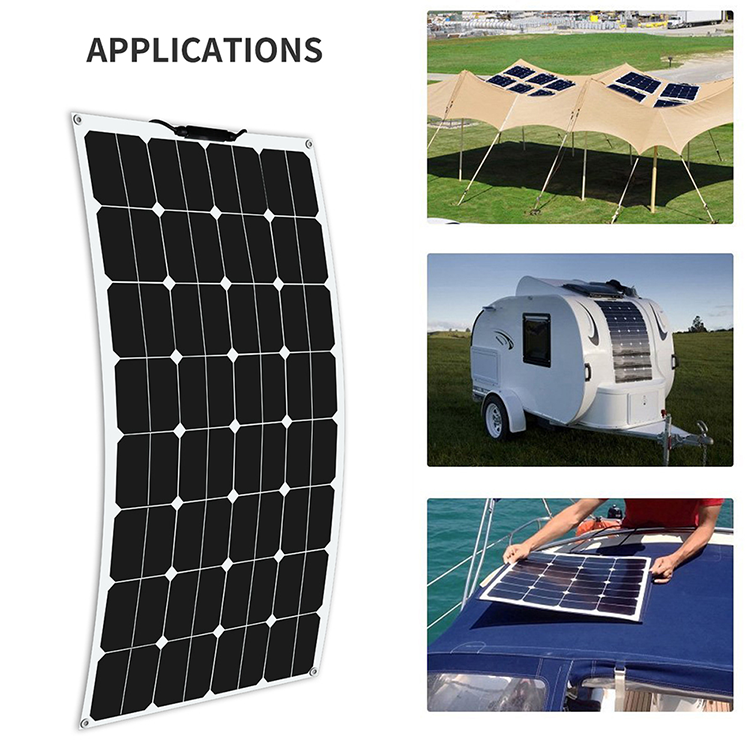

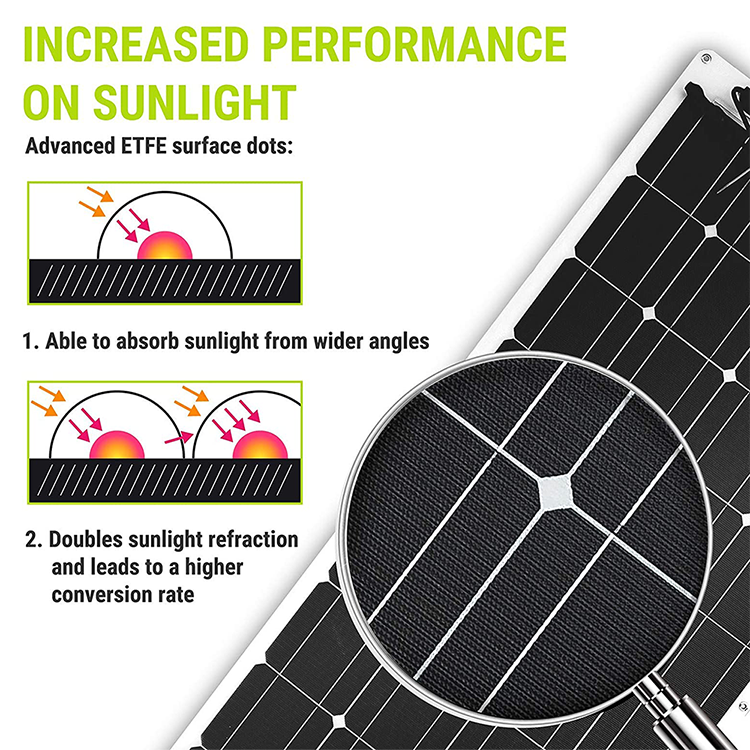

Surface material:	PET/ETFE/glass	application:	Home Commercial Solar System
waterproof:	IP65	Packaging Details:	Solar charging small system kit 500w car off grid solar power system
Origin:	Guangdong, China	model:	JTN-M500W-B

High Efficiency Solar 220V 800W 1000W 2000W Photovoltaic Module Semi-Flexible Solar Panel System

Product Description

Model	JTN-(XXX)WB(XXX)=Pmax/W						JTN-(XXX)WB(XXX)=Pmax/W
Maximum power (Pmax/W)	100	150	160	200	250	300
Open circuit voltage (Voc/V)	21.6	32.14	21.6	43.4	33.33	39.3
Short circuit current (Isc/A)	6.1	6.1	9.7	6.1	9.9	10.08
Maximum supply voltage (Vmp/V)	18	26.8	18	36.2	27.8	32.75
Maximum power current (Imp/A)	5.6	5.6	8.9	5.5	9	9.16
Solar Panel Efficiency (%)	19.8-22.5%						19.8-22.5%
Power Tolerance (W)	0~+5W						0~+5W
standard test environment	Irradiance 1000w/m2, ambient temperature 25°C, spectrum AM 1.5

Model	JTN-(XXX)WB(XXX)=Pmax/W
Maximum power (Pmax/W)	350	400	500	customizable
Open circuit voltage (Voc/V)	66.67	68.57	81.1	/
Short circuit current (Isc/A)	6.93	7.7	8.14	/
Maximum supply voltage (Vmp/V)	55.56	57.14	67.57	/
Maximum power current (Imp/A)	6.3	7	7.4	/
Solar Panel Efficiency (%)	19.8-22.5%	19.8-22.5%	19.8-22.5%	19.8-22.5%
Power Tolerance (W)	0~+5W
standard test environment	Irradiance 1000w/m2, ambient temperature 25°C, spectrum AM 1.5

Q: Are you manufacturer or trading company?

A: We are manufacturer with more than 10 years experienceAnd can control the quality and delivery time of the produced goods.

Q: What kind of certificates do you have for your products?
A:CE,FCC,RoHS,PSE,MSDS

Q: What is the MOQ of your products?
A:No MOQ requirement.If you need to do OEM and ODM, we offer you a small MOQ for each item, it depends on your specific order!

Q: How about your delivery time?
A: Generally, our stock products will be in1-3 days after payment received. Finally depends on the order quantity.

Q: What's your warranty?
A:All of our products will be 100% tested before shipping. Warranty 2 years.

Q: What is the payment method?
A: We accept payment methodsT/T, credit card, Alibaba platform, Western Union, etc.
