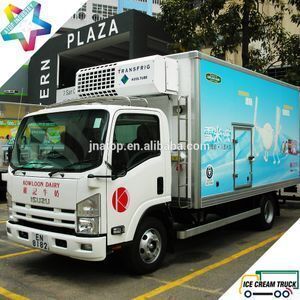

ColdKing 4.8m length ice cream truck body for NPR chassis Kooltube eutectic truck refrigeration units ice cream truck for sales

Click here to contact
Product details
Truck Refrigeration Units:Over-Cab Mounted Kooltube Eutectic Refrigeration Unit;Ice Cream Truck Body Inner Dimension:4580mm(L) x 2040mm(W) x 1890mm(H);
Ice Cream Truck Chassis Engine:4HK1-TCG40 5.2 L 139Kw (190Ps) 510Nm;Dimensions (L x W x H) (mm):6900mm(L) x 2320mm(W) x 3200mm(H);
Payment Terms:L/C,T/T;Horsepower:150 - 250hp;
Model:AJC480-1SD-1RED-IC1;Condition:New;
Ice Cream Truck Body Inside Volume:17m3;Fuel Type:Diesel;
Suitable Truck Chassis:For Isuzu NPR 700P/NQR, Chevrolet NMR85, Mitsubishi Canter FE;Delivery Detail:Shipped in 30 days after payment;
Temperature Range:-25C to -40C;Compressor Cooling Capacity:3,755W (-40℃), 8,535W(-25℃);
Gross Vehicle Weight:9000;Box Dimensions (L x W x H) (mm):4800mm(L) x 2250mm(W) x 2100mm(H);
Transmission Type:Manual;Port:Shenzhen Port, China;
Brand Name:COLDKING;Emission Standard:Euro 4;
Packaging Detail:One 40HC loaded 2 units of ice cream truck body inside;Supply Ability:30 Unit/Units per Month;
Ice Cream Truck Chassis:NPR 700P 3815mm Wheelbase;Truck Refrigeration Units Temperature:-40C To -25C;
Side Door:1 Set of 580mm(W) x 1100mm(H) Single Opening;Place of Origin:China;
Rear Door:900mm(W) x 1800mm(H) Single Opening;
Ice Cream Truck
Ice Cream Truck Brand
ColdKing
Ice Cream Truck Model
AJC320IC1-2SD-2RD
Ice Cream Truck Outer Size
5,000mm(L) × 1,900mm(W) × 2,800mm(H) ice cream truck for sales
Ice Cream Truck Body Outer Size
3,200mm(L) × 1,850mm(W) × 1,900mm(H) ice cream truck for sales
Ice Cream Truck Body
Ice Cream Truck Body
Key Features
ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Ice Cream Truck Body Outer Size
4.8m(L) x 2.2m(W) x 2.0m(H)
eutectic ice cream truck body
Ice Cream Truck Body Inner Size
4.59m(L) x 1.99m(W) x 1.79m(H)
eutectic ice cream truck body
Roof/Floor Panel
105mm Thickness
Side Wall Panel
105mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
105mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
1 (One) Set
Side Door Location
1 Set On Left
Side Door Type
Single Opening
Side Door Size
600mm(W) x 900mm(H)
Rear Door Type
800mm(W) x 1,600mm(H) Vertical Double Opening Rear Door ice cream truck for sales
Truck Body Flooring
Reinforced Floor Covered With 3.0mm Thickness Aluminum Checkered Plate
Ceiling Light
ice cream truck body
4 (Four) Sets of 12/24V Multi-Voltage LED
Marker Light
ice cream truck body
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
ice cream truck body
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
ice cream truck body
European Standard -40C PVC Strip Curtain System For Side & Rear Doors

Refrigeration Unit Service Ladder
Stainless Steel
ice cream truck body
Refrigeration Unit      Service Platform
Stainless Steel + Aluminum Chekered Plate

Lock Set With Internal Release Device

Optional lock set with internal release device for emergency inside opening for side door and rear door

Aluminum Flooring ice cream truck body

Reinforced Floor Covered With 3.0mm Thickness Aluminum Checkered Plate ice cream truck body

Customized Size Rear Door

Customized vertical double opening rear door with internal release device for emergency inside opening ice cream truck for sales ice cream truck for sales

Cargo Versatile Shelving

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy for standard & efficient cargo loading & unloading management

Customized Size Side Door

Customized size single opening side door with internal release device for emergency inside opening ice cream truck for sales ice cream truck for sales ice cream truck for sales

Refrigeration Units

ColdKing Kooltube eutectic system

is a holdover or latent heat storage system. It is one of the simplest refrigeration systems. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
Refrigeration Unit Model
KT420-14N
Refrigeration Unit Brand
ColdKing
Refrigeration Unit Type
AC Power Driven Eutectic Solution, Condenser Split ice cream truck body
Refrigeration Capacity
3,145W(@ -40C)
4,230W(@ -35C)
7,140W (@ -25C)
Total Refigeration Heat Exchange Rate
13,524Kcal/h ice cream truck body
Refrigerant
HFC R404a
Defrost
Manual Warm Water
Condenser Mounted Method
Over-Cab Mounted
Kooltube Beams Assembly
4.2m(L) x 14 Pcs
Compressor Brand & Power
Bitzer 4.0Hp
Expansion Valve
Danfoss
Condenser Fan
EBM
Thermometer
REFCO
Power Supply Voltage/Phase/Frequency
220V/3Ph/60Hz ice cream truck body

4200mm(L)  x 14 pieces Kooltube Beams ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications.  ice cream truck for sales ice cream truck

Quality Durable & Stable Compressor

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison.

Danfoss Parts

Schneider Electric Control

EBM Fan

Truck Chassis
Chassis Brand
Isuzu
Chassis Model
NPR 700P
Steering Wheel
Left Hand Drive
Drive Train
4 x 2 seafood truck
Cab Style
Single Cab seafood truck
Seating Capacity
2+1 seafood truck
G.V.W
10,000 Kgs
Kerb Weight
5,200 Kgs
Rated Payload
4,800 Kgs
Overall Dimension
6.9m(L) x 2.32m(W) x 3.2m(H)
Wheelbase
4,175mm seafood truck
Max. Speed
110Km/h seafood truck
Rim/Tires
8.25R16 x 7 seafood truck
Front Track
1,680mm
Rear Track
1,650mm

Manual Tiltable & Collapsible Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers;  With 2 Audio Speaker;

Engine Brand
Isuzu
Engine Model
4HK1-TCG40 seafood truck
Engine Emission
EURO 4/EURO 5 seafood truck
Displacement
5,193cc seafood truck
Max. Power
139Kw (190Hp) seafood truck
Max. Torque
510N.m seafood truck
No. of Cylinder
4  seafood truck
Key Features
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger
Optional Items

Hydraulic Tail Lift ice cream truc

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available

Roll Carts

Roll carts for rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of refrigeration truck body
