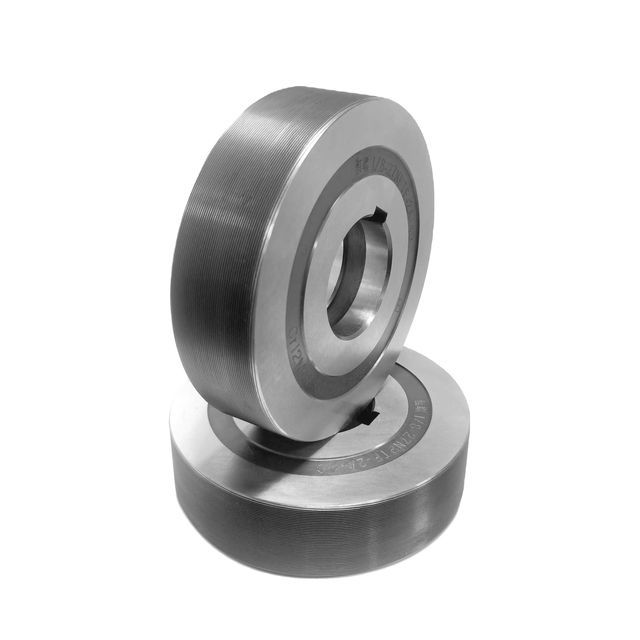

NPT Thread in Feed China Factory Direct Sales Thread Rolling Dies
- 60.00 >=2 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| port: | Ningbo Port | Material: | Cr12MoV/SKH9/M2 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | standard: | DIN405 |
| product name: | Cylindrical thread rolling die | Warranty: | other |
| Supply capacity: | 10,000 sets of thread rolling flat dies per month | hardness: | HRC60-67 |
| Packaging Details: | wooden box | Customization support: | original design manufacturer |
| Origin: | China | MOQ: | 1 set |
| Finish: | Bright (uncoated) | Mold type: | Rolling die |
| delivery time: | 15-25 working days | pack: | wooden box |
| Advantage: | wear resistance | usage: | External thread forming |
Product Description
Cylindrical thread rolling dieUsing a process with two or three rolling dies, the workpiece is usually placed on a support blade. At least one (1) rolling slider has a feed motion to perform the forming process. At the same time, the mold is in contact with the workpiece and rotates synchronously, and the profile will be formed.
Feed rolling
Feed thread rolling is based on one parameter: workpiece lead = rolling die lead. This results in a synchronous rotary motion
Part and die. Axial movement does not occur. The necessary rolling force is defined by the thread diameter and length.
Part and die. Axial movement does not occur. The necessary rolling force is defined by the thread diameter and length.
- Rolling by feed:
Always use through-feed thread rolling when the workpiece profile is longer than the maximum length. Rolling die width.
There are 4 different types of feed through dies:
1.Ring Die: A groove die without any lead. The lead angle is created by the rotation of the die.
2.Accelerated Tooling: Increased productivity.
3.Helical Slow Feed Die: Reduces power requirements,
4.Continuous roll type: suitable for automatic feeding type machines.
There are 4 different types of feed through dies:
1.Ring Die: A groove die without any lead. The lead angle is created by the rotation of the die.
2.Accelerated Tooling: Increased productivity.
3.Helical Slow Feed Die: Reduces power requirements,
4.Continuous roll type: suitable for automatic feeding type machines.
How to Order Cylindrical Rolling Dies
feed through feed
Aperture (d):
Outer diameter (D):
Thickness (T):
Keyway Depth (E):
Keyway Width (F):
Thread type: (such as M8*1.25, 1''-8UNC...)
Fully threaded head bolts
Fully threaded headless bolts
half threaded bolt
Please specify if it is used for B7 materials or if there is a special design for wind power.
Outer diameter (D):
Thickness (T):
Keyway Depth (E):
Keyway Width (F):
Thread type: (such as M8*1.25, 1''-8UNC...)
Fully threaded head bolts
Fully threaded headless bolts
half threaded bolt
Please specify if it is used for B7 materials or if there is a special design for wind power.
