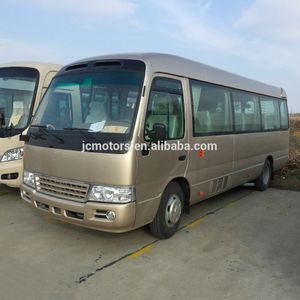

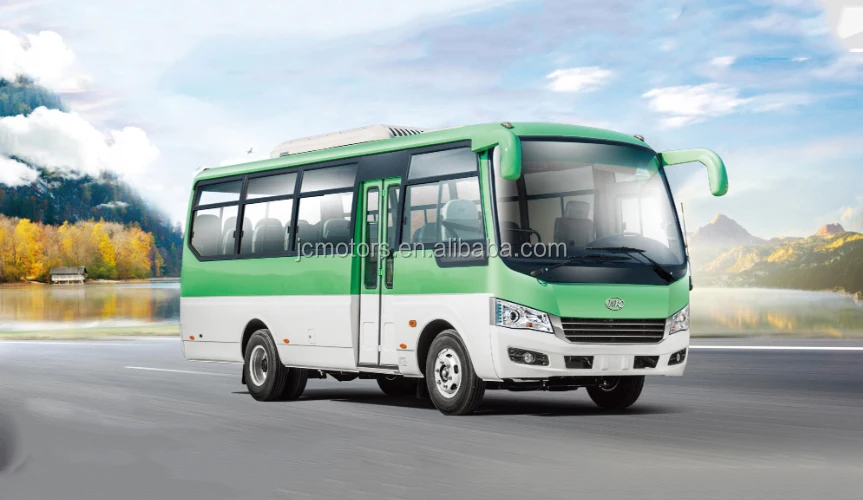

Ankai Coaster Bus Mini Bus Price for Sale with Factory Price

Performance

1.1

standard number of seats

21+1

1.2

dimmensions

7030×2050×2650(2730,2790)

1.3

approach/departure angle(°)

18°/7°

1.4

one stage height/interior height(mm)

≤420    /    1800

1.5

wheel base(mm)

3935

1.6

track(mm)(Front/Rear)

1665/1525

1.7

F/R overhang

1180/1915

1.8

Empty Vehicle Weight

4080

1.9

G.V.W.

6500

1.10.

Max. Speed

100

1.11

luggage rack capacity

0.33

Engine

2.2

engine model

YC4FA130-30

2.3

engine position,fuel,type

Front, diesel, straight, vertical, turbocharged and intercooled

2.4

emission standard

Euro III

2.5

capacity

2.982

2.6

rated power[kw/rpm]

95/3200

2.7

Max.torque

345/1600-2400

Chassis

3.1

clutch

Dry single diaphragm spring (φ325)

3.2

transmission

LC5T40

3.3

front axle

forged pieces,H-shape cross section,both ends boxing axle,2500KG

3.4

Rear axle

single reduction, hyperbolic gear axle,5000KG

3.5

suspension

Leaf spring 3/4

3.6

steering

Power steering

3.7

final ratio

5.375

3.8

service brake

air brake

3.9

parking brake

central drum

3.10

oil tank capacity

90L

3.11

Battery / generator

120A.hX2  /  100A

3.12

tyre

7.00R16

Body&trim

4.1

air conditioner

inner built, 14000W, JIEXING brand

4.2

defroster

yes

4.3

video

radio, with USB function

4.4

seats

adjustable,non-movable

4.5

Front grille

golden colour

4.6

tachograph

with function of GPS &print

4.7

rear view mirror

standard rod type

4.8

wheel cover

stainless steel

4.9

passenger door

electrical folding door

4.10

inner lamp/loud speaker/ sunvisor

3pcs/4 pcs/1pc

4.11

side windows

sliding/pushing

4.12

paint

common

4.13

rear upgrade sets

rear mirror, rear wipers, rear wiper cleaner, brake light

4.14

roof hatch

yes,without ventilator.

4.15

others

digital clock, electric horn, anti-friction trim, curtain
