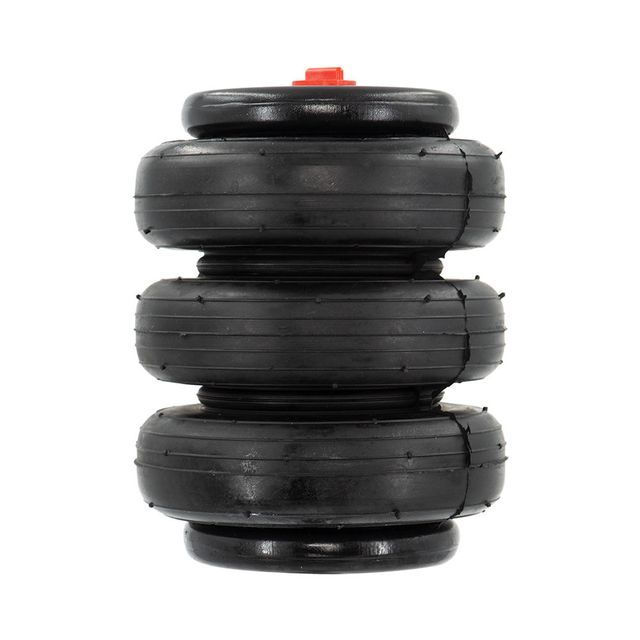

3b2400 w/ 3/8 - 16unc Coil Pickup Truck Air Suspension Parts 146MMx3 Triple Convoluted Air Spring

Product details
3E2400 Air Spring:3B2400 air springYear:1979-1982
Car equipment:fordWarranty:2 years
car model:Various modelshigh performance:adjustable
Sales unit:single producthigh:height adjustable
Gross weight per piece:2.650 kgPneumatic air suspension:air spring shock absorber
type:By sea, by air, by express3S70-13 gas spring:146mm X3 air spring
Package preview:Origin:China
Original serial number:3S70-13Model:1500
brand:JoyfulPackaging Details:Usually, we use the most common waterproof bag. If you need design for your own brand, please feel free to contact us.
Single package size:25X20X20 cm
Product Description
3B2400 with 3/8 - 16UNC screwdriver forklift air bag/pneumatic suspension components
Main Products: Air Spring, Corrugated Air Spring, Industrial Air Spring, Air Suspension Spring, Air Compressor, Air Valve, Bus Rubber
Bellows, truck and trailer airbags, cabin air shock absorbers, electric water pumps

Operating temperature: 57Cº to -54Cº

Nut/Blind Nut
Top cover screw (nut) teeth: 2 pcs X 3/8-16UNC
Top cover screw center distance: 44.5 mm
Bottom cover screw (nut) teeth: 2 pcs X 1/2-13UNC
Bottom cover screw center distance: MIDDLE

Air Holes/Inlets/Air Fittings
Air hole/air inlet: 1/2-14NPT
Air inlet and nut center distance: 22 mm

cover plate
Top Cover Diameter (Width): 113 mm
Bottom cover diameter (width): 113 mm

Rubber bellows
Rubber bellows natural diameter: 144.5 mm
Maximum diameter of rubber bellows: 165 mm
Design height: 213mm
Bellows# NO.: 2400

buffer block / buffer block
Without bumper

Waistband/ Waistband
Waistband: two-piece waistband

Load Lifter 3B2400 is used to improve the suspension performance of the truck and the towing capacity of the truck. These air springs will help carry the load you're towing. These bags will help carry up to 5,000 pounds of cargo. These springs can help in many ways, including trailer sway, rough rides, body roll, and more. It will help improve performance by making turning and parking your truck easier. These kits install into your vehicle without tools.
Specification
thing
value
birthplace
China
brand
Joyful
Warranty
2 years
Original serial number
3S70-13
type
By sea, by air, by express
car model
Various models
3E2400 air spring
3B2400 air spring
3S70-13 air spring
146mm X3 air spring
high
height adjustable
detail

Minimum height: 65mm
Maximum height: 175mm
Working stroke: 110mm
Loading cap. At 3.0bar: 2.88KN
Loading cap. At 7.0bar: 7.25KN
Single air port size: 1/2NPT
Mounting hole size: 3/8-16UNC
Top plate diameter: 113mm
Airbag body diameter: 145mm
Air spring bag capacity: 2500LBS
Maximum pressure: 2.6Mpa
