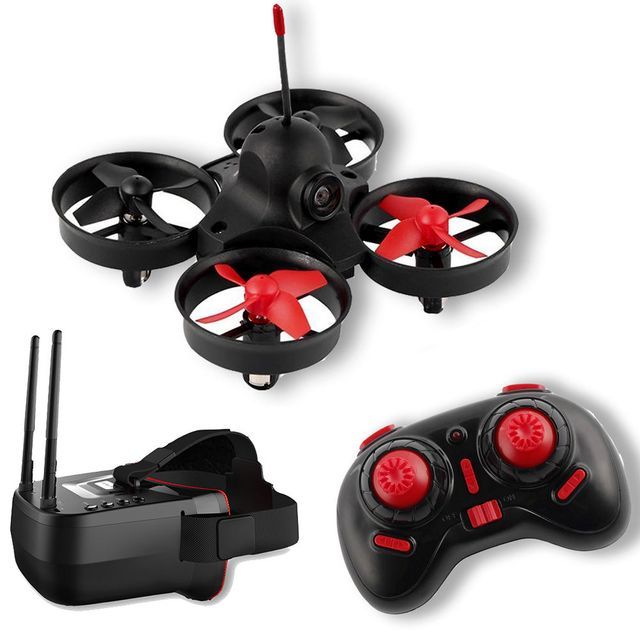

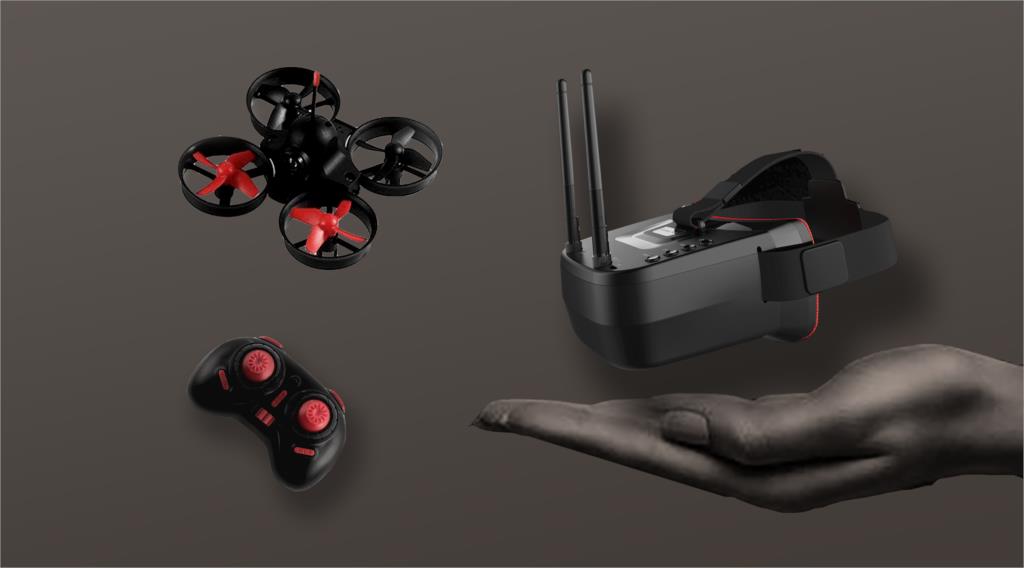

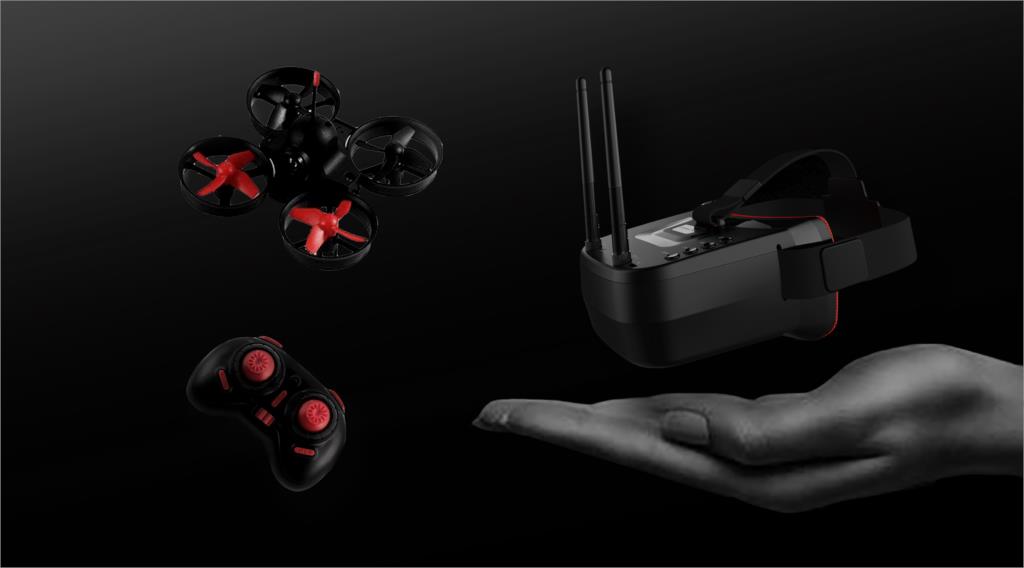

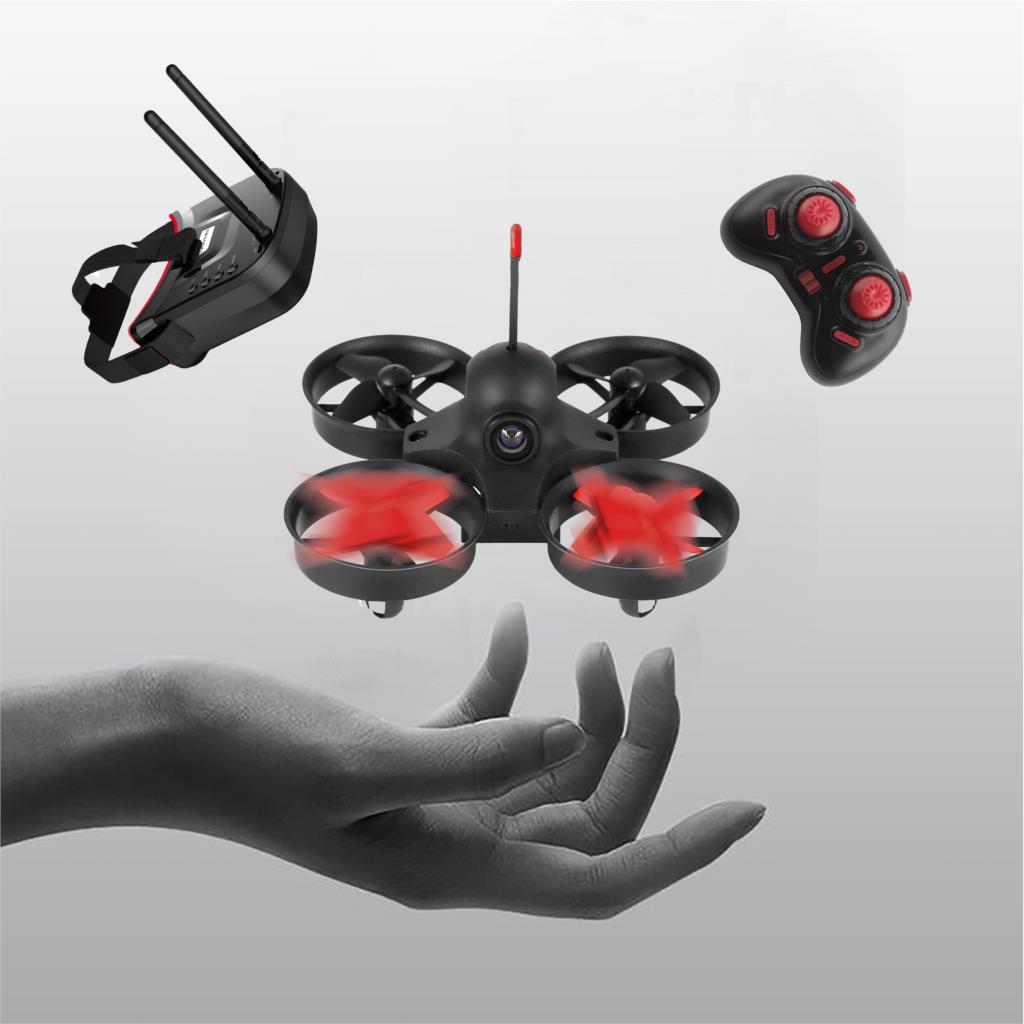

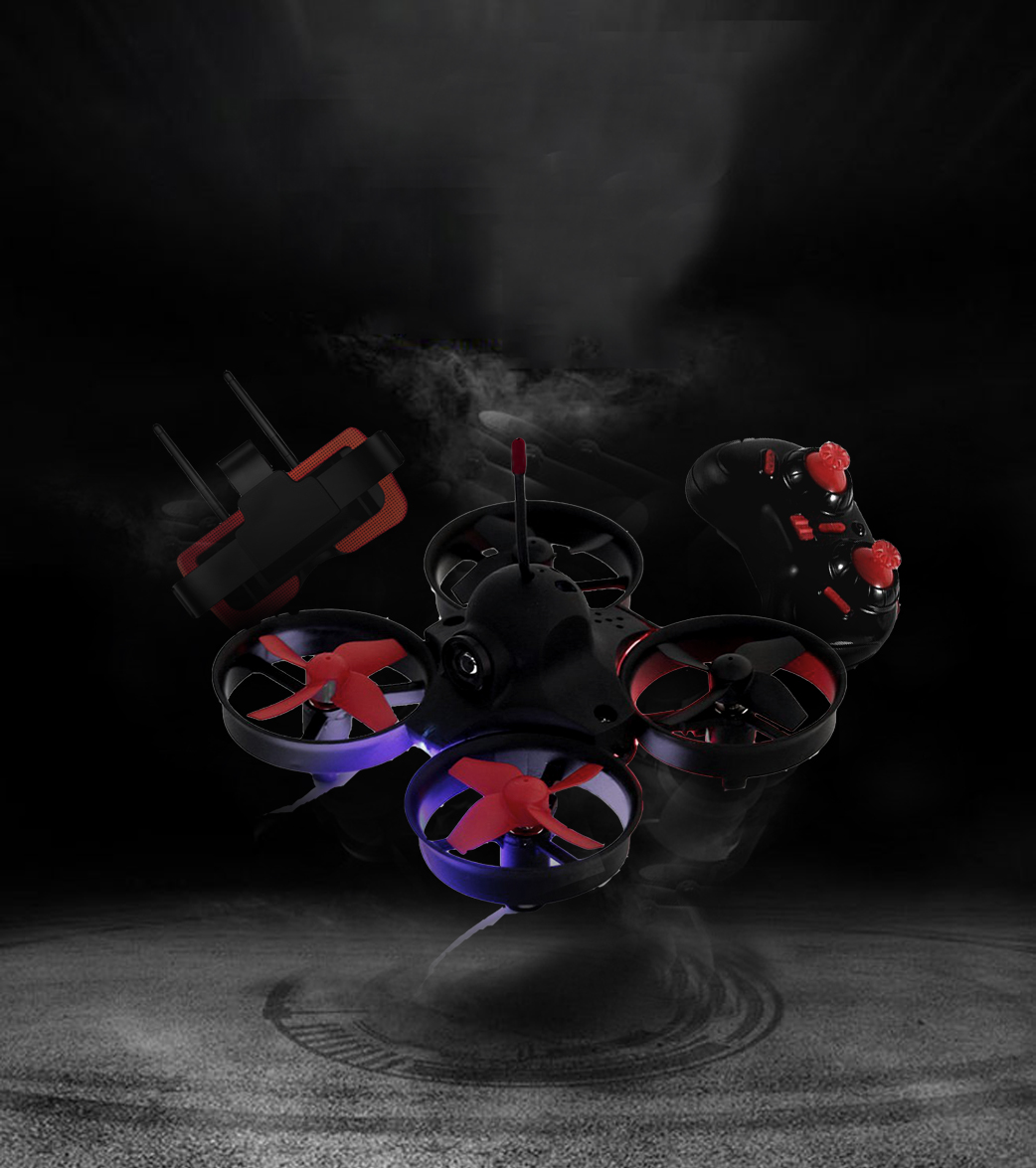

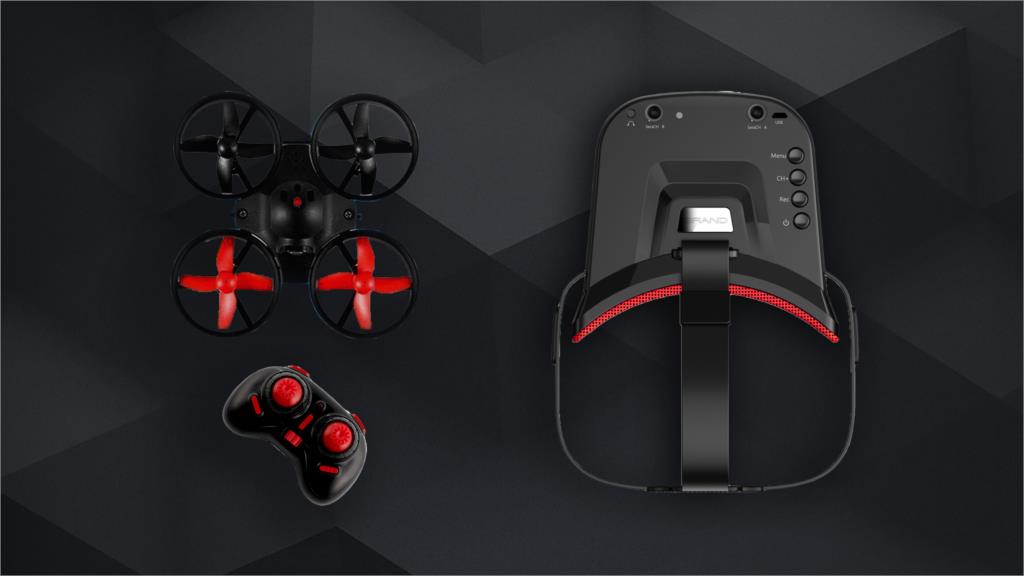

RTF FPV RC Racing Quadcopter Toys with 5.8G S2 Camera 1000TVL 40CH 3 Inch VR009 FPV Goggles VR Helicopter Drone

dual antenna

Built-in 3.7V 1200mAh battery

Support one-key search frequency

RaceBand 40 channel auto search

Real-time video backhaul 5.8G FPV receiver

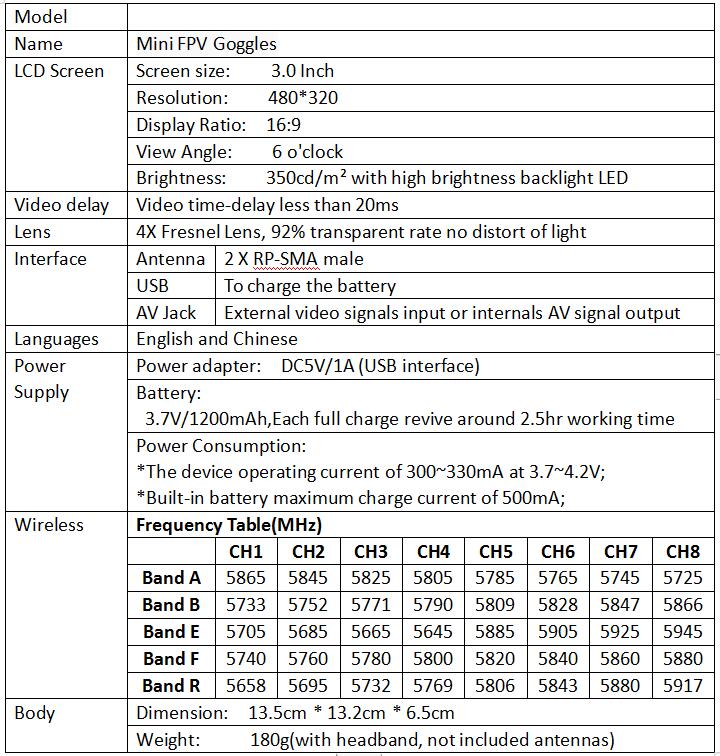

● Small size and light weight;

● Low power consumption, working current 300~330mA;

● Dual antenna reception, the signal is more stable;

● RaceBand 40 channels, automatic search;

● 3.0-inch 480*320 high-brightness LCD screen;

● Built-in ultra-sensitive 5.8GHz 40ch receiver, especially matched with RaceBand;

● Built-in 3.7V/1200mAh high-capacity lithium-ion polymer battery;

● Universal USB charging interface;

● Real-time video transmission with extremely low delay;

● Support Chinese and English bilingual menu;

● Support external video signal input;

● Support AV signal output (external hard disk video recorder);

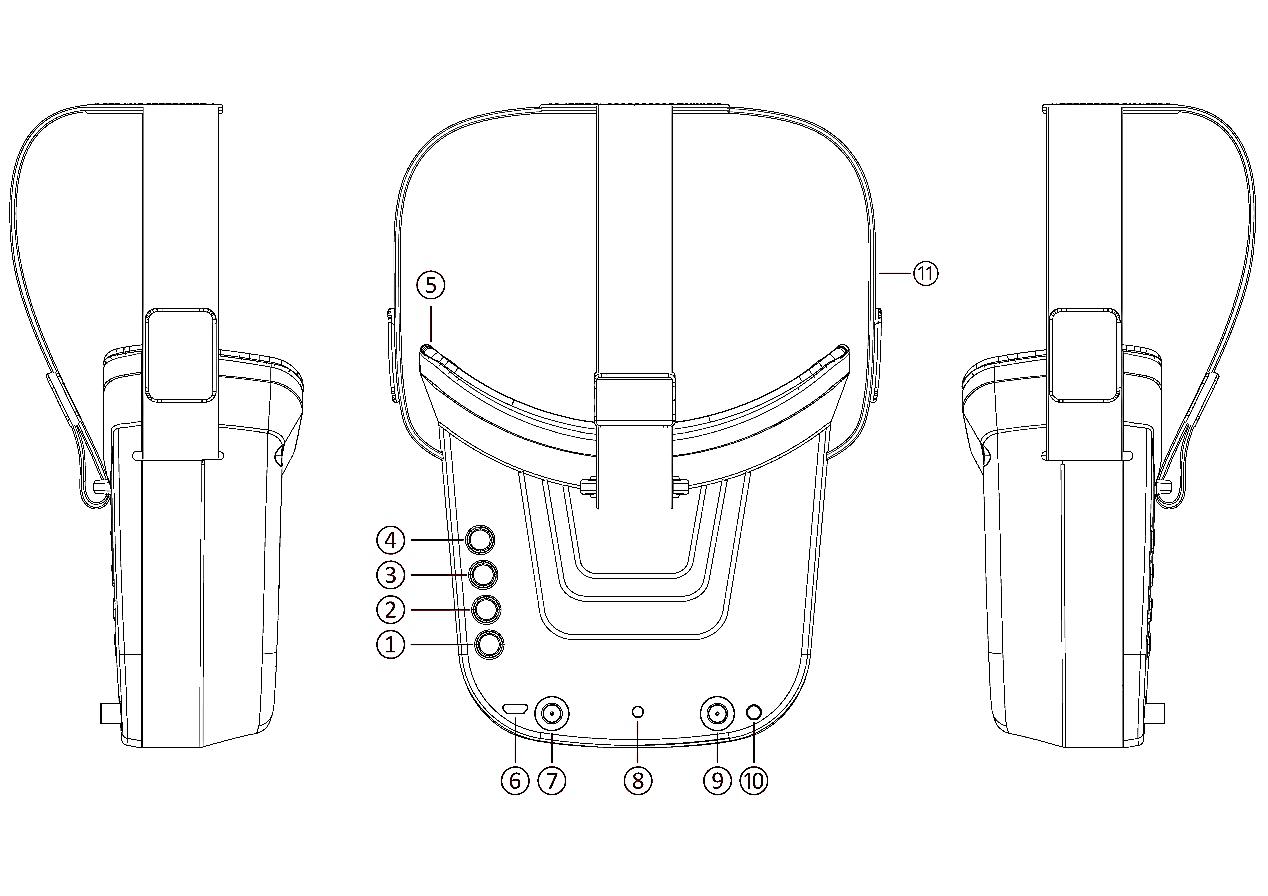

①Key one:dogmenumode; long press (more than 3 seconds) forswitch.

②Key 2:dogAuto Search(Automatically select the strongest channel).

③Key 3:dogband+(cycles through ABEFR bands).

④Key 4:dogchannel+(cycle changing channels 1-2-3-4-5-6-7-8).

⑤Eye rings:Protect the area around the eyes and make it more comfortable to wear.

⑥Micro USB charging port:Only supports DC5V.

⑦Antenna port A:RP-SMA male.

⑧charging indicator:The charging light is red; when fully charged, the light is off.

⑨Antenna port B:RP-SMA male.

⑩AV jack:AV signal can be output in RF receiving mode; video signal can be input in AV mode.

⑪scarf:Adjustable head strap.

Menu operation instructions:

In normal mode, presskey 1Enter menu mode.

In menu mode:

①Key one:Select the Options bar.

②Key 2:Return to normal mode.

③Key 3:value-.

④Key 4:value +.

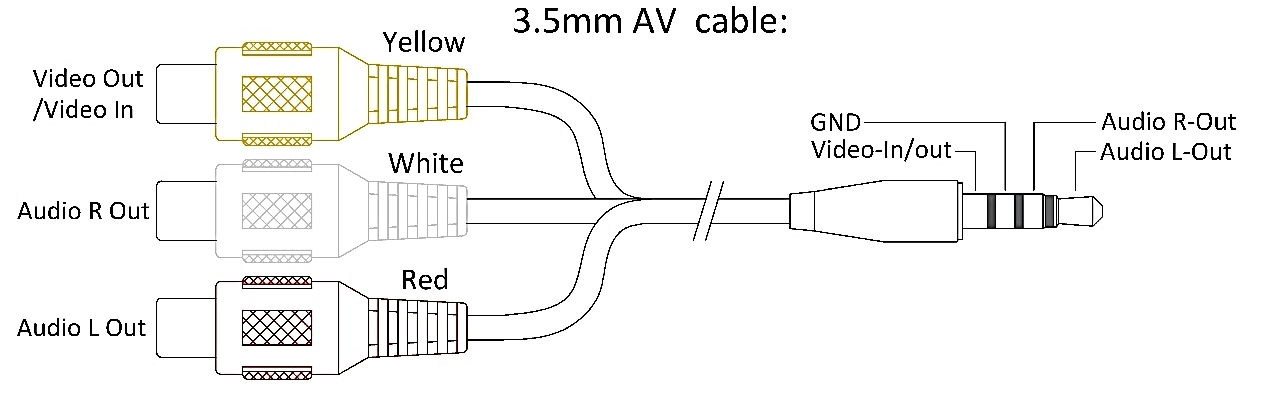

AV port description:

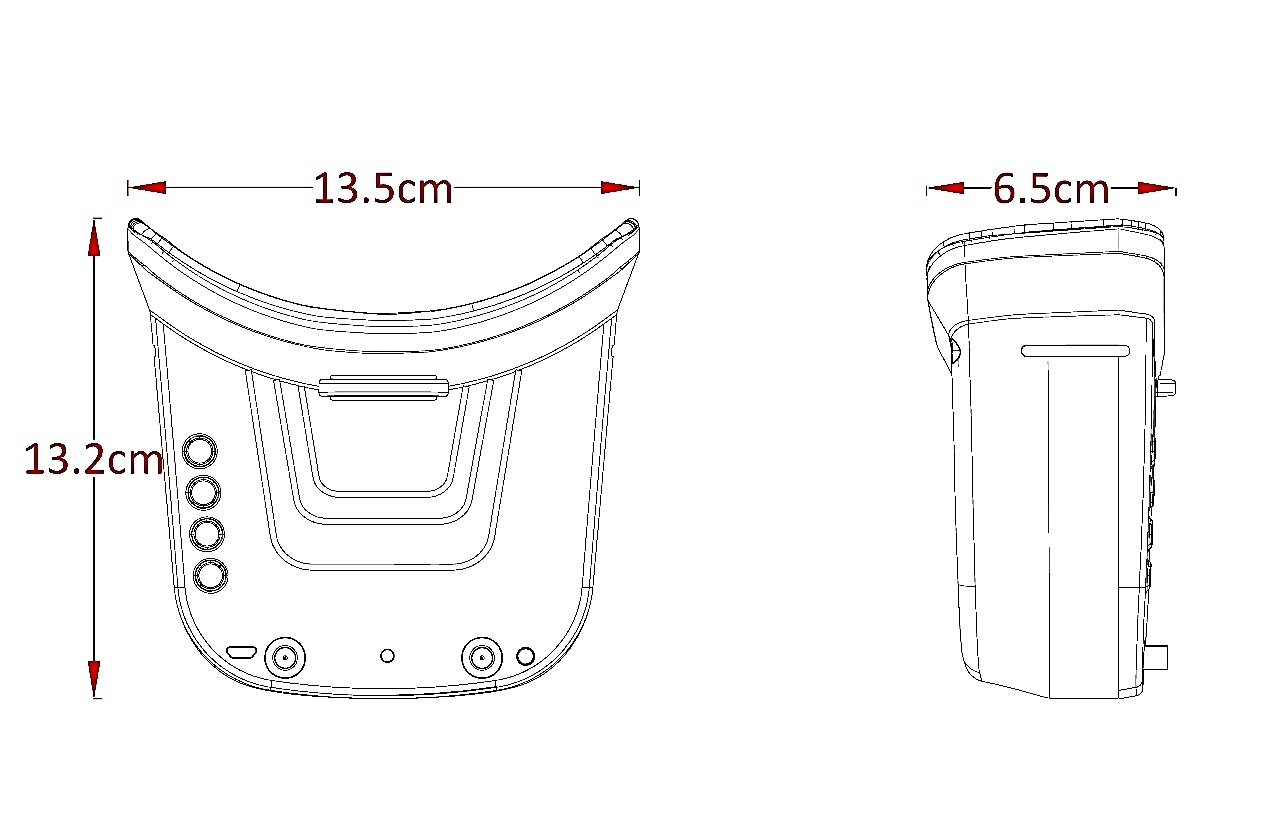

Dimensions:

Antenna and headband not included.

safety instructions:

1.Please read the entire instruction manual before operation to familiarize yourself with the product features.

2.Age recommendation: 14+. Using any near-to-eye display with children under 14 may cause eye development problems. This is not a toy.

3.Please avoid wet or humid environments.

4.Please use a standard USB charger, the charging voltage can only be 5V.

5.AV output and video input cannot work at the same time, and it is forbidden to insert external video in RF receiving mode.
