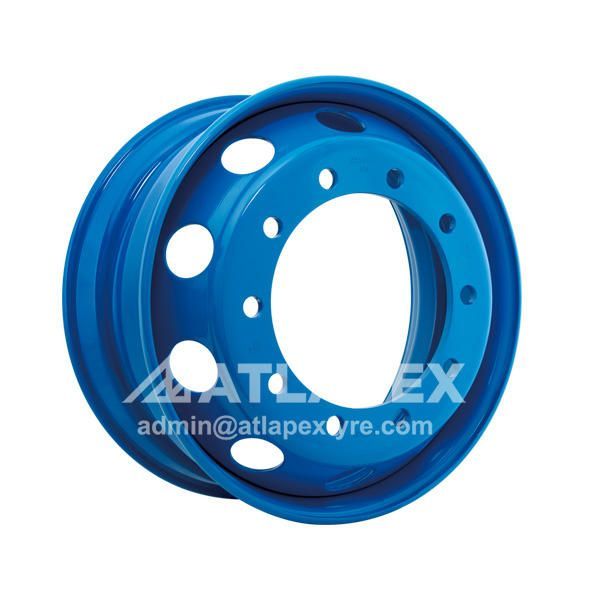

Tubeless Wheels Wheels 22.5X9.00 For 295/80r22.5 Heavy Duty Truck Tires
- 50.00 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| MOQ: | 20 | Material: | Q235B S355 |
| Package: | packaged, unpacked | alien: | 10mm, 20mm, 40mm, 25mm, 0mm |
| Vehicle Model: | Truck Buses and Trial Vehicles | quality: | high quality |
| width: | >255mm | Polycarbonate: | 130mm, 120mm |
| Packaging Details: | With packaging, without tray | Hole: | 4,6,5,8 |
| color: | customized | payment terms: | L/C, Western Union, T/T |
| Warranty: | 3 years | port: | Qingdao |
| brand: | Atrapex | structure: | 1 |
| Supply capacity: | 1000 pieces per month | Origin: | Shandong China |
| size: | Wheel 22.5X9.00 | diameter: | 21-24 inch |
| Package preview: | product name: | Truck and Bus Wheels | |
| delivery time: | 15 days |
Product Description
Improve your efficiency and make your life better with the strongest, most balanced and best looking wheels of its kind on the market, and are backed by a 5-year limited warranty for your peace of mind.
Recommended tire size:
315/80R22.5
305/70R22.5
12R22.5
12.5R22.5
12.75R22.5
315/80R22.5
305/70R22.5
12R22.5
12.5R22.5
12.75R22.5
Specification
size | Technical data (mm) | tire | ||||||||
PCD | Stud Number/Stud Hole Diameter | Central aperture | Stud Hole Type | offset | ||||||
17.5x6.00 | φ203.2 | 5-φ29 | φ146 | SR22 | 135 | 8R17.5 205/75R17.5 215/75R17.5 225/75R17.5 | ||||
17.5x6.00 | φ205 | 6-φ21 | φ161 | 1x45° | 127 | |||||
17.5x6.00 | φ205 | 6-φ21 | φ161 | SR18 | 118 | |||||
17.5x6.00 | φ205 | 6-φ21 | φ161 | SR16 | 124 | |||||
17.5x6.00 | φ205 | 6-φ21 | φ161 | 90° taper hole | 125 | |||||
17.5x6.75 | φ222.25 | 6-φ32 | φ164 | SR22 | 138 | 225/75R17.5 235/75R17.5 9R17.5 | ||||
17.5x6.75 | φ225 | 10-φ26 | φ176 | 1x45° | 135 | |||||
17.5x6.75 | φ225 | 10-φ26 | φ176 | SR18 | 145 | |||||
17.5x6.75 | φ225 | 10-φ26 | φ176 | 1x45° | 138 | |||||
17.5x6.75 | φ225 | 10-φ26 | φ176 | Unilateral SR18 | 140 | |||||
17.5x6.75 | φ275 | 8-φ21.5 | φ221 | Unilateral SR16 | 132 | |||||
19.5x6.00 | φ222.25 | 6-φ32 | φ164 | SR22 | 135 | 8R19.5 215/75R19.5 235/75R19.5 | ||||
19.5x6.00 | φ275 | 8-φ24 | φ221 | 1x45° | 135 | |||||
19.5x6.75 | φ222.25 | 6-φ32 | φ164 | SR22 | 145 | 9R19.5 215/75R19.5 235/75R19.5 24570R19.5 265/70R19.5 | ||||
19.5x6.75 | φ222.25 | 6-φ24 | φ164 | 1x45° | 145 | |||||
19.5x6.75 | φ275 | 8-φ24 | φ221 | 1x45° | 140 | |||||
19.5x6.75 | φ275 | 8-φ32 | φ214 | SR22 | 135 | |||||
19.5x6.75 | φ225 | 10-φ26 | φ176 | 1x45° | 145 | |||||
19.5x6.75 | φ275 | 8-φ27 | φ221 | SR18 | 145 | |||||
19.5x7.50 | φ275 | 8-φ24 | φ221 | 1x45° | 152 | 10R19.5 24570R19.5 265/70R19.5 285/70R19.5 | ||||
19.5x7.50 | φ275 | 8-φ24 | φ221 | SR22 | 152 | |||||
19.5x7.50 | φ225 | 10-φ27 | φ176 | SR18 | 146 | |||||
19.5x7.50 | φ275 | 8-φ26 | φ221 | SR22 | 152 | |||||
19.5x8.25 | φ225 | 10-φ26 | φ176 | 1x45° | 165 | 11R19.5 10R19.5 24570R19.5 265/70R19.5 285/70R19.5 305/70R19.5 | ||||
19.5x8.25 | φ225 | 10-φ26 | φ176 | SR16 | 146.5 | |||||
19.5x8.25 | φ275 | 8-φ24 | φ221 | 1x45° | 165 | |||||
19.5x8.25 | φ208 | 5-φ32 | φ151 | SR22 | 100 | |||||
19.5x14.00 | φ275 | 8-φ26 | φ221 | 1x45° | 0 | 18R19.5 435/50R19.5 425/65R19.5 | ||||
19.5x14.00 | φ335 | 10-φ26 | φ281 | 1x45° | 120 | |||||
19.5x14.00 | φ335 | 10-φ27 | φ281 | 1x45°/SR18 | 0 | |||||
19.5x14.00 | φ225 | 10-φ27 | φ176 | SR18 | 0 | |||||
22.5x6.75 | φ275 | 8-φ24 | φ221 | 1x45° | 145 | 9R22.5 10R22.5 255/70R22.5 | ||||
22.5x6.75 | φ275 | 8-φ27 | φ221 | SR18 | 145 | |||||
22.5x6.75 | φ285 | 8-φ32 | φ221 | SR22 | 152 | |||||
22.5x6.75 | φ285.75 | 10-φ26 | φ220 | 1x45° | 145 | |||||
22.5x6.75 | φ285.75 | 10-φ32 | φ222 | SR22 | 145 | |||||
22.5x7.50 | φ275 | 8-φ24 | φ221 | 1x45° | 153 | 10R22.5 11R22.5 255/70R22.5 265/70R22.5 275/80R22.5 | ||||
22.5x7.50 | φ275 | 8-φ32 | φ214 | SR22 | 153 | |||||
22.5x7.50 | φ285.75 | 10-φ26 | φ220 | 1x45° | 153 | |||||
22.5x7.50 | φ285.75 | 10-φ32 | φ222 | SR22 | 153 | |||||
22.5x7.50 | φ335 | 10-φ26 | φ281 | SR18 | 165 | |||||
22.5x7.50 | φ275 | 8-φ27 | φ221 | SR18 | 158 | |||||
22.5x8.25 | φ275 | 8-φ24 | φ221 | 1x45° | 169 | 11R22.5 12R22.5 255/70R22.5 275/80R22.5 295/75R22.5 295/80R22.5 | ||||
22.5x8.25 | φ275 | 8-φ27 | φ221 | SR18 | 169 | |||||
22.5x8.25 | φ275 | 8-φ32 | φ214 | SR22 | 169 | |||||
22.5x8.25 | φ335 | 10-φ27 | φ281 | SR18 | 168 | |||||
22.5x8.25 | φ275 | 8-φ26.5 | φ221 | 1x45° | 160 | |||||
22.5x8.25 | φ203.2 | 8-φ16.5 | φ152.4 | 90° | 38 | |||||
22.5x8.25 | φ152.4 | 6-φ14.7 | φ117.7 | 90° | 28.5 | |||||
22.5x8.25 | φ285.75 | 10-φ32 | φ222 | SR22 | 168 | |||||
22.5x9.00 | φ275 | 8-φ24 | φ221 | 1x45° | 175 | 12R22.5 13R22.5 285/60R22.5 295/60R22.5 305/70R22.5 315/80R22.5 | ||||
22.5x9.00 | φ285.75 | 10-φ32 | φ222 | SR22 | 175 | |||||
22.5x9.00 | φ335 | 10-φ27 | φ281 | SR18 | 175 | |||||
22.5x9.00 | φ335 | 10-φ27 | φ281 | 1x45°/SR18 | 0 | |||||
22.5x9.75 | φ275 | 8-φ26 | φ221 | 1x45° | 80 | 13R22.5 | ||||
24.5x8.25 | φ285.75 | 10-φ32 | φ221 | SR22 | 169 | 11R24.5 | ||||
24.5x9.00 | φ335 | 10-φ26 | φ281 | 1x45° | 175 | 12R24.5 | ||||
24.5x9.00 | φ335 | 10-φ27 | φ281 | SR18 | 175 | |||||
