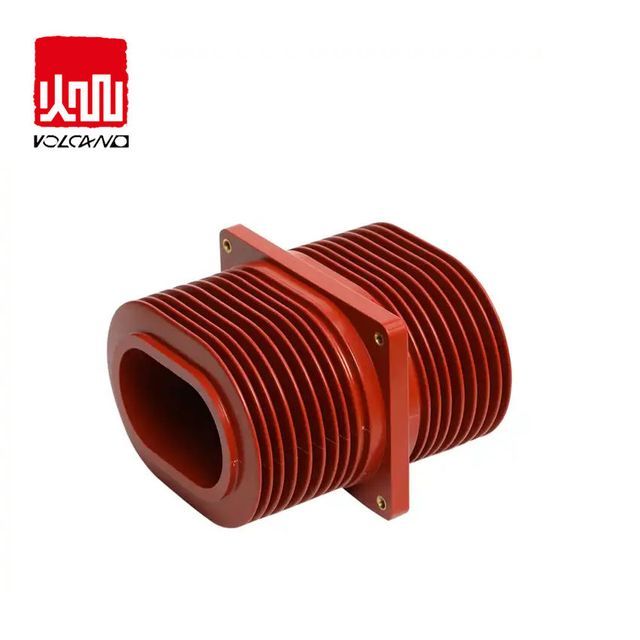

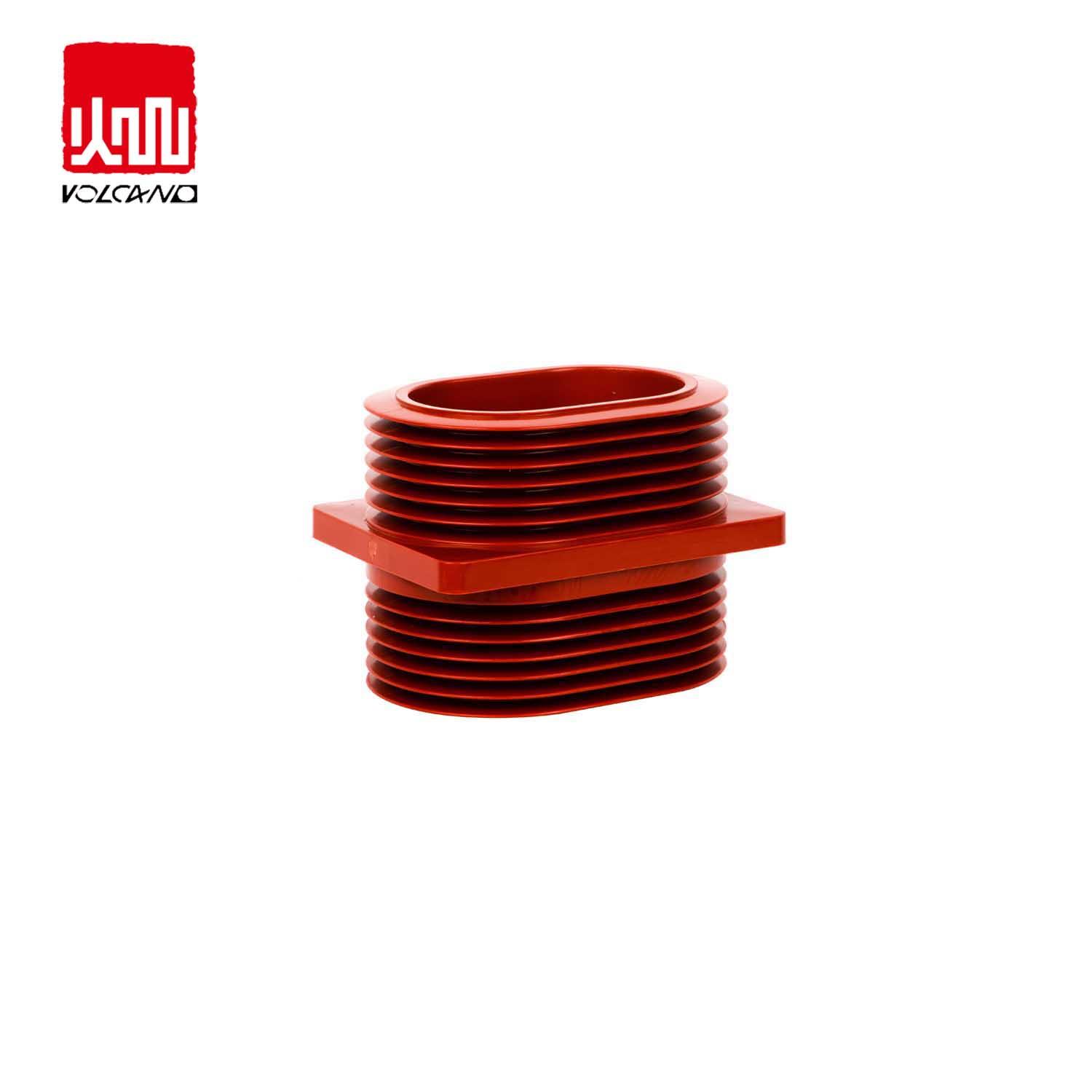

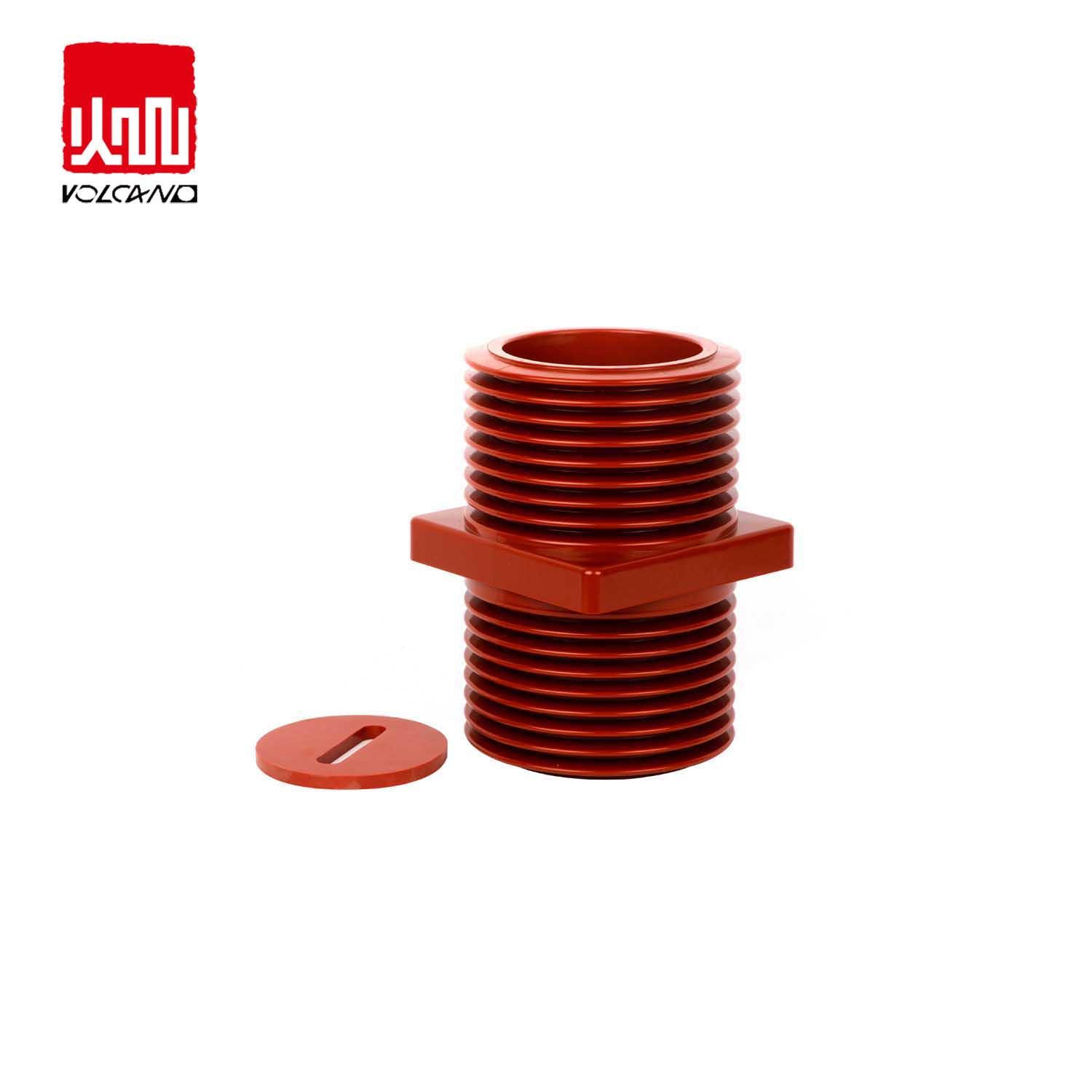

Epoxy Resin Insulated 10kV Busbar Support With Wall Wrap For High Voltage Switchgear

Supplier: Zhejiang Volcano Electrical Technology Co., Ltd.
Region: Zhejiang, China
Price: $100.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

color:	Red	Rated voltage:	12kV
Packaging Details:	Standard export packaging	product name:	Wall bushing
Origin:	Zhejiang, China	brand:	volcanic electricity
brand:	Volcano Electric	port:	Ningbo/Shanghai
Material:	epoxy resin	model:	TG3-12/110x180x230mm
Supply capacity:	2000 pieces per month	application:	High voltage and medium voltage switchgear
size:	140200230mm	payment terms:	L/C, T/T
technology:	APG

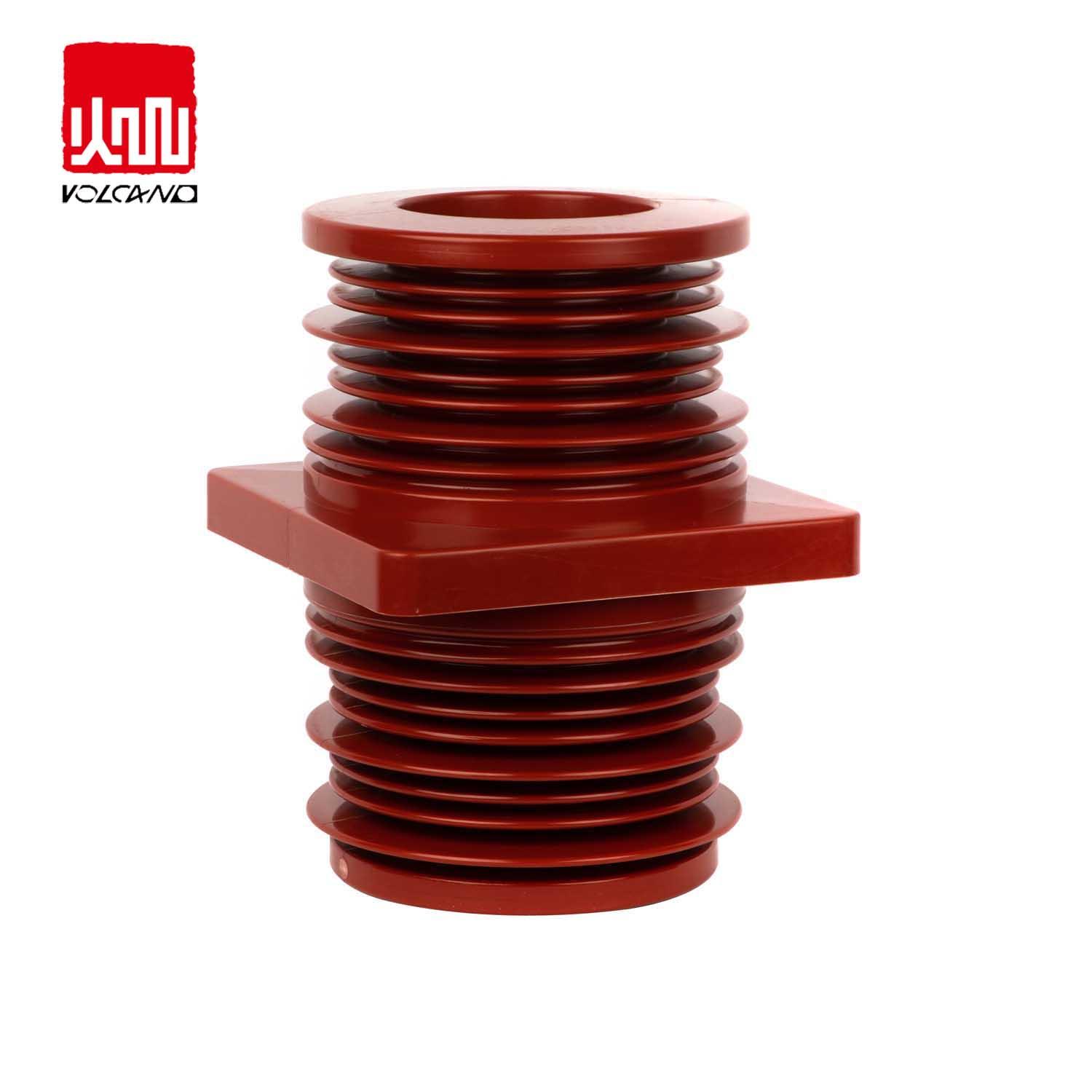

This series of wall-piercing bushings are casted by epoxy resin APG technology, suitable for power plants, substation power distribution devices and high-voltage electrical appliances with power frequency AC voltage of 10KV-40.5kV. Insulation and support for conductive components passing through cabinets or other grounded objects.

describe

Model: TG3-12
Rated voltage: 12KV
Dimensions: 140*200*230mm

Material: epoxy resin

application: Medium and high voltage switchgear, KYN series, RMU

feature

(1) Epoxy resin material with excellent insulation performance is adopted, and it will not deform at the temperature of -10°-40°.
(2) Die-casting with APG technology, dirt-resistant, moisture-proof, and excellent mechanical properties.

environmental conditions

1. Indoor installation;
2. Altitude: ≤1000m
3. The ambient temperature is -30°C to +40°C, and the daily average temperature does not exceed 30°C.
4. The daily average relative humidity is less than 95%, and the monthly average is less than 90%.
5. The working environment should be free of steam, gas, chemical corrosion deposits, salt spray, dust, dirt and other dangerous explosive media that have a serious impact on the insulation and conductivity of the product.
6. The working environment should not be frequently shaken or violently bumped.

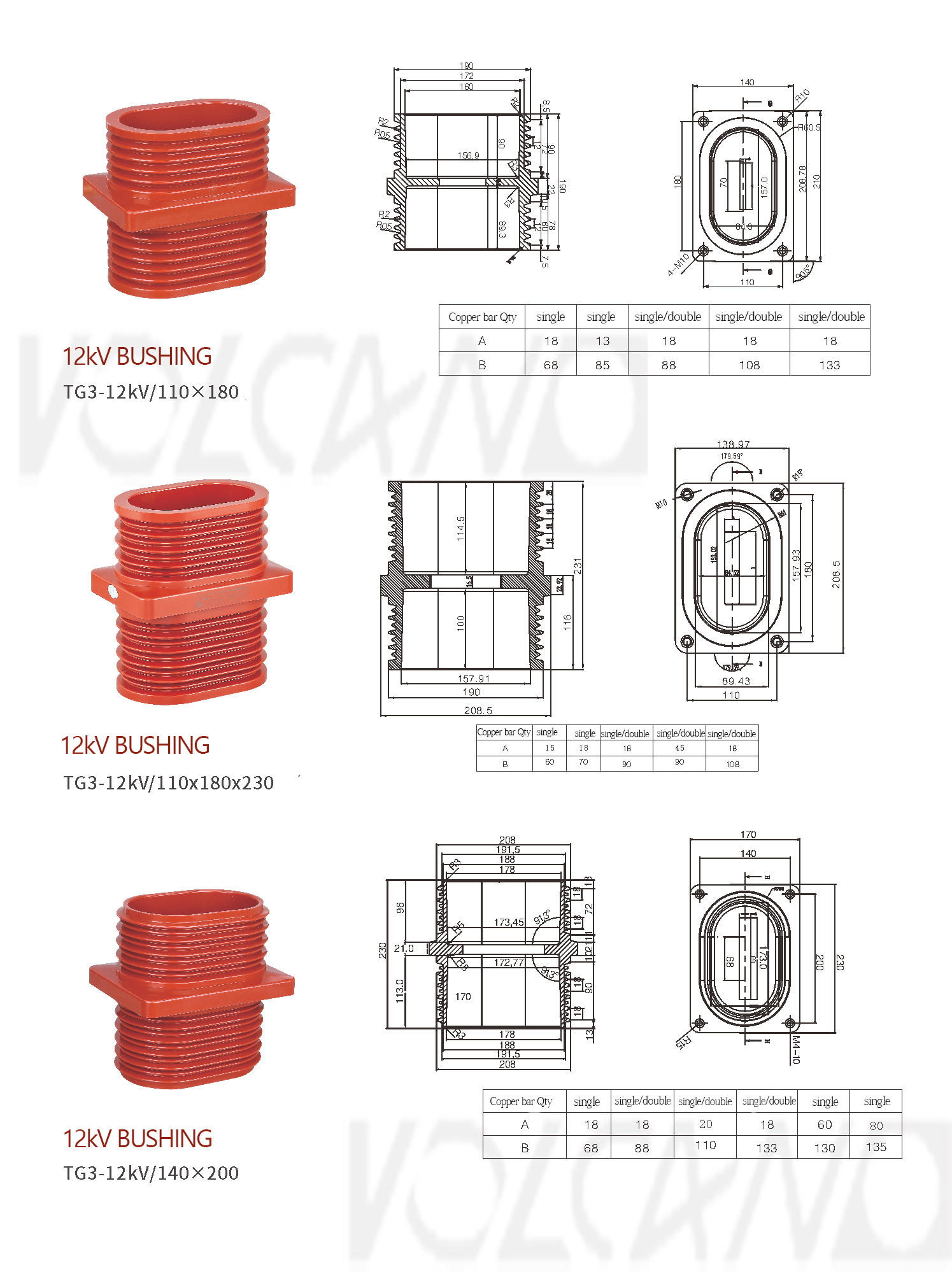

Product drawings
