250CC Henan Factory Manufacture Motorcycle Piston for Honda

Supplier: Henan Duochuan Commercial And Trading Ltd.
Region: Henan, China
Contact: Mr Hui Zhang
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Engine type:	Gasoline;	Application:	Engine Parts;
Type:	Piston;	Supply Ability:	100000 Piece/Pieces per Week piston;
Port:	Qingdao ,Ningbo,Shanghai ,Shenzhen ,Guangzhou ,Xiamen;	Model Number:	CRF250;
MOQ:	1 set;	Packaging Detail:	Inner packing :1pcs/white box ; Outer packing : by carton;
Brand Name:	BELIDA;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,alibaba online paypal;
Car Make:	for Honda;	Place of Origin:	Henan China (Mainland);
Packing:	Neutral Packing;	Material:	Aluminum;
Weight:	176 g;	Quality:	Guaranteed;
Color:	Silver;

Henan Factory Manufacture Motorcycle Piston for Honda CRF 250

Product Description

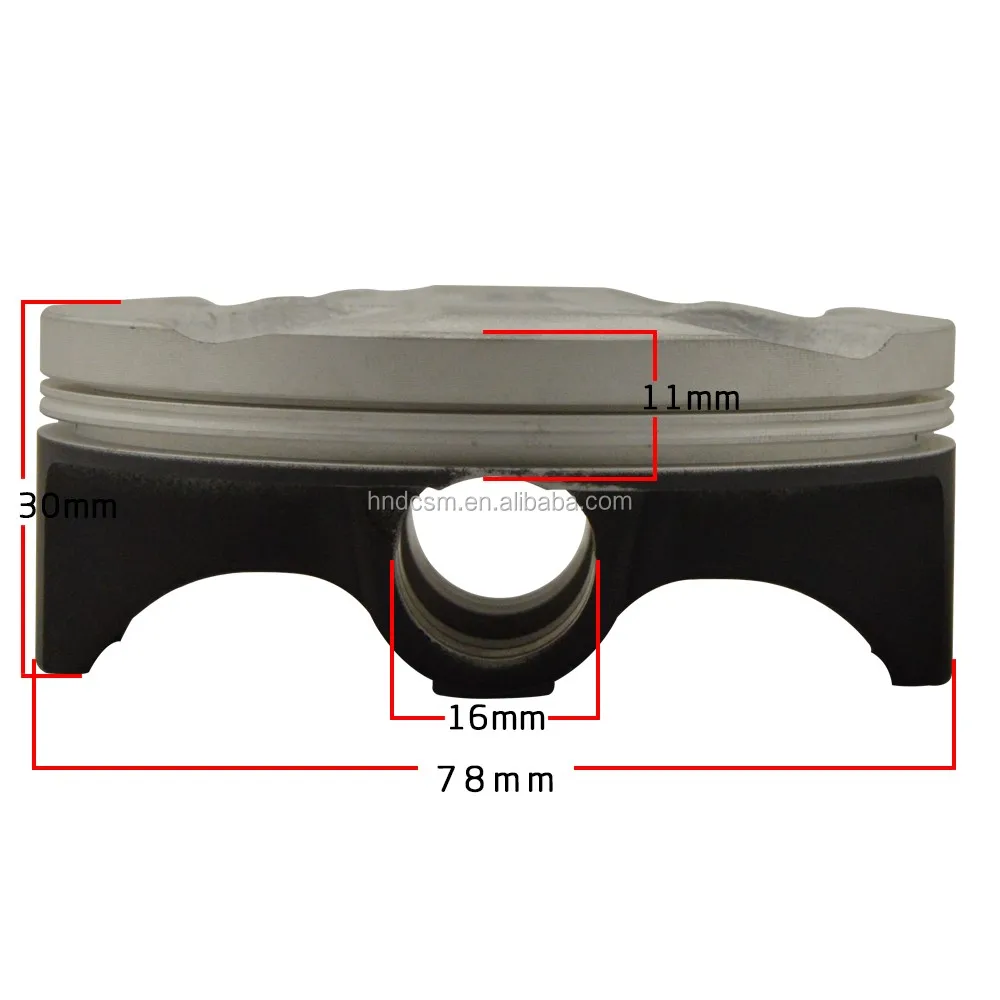

Product Name	Motorcycle Piston & Ring Kit
Weight	176g
Min order	1 set
Applicable for Models	CRF250
Piston Material	Aluminum Alloy
Piston bore size	78mm
Compression Height	11mm
Total Height	30mm
Pin dia	16mm
Piston Process	1. Using high purity aluminum material; 2. High Pressure Aluminum Die Casting Process, high density, lower coefficients of expansion . 3. High temperature resistance of the end of piston : 300℃ ,Working well under high temperature environment .
Piston Ring Process	PISTON RING First: nitriding process , strong wear resistance; PISTON RING 2nd: nodular cast iron, good sealing; PISTON RING OIL:hign performance A+ wavy ring , good elasticity; scraper ring: chromium coating, strong hardness of chromium,Excellent wear resistance, high temperature resistance

Installation Instructions

No.1
Before replacing the piston ring , remove the carbon from the ring groove and clean it .

No.2
Note : There is a mark (RN) side toward the top of the piston ring groove, unmarked toward the bottom of the piston groove .

No.3
Install the spiral brace spring into the ring groove ,

and then put the ring body into ,

The spring joint is located opposite the beginning of the ring body .

No.4
When fitted, the opening of each ring should be staggered ,

the angle of each stagger is 90° , 120° , 180° etc ,

and do not put the opening in the piston ring ,

should be closed after the ring to gently push into the cylinder liner .

Packaging & Shipping

Inner packing :1pcs/white box ; Outer packing : by carton

Shipped in 3-5days after payment

Certifications

Company Information

1. Professional manufacture Motorcycle spare parts business since 2009

2. Accuracy is maintained in all fronts

3. Independent R& D center with with quality guarantee.

4. We stick to ISO/TS16949 standard management,keeping upgrade the process and the equipment.

5.We have strict quality control in every procedure from raw material to delivery

6.Over thousand all kinds of Parts,widely choose for customer

7. We also can deal with the complicated order like less quantity with many models with advanced production management system.

Packaging & Shipping

(1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )

(2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )

(3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )

Contact Us

FAQ

1. Are you manufactury or trading company ?

Re: We are trading company , but we do motorcycle parts business for more than 20 years , so we have many good suppliers , they not only could give us good price but also could guarante the quality . Don't worry about the price , don't worry about the quality , welcome to contact us freely.

2.Could I get one sample to test the quality ?

Re: Of course . We could offer you samples to test the quality or customer approval , but you need to bear the sample fee and freight charge .

3.Could I print our logo or company name on our products ?

Re: Of course , we could print your logo or company name as your requirements , but you need send us your logo certification and the certificate of authorization .
