Digital CD Changer Car MP3 Music Interface AUTO USB Car Audio Adapter Simulator WMA Audio Player

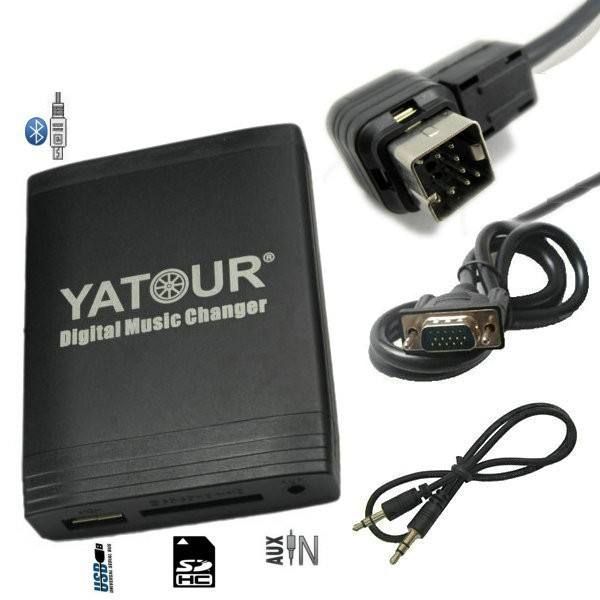

Digital Music Converter (YT-M06)
Customs code (HS code): 8522909100

size:

l Module size: 92 x 65 x 16.5mm

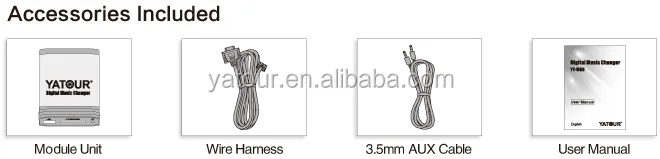

l CDC plug length: 95cm; AUX cable length: 50cm

l Standard packing box: 210 x 150 x 60mm

l Half-size box: 150 x 105 x 60mm

l Module weight: 90g;

l Gross weight: 220g-400g;

l 50 standard boxes/large carton

introduce:

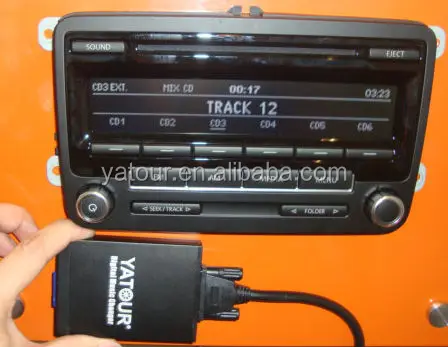

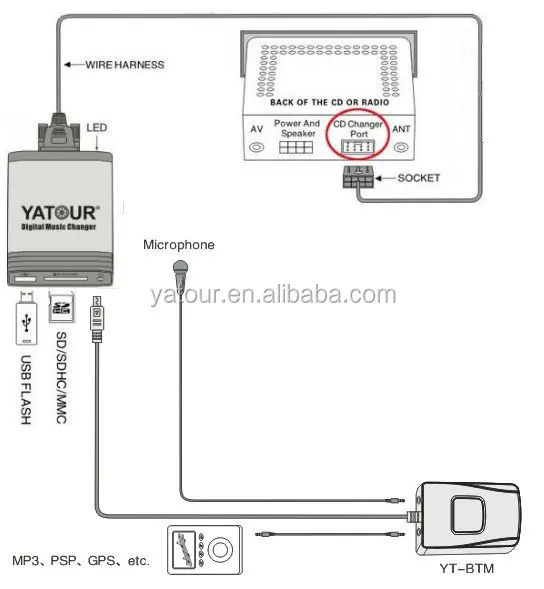

This is an audio car kit. It is a replacement for CD changers. It can be easily installed and used. The installation and use are the same as the installation and use of the CD changer, just insert the U disk/SD card, you can play audio through the car audio system and enjoy the music in the car. When connected with the optional Bluetooth module kit, the integrated Bluetooth hands-free function makes calls and streams A2DP music playback from the phone to the car audio system.

Specification:

l Voltage input: 11V~14.6V DC

l Working current: 200mA

l Standby current: 3mA

l Working temperature: -35℃~+85℃

l DAC resolution: 20bit

l Total harmonic distortion: 0.05%

l Signal-to-noise ratio: 90dB

l Frequency response: 20HZ-20KHZ

l The module shell is made of aluminum alloy

feature:

1. Plug and play, modular design, CDC replacement
2. Wire harness connection, not controlled by FM signal, ensuring high fidelity
3. Controlled by the vehicle Head Unit, support steering wheel operation
4. Hi-Fi decoding chip, perfect support for MP3 and WMA tracks
5. Support SD/SDHC/MMC card/U disk/card reader/hard disk
6. Support external audio source (MP4 PSP mobile phone) through AUX in port
7. Same playlist function as multiple CDs
8. Support Last Position Memory (LPM)
9. Anti-vibration and anti-jamming
10. Easy to install without damaging the original car decoration
11. Different protocol types of car audio have different module firmware versions
12. With BT slot for attaching Bluetooth hands-free kit (YT-BTM).

Supported memory cards and U disks:

1. The maximum size is 8GB (2GB is the most recommended); SD card is more recommended than U disk.

2. Before saving files and folders to USB/SD, please format the U disk or SD card as FAT16 or FAT32.

3. Mandatory folder naming system: CD01, CD02, CD03....

Subfolders are not read and confused with other names in the root of the drive.

4. Up to 15 folders are supported on USB/SD (depending on the radio type).

5. Each folder can store any number of songs, but the display on most radio models can only show 99 tracks; saving files that are too large (over 50MB) in any folder can also cause intermittent performance

6. Using music file formats other than WMA and MP3 may also cause choppy performance.

7. The song playback order is consistent with the creation date.
8. Sometimes, in order to eliminate defects in the car audio system software, you may need to disconnect the battery or remove the fuse to reset the car audio system.

9. To use the Aux-In port, the USB or SD card needs to be removed.

10. YT-M06 may not work with some new Kingston brand USB flash drives.
