Next generation ultra thin eink color display, battery operated e-ink display, electronic ink color display Products from Shenzhen Pertie Technology Limited

Product Details

Origin:	Guangdong, China	payment terms:	T/T, Western Union
brand:	Petit	model:	EPD001
Packaging Details:	Step 1: Bubble bags for each e-paper display; Step 2: Pack several bubble bags into one inner box; Step 3: Put two inner boxes into one outer carton; Step 4: Use all main cartons Protective film wrap. All export shipments are safe.	Main ingredients:	electronic paper
Name:	Thin e-paper display	color:	Full color display or monochrome display
Classification:	E-paper display POP	port:	Shenzhen

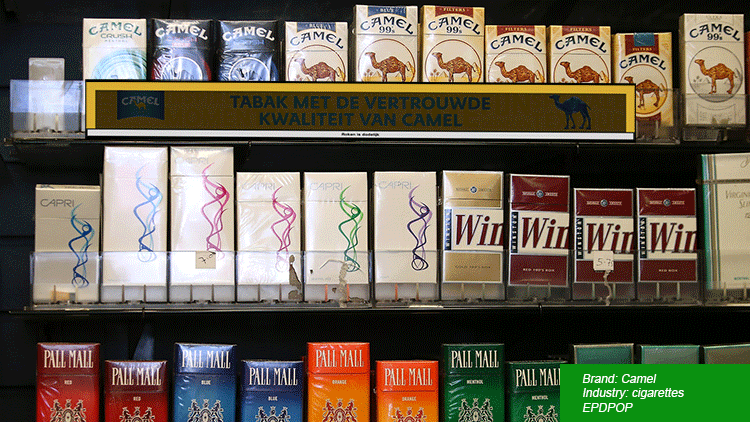

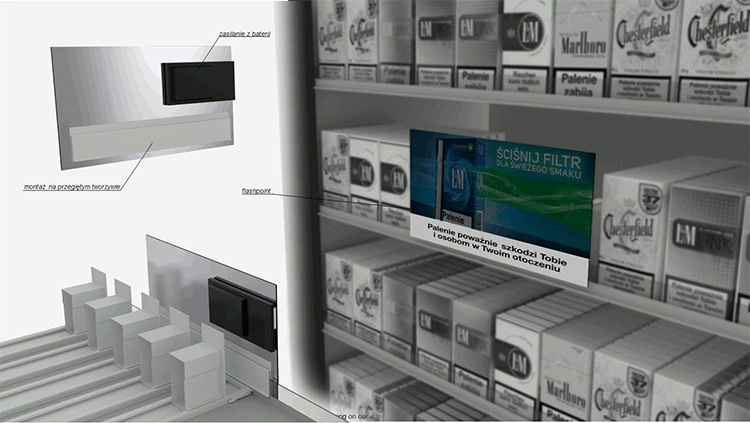

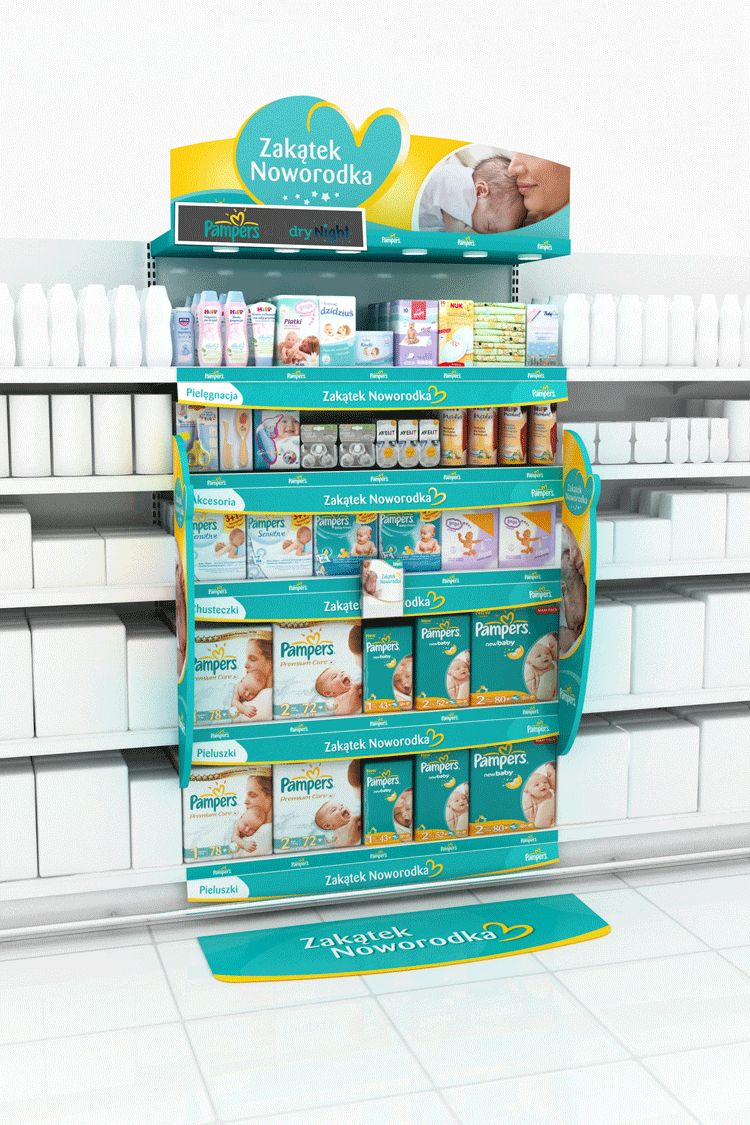

Supply capacity:	20000pcs custom pop display every week	usage:	Suitable for supermarket advertising
screen size:	5x5mm---520x370mm	Angle of view:	180°
Compared:	E-paper displays are readable in sunlight	type:	electronic paper
Battery Life:	6-8 months e-paper display uninterrupted display	power supply:	Batteries (wires not included)

Technical data:

Visual performance

Display type: reflective electronic paper display (electrophoretic)

Color: black and white

Contrast Ratio: 7:1 (Typical)

Reflectance: 41% (typical)

Image Stability: Remains legible for months

Viewing angle: 180°

Image update time: 240-400ms

physical properties

Thickness: about 0.9mm

Borders: at least 6 mm between active area and outer edge

power requirements

Drive Voltage: +/- 15 Volts

Power Consumption: Static Image: None; Image Update: 12 µW/cm²

electronic control

Drive mode: Inkmove dedicated controller

Environmental characteristics

Operating temperature range: -10° to 60° Celsius

Storage temperature range: -25° to 75° Celsius

Humidity resistance: 40 degrees Celsius 90% relative humidity for 240 hours

*Durability: The display is shatterproof

What can be displayed on e-paper:

thing	Yes or no	refresh?
number	Yes	Yes, show different numbers
picture	No	No
QR code or barcode	No	No
symbol (sign)	Yes	No, once the work is confirmed, it cannot be changed
text	Yes	No, once the work is confirmed, it cannot be changed

common problem

•Are e-paper displays flexible?

Yes. We can make electronic paper on curved surfaces. video:https://youtu.be/BYNPo4wiCbg

• What can I show on the display?

Symbols, text, numbers, not images.

•Can I display different parts on the monitor via USB?

No, all elements are pre-installed.

• How many design segments can I preload?

Usually 2 parts, but we need to check the artwork. The key is not to let the elements overlap.

• What about the battery? battery last?

Usually we use 6 button batteries (CR2032), which can last for about 6-8 months.

• What is the largest and smallest size you can make?

Max 600X400mm, if you need bigger, you need to splice several sheets of electronic paper together; there is no limit to the small size, it depends on the size of the controller.

• How many colors can your e-paper display?

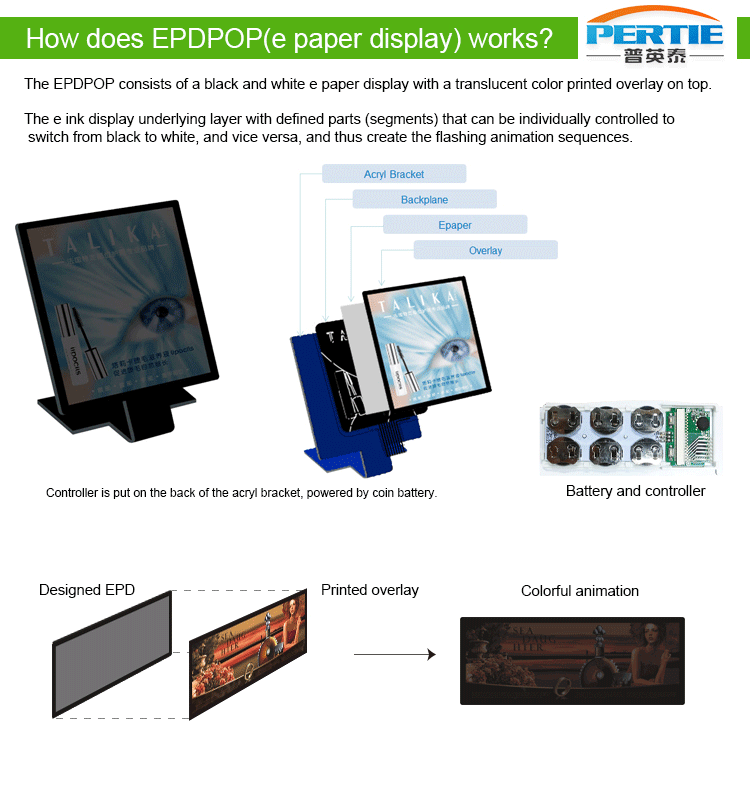

Only black and white are available on e-paper. Why our monitors have colors, check out the video here:https://youtu.be/rgRV-VgiY7A

• What is the maximum brightness of your e-paper?

Epaper is not backlit, it is visible because it reflects ambient light. It is very clear when placed in the sun.

• What is the energy supply of your product? How often does it need to be replaced?

Button Battery. Six CR2032 batteries last for 6-10 months.

• Does your finished product include a platform that plugs into the SD card or do we have to install a separate board?

We have to pre-install the artwork. The e-paper is cut according to the outline of the client's artwork.

• If we order custom shapes, what is the minimum quantity per purchase?

90% of our orders are custom made. The MOQ is 300pcs, but it can be negotiated.

• What is the largest and smallest size you can make?

Max 600X400mm, if you need bigger, you need to splice several sheets of electronic paper together; there is no limit to the small size, it depends on the size of the controller.
