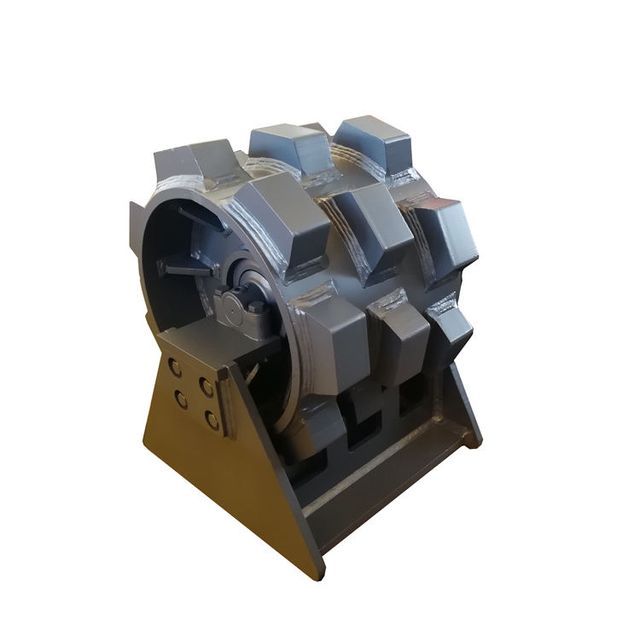

MONDE cat320 excavator attachment drum compactor wheel

Supplier: Shandong Mingde Gangcheng Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Jack Hua
Price: $700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	Brazil, Russia, Japan, Australia	Purpose:	to compact
Marketing Type:	Hot Products of 2022	Certification:	SGS certification
Video shipment inspection:	if	brand:	Le Monde
Applicable excavator (ton):	20-24 tons	Processing:	usable
Supply capacity:	30 sets per week	port:	Qingdao/Ningbo/Shanghai
Core components:	Bearings, motors, pumps	Origin:	Shandong China
payment terms:	L/C, T/T	Runner width:	610
Health status:	new	Package preview:
color:	yellow or customized	Runner diameter:	600mm
Applicable industries:	Others, Construction Engineering, Road/Railway Construction	Warranty:	1 year
advantage:	powerful	weight:	695
Packaging Details:	Pallets and wooden boxes, or other packages according to customer requirements.	model:	CW200
Mechanical test report:	if	MOQ:	1 set
brand:	Monde or customized	Pin Diameter:	80mm

Specification

Provides a tough, durable drum compaction heel for excavators up to 45 tons. It is available in a variety of configurations to suit different machine types, trench widths and soil types.

Model	CW80	CW120	CW200	CW300	CW400
Needle diameter (mm)	50	60/65	80	90/100	100/110
Runner diameter(mm)	600	600	600	900	900
Runner width(mm)	350	460	610	610	910
Weight (kg)	480	550	695	1330	1540
Applies to (tons)	6-8	12-18	20-24	25-36	40-50

application

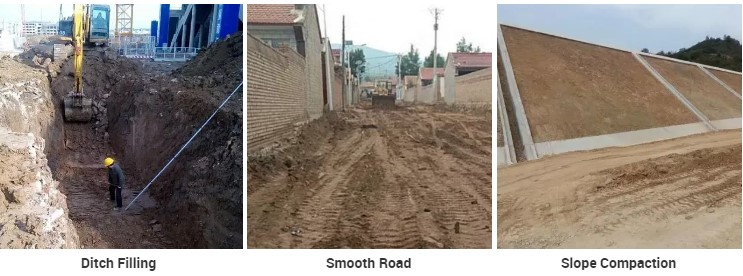

Monde Compaction wheels are primarily used for trench compaction and are faster and more efficient than vibratory machines. They can do more with less wear and tear. Vibratory compactors compact from top to bottom, a single plane, leaving clay intact or soil with voids around it. The compaction wheels work from the bottom up, removing clods while breaking up the soil and filling the voids.
