DPE CS-22 CABLE HOLDER/Cable Puller for cables and pipes

Supplier: Bazhou Dpair Hardware Equipment Co., Ltd.
Region: Hebei, China
Contact: Mr Dpair Tools
Price: $1.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Packaging Details:	carton	model:	hack
Certification:	ISO9000	feature:	can be fixed
Supply capacity:	1000 pieces per week	type:	Wire Rope Clamp
Origin:	Hebei china	usage:	power construction
Material:	wire rope	product name:	cable retention clip
brand:	D pair	payment terms:	Western Union, T/T
application:	Electrical accessories	color:	silver
port:	Tianjin harbor

cable socks

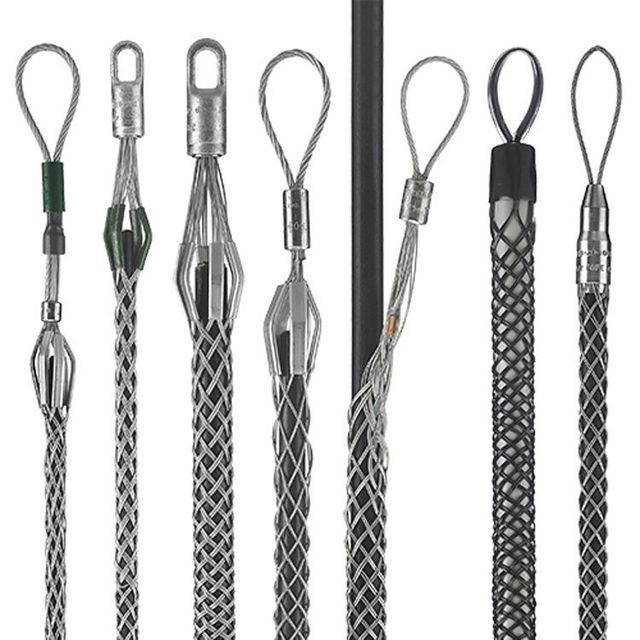

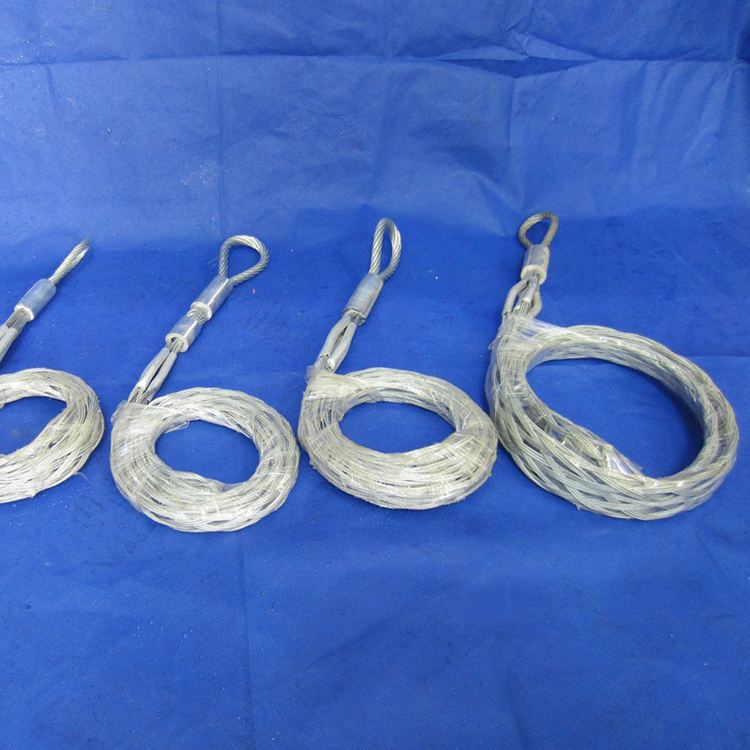

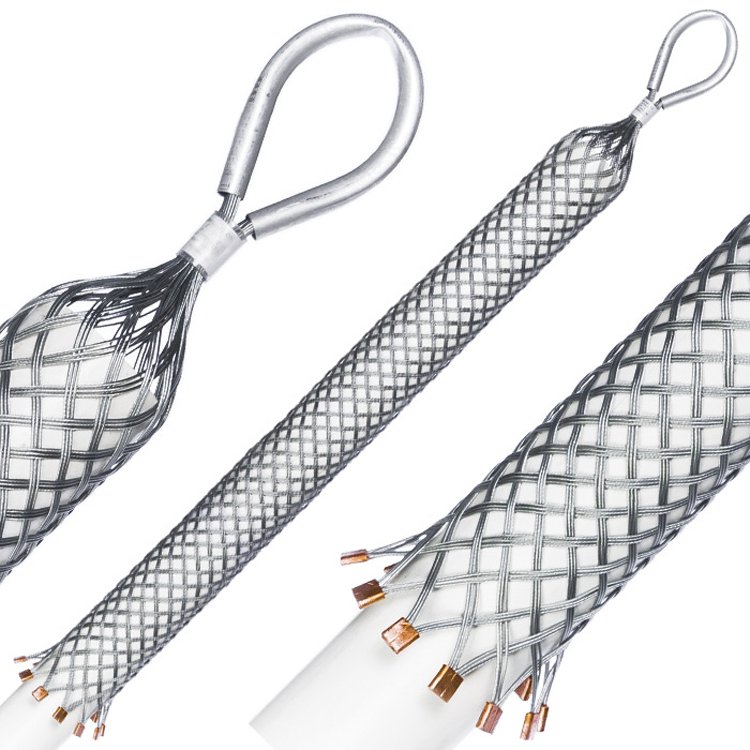

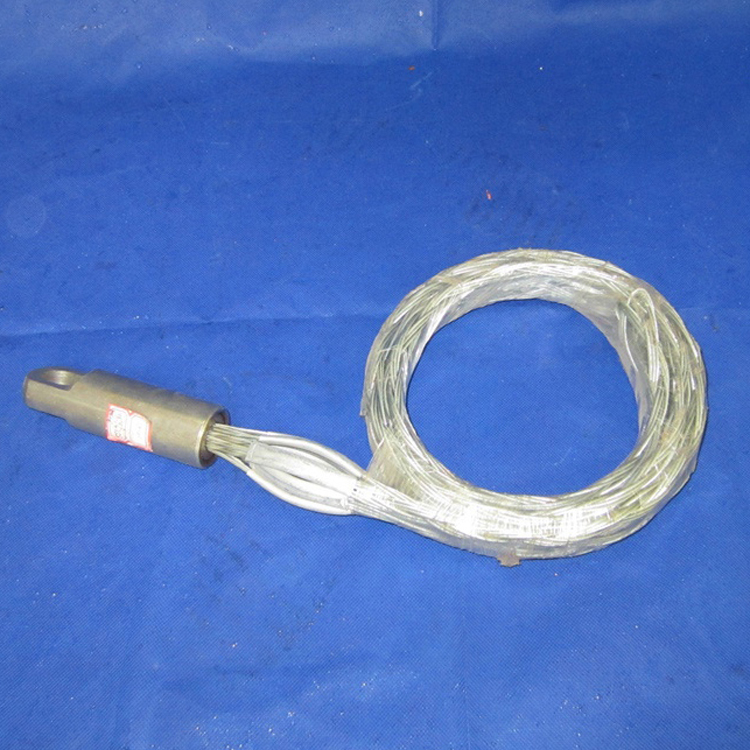

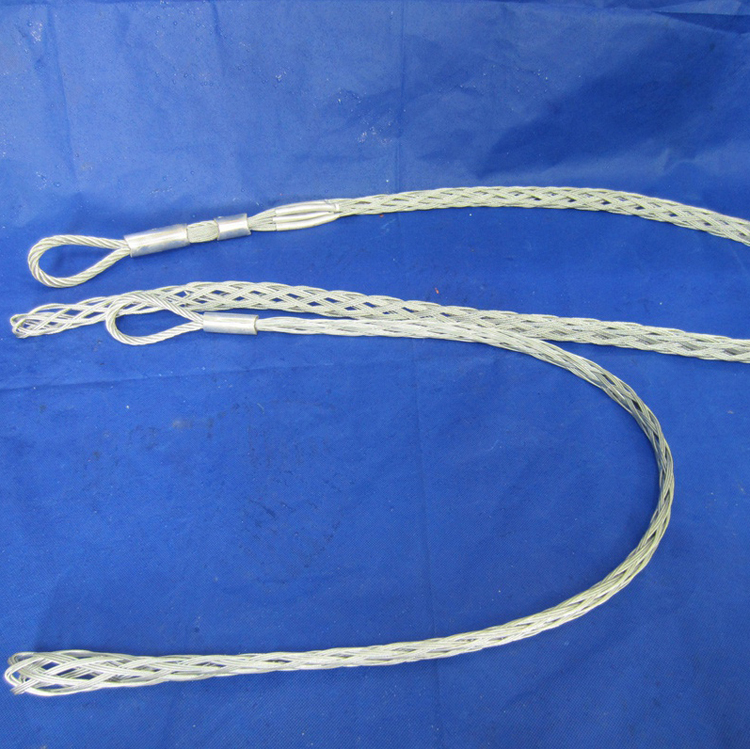

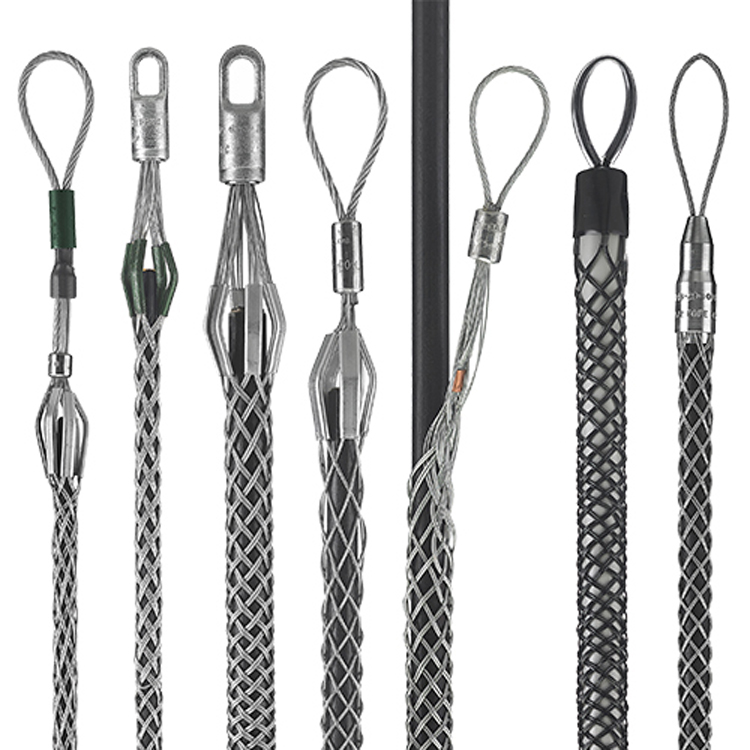

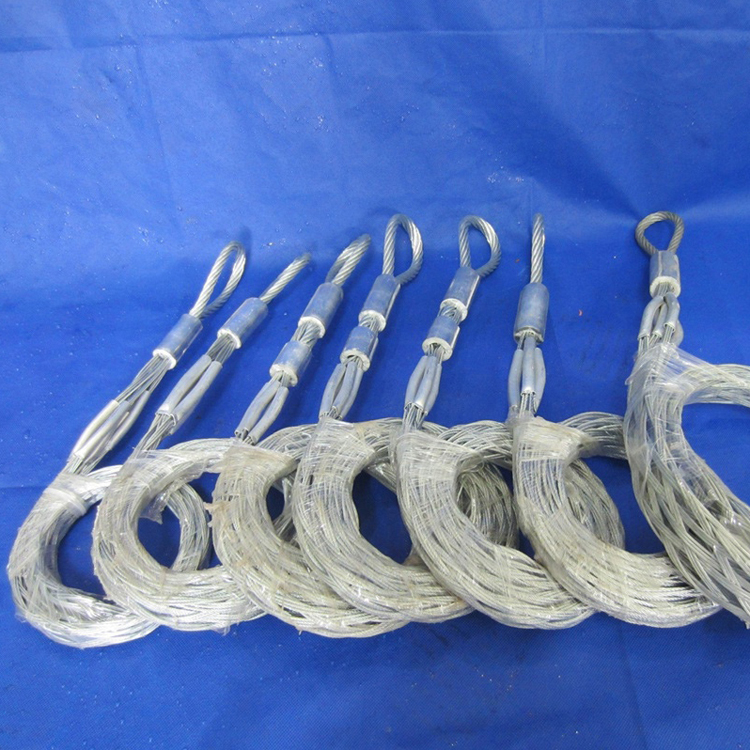

Cable Pulling Socks are an effective way to mount and hold cables or heavy duty cables (also known as Cable Grips), Cable Socks/Grips can also be used to support or pull any cylindrical object within its gripping and load carrying capabilities. Cable socks simplify the process of pulling low and high voltage cables into ducts, trenches and ducts.

Pulling clamps are essential in many different cable pulling applications. Constructed from galvanized steel wire rope, evenly braided into single, double or triple wire braids depending on tension requirements, the clamp slides over the outer sheath of the cable - when tension is applied, the clamp contracts and applies its clamping force to the outside of the cable .

Model	Diameter range (mm)	to weave	grid length	overall length	Staccato
Model	Diameter range (mm)	to weave	grid length	overall length	Staccato
DPE CS-22	13mm~19mm	single	355mm	430mm	1,00 tons
DPE CS-23	19mm~25mm	single	405mm	510mm	2,50 tons
DPE CS-24	25mm~38mm	single	455mm	610mm	3,50 tons
DPE CS-25	38mm~50mm	double	535 mm	735 mm	5,00 tons
DPE CS-26	50 mm~ 63 mm	double	610mm	865mm	5,00 tons
DPE CS-27	63 mm~ 89 mm	double	685mm	990mm	6,00 tons
DPE CS-28	89mm~115mm	double	685mm	990mm	7,00 tons
DPE CS-29	115mm~130mm	double	685mm	990 mm	7,00 tons
DPE CS-30	130mm~150mm	double	800mm	1200mm	7,00 tons
DPE CS-31	140mm~160mm	double	1400 mm	1900 mm	7,00 tons
