30kW Solar EV Electric Car Charging Station Home Personal Carport Solar Carport Charging System

Supplier: Shenzhen Setec Power Co., Ltd.
Region: Guangdong, China
Contact: Ms Setec Manager
Price: $7000.00 / 1 - 4 sets
$6500.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Cytochemistry:	Lithium iron phosphate LiFeP04	The output voltage:	300-1000Vdc
Car equipment:	other	Input voltage range:	300-450 VAC
payment terms:	L/C, Western Union, T/T	Function:	EV charging
Warranty:	2 years	brand:	Saitek Power
Year:	other	Packaging Details:	Wooden packing
Output frequency:	45~63Hz	Solar panels:	10-100KW
type:	Charging pile, solar charging carport	Protection level:	IP54
Supply capacity:	150 pieces per month	Dimensions (LxWxH):	Charging station 55x110x160cm
Origin:	Guangdong, China	port:	Shenzhen Port
Model:	other	connect:	China Classification Society, CHADEMO
Battery capacity (kWh):	30(can be customized)	power input:	Solar battery
Charging port:	Chadmore, CCS

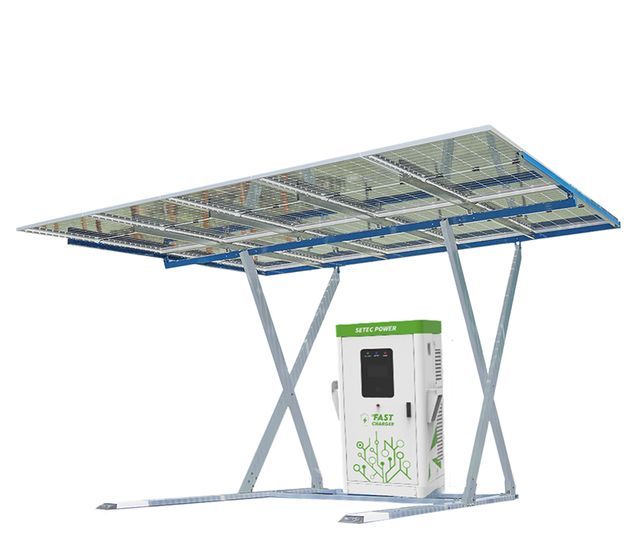

30kW Home Electric Car Charging Solar Carport System

The energy crisis in Europe has caused electricity prices to soar, making it difficult for drivers to travel in electric vehicles. Before this long and cold winter comes, SETEC POWER has launched a new solution for customers - home EV charging solar carport system. High-efficiency solar panels take full advantage of the sun's energy to charge your electric car, allowing you to reduce your carbon footprint while avoiding energy shortages.

feature

Cost Savings: Total upfront cost divided by the total amount of energy produced over its lifetime. Then for sure, the hourly cost of a Home EV Charging solar carport system is less than grid energy costs. This is especially true of Europe's current energy crisis, which is not going to end anytime soon.
Clean energy: While electric vehicles are not harmful to the environment, their electricity comes primarily from fossil fuels. Solar energy is 100% clean energy which minimizes carbon footprint.
Reliability: The combination of solar panels and battery storage system ensures that solar energy is not wasted and can charge your electric car in the event of a power outage or lack of sunlight.
EASY TO INSTALL: The Home EV Charging Solar Carport System is highly integrated and pre-installed, so all you need to do is stand up the stand and turn on a few screws, and you're ready to go.

project

charging process

data sheet

	Rated power (Pmax)	10-100KW
Solar panels	Material	polysilicon
	conversion efficiency	20%
	panel size	customizable
	battery system	Battery capacity (kWh)	30(can be customized)
		cytochemistry	Lithium iron phosphate LiFeP04
		DoD % (Depth of Discharge)	90%
Operating temperature		Charging: -20~55℃/ Discharging: -20~65℃
Protocol		RS485/CAN/LAN
Cycle Life (0.3C)		10000 cycles, 100%DOD @25°C

system	Building Management Systems Newsletter	CAN2.0【CHAdeMO】/PLC【2 in 1】, Tesla
	charging plug	CCS1, CCS2, Chademo, Tesla
	cooling method	forced ventilation
	Operating temperature	-25°C to +65°C
	Storage temperature	-40°C to +70°C
	Relative humidity	20% to 95%
	environment	Indoor and outdoor
enter	power input	Solar battery
	Input voltage range	300-450 VAC
	frequency	40-65HZ
	power factor	0.99
	Total Harmonic Distortion of Current	≤5%
	Input undervoltage protection	Yes
output	The output voltage	300-1000Vdc
	maximum. Output current	100A
	Output Power	30KW
	Output overcurrent protection	Yes
	Output short circuit protection	Yes
General	protection level	IP54
General	Dimensions (LxWxH)	Charging station 55x110x160cm (cabinet)
