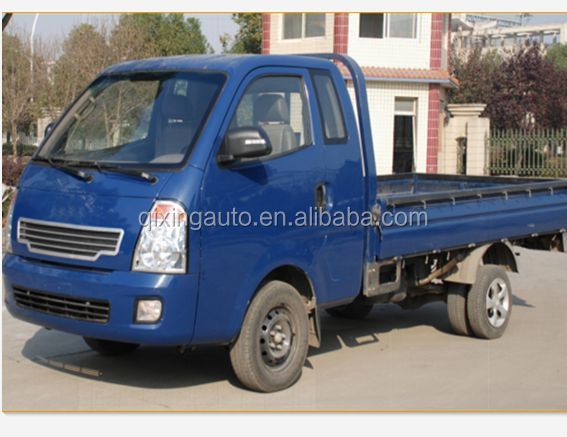

SKD/CKD original latest design left-hand light truck with one and a half cabs

Supplier: Hubei Qixing Truck Cabin Manufacturing Limited Company
Region: Hubei, China
Contact: Mr QI XING
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

type:	other	Supply capacity:	10000 sets per year
model:	QX1026 (cabin: WK13)	Origin:	Hubei, China
driving type:	4*2	emission:	Euro I
Package preview:		seat:	2+1
Truck Model:	other	Material:	Metal
Original serial number:	According to customer requirements	engine model:	Isuzu / D4BB
Tire number:	6+1+1	payment terms:	L/C, Western Union, T/T, MoneyGram
port:	Chinese port	color:	white
Shift:	2607cc	product name:	Original left-hand one-row semi-light truck
Wheelbase:	2820	Packaging Details:	The latest design of the original factory with a row of semi-light trucks 1. Bare packing and waxing 2. Container transportation 3. Bulk and roll-on transportation
size:	5500mm1740mm2020mm	brand:	OEM production
Number of axles:	2

The latest design of the original single-row semi-light truck

Product Description

model	QX1026
engine	Engine model: D4BB
	Type: Hyundai, Diesel Engine, Direct Injection Engine, Inline 4 Cylinder, Mechanical VE Pump, Naturally Aspirated, Water Cooled
	Maximum output according to DIN: 79PS/4000r/mm
	Maximum torque: 16.5kg m/2200r/min
	Aperture Diameter: 91.1mm
	Stroke: 100mm
	Displacement: 2607cc
	Compression ratio: 22:1
	Displacement standard: EUR II
	Idle speed: 750 rpm
	Weight (dry weight): 195 kg
	Size: 710673.4641
spread	Model: M5ZR1, Hyundai
	Operation Type: Flexible Cable Operation
	Constant mesh: 5 forward & 1 reverse
wheel	Front tire: 195/70R15C-8PR
	Rear tire: 145R13C-8PR
	Front rim: 5.5J×15
	Rear rim: 4J×13
	Number of tires: 6+1+1
chassis	Frame type, welded structure,
	Axes: 2
cab	Model: Wk13
	Seats: 2+1
electrical appliance	Working voltage: 12V negative ground
	Starter: 12V, 2kw
	Alternator: 12V, 75A
	Battery: 12V, 90Ah
Dimensions mm	wheelbase	2820
	front tread	1485
	rear tread	1320
	front overhang	1185
	rear suspension	1350
	approach angle	°
	departure angle	°
	overall length	5500
	overall width	1740
	overall height	2020
weight kg	curb weight	2490 kg
	loading weight	1000 kg
	gross weight	3490
	Front axle load capacity (no load)	1400 kg
	Rear axle load capacity (no load)	2270 kg

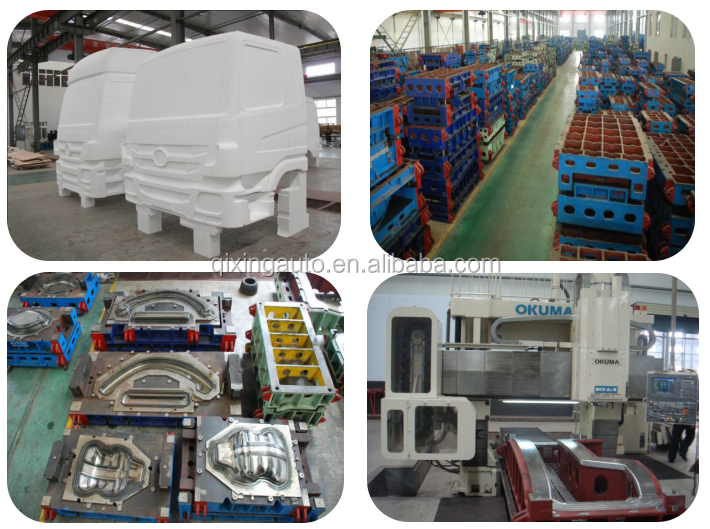

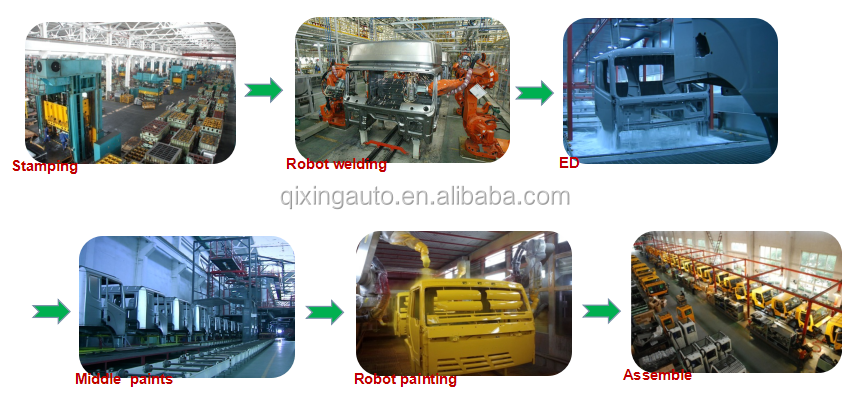

Production Process

The company has research and development centers such as mold design and development, interior design and production, stamping and painting workshops, and can provide complete designs and production lines for various cabins according to customer requirements.

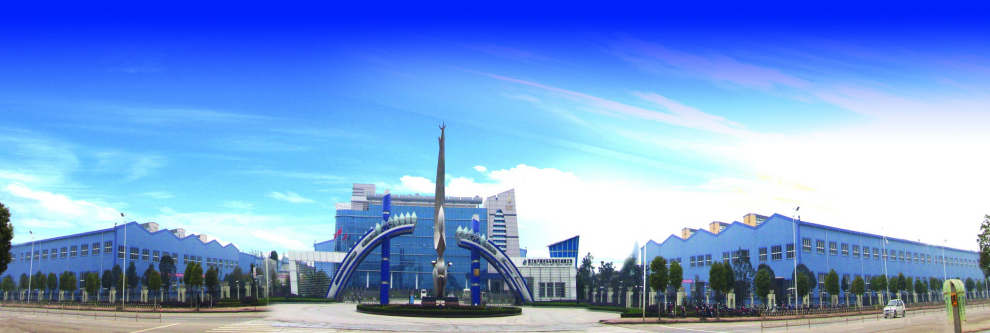

who are we

Type: State-owned cooperative, established in 1980, has 13 subsidiaries.

Company size: more than 3,500 employees, 256 engineers;

More than 2,500 acres; 2.6 billion yuan in fixed assets;

Capacity: 100,000 carriages, 15,000 special trucks and chassis, 100,000 tons of castings

what can we provide

We provide customers with various truck cabs for different purposes with high quality and excellent after-sales service.

Design new cabins, tooling for different purposes
Design new interior trim and exterior, tooling
Development of new cabin and interior trim tools
Stamping, painting, assembly
Interior production
Retrofitting Existing Cabin Interiors and Exteriors
Design powertrain and CBU trucks

Certificate

market and customers

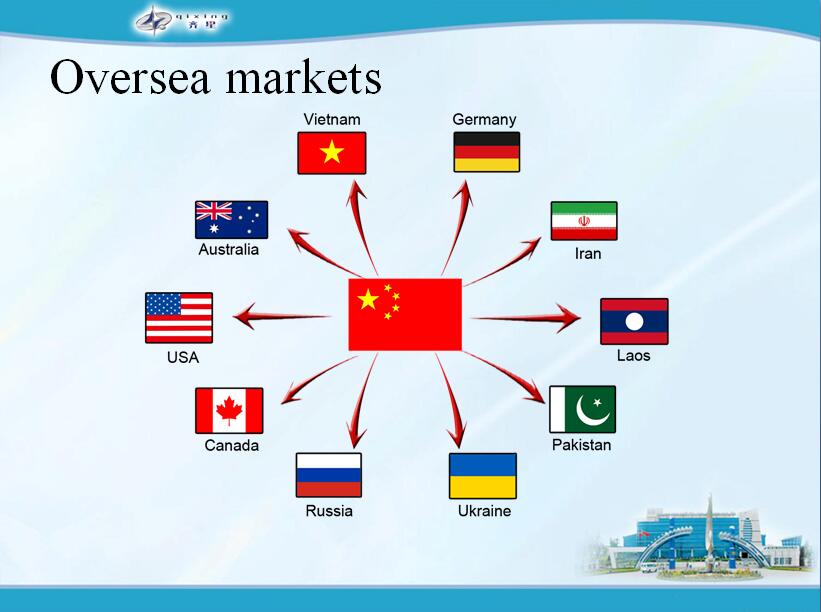

overseas market:

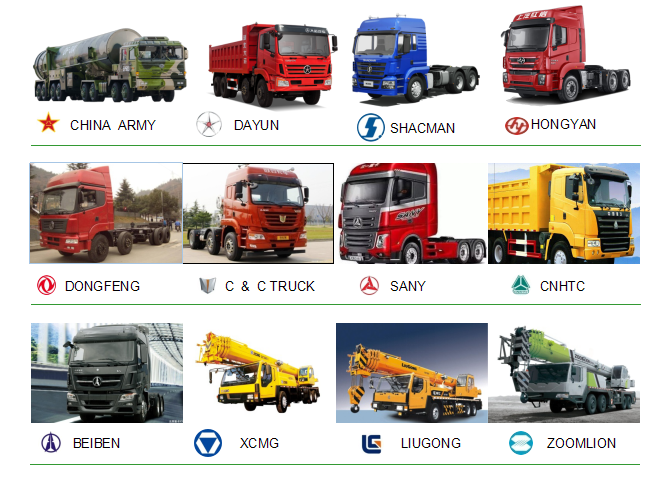

Domestic market:

Hubei Qixing Body Manufacturing Co., Ltd.
(a wholly-owned subsidiary of Qixing Group Corporation)
Tel: 0086-722-3262617
Fax: 0086-722-3261281
Address: No. 2 Lieshan Avenue, Suizhou City, Hubei Province
Website: www.qixingauto.com or https://qixingauto.en.alibaba.com
