CD automatic curtain eyelet machine

Supplier: Dongguan Chengda Machine Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Amy Lee
Price: $2250.00 / 1 - 1 sets
$2185.00 / 2 - 9 sets
$2085.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

product name:	CD automatic curtain eyelet machine	Name:	Curtain eyelet machine
Warranty:	1 year, 1 year	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
usage:	manual	Packaging Details:	Standard export wooden box
strength:	1/2 HP	color:	customizable
weight:	150KG	Dimensions (LWH):	7206601430mm3
type:	fully automatic	Certification:	ISO9001:2008
Health status:	new	Production capacity:	40-60 times/min
After-sales service provided:	Video technical support, engineers can repair machinery overseas	Supply capacity:	500 sets per month
Voltage:	220V/380V	Origin:	Guangdong, China
application:	Eyelet rivets	port:	Shenzhen, China
brand:	Chengda	Function:	simple

Product Description

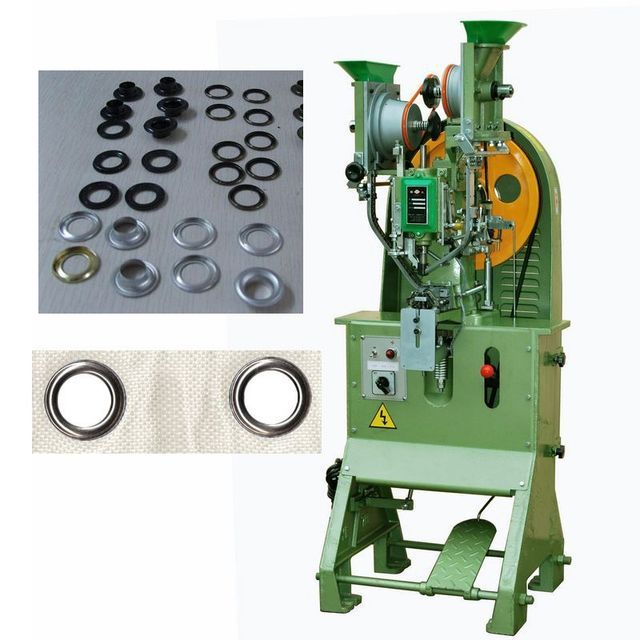

CD-J5EA Automatic eye punching machine

feature:

Automatic eye punching machineThe upper and lower corns (with neck gaskets) are automatically fed, with accurate positioning, stable performance and good corn effect.

application:

It is suitable for riveting eyelets, grommets, tarpaulin banners, shoes, belts, handbags, belts, uppers and various leather products on canvas. Automatic up and down feeding for one riveting.

Both eyelets and gaskets are self-feeding.

Corn face diameter	Φ6~28mm (can be designed according to your hole)
Hole diameter	Φ15mm (can be designed according to corns)
Eyelet length	3~8mm (according to your hole design)
deep throat	130mm
engine	1/2HP
Bottom plate to bottom mold height	800mm
Machine size (lengthwidthheight)	5505901430mm
net weight	160 kg
gross weight	220 kg
