8 person cheap mini bus price electric mini bus/buses for sale philippines Products from Qingdao HSMH Industrial Co., Ltd.

Product Details

Size:	390014801980mm;	Model Number:	HS-S8;
Delivery Detail:	20 days after payment;	Motor:	48V4KW DC;
Brand Name:	Hot Star;	Packaging Detail:	Remove the sunroof and windshield 1x20'GP fit 4 units 1x40'HQ fit 16 units electric sightseeing bus 8 person;
Brand:	Hot Star;	Tread distance:	Front:1180mm/Rear:1200mm;
Model:	HS-S8;	Port:	qingdao,shanghai,shenzhen;
Supply Ability:	500 Set/Sets per Month;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
service:	OEM;	Battery:	Trojan/maintenance free battery;
Power:	Electric;	Controller:	US made Curtis controller 1268/400A;
Place of Origin:	China (Mainland);	Loading:	8 persons;
Climbing ability:	20%;

Product Description

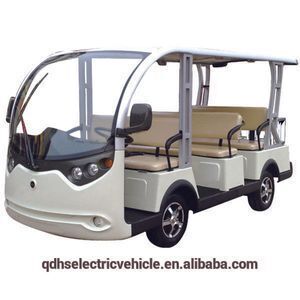

8 person cheap mini bus price electric mini bus/buses for sale philippines

Model No.	HS-S8
Motor	48V 4KW
Battery	Trojan/maintenance free battery
Charger	48v 25A
Controller	US made Curtis controller
Charging time	less than 12 hours(discharging rate 80%)
Glass	Sandwich glass
Seat	leather
Sun Roof	PP vacunm forming
Floor	Autiskid rubber floor
Rear Mirror	Handoperated,both side
Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
Dc/Light/Signal	front light,turning light, fog light, rear light, hom, Buzzer
Body	Fornt bady adopts”PP”alloy automobile special engineering material The driving baxadopts fiber glass material
Dash Board	Fiberglass dash board,Voltage Indicator 48V,Switch Head Lights,Switch - Indicators Right/Left, key switch,Switch - Forward/Reverse
Braking System	Front disc and rear dram,four-wheel hydraulic brake+hand brake
Front Axle And Suspension	Independent suspension,helical spring +cylinder hydraulic shock absorption
Rear Axle And Suspension	Integral type transaxle,gear ratio 12.31:1,semi-independent transaxle,leaf spring
Overall Dimension	390014801980mm
Tire Diameter	535mm
Wheel base	Front:1180mm/Back:1200mm
Loading	8 people
Max speed	30-40km
Braking distance	3.5m
Turning radius	≤5m
Mini Ground Clearance	180mm
Braking Distance	3.2m
Climbing ability	safe climbing:20%
Maximum mileage	80-100km(flat road)
