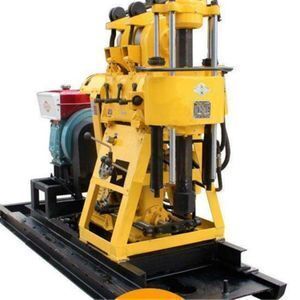

HZ-200YY 200m hydraulic diesel Water Well rock Drilling Machine

Supplier: Shandong Jiezhuo Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Myra Pan
Price: $3650.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	JieZhuo;	Drilling diameter:	75-300mm;
Place of Origin:	Shandong China (Mainland);	Voltage:	/;
Selling Units:	Single item;	Usage:	Water Well;
After-sales Service Provided:	Video technical support,Free spare parts;	Single package size:	165X85X140 cm;
Drill pipe diameter:	42mm 50mm 60mm;	Warranty:	1 Year;
Delivery Detail:	0 days after payment;	Single gross weight:	980 KG;
Power Type:	Diesel;	Engine model:	Diesel;
Weight:	980kg;	Applicable Industries:	Construction works ,Energy & Mining;
Certification:	ISO;	Package Type:	Packing with wooden case;
Type:	Rotary Drilling Rig;	Drilling method:	Top Drive Hydraulic Rotary Drilling;
Drilling depth:	200m;	Condition:	New;
Dimension(LWH):	280095001700mm;	Drill rod length:	3.0m;

Product Description

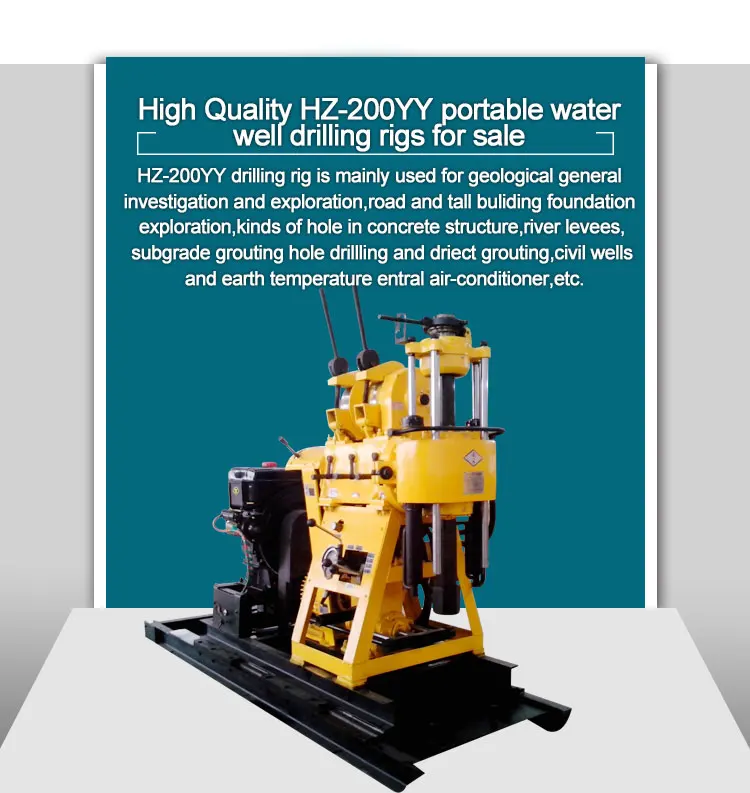

HZ-200YY Hydraulic Portable 200m Water Well Drilling Machine

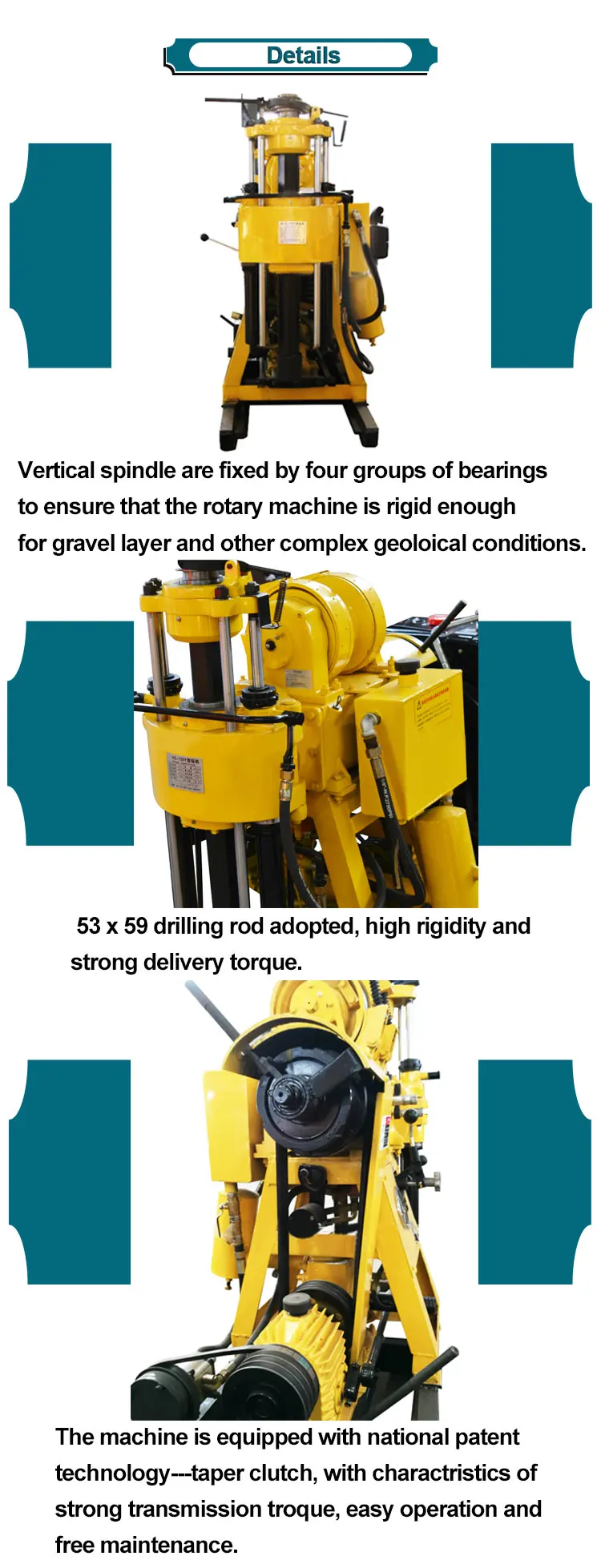

A.53*59 drilling rod adopted,high rigidity and strong delivery torque.

the machine is equipped with national patent technology---taper clutch,with characteristic of strong transmission torque,easy operation and free maintenance.

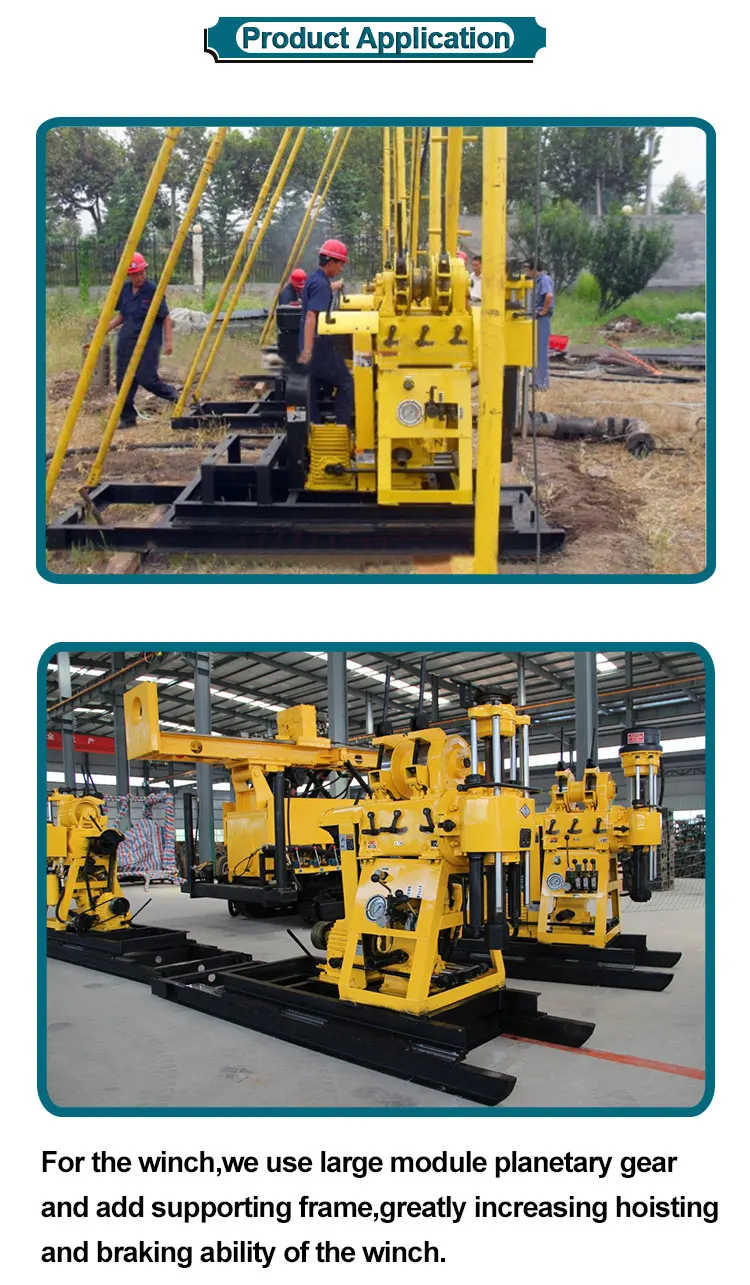

B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.

C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.

D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.

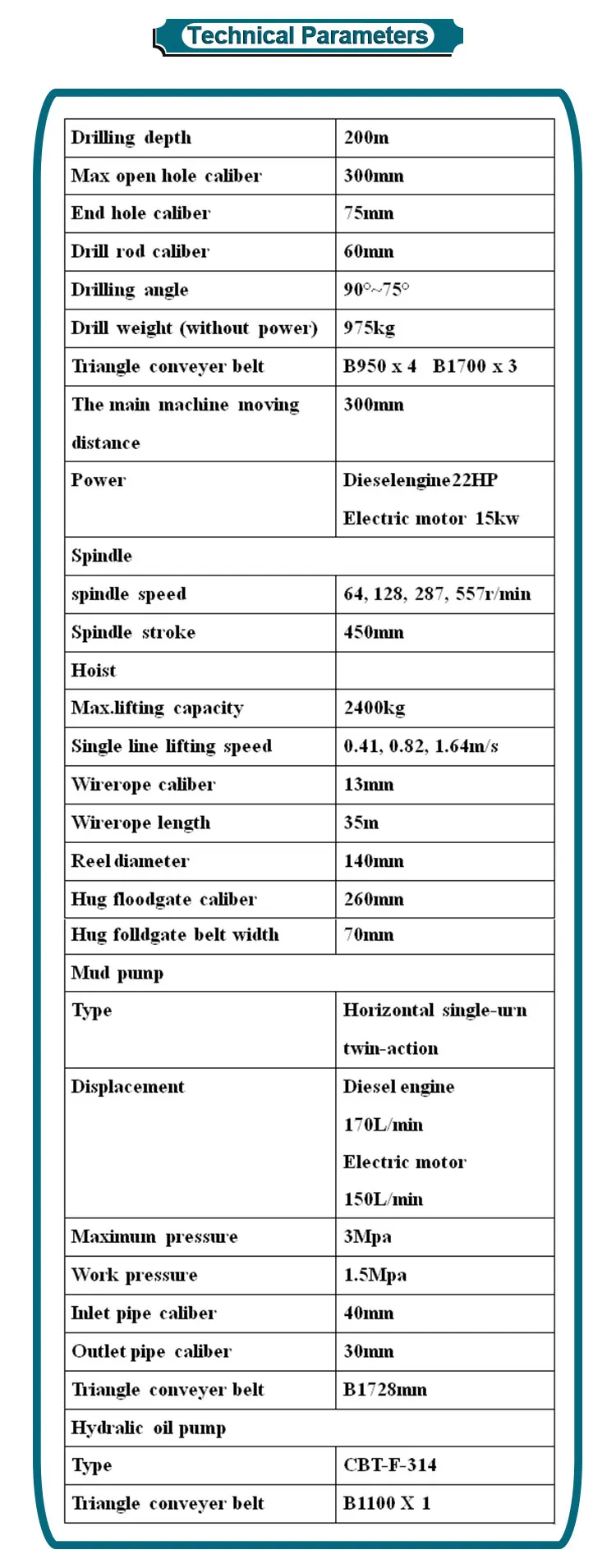

Drilling depth	200m
Open hole diameter	75-300mm
End hole diameter	75mm
Active drill rod	53/59*4200mm
Rod diameter	50,60mm
Drill angle	90°-75°
Matched power(diesel power)	15kw/2200r/min
Dimension	28009501700mm
