PACKBOX TTC5200 gallbladder 500W mono high-power amplifier board-level assembly amplifier reference FM801 line
- 0.10 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Item Type: | circuit | Maximum power per channel: | Above 200W |
| origin: | China (origin) | payment terms: | Western Union, T/T |
| Origin: | Guangdong, China | model: | FM801 line, T1124 |
| channel: | 1 | pack: | Yes |
| brand: | MUTG |
contact us
Contact: Ms Sandy
Tel: +86 137 1424 2013
Email: 6475166(at)qq.com
WeChat: 0086 137 1424 2013
Skype: 0086 137 1424 2013
WeChat: 0086 137 1424 2013
Dear, if you are interested in the product, please send us an inquiry with the product name, we are willing to provide you with better service

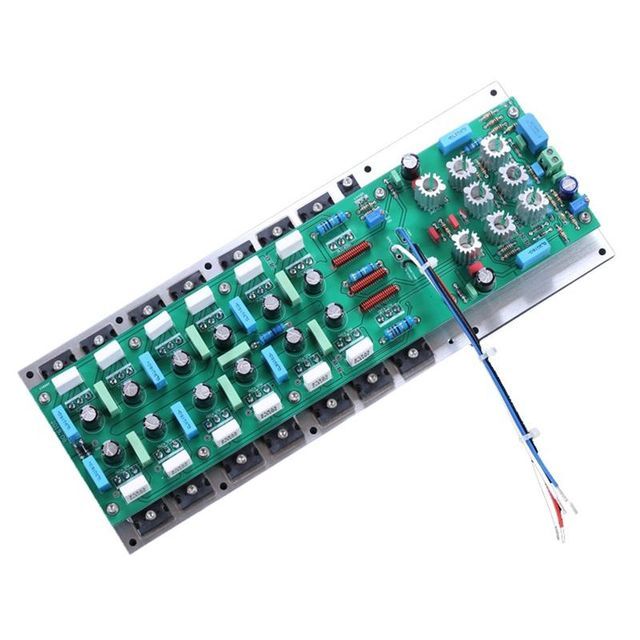

14pcs TTC5200 Tube Power Amplifier 500W Mono Power Amplifier Board
| thing | Amplifier board |
| Model | T1124 |
FM801 original parameter core line
Mono 14 (7 pairs) precision matching Toshiba original high-power tube TTC5200 (2 channels 28 pairs)
Decoupling electrolytics and capacitors in parallel with each large tube
8 precision test pairs of gold-sealed transistors 3440/5416 (MOTO new goods)
Recommended voltage: DC±70v power supply (corresponding to AC50v)
Output power: 8 ohms 250w 4 ohms 500w
Plate size: 300*86mm (with power tube 110mm wide)
Radiator size: 300*117*10mm (excluding radiator)
pack:
1pc board
