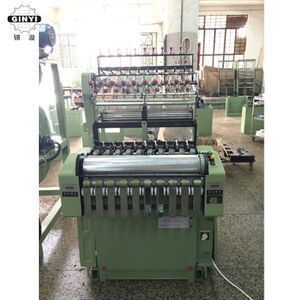

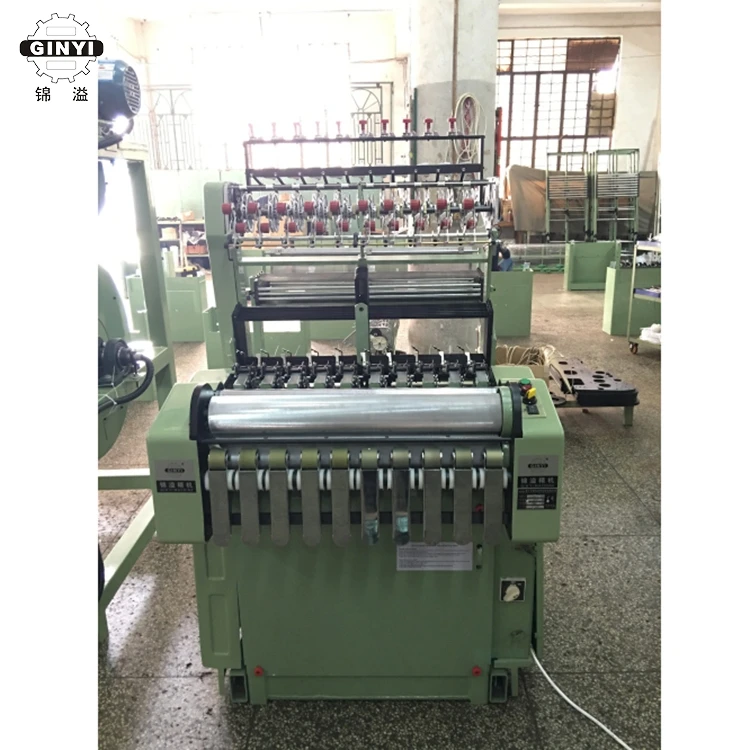

cheap price high quality medical cotton gauze bandage making machine

Supplier: Xiamen Ginyi Machine Co., Ltd.
Region: Fujian, China
Contact: Mr Larry lin
Price: $2800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO;	Packaging Detail:	Strong export wooden boxs.(waterproof).;
Production Capacity:	1500-2500 For One Day;	Port:	Xiamen,Fujian,China;
Services:	Operation instruction&professional training;	Warranty:	one year;
Dimension(LWH):	180CM115CM155CM;	Brand Name:	GinYi;
Power(W):	1.5KW;	Supply Ability:	400 Set/Sets per Month;
Application:	Elastic,Webbing,Ribbon Making Machine;	Payment Terms:	L/C,T/T;
Weight:	800KG;	Type:	Shuttleless Needle Loom;
Place of Origin:	Fujian China (Mainland);	Condition:	New;
After-sales Service Provided:	Engineers available to service machinery overseas;	Products:	PP Webbing, Elastic, Belt,etc;
Delivery Detail:	7-30 days;	Model Number:	GNN 10-30;

cheap price high quality medical cotton gauze bandage making machine

Product Description

1.Specifications

MODEL	GNN-10/30
BELT NUMBERS	10
REED WIDTH(mm)	30
HEALD FRAME	12
Weft density	3.5-36.7weft/cm
PICK REPEAT	8-40
H.P. MOTOR	1.5
MAX.SPEED R.P.M	800-1000
Packaging	1Set/Wooden Case
Delivery lead time	7-30 Days
Minimum order	1 Set
Guarantee	1 Years

Other size

Model	GNN-10/30	GNN-8/45	GNN-8/30	GNN-6/55	GNN-6/45	GNN-4/65	GNN-4/80	GNN-4/110	GNN-2/160
BELT NUMBERS	10	8	8	6	6	4	4	4	2
REED WIDTH(mm)	30	45	30	55	45	65	80	110	160
HEALD FRAME	12	12	12	12	12	12	12	12	12
PICK REPEAT	8-48	8-48	8-48	8-48	8-48	8-48	8-48	8-48	8-48
WEFT DENSITY	3.5-36.7	3.5-36.7	3.5-36.7	3.5-36.7	3.5-36.7	3.5-36.7	3.5-36.7	3.5-36.7	3.5-36.7
H.P. MOTOR	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
MAX.SPEED R.P.M	800-1000	800-1000	800-1000	800-1000	800-1000	800-1000	700-900	700-900	600-800
PACKAGING	1set/wooden case	1set/wooden case	1set/wooden case	1set/wooden case	1set/wooden case	1set/wooden case	1set/wooden case	1set/wooden case	1set/wooden case
GUARANTEE	1 years	1 years	1 years	1 years	1 years	1 years	1 years	1 years	1 years

2.Advantage

1)GNN needle loom is with stable quality, low noise, and durable working condition. It supplies customer high economic efficiency.

2)Automatic lubrication device and automatic tension feeding system provide effective control over high quality fabric while saving time and labor for the user.

3)Drive belt and change gear to perform stabilized transmission of bottom weft and provide wider range of fabrics which be more superior in quality.

4)Convertible machine parts supported with various devices to provide wider range of fabrics multi-purpose for single machine as well.

5)Heald frame in double-load, double shedding lever, twin pattern chain transmission configuration of shaft and gear has been reinforced.(8/45,4/65,6/55)
