Solar Home Energy Product Solar Panel Roof Tiles 30w Solar Cells

Supplier: Beijing Shan Hu International Technology Co., Ltd.
Region: Beijing, China
Contact: Ms Sunny Sun
Price: $47.00 / 30 - 199 pieces
$42.00 / >=200 pieces
Min. Order: 30 pieces

Click here to contact

Product details

type:	PERC, double-sided, double-glass, BIPV	Short circuit current:	4A
Voltage at PMPP:	8.6V	Currently under PMPP:	3.5A
Open circuit voltage:	10.6V	Waterproof rate:	IP67
Fire rate:	A	Material:	Monocrystalline silicon
model:	SA-A30W	Panel Efficiency:	30W
strength:	30W	Qualification and certification:	3C/CQC/IS09001/Rohs(in application)/UL(in application)
Core type:	CIGS	Packaging Details:	Wooden packing
brand:	Mulberry Solar	port:	Tianjin harbor
Origin:	China	Unit size:	125mmx125mm
Panel size:	267(±1)mmx720(±1)mmx14(±1)mm	Loading rate:	2400 Pa
Supply capacity:	100000 pieces per week	Package preview:
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram

Product Description

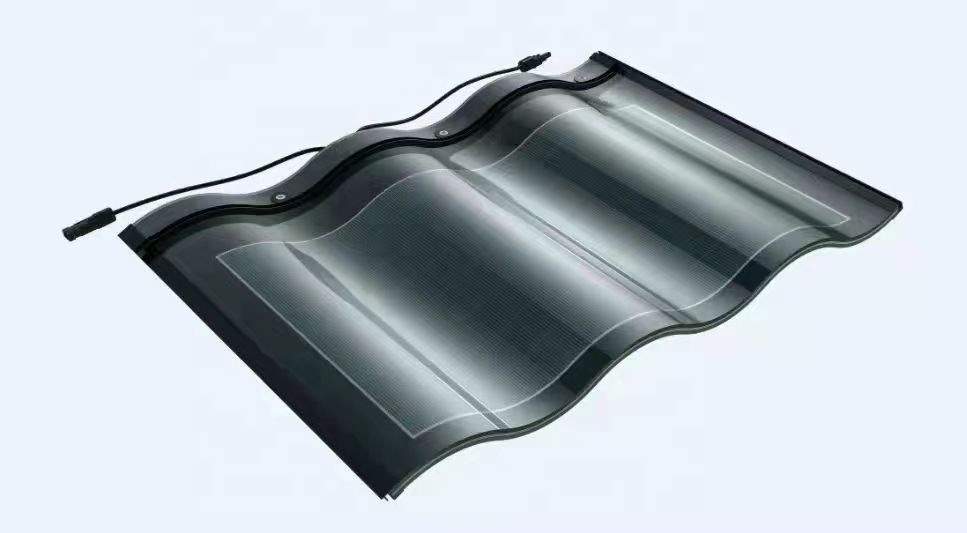

Hanergy decking hantile 30W CIGS thin film photovoltaic energy system glass tile panel BIPV solar roof tile

Specification

physical parameters
Product number	HW-M QSB-V1, HW-MQSG-V1	color	black and gray
length	709 (±1) mm	Junction Box	394616.6mmIP67
width	500(±1) mm	cable type	2.5mm solar cable; 450(+10/-0)mm
high	41(±1) mm	Cable Connector	MC4
weight	10 (±0.5) kg
Electrical performance parameters
Core type	CIGS	open circuit voltage	10.6V
strength	30W (one)	Currently in PMPP	3.5A
short circuit current	4A	Voltage at PMPP	8.6V
exacutive rate
loading rate	2400 Pa	fire rate	A
waterproof rate	IP67	Operating temperature	>40°C to +85°C
Anti-hail rate	4 (American Standard FM 4473)	Working humidity	0*80%
Certification
3C/CQC/IS09001/Rohs(in application)/UL(in application)

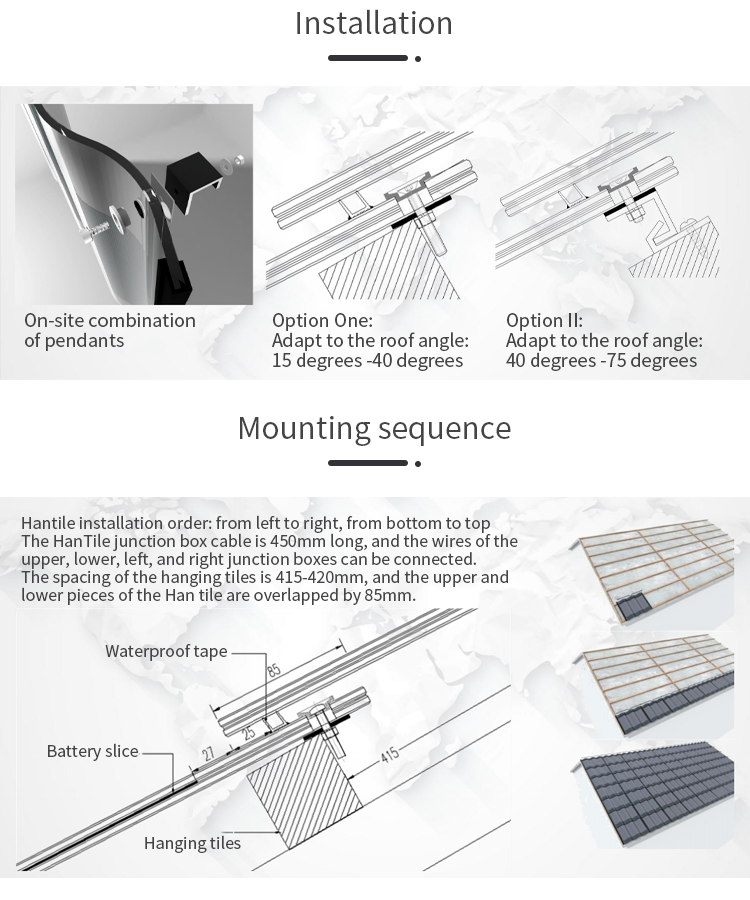

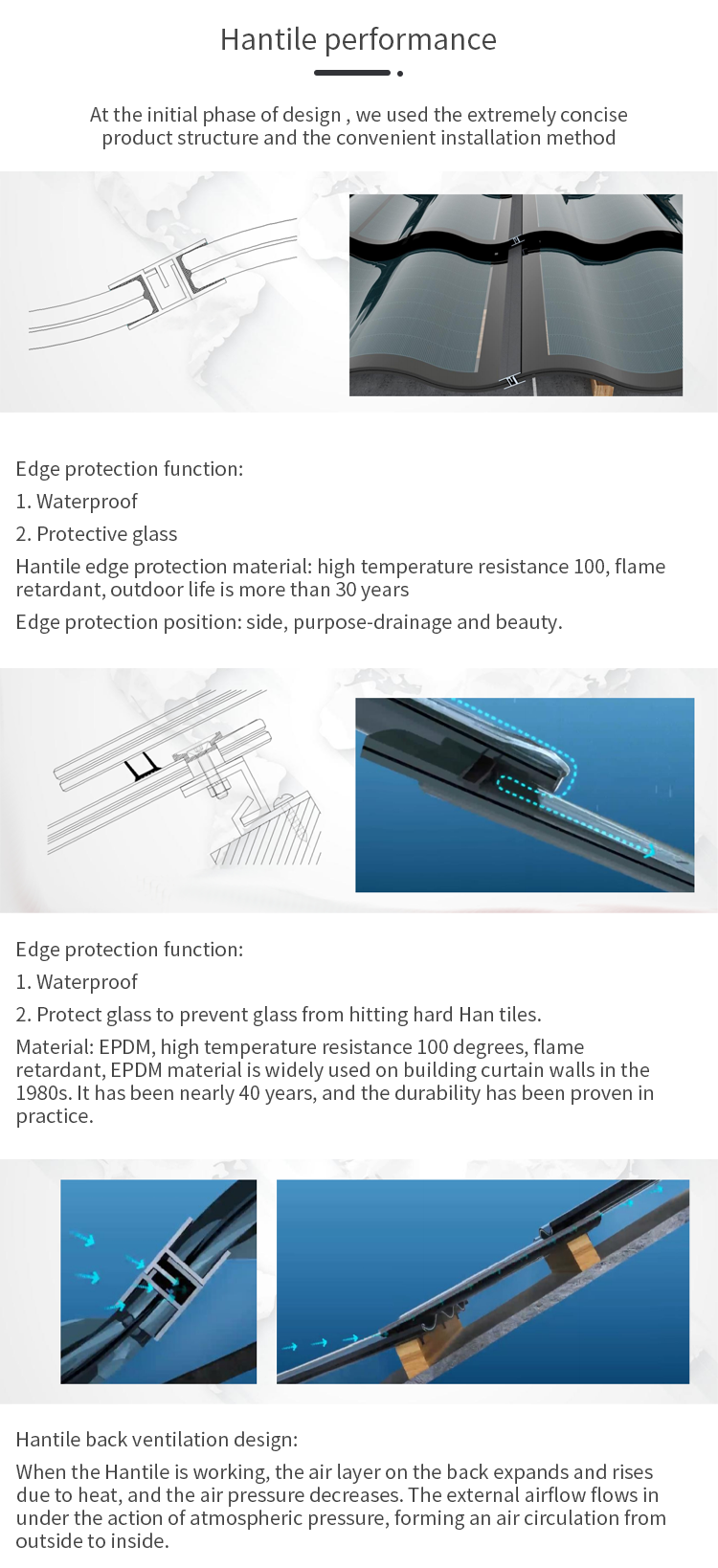

detailed drawing

application
