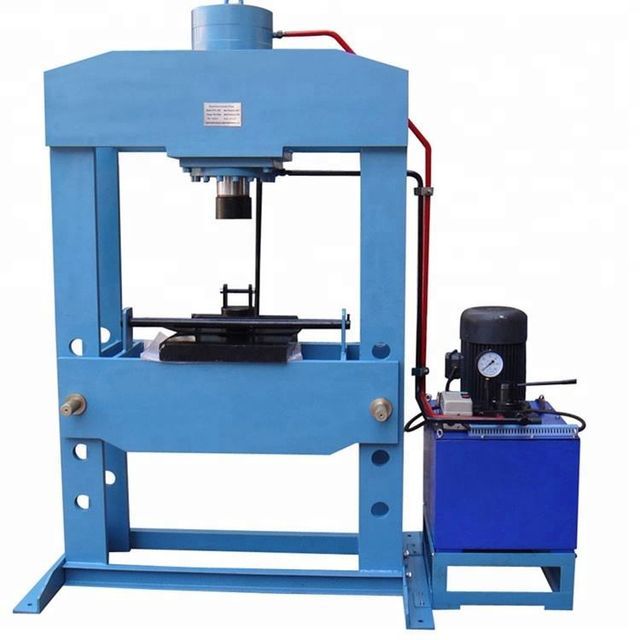

50T 100T 150T 200T Electric Hydraulic Press

Supplier: Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr Jason Sun
Price: $1500.00 / 1 - 1 sets
$1400.00 / 2 - 4 sets
$1300.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

After-sales service provided:	Does not provide overseas services	Slider stroke (mm):	250
Core component warranty:	1 year	Energy source:	hydraulic
Packaging Details:	wooden box	Resilience (kN):	500 kN
product name:	50T 100T 150T 200T Electric Hydraulic Press	Core components:	Bearings, motors, pumps
MOQ:	1 set	Function:	Punch Press
Origin:	Shandong China	Dimensions (LWH):	Machine size
Mechanical test report:	if	payment terms:	L/C, Western Union, T/T
Health status:	new	brand:	Holliday
Ejection force(kN):	20-300	Voltage:	380V/220V optional
model:	DYYL	Material:	steel material
Marketing Type:	New Products 2022	Year:	2022
color:	blue	Type of machine:	H type hydraulic press
Supply capacity:	50 sets per month	Voltage:	380V 50Hz
system:	normal	CNC or not:	normal
Main selling points:	competitive price	Showroom location:	not any
Motor power (kW):	2.2 kW	Warranty:	1 year
Applicable industries:	Farms, Machinery Repair Shops, Manufacturing Plants	Weight (ton):	500 tons
Package preview:		Video shipment inspection:	if
port:	Qingdao/Shanghai	weight:	1000KG

Qingdao Haolida Automobile Equipment Manufacturing Co., Ltd. is an enterprise specializing in the production of automobile maintenance and testing equipment.

50T 100T 150T 200T Electric Hydraulic Press

Technical Parameters

type	DYYL-40	DYYL-50	DYYL-65	DYYL-100	DYYL-150	DYYL-200
Maximum working pressureKN	400	500	650	1000	1500	2000
Cylinder stroke work mm	300	300	350	350	350	350
Motor power KW	1.1	1.5	1.5	1.5	2.2	2.2
Maximum working height mm	850	900	950	1000	1000	1020
Maximum working width mm	750	750	800	850	850	890
