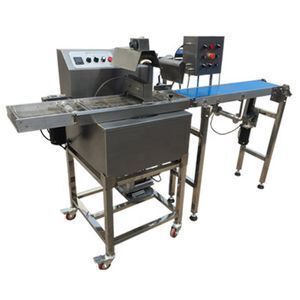

Automatic Mini chocolate coating machine / chocolate covering machine/ small chocolate enrobing line with Cooling Tunnel

Supplier: Shanghai Papa Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Papa Machine
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Conveyorbelt width:	200mm;	Single package size:	320X71X135 cm;
Material:	304 Stainless Steel;	Dimension(LWH):	3200x710x1350mm;
Selling Units:	Single item;	Applicable Industries:	Hotels,Food & Beverage Factory,Restaurant,Home Use,Retail,Food Shop,Food & Beverage Shops;
After-sales Service Provided:	Engineers available to service machinery overseas;	Package Type:	Automatic Mini chocolate coating machine / chocolate covering machine/ small chocolate enrobing line with Cooling Tunnel. Daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case;
After-sales Service Provided:	Field installation, commissioning and training;	Output product name:	chocolate coating;
Delivery Detail:	0 days after payment;	Brand Name:	PAPA;
Belt length:	1200mm;	Machinery Function:	enrobing/coating;
Place of Origin:	Shanghai China (Mainland);	Certification:	CE;
Control:	PLC;	Single gross weight:	150 KG;
Warranty:	12 months;	Application:	Chocolate;
Product name:	chocolate coating machine;	Weight:	150kg;
Type:	Fully Automatic;	Function:	Food Industry Equipment;
Voltage:	380V/220V/110V;	Raw material:	Milk,Corn,Fruit,Wheat,Nuts,Soybean,Flour,Vegetables,Water;
Application fields:	Snack food factory,Bakery,Frozen food Factory;	Power(W):	2.8kw;
Condition:	New;

Product Description

Automatic Mini chocolate coating machine / chocolate covering machine/ small chocolate enrobing line with Cooling Tunnel

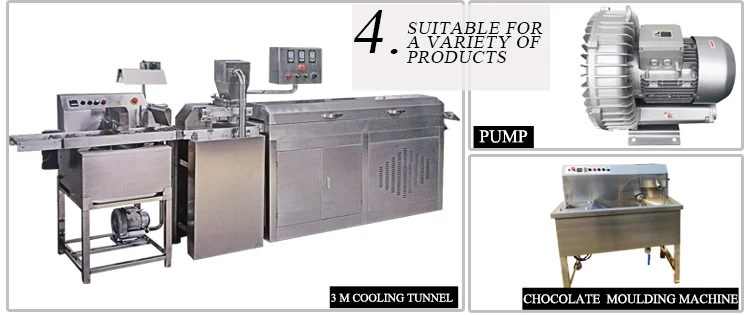

It coordinate with chocolate cooling tunnel to make the final products high quality and beautiful surface.

The chocolate enrober can also coordinate with optional equipment,like decorator and granule sprinkler.

1.Decorator:to decorate stripes or zigzags of different color on the surface of the products.

2.Granule sprinkler:to sprinkle little granules on the surface of chocolate coated products.

Specifications

Technical parameters:

This equipment is special designed base on Italy and UK chocolate processing and handling technology in lab scale application. All machinesare made of SUS304. It is used for making good quality pure or compound chocolate enrobing. It can be fixed on the PE8-60 chocolate machine or remove for washing very easily.

Feature:

1. The machine is a special equipment which is used for producting assorted chocolates.Is can coat chocolates think liquid in the surface of many kinds of kinds of foods.

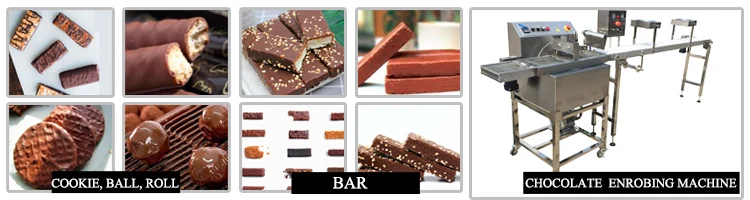

2. Such as protein bar, energy bar, cereal bar, peanut bar, energy ball, cookie, cake, biscult and candy et,chocolate product have many varions flavours.
3. It can coat chocolates think liquid in the surface of many kinds of kinds of foods.

Model	PE8	PE15	PE30	PE60
Capacity	8kg/h	15kg/h	30kg/h	60kg/h
Max belt speed	2 m / min	2 m / min	2 m / min	2 m / min
Heating method	electric heating	electric heating	electric heating	electric heating
Total power(kw)	1.8	2.0	2.8	3.1
Metal mesh width(mm)	180	180	180	300
Conveyorbelt width(mm)	200	200	200	400
Belt length(mm)	1000	1000	1200	1400
Dimension(mm)	3000x570x1350	3000x640x1350	3200x710x1350	3400x910x1400

Company Information

We found in 2004, Shanghai Papa Industrial Co., Ltd has been an integrated industrail company specializing in food machinery for years. We have designedand developed the most advanced whole sets of food machinery used to producecereal bars, protein bars, chocolates, mooncake, cookies, cakes and so on.

We have exported our products to all over the world,especially in Europe, USA, Asia and Middle East,after our exchanges and cooperations with foreign well-known high tech companies from Japan, Germany and Italy,we now have more and more customers from both North America and South America.

We main produce cereal bar machine, protein machine, peanut bar machine, sesame bar machine, encrusting machine, moncake machine, bread machine and so on. We also provide procurement service for customers according to their specialneeds.

FAQ

1.Question:What is your warranty for machinery?

Answer:Our warranty is 12 months,with whole life service.

2.Question:Do you provide formula for machine?
Answer:Yes,we provide the formula.we can help adjust the formula according to customer's local taste if customer require.

3.Question:Do you provide installation and commissioning?
Answer:Yes,we send technicians for machine installation and commissioning,machine running and local team training.

4.Question:Do you make customized machine?
Answer:Yes,we can provide customized machine according to customer's requirements.We also provide turnkey solution if customer require.

5.Can you arrange factory inspection and machine checking before order?
Answer:Yes,we arrange factory inspection and machine checking if customer require.
