Test range 90V~1000V Non-contact voltage test pen Voltage test pen with LED indicator, buzzer and flashlight

Supplier: Shenzhen Chenzhoudao Intelligent Co., Ltd.
Region: Guangdong, China
Contact: Ms Belle Huang
Price: $1.00 / 1 - 99 sets
$0.90 / 100 - 999 sets
$0.86 / 1000 - 4999 sets
$0.82 / >=5000 sets
Min. Order: 1 set

Click here to contact

Product details

payment terms:	Western Union, T/T, Paypal	color:	orange+black
power supply:	2 x 1.5V AAA batteries	style:	Pen style
Certification:	No	Function:	voltage detection
custom made:	Yes	port:	Shenzhen
Warranty:	3 months	product name:	voltage tester
type:	Non-Contact Voltage Tester	pack:	blister card
Package preview:		brand:	CZD
Material:	ABS+electronic parts	Origin:	Guangdong, China
Packaging Details:	blister card	model:	VD02
Test Range:	90V~1000V	Supply capacity:	3000 sets per day

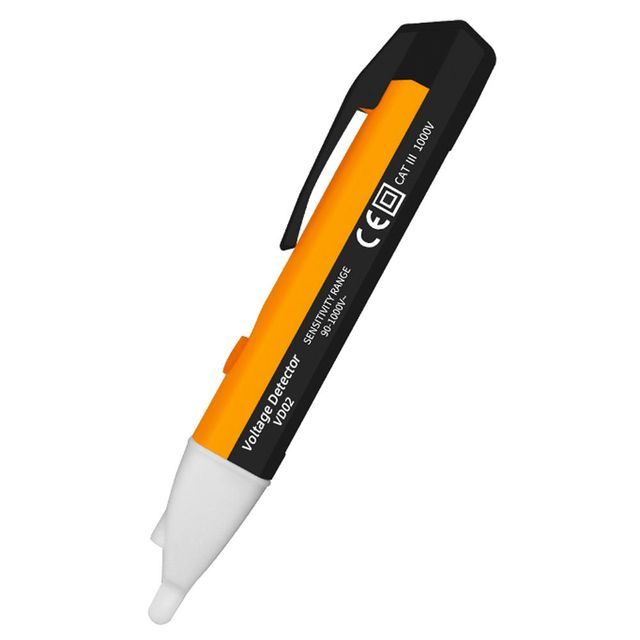

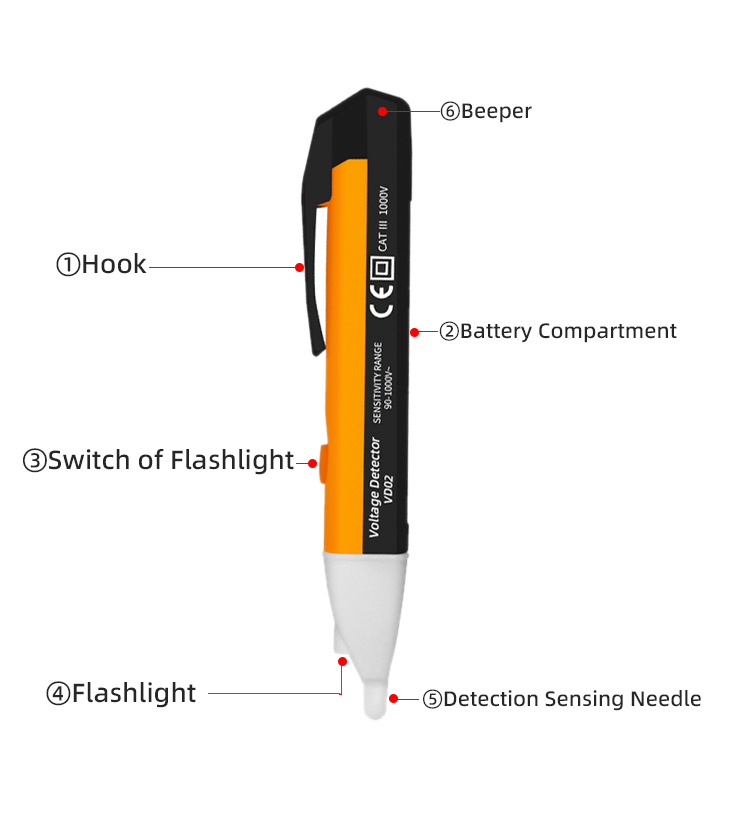

VD02 voltage test pen

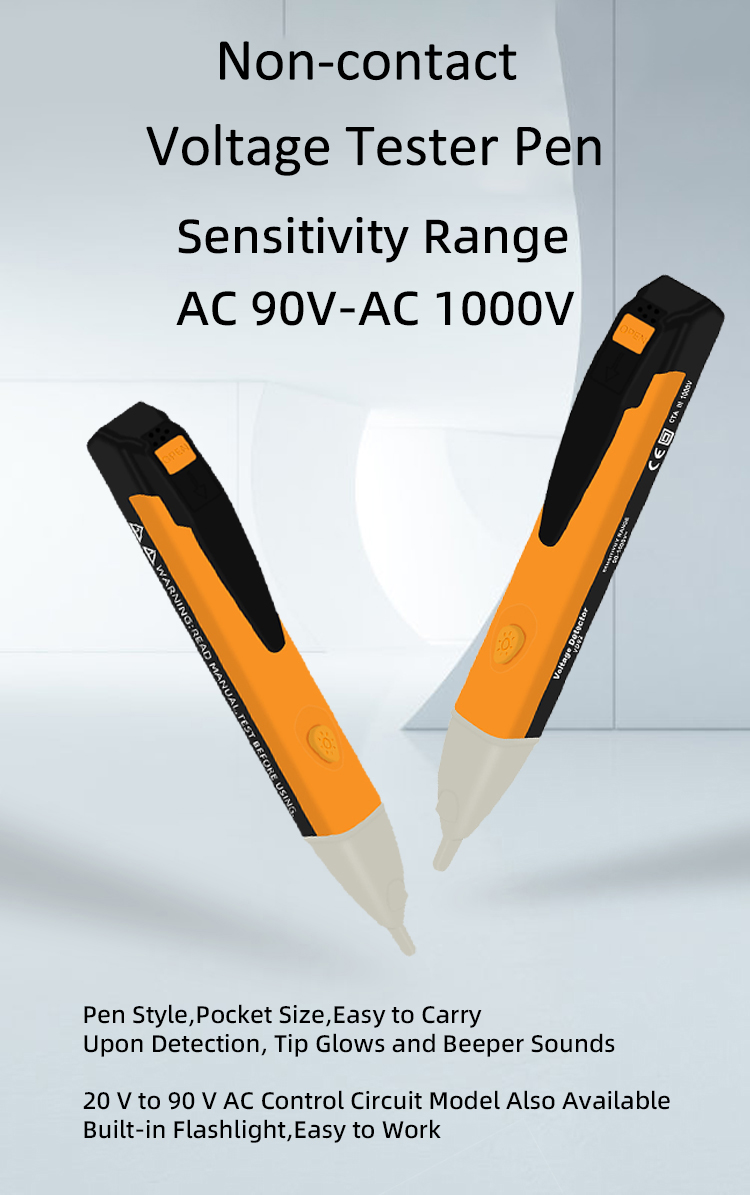

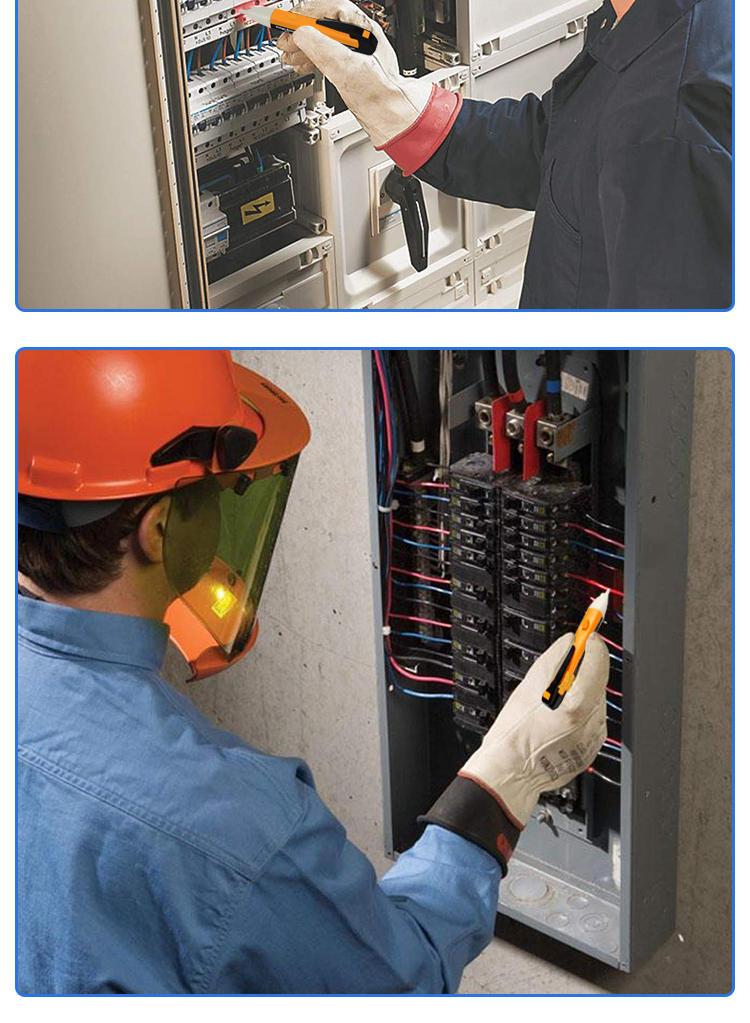

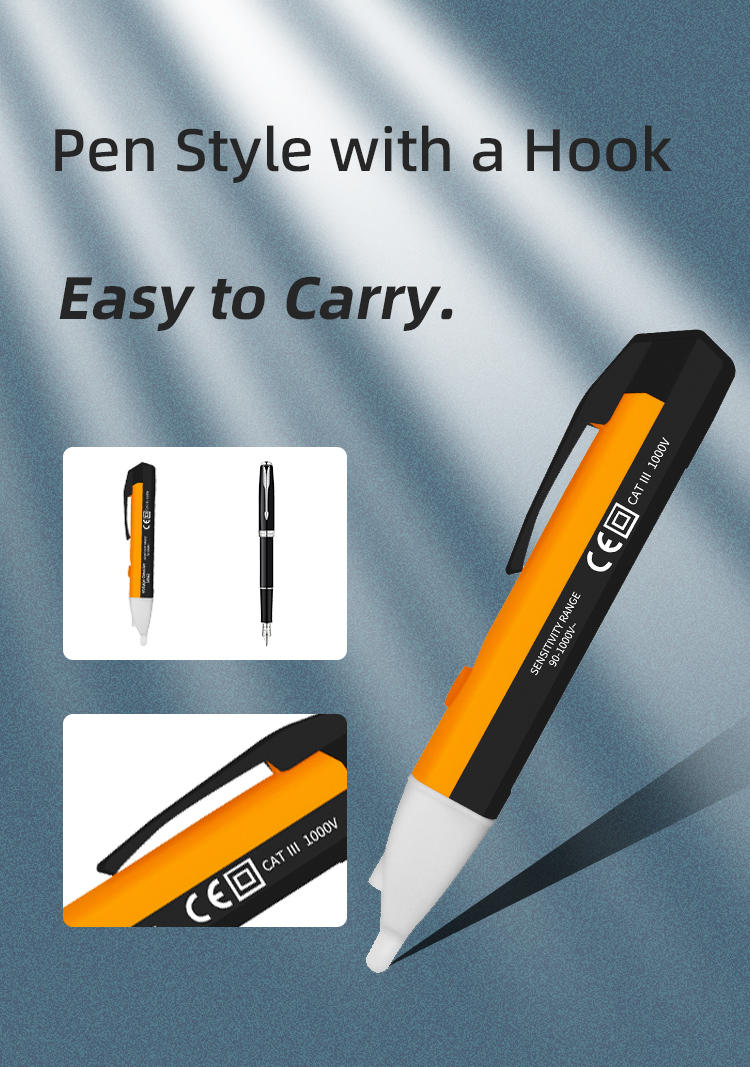

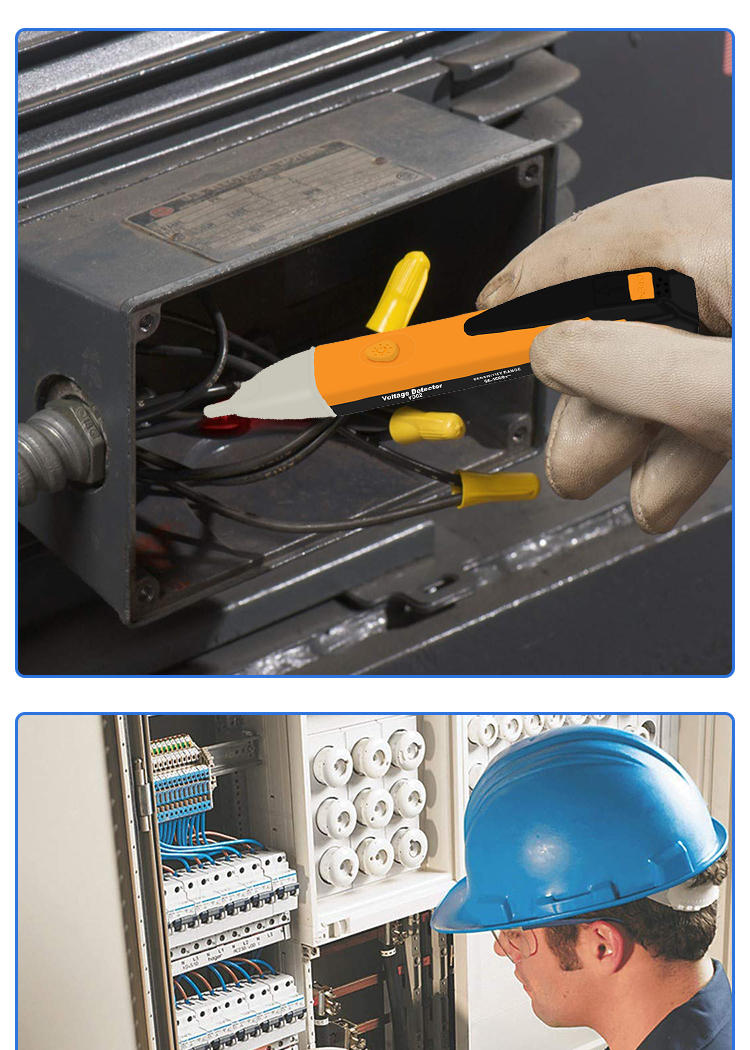

The VD02 non-contact voltage detector allows you to quickly detect live circuits at the workplace or at home. The AC non-contact voltage tester is easy to use - simply touch the tip to a terminal block, receptacle or power cord. Electricians, maintenance personnel, service personnel, security personnel and homeowners can quickly test live circuits at work or at home. Easy to carry in shirt pocket.

feature:

· Once detected, the tip will light up and beep.

· CAT IV 1000 V for extra protection.

· Extended range: 90 V AC to 1000 V AC.
・A 20 V to 90 V AC control circuit model is also available.

Tip:

· A beep will sound when a voltage is detected. A loud, easy-to-hear beeper sounds and the tip glows red when voltage is detected.

·90V to 1000V AC or 200V to 1000V AC voltage detection range, widely used. Wide voltage sensing range allows use in a wide range of applications. Low voltage models from 20 V to 90 V AC are also available for control circuits.

How to install the battery?

1. Press the button on top of the clip to open the case, then slide the top and bottom of the tester apart.

2. Remove all used batteries and install two new batteries, refer to the chart to ensure correct polarity.

3. Clamp the two housing parts together and slide them together until you hear the clips engage.

How to use this test pen?

1. Press the button lightly to turn it on, press and hold for 2 seconds to turn it off, if there is no operation for 5 minutes, it will automatically turn off.

2. Quickly press the LED light twice to switch between high-sensitivity and low-sensitivity detection states. LED remains on to indicate low sensitivity,
Blinking LED indicates high sensitivity. The default setting is low sensitivity.

3. When the battery power is low, the LED light is off and the tester cannot work normally. For example the test is
After the completion, the buzzer may emit a weak sound, the battery should be replaced in time to ensure that the tester can
normal work.

4. When the tester is close to the electric field, the red LED will flash and the buzzer will alarm, the higher the
The flickering frequency, the stronger the electric field is, the live wire and dark wire of AC can be judged by
Audible alarm.

warn:

·Do not use it on a circuit exceeding 1000V AC.

·Do not mix old and new batteries.

• Do not mix different types of batteries.

· Never throw the battery into fire.

·Never attempt to charge normal batteries.

For objects with uncertain dangerous voltage, the fact that the machine does not alarm does not mean that there is no danger. Please do not touch any part of the object to avoid the risk of electric shock.

about Us

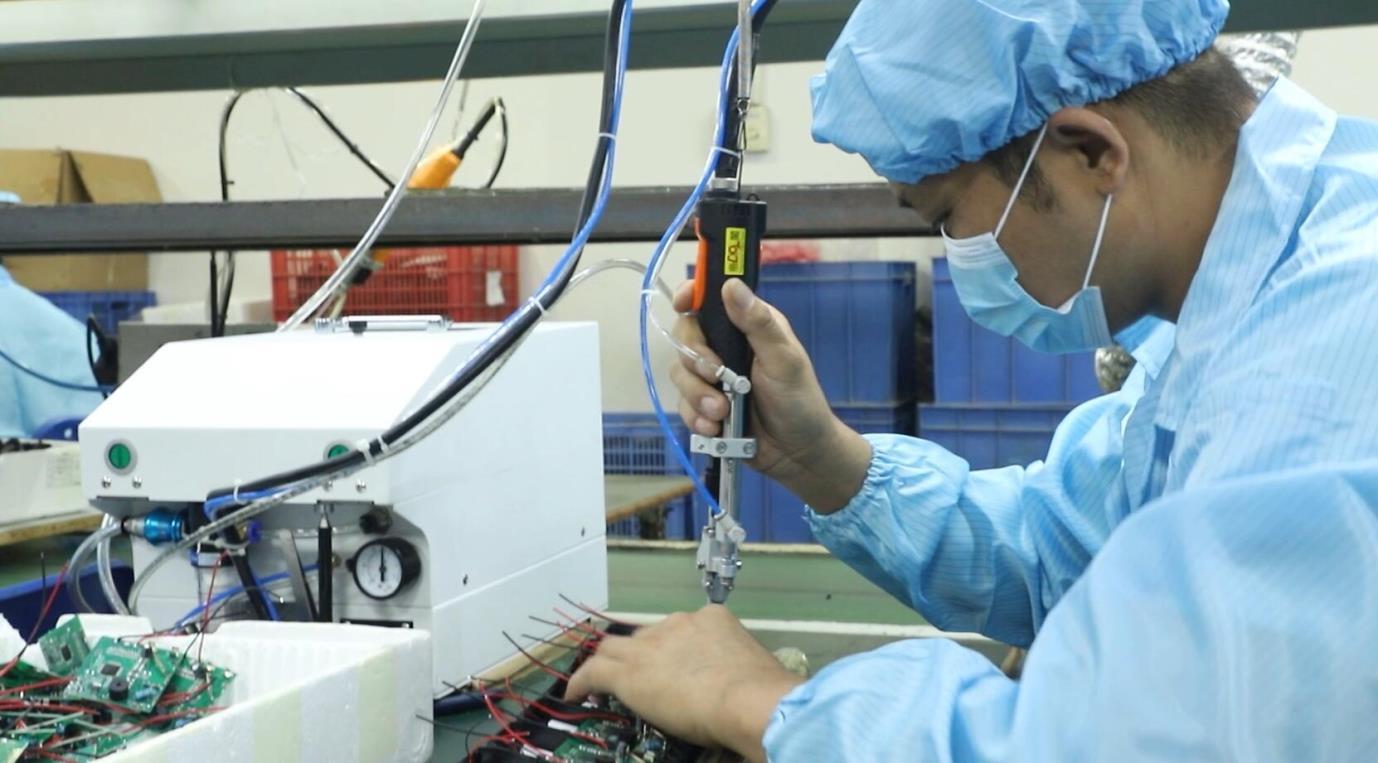

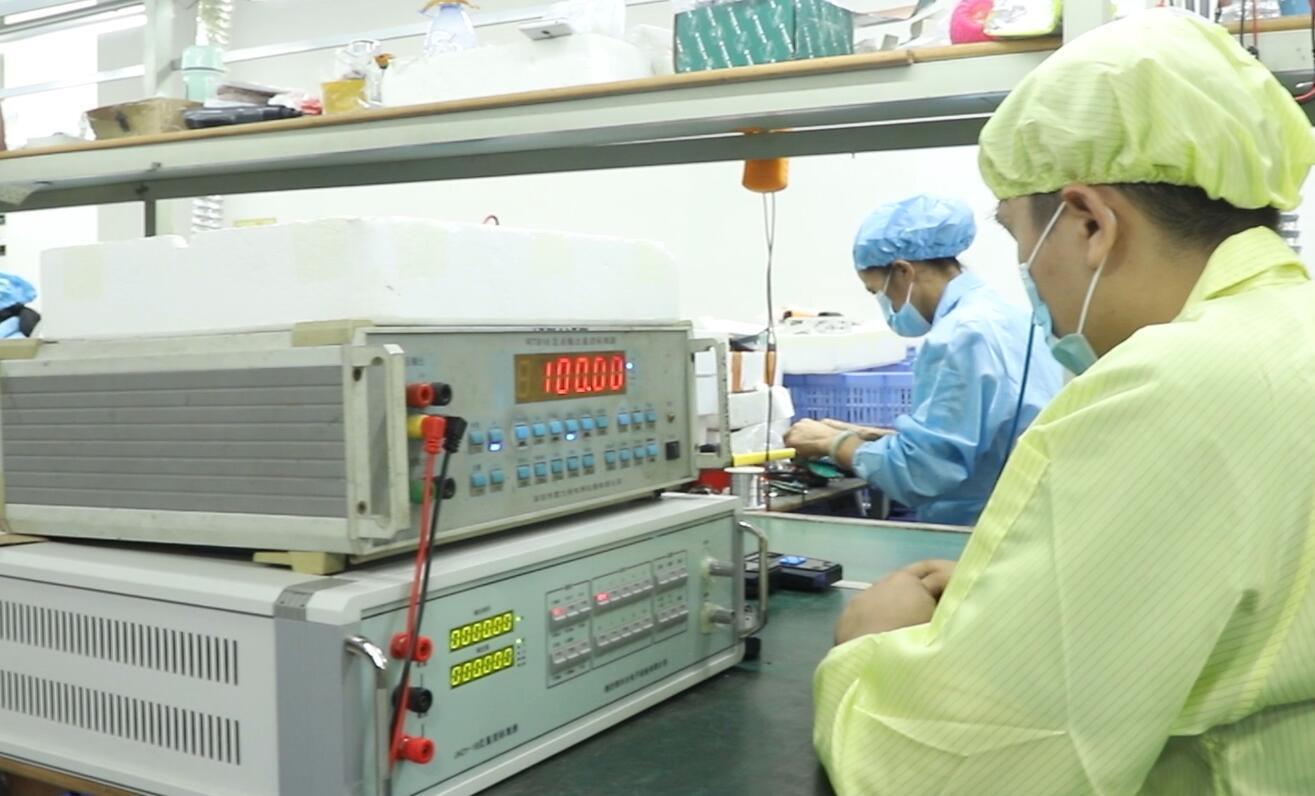

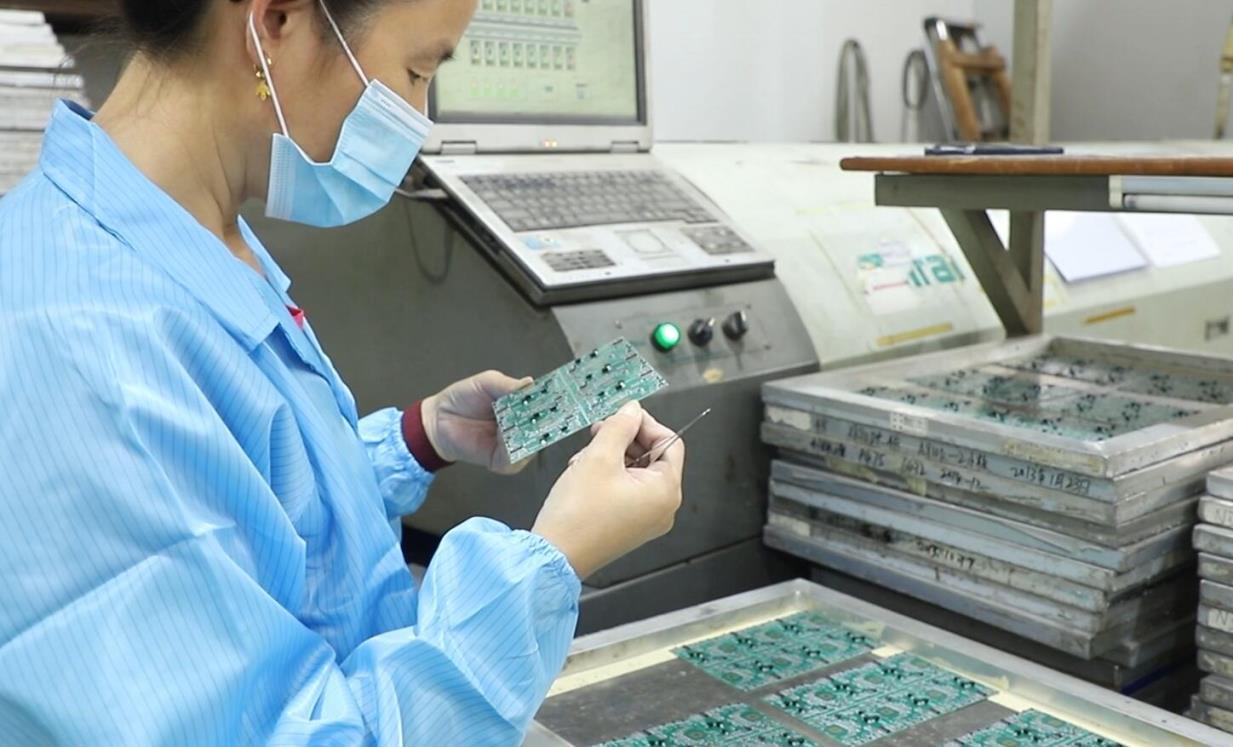

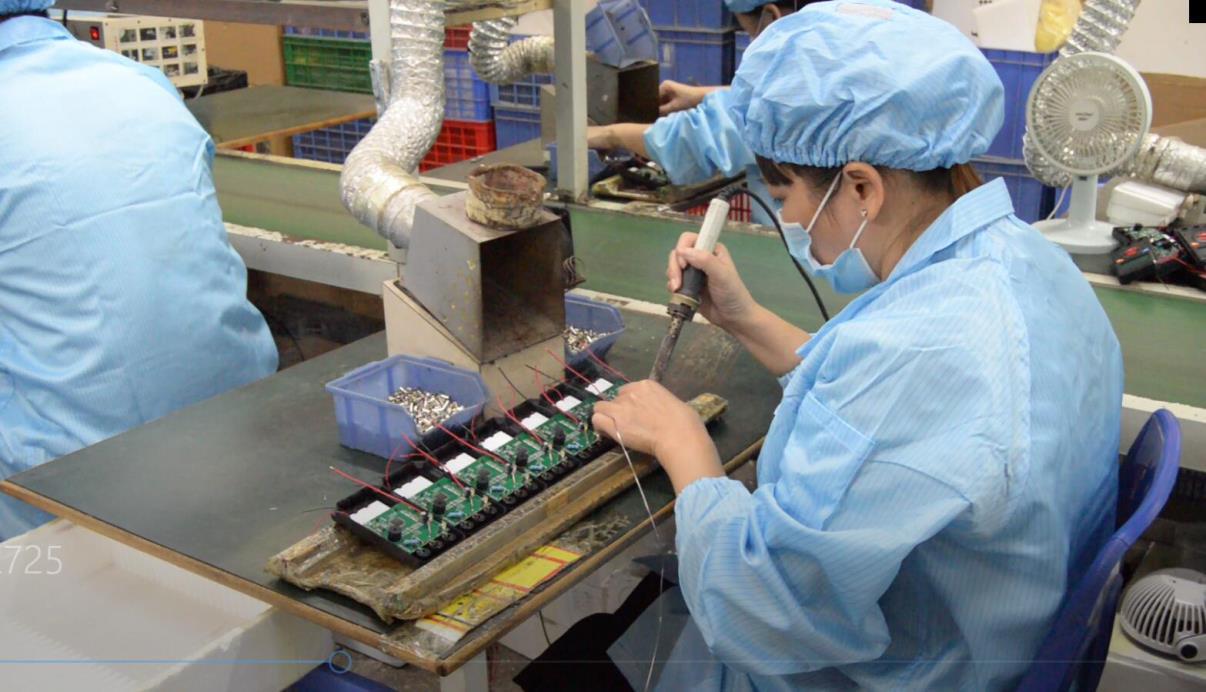

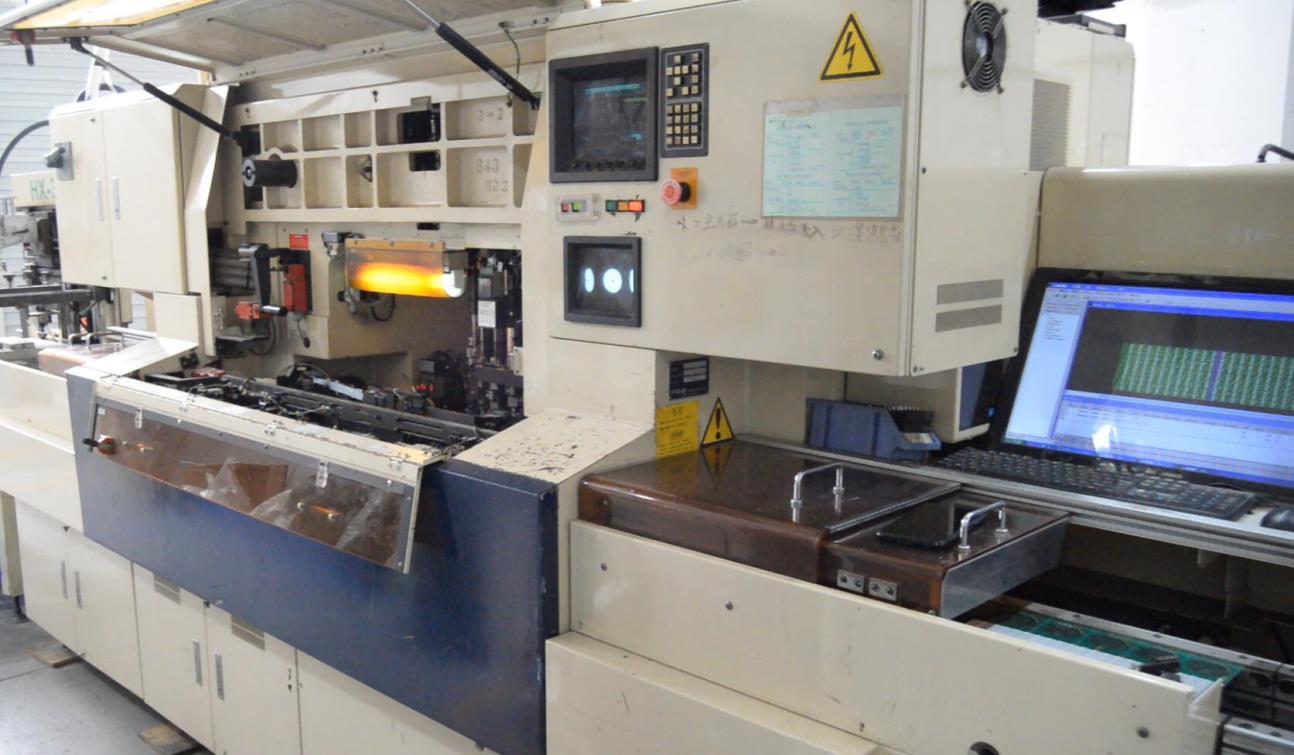

Shenzhen Chenzhou Road Intelligent Co., Ltd. was established in 2020, we are specialized in electronic instruments, electrical engineering, hand tools and hardware tools, with technical strength, design capabilities and competitive prices, which will encourage us to work harder to improve our products and satisfy our customers. Our products are widely used in construction, electronics, machining, home furnishing and other industries all over the world. The factory is equipped with advanced equipment. We have a strong technical force, excellent staff and advanced modern enterprise management system, and have established a management system that meets the requirements of the international quality management system. Products have undergone strict quality control from raw material procurement to product sales. manufactures. In the process of development, we focus on professionalism and integrity, adhering to the concept of "quality first, research and development first", and provide customers with better products and better services. "Quality service provider" is the ultimate goal of the enterprise, we still have a long way to go, and strive to create greater value for customers and the whole society. In order to realize the leap-forward development of the company, we have established long-term business relationships with our customers, and we are actively looking forward to the future, we will become the world's first-class overall solution provider of construction machinery instruments and hand tools.
