RG59 Coaxial Cable 2C RG59 Cable With Power CCTV Cable

Product details
Origin:Zhejiang, Chinapayment terms:L/C, T/T, Western Union
insulation:Physically expanded polyethylenemodel:75 ohm, coaxial cable
Supply capacity:20000 km per weekjacket:6.0+4.6mm PVC
Second Shield:60-95% braidedbrand:OEM production
product name:Coaxial Cable RG59 2C Cable RG59 With Power CCTV CableFirst Shield:Aluminum/copper foil or no foil
Inner conductor:Bare copper/copper clad steelPackaging Details:Coaxial cable RG59 2C Cable RG59 With Power CCTV Cable 1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll other lengths can be provided according to customer requirements; 2) Inner Packing: wood reel, plastic reel, paper reel are available; 3) Outer packing: carton, pull-out box, pallet available; 4) Other packing is available upon request.
Number of Conductors:1application:CCTV/Cable TV
port:FOB to Shanghai or Ningbo portPackage preview:
Product Description

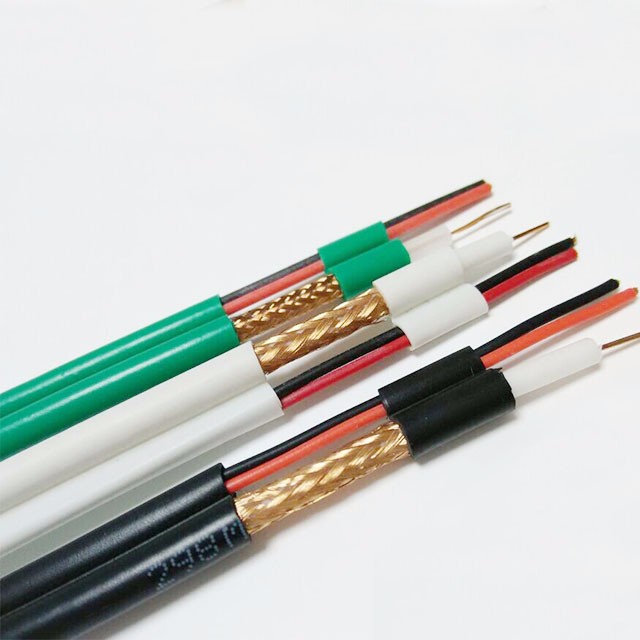

Coaxial Cable RG59 2C Cable RG59 With Power CCTV Cable


RG59 coaxial cable:


0.81CCS+3.66FPE + Al Foil/blue/bonded +80*0.12AL+6.1PVC(Black)

Inner conductor (mm): 0.81± 0.01 BC / CCS

Dielectric (mm): 3.66±0.10 FPE/SPE

Outer conductor (mm): 4.3

Sheath (mm): 6.1±0.1 PVC/PE




1) Inner conductor: tinned copper, bare copper and copper clad steel are available;

2) Aluminum foil: aluminum foil, bonded aluminum foil, double bonded aluminum foil, APA;

3) Braided wire: aluminum-magnesium alloy, bare copper and tinned copper are available;

4) Diameter of braided wire: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm optional;

5) Braid coverage: 30- 95% available

6) Sheath color: white, black, transparent, etc.


Application of coaxial cable:

1) CATV - Community Antenna TV;

2) CCTV - closed circuit television

3) DBS - Direct Direct Satellite.



1) Packing length:

100m/roll, 200m/roll, 305m/roll, 100 yards/roll, 200 yards/roll, 300 yards/roll

Other lengths are available upon request;

2) Inner packing: wood reel, plastic reel and paper reel are optional;

3) Outer packing: carton, pull out box, pallet available;

4) Other packaging is available upon customer request.


Related Products:



Packaging and Shipping
