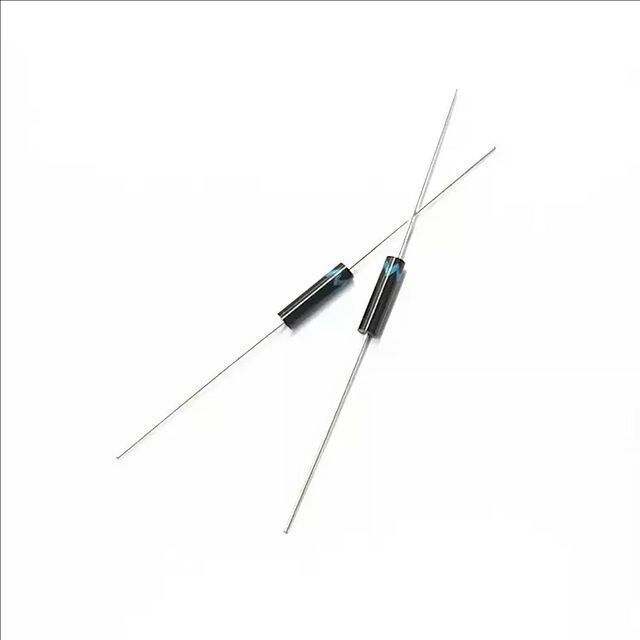

TVS Transorb Diode PCB Design Components 5000W Unidirectional VC 35.5V Low Frequency Signal Transmission One-Stop Solution

Supplier: Shenzhen Shengtai Microelectronics Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Martin Huang
Price: $0.186 / >=3000 pieces
Min. Order: 3000 pieces

Click here to contact

Product details

Application 3:	Low frequency signal transmission line	Packaging Details:	13" (330 mm) reel
Origin:	melon	brand:	Huachuang
Application 2:	input/output interface	Feature 6:	Excellent clamping ability
Feature 2:	Glass passivated or planar junction	Feature 3:	bi-directional version available
Feature 4:	low leakage	port:	Shenzhen
Supply capacity:	5,000,000 pieces per month	Feature 5:	low inductance
Feature 7:	Fast response time: usually less than 1.0ps	model:	HHCSK22A502
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	type:	TVS diode
Application 1:	AC/DC power supply	Feature 1:	22V shutdown voltage
Packaging/Case:	P600

Specification

Reverse Standoff Voltage (VRWM)	22 volts
Reverse Breakdown Voltage (VBR) min.	24.4 volts
Reverse Breakdown Voltage (VBR) max.	26.9 volts
Test current (IT)	1mA
maximum. Reverse leak @VRWM (IR)	1 microampere
maximum. Clamping Voltage @ Ipp (VC)	35.5 volts
maximum. Peak pulse current (Ipp)	141

Product Description

feature• 5000W peak pulse power consumption at 10/1000μs waveform, repetition rate (duty cycle): 0.01% • 22V off-state voltage • Glass passivated or planar junction • Unidirectional versions available • Low leakage • Low inductance • Excellent clamping Bit Capability • Fast Response Time: Typically, less than 1.0ps from 0V to VBR • Repetition Rate (Duty Cycle): 0.01%. • Plastic material: UL flammability • Classification level 94V-0 • Halogen free and RoHS compliant

mechanical data• Package: P600 • Housing Material: Green Molding Compound • JEDEC R-6/P-600 Molding Plastic • Polarity Indicator: Color band indicates cathode (Note: Bi-directional devices do not have a polarity indicator) • Flammability of plastic package Rated 94V-0 Underwriters Laboratories

application• AC/DC power supply • I/O interface • Low frequency signal transmission line
