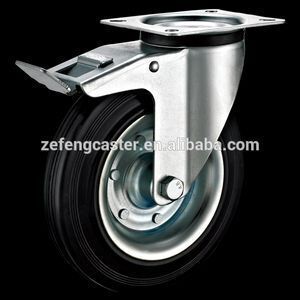

European industrial total lock brake top plate caster with rubber castor wheel

Product details
Plating:zinc plated;Size:75/80/100/125/160/200/250 mm;
Place of Origin:Guangdong China (Mainland);Port:Xiaolan;
Mounting:top plate;Material:rubber (hard/standard/soft), elastic rubber;
Certification:EN 12530;Brand Name:OEM Acceptable;
Bearing:straight roller bearing;Delivery Detail:10 - 20 days after payment;
Load Capacity:50 - 280 kg;Supply Ability:12500 Piece/Pieces per Week;
Packaging Detail:Inner pack: polybag or inflatable air column bag, Outer pack: carton (heavy duty corrugated cardboard) with # type of straps, Container: pallet with big wooden case;Type:swivel with double lock brake;
Model Number:3 - 10 inches rubber revolving castors;Color:black, gray, blue;
Payment Terms:T/T;Application:industrial equipment;
Product Description

DESCRIPTION

Product Name: 75/80/100/125/160/200/250 mm European industrial top plate locking caster with black rubber wheel
Series Name: G1 European industrial castor wheel series
Series Size: 3 inches, 3-1/2 inches, 4 inches, 5 inches, 6 inches, 8 inches, 10 inches

FEATURES

Zinc-plated pressed steel housing with double steel ball raceway in swivel head
High performance rubber wheel with precision straight roller bearing
50 - 280 kg loading capacity

SPECIFICATION

Blow is standard data (other option available) of this collection for your reference

CASTER WHEEL SIZE
WHEEL DIMENSION
OVERALL HEIGHT
LOADING CAPACITY
10 inches
250x50 mm
285 mm
280 kg
8 inches
200x50 mm
235 mm
230 kg
6 inches
160x40 mm (150x40 mm)
195 mm
180 kg
5 inches
125x38 mm
155 mm
120 kg
4 inches
100x30 mm
128 mm
90 kg
3-1/2 inches
80x25 mm (85x25 mm)
105 mm
70 kg
3 inches
75x22 mm
95 mm
50 kg
Additional Data
Mounting Type
top plate (105x75/80 mm or 72x52/80x60 mm)
Brake Type
total lock brake, swivel (rotating/revolving), fixed (rigid)
Fork Finishing Type
zinc plated, yellow galvanized, balck electrophoresis, chrome plating
Bearing Type
straight roller bearing
Wheel Tread Material
black rubber, gray rubber, blue elastic rubber
Wheel Core Material
steel, PP (polypropylene/polyolefin), PA (nylon/polyamide)

REMARK

1. standard thickness: fork is 2.5 - 3.0 mm, plate is 2.5 - 3.5 mm and wheel hub (rim) is 1.2 - 2.0 mm, also there're other optional and can be customized
2. pls note that we do both that OEM for famous brands and ODM for distributors with full production line for all types of castor wheel and we are able to accurately identify which type of caster should be applied to which type of equipment and evrionment, pls give me a try, we'd offer one-stop casters solution for your any special requirements

Detailed Images

There are different quality grades for industrial caster wheel series, we do both!

Low-price industrial caster series (left one)

wheel brake system is with general one-point-locking (un-adjustable), and it need to be replaced when the wheel wears away or become smaller
narrow fork and wheel hub to meet cheaper choice at acceptable quality level

High-quality industrial caster series (right one)

wheel brake system is with adjust-able contact point to assure perfect locking whatever the wheel wears away or become smaller
wider fork with longer wheel hub to acheive more stable and safer

Product Comparison

maybe other factory make it, but we make it better

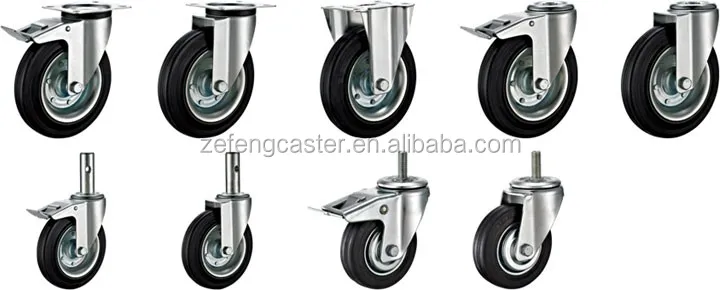

Fork Selection

For G1 European industrial castor wheel series, various types of fork component are available for different configuration of equipment, we can work together to find optimal caster solution for you applicantion


What's more, unique split type design of fork (right one) is also available, please refer to below image for reference

Wheel Selection

For G1 European industrial castor wheel series, a wide variety of rubber wheels are available for different operation environment, let's work closely with our experts to select proper caster wheel for your unique application needs

black rubber wheel (steel core)
75/80/100/125/160/200/250 mm
hub is covered with threadguard

black rubber wheel (steel core)
75/80/100/125/160/200/250 mm
hub is covered w/o threadguard

black rubber wheel (steel core)
75/80/100/125/160/200/250 mm
tread is marked with yellow line

black rubber wheel (PP core)
75/80/100/125/160/200/250 mm

gray rubber wheel (PP core)
75/80/100/125/160/200/250 mm

gray rubber wheel (steel core)
75/80/100/125/160/200 mm

blue elastic rubber wheel (PP core)
75/80/100/125/160/200/250 mm

elastic rubber wheel (aluminium core)
100/125/160/200/250 mm

rubber wheel (cast iron core)
100/125/150/200 mm


What's more, the optional wheel with other material is also available, please refer to below image for reference

PP (polypropylene/polyolefin) wheel

75/80/100/125/160/200 mm

PA (nylon/polyamide) wheel
75/80/100/125/160/200 mm

cast iron wheel

75/80/100/125/160/200 mm
