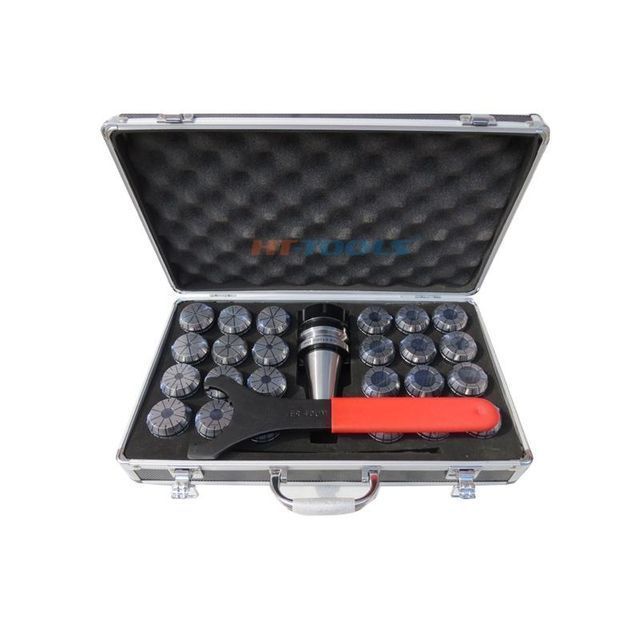

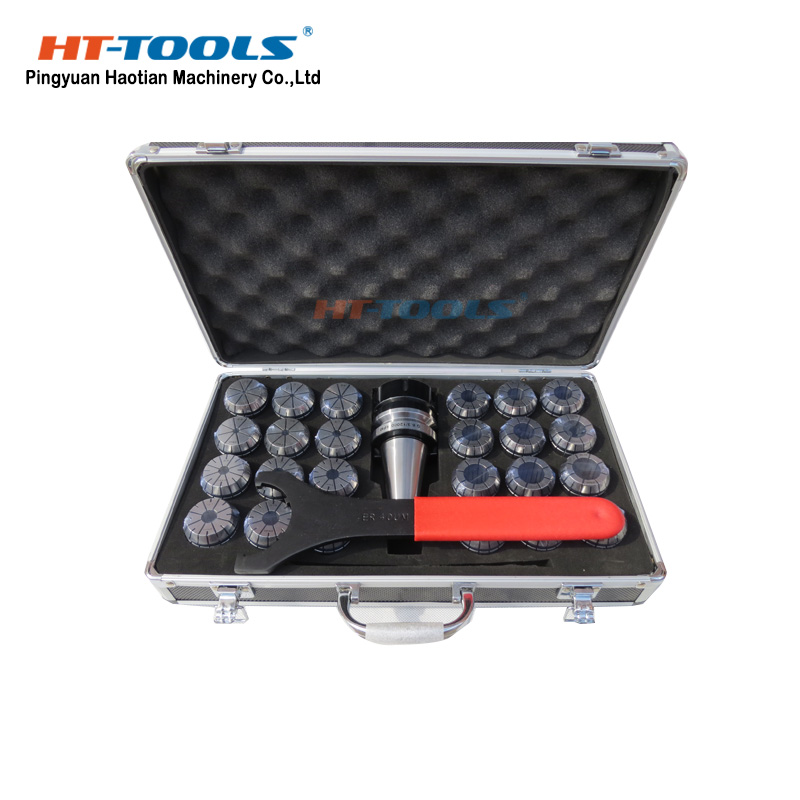

High-precision ER16 ER32 ER40 ER8 ER11 ER25 ER chuck set
- 45.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Showroom location: | not any | Core components: | Programmable Controllers |
| Material: | 65MN, 65Mn | Marketing Type: | normal product |
| port: | Qingdao | Supply capacity: | 3000 sets per month |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Weight (kg): | 2.5 |
| hardness: | HRC48-52 | type: | General accessories |
| brand: | HT tool | accuracy: | 0.015mm 0.008mm 0.005mm |
| Packaging Details: | 1. Wooden pallet 2. Wooden box 3. Aluminum box 4. Plastic box | brand: | HT tool |
| Health status: | new | Package preview: | |
| Video shipment inspection: | if | Model: | ER8 ER11 ER16 ER20 ER25 ER32 ER40 ER50 |
| payment terms: | trade assurance | Package: | Wooden Pallet Wooden Box Aluminum Alloy Box |
| product name: | High-precision ER16 ER32 ER40 ER8 ER11 ER25 ER chuck set | Advantage: | stable quality |
| Applicable industries: | Clothing store, building materials store, machinery repair shop, manufacturing plant | delivery time: | stock available |
| Mechanical test report: | not available | Warranty: | 1.5 years |
High-precision ER16 ER32 ER40 ER8 ER11 ER25 ER chuck set
Product Description
| order number. | hole size | pcs/set | handle | |||
| exist | mm | |||||
| ER16-8in(mm) | 3/32 1/8 3/16 7/32 1/4 5/16 11/32 3/8 |
2 3 4 5 6 7 8 10 | 8 | R8 MS2-MS6 ISO30 ISO40 ISO50 1/2" str. 5/8" str. 3/4" syr.sh 1" str. 1-1/4" str. |
||
| ER25-6in(mm) | 1/8 3/16 5/16 3/8 1/2 5/8 | 4 6 8 10 12 16 | 6 | |||
| ER25-10in(mm) | 3/32 1/8 3/16 1/4 5/16 3/8 7/16 1/2 9/16 5/8 |
3 4 5 6 8 10 12 14 15 16 | 10 | |||
| ER32-6 inches (mm) | 1/4 5/16 3/8 1/2 5/8 3/4 | 6 8 10 12 16 20 | 6 | |||
| ER32-12in(mm) | 3/32 1/8 3/16 1/4 5/16 3/8 7/16 1/2 9/16 5/8 11/16 3/4 |
3 4 5 6 8 10 12 14 15 16 18 20 | 12 | |||
| ER40-8in(mm) | 1/8 1/4 3/8 1/2 5/8 3/4 7/8 1 | 3 5 8 12 15 18 22 26 | 8 | |||
| ER40-15in(mm) | 1/8 3/16 1/4 5/16 3/7/16 1/2 9/16 5/8 11/16 3/4 13/16 7/8 15/16 1 |
3 4 5 6 8 10 12 14 15 16 18 20 22 24 26 |
15 | |||
| Tie rod thread | ||||||
| Collet taper | Tie rod thread | |||||
| R8 | 7/16"-20UNF | |||||
| 7:24 30 | M12×1.75 | 1/2"-13UNC | ||||
| 7:24 40 | M16×.0 | 5/8"-11UNC | ||||
| 7:24 50 | M24×.3.0 | 1"-8UNC | ||||
| MS2 | M10×.1.5 | 3/8"-16UNC | ||||
| MS3 | M12×.1.75 | 1/2"-13UNC | ||||
| MS4 | M16×.2.0 | 5/8"-11UNC | ||||
| MS5 | M20×.2.5 | 3/4"-10UNC | ||||
| MS6 | M24×.3.0 | 1"-8UNC | ||||

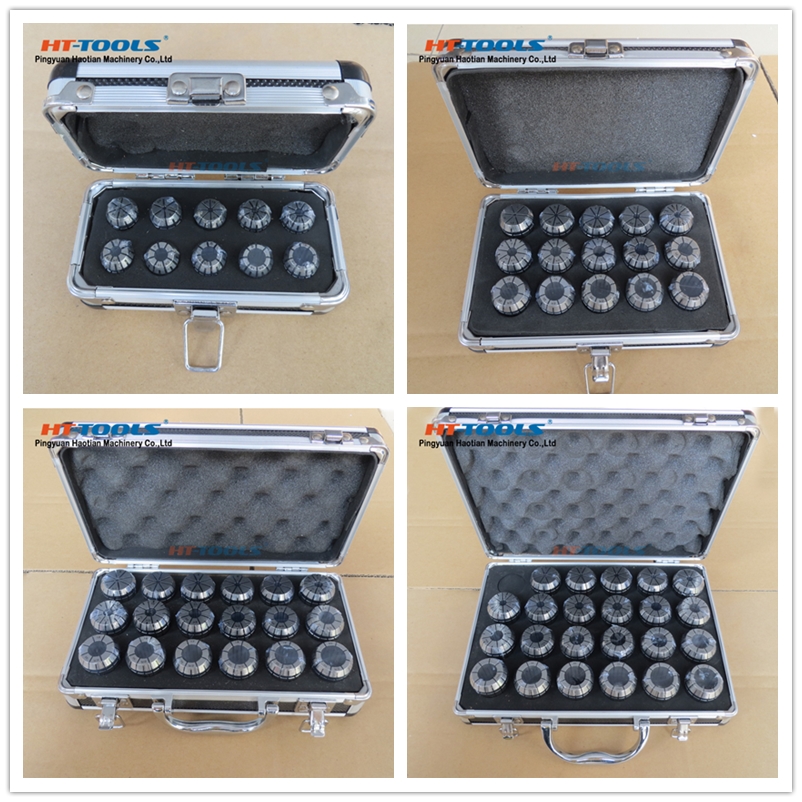

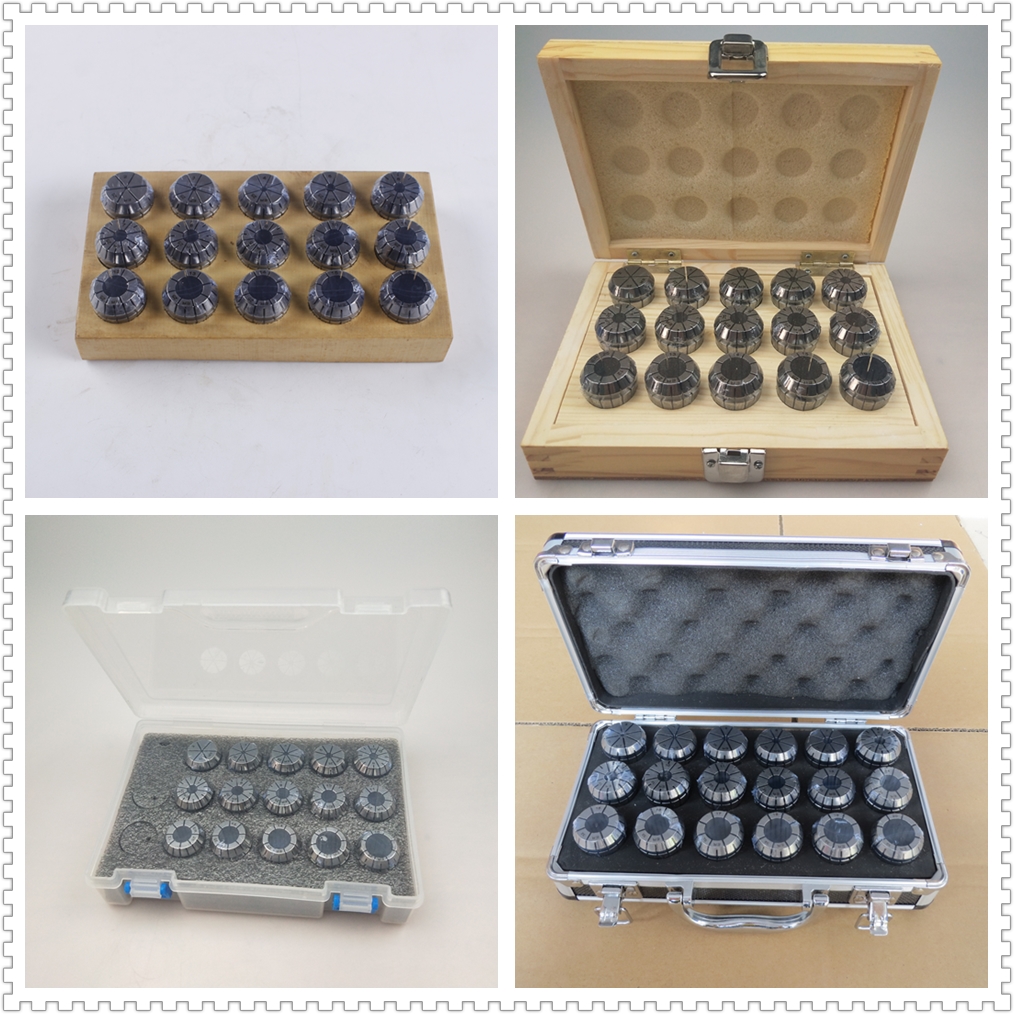

Packaging and Shipping
