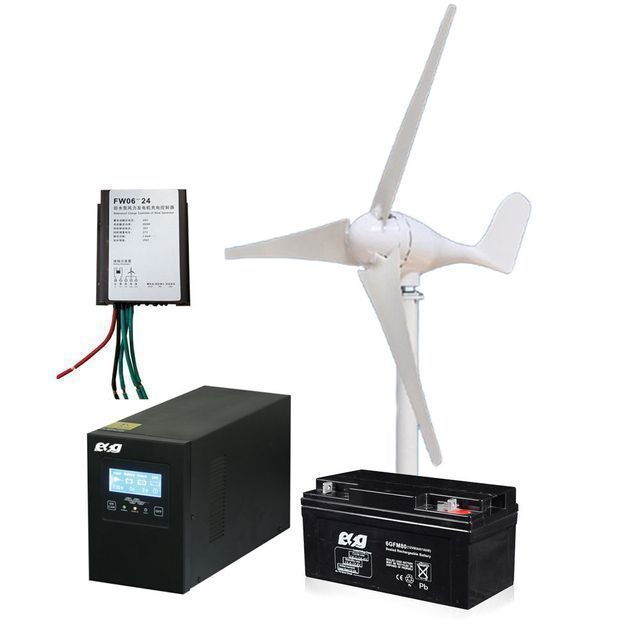

ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
-
Supplier: Foshan Esg New Energy Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Sany Chen -
Price: $91.00 / 10 - 29 sets
$87.00 / 30 - 49 sets
$85.00 / 50 - 99 sets
$82.00 / >=100 sets -
Min. Order: 10 sets
| Rated wind speed: | 10 m/s | Output frequency: | 50/60 Hz |
| Certificate: | CE system certification | Packaging Details: | Reasonable price with mini 100w horizontal axis wind turbine off-grid wind power system carton/wooden box+wooden pallet |
| Rated voltage: | 12/24v | product name: | 100W horizontal axis wind turbine off-grid wind power generation system |
| Origin: | Guangdong, China | Key words: | 100W horizontal axis wind turbine off-grid wind power generation system |
| payment terms: | L/C, D/P, D/P, T/T | Package preview: | |
| Pre-sale project design: | Yes | Supply capacity: | 100000 pieces per week |
| Key words: | 100W horizontal axis wind turbine off-grid wind power generation system | brand: | ESG |
| application: | Home | Number of blades: | 3 |
| model: | EWOF-100-S | Blade material: | nylon fiber |
| Generator type: | Three-phase AC permanent magnet | Output voltage (V): | 110/220 volts |
| Battery Type: | lead acid | Key words: | 100W horizontal axis wind turbine off-grid wind power generation system |
| port: | size |
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system

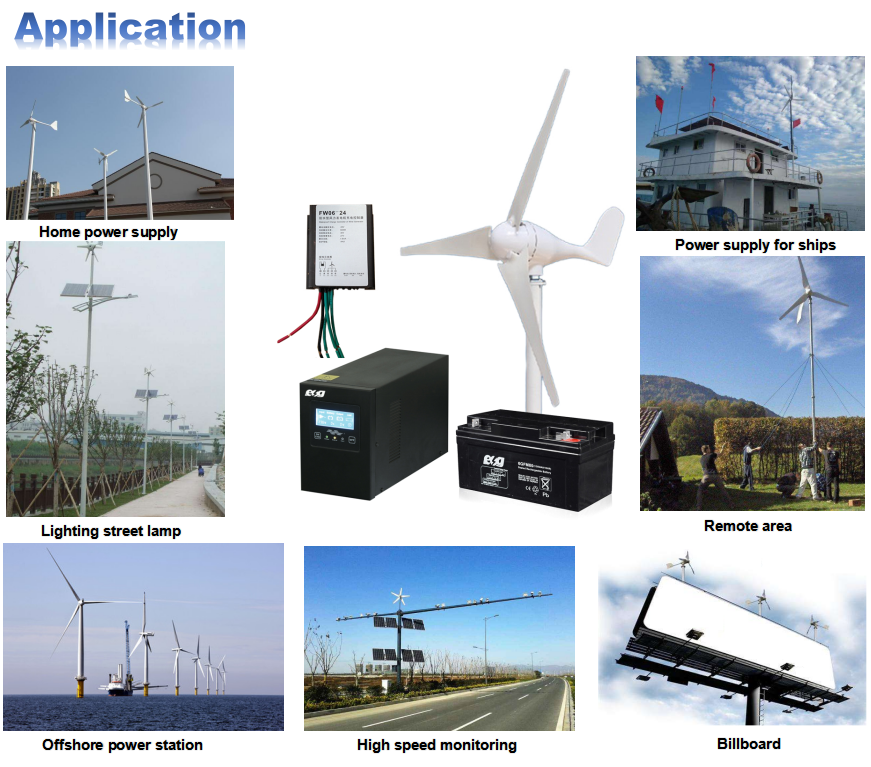

Applications
Why choose us?
Advantage
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
Product Details
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
|

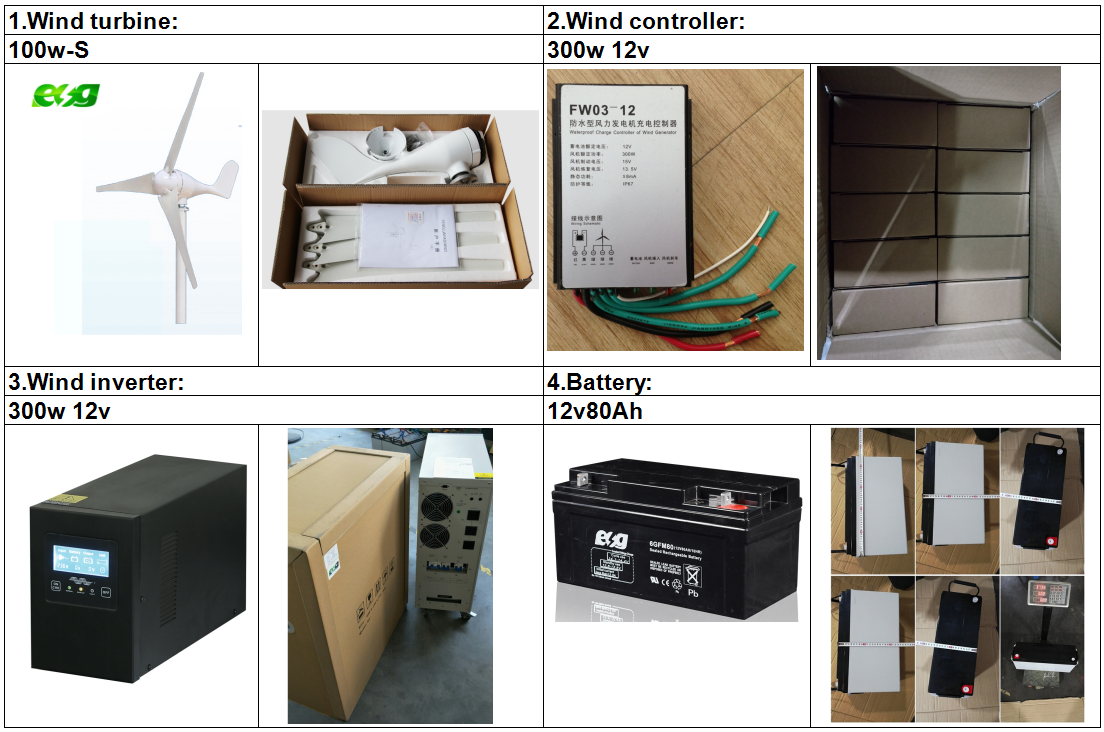

packing list (Daily average energy storage 0.3-0.4kw/h) |
||
| thing | Model | quantity |
| 1 | Wind generator (100w-S) | 1 |
| 2 | wind controller | 1 |
| 3 | inverter | 1 |
| 4 | Battery (12v80Ah) | 1 |
| 5 | Tower height 6m (3m*2) | 1 |
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
Technical Parameters
|

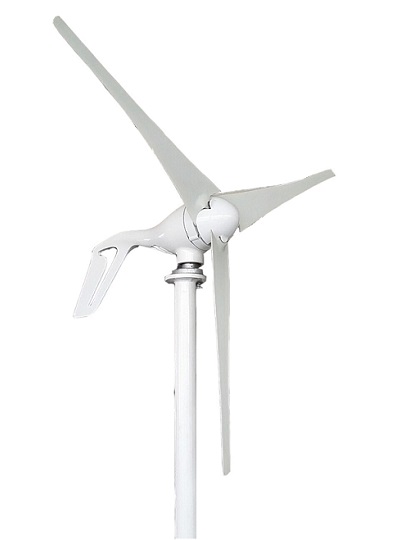

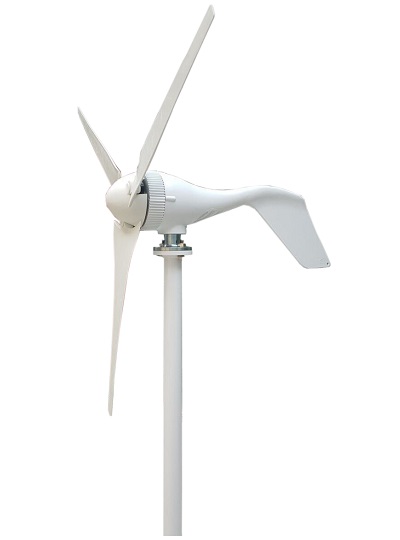

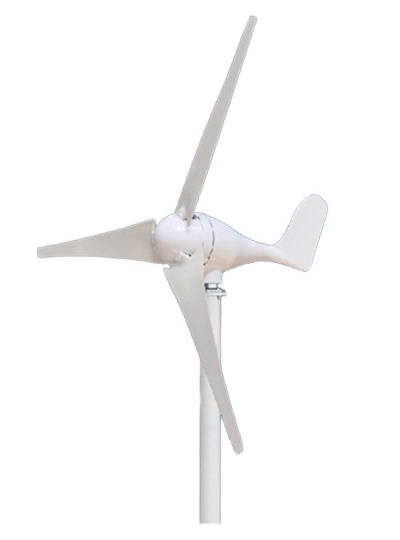

Wind turbine 100w |
Model | ES-100-S | ES-100-S2 | ES-100S3 |
| picture |  |
 |
 |
|
| rated power | 100W | 100W | 100W | |
| Maximum power | 130W | 130w | 130W | |
| Rated voltage | 12/24V | 12/24V | 12/24V | |
| start wind speed | 2 m/s | 2 m/s | 2 m/s | |
| Rated wind speed | 10 m/s | 10 m/s | 10 m/s | |
| Survival wind speed | 55 m/s | 55 m/s | 55 m/s | |
| top net weight | 6 kg | 5 kg | 5 kg | |
| wheel diameter | 1.2m | |||
| number of blades | 3/5 | |||
| Blade material | nylon fiber | |||
| dynamo | Three-phase permanent magnet AC synchronous generator | |||
| magnet | NdFeB | |||
| Generator case | cast aluminum alloy | nylon | nylon | |
| Control System | Solenoid/wind wheel yaw | |||
| Speed regulation | Automatically adjust the windward direction | |||
| Operating temperature | -40℃-80℃ | |||
| Suggested Tower Height (m) | 6m(3m*2) | |||
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
| wind controller | Product number | FW03-12 | FW06-24 |
| Rated battery voltage | 12V | 24V | |
| Rated Wind Turbine Rated Power | 300W | 600W | |
| Brake starting voltage (factory value) | 15V | 30V | |
| Brake starting voltage (factory value) | 13.5V | 27V | |
| Brake starting current (factory value) | 30A | 30A | |
| display mode | to lead | ||
| Quiescent Current | ≤20mA | ||
| Working temperature and humidity range | -35~+75℃ | ||
|
degree of protection |
IP67 | ||
|
Dimensions (L*W*H) |
100*87*28mm | ||
| In order to better serve our customers. Our company can adjust parameter configuration according to customer requirements. | |||
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
| wind inverter | Power (W) | 300W |
| Power input range | 145VAC-280VAC | |
| DC input | 15A-25A | |
| DC input | 12V/24V | |
| Input frequency range | 50/60 Hz | |
| stable pressure output | Voltage regulator 220V±5% | |
| Inverter output voltage | 110V/230V±3% | |
| Inverter output frequency | 60/50 Hz | |
| output sine wave | pure sine wave | |
| Distortion factor | ≤3% | |
| conversion time | Automatically change within 4ms | |
| Inverter efficiency | 85% | |
| overload capacity | 120% for 10 minutes 150% for 1 minute | |
| cooling model | forced cooling | |
| use height | ≤1000M (the altitude above 1000M can be dropped and used) | |
| Relative humidity | 30%-90% | |
| operating temperature | 0-40℃ | |
|
Product Size (length*width*height) |
390*145*210mm | |
|
export dimension (length*width*height) |
470*210*320mm | |
| net weight/kg) | 6.5 | |
| Gross weight (kg) | 7.5 | |
| Noise (decibel) | 40-60 | |
| Protective function | Short circuit protection, overload protection, high voltage protection, low voltage protection, high temperature protection, reverse connection protection, reverse connection protection, etc. |
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system

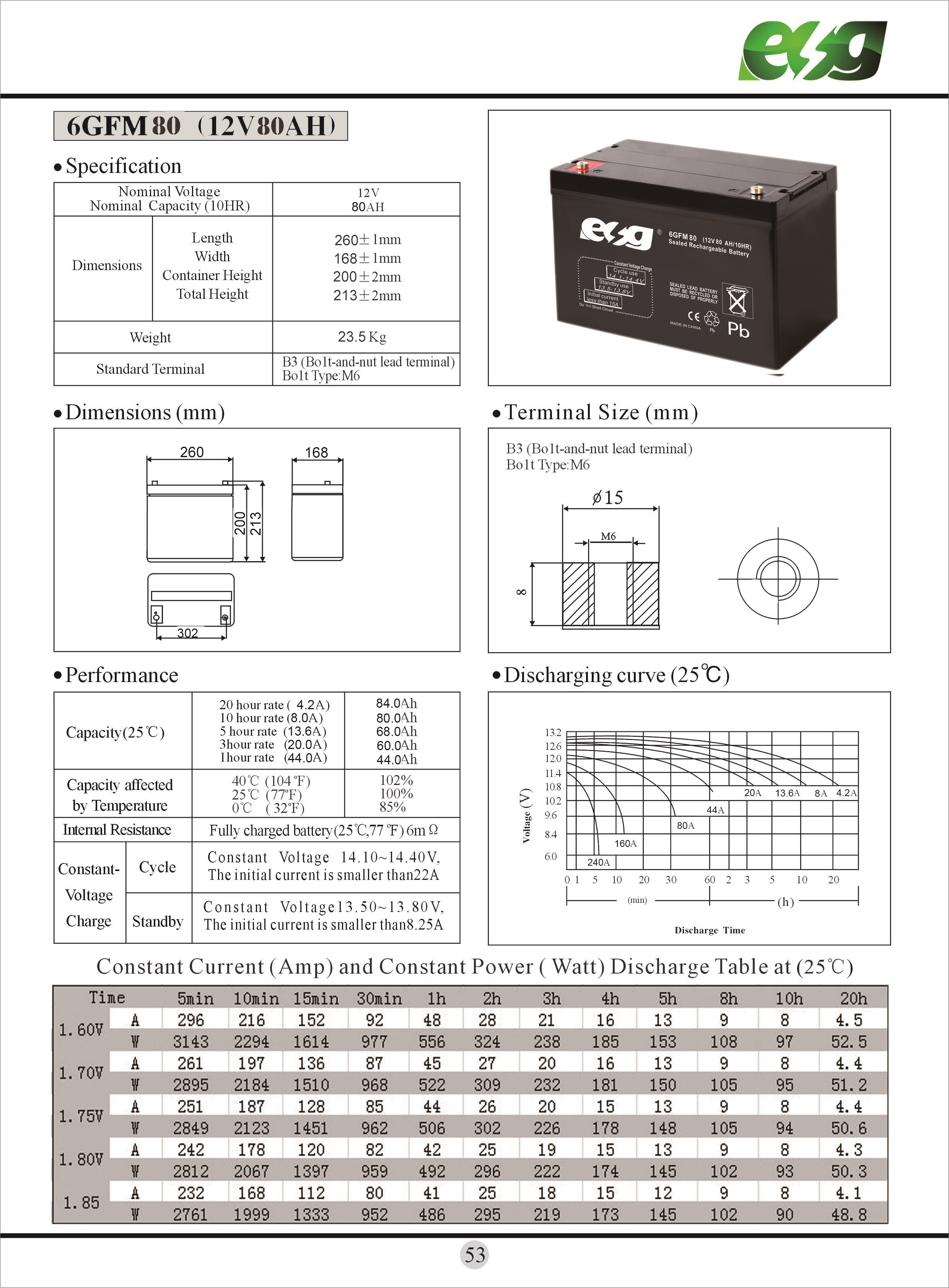

| Battery |  |
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system

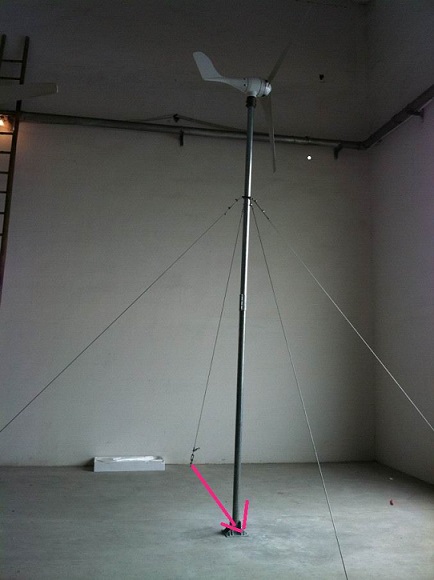

| Lagoon tower with locking bar |  |
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
*If the standard supporting products are not enough for you, we can communicate more and choose a solution that suits you.
Click "Send Inquiry" to start the communication!
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system

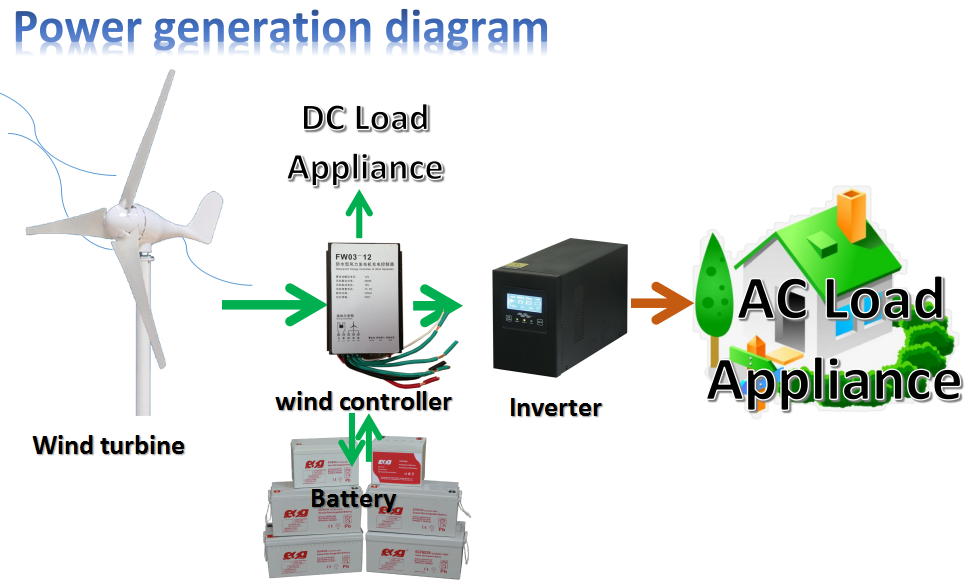

work rules
Convert the kinetic energy of the wind into mechanical kinetic energy, and then convert the mechanical energy into electrical energy, which is wind power generation. The principle of wind power generation is to use the wind to drive the blades of the windmill to rotate, and then increase the rotation speed through the booster engine, thereby driving the generator to generate electricity. According to windmill technology, about three meters per second of the breeze speed (the degree of breeze), you can start generating electricity. Wind power is becoming a worldwide craze because it requires no fuel, radiation or air pollution.
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
Product advantages
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system

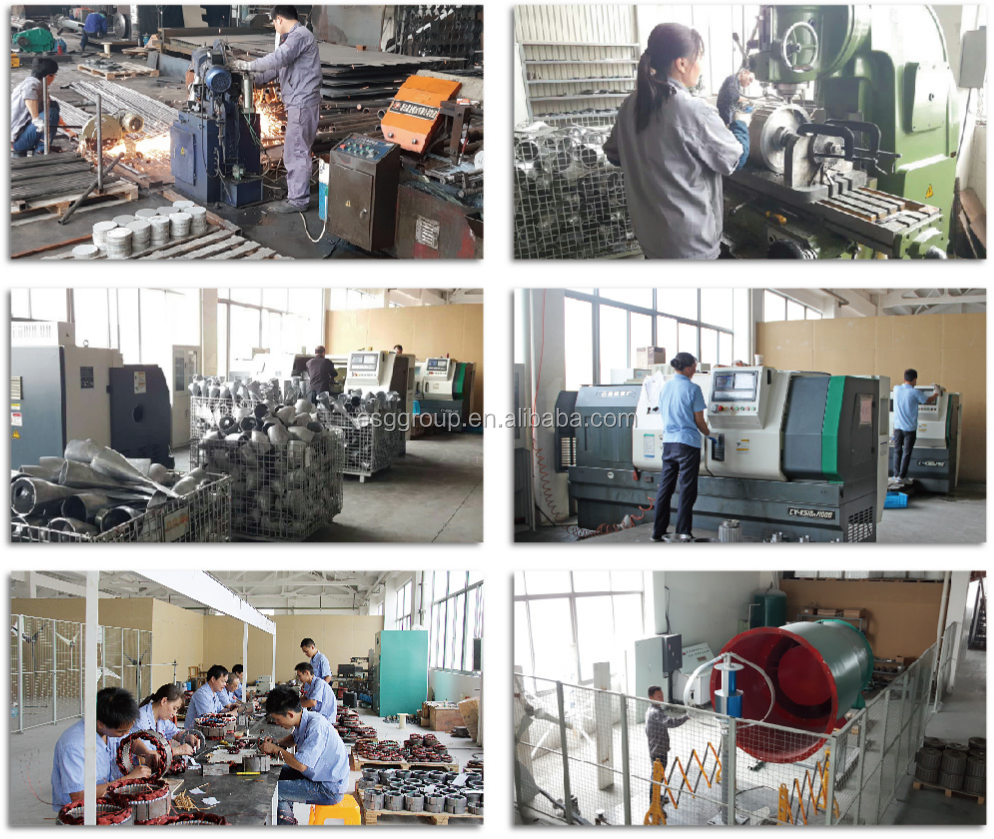

Production and Quality Control
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
Certification and Reporting
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system

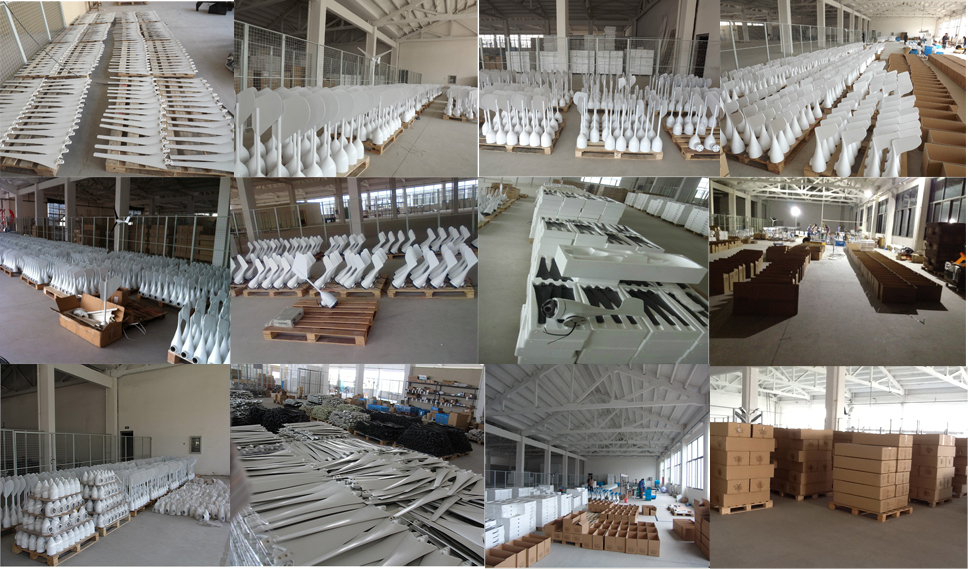

Packing and shipping
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system

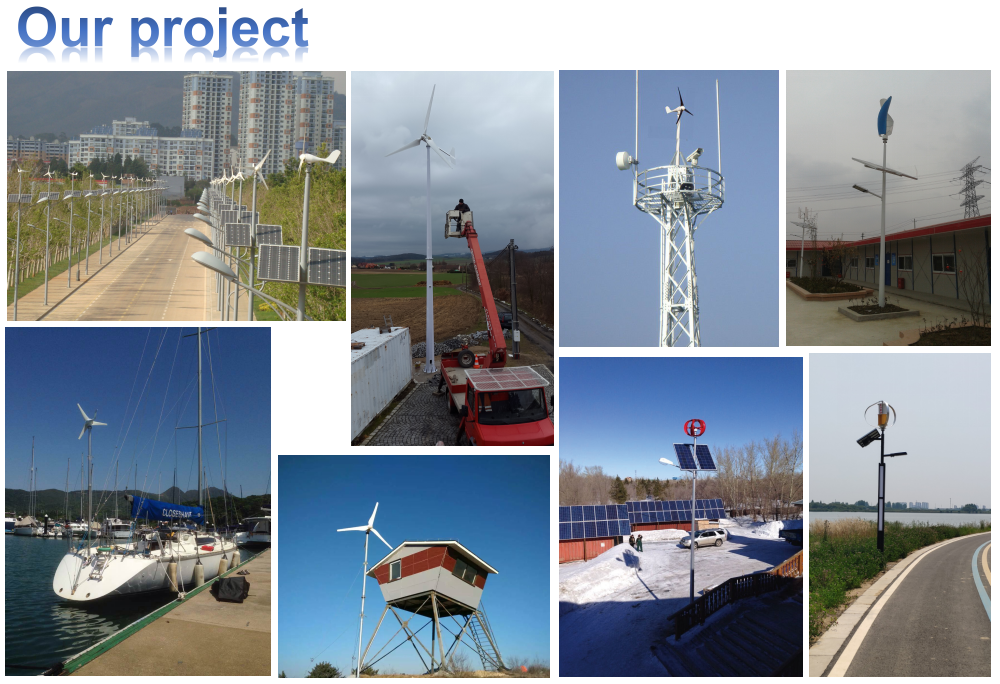

Project display
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
Pitch wind turbine wind power generation system
| Off-grid system for variable pitch wind turbines | ||||||
| Model | describe | |||||
| wind turbine fuselage | automatic braking system | Towers & Accessories | controller | inverter | Battery | |
| ES-2KW pitch wind turbine | DC48V | / | Guyed Tower, 9M | DC48V | 2kVA, DC48V/AC220V | 12v200ah |
| ES-5KW pitch wind turbine | DC240V | 5KW | Tilting Tower, 8M | DC240V | 5kVA, DC240/AC220V | 12v200ah |
| ES-10KW variable pitch wind turbine | 240V | 10 kW | Tilting Tower, 12M | DC240V | 10KVA, DC240V/AC220V | 12v, 200ah |
| ES-20KW variable pitch wind turbine | DC 360V | / | Unipolar, 18M | DC 360V | 20KVA, DC360V/AC220V | 12v, 200ah |
| ES-30KW variable pitch wind turbine | DC 360V | / | Unipolar, 30M | DC 360V | 30KVA, DC360V/AC380V | 12v, 200ah |
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
Company profile and team
ESG New Energy Technology Co., Ltd.Dedicated to off-grid systems, we produce batteries, pure sine wave inverters, solar controllers, wind and solar power generation systems production, we have production lines and a scientific quality management system. A high-tech enterprise that develops and sells.
Our factory has 33Yearhistory we have3 brandsin China. Established in 2013, ESG is the latest brand to focus on solving green energy projects.
High-quality, high-efficiency, scientific research management team that adapts to market demand, and has established extensive and close cooperative relations with domestic universities and scientific research institutions, thus ensuring the company's sustainable development and advanced technology for product development.
ESG New Energy Technology Co., Ltd. has been recognized by the industry for its integrity, strength and product quality.
Welcome friends from all walks of life to visit, guide and negotiate business.
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
exhibition
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
ESG Cheapest Hot Sale with mini 100w horizontal axis wind turbine off grid wind power system
FAQ
1. Q: Is it easy to install?
A: It's very simple, every customer can do it by himself, we will provide all installation components and very detailed installation manual.
2. Q: Is our wind enough for wind turbines?
A: Because our wind turbines can start and run at a low wind speed of 2.5m/s. So your annual average wind speed exceeds 5m/s.
3. Q: Which type of wind turbine is suitable for me?
A: Please contact our sales and provide the following information:
1. What equipment will the system run on? How many watts they have and how long they work.
2. Your annual wind speed.
3. What kind of system do you want? On-grid or off-grid
4. Q: Can I just buy the parts instead of the whole system?
A: Yes, for example you can manufacture the tower locally, we can provide you the tower drawing.
5. Q: Horizontal axis wind turbine VS vertical axis wind turbine, which one is more efficient?
A: Under the same model and the same wind speed, the output of the horizontal axis wind turbine is higher than that of the vertical axis wind turbine
