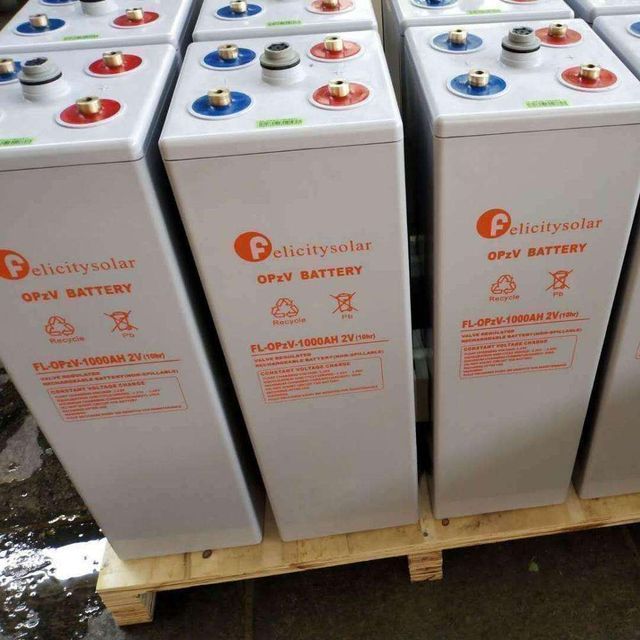

OPZV 2V 500ah 1000ah tubular gel battery for solar system and telecommunication

Supplier: Guangzhou Felicity Solar Technology Company Limited
Region: Guangdong, China
Contact: Ms Winnie Huang
Price: $145.00 / 2 - 19 pieces
$135.00 / 20 - 99 pieces
$115.00 / >=100 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Typical weight:	41KG	Certification:	other
brand:	Happy Solar	Discharge rate:	95%
Battery Type:	OPZV battery	Origin:	Guangdong, China
recharging current:	125A	Warranty:	other
Battery Type:	Traditional Tubular Gel Batteries	application:	electrical tools
Supply capacity:	100 pieces per month	port:	Guangzhou/Shenzhen
Battery size:	166206473mm	Cycle life:	6000
capacity:	500AH	weight:	41KG
TOLL:	Yes	Voltage:	2V
Sealed type:	seal	Power Performance:	3-5 years power guarantee
payment terms:	L/C, Western Union, T/T, MoneyGram	model:	FL-OPzV-500AH 2V
Float voltage:	2.23V/cel@25℃(77℉)	collar:	dark gray
Charging ratio:	95%

IVCP/IVCM series 1~5KVA inverter

12V/24V/48V pure sine wave inverter with built-in PWM/MPPT controller

IVPS/IVPM series 5~10KVA inverter

24V/48V pure sine wave inverter communicating with our Mppt controller

IVEM 1~5KVA Inverter

24V/48V built-in PWM/MPPT controller

Maximum input voltage 450A

LPBF series lithium ion battery

24/48V 3.75KWH~10KWH battery

LPBG series lithium ion battery

24/48V 5KWH~12.5KWH battery

LPBF series 12V battery

12V 150Ah/200Ah lithium-ion battery

GEL series 70Ah~250Ah battery

12V 70AH~250AH gel battery

OPzV series 200Ah~2500Ah battery

2V 200Ah~2500Ah gel battery

Front terminal series battery

12V 100Ah~200Ah battery

Product Description

Product Details

Product parameters

Model	FL-OPZV-500AH2V	FL-OPZV-1000AH2V
voltage per unit	2V
capacity	500Ah @10hr-rate to 1.80V per Batteries@25℃	1000Ah @10hr-rate to 1.80V per cell @ 25℃
weight	41KG	80KG
recharging current	125A	500A
Internal resistance	About 0.495mΩ	About 0.238mΩ
range of working temperature	Operating temperature (max): -40°C to 50°C
		Operating (recommended): 15°C to 25°C
		Storage: -20°C to 40°C
range of working temperature	Discharging: -40℃~70℃ Charging: 0℃~50℃ Storage: -20℃~60℃
normal operating temperature range	25℃±5℃
Float voltage	2.25 to 2.3V DC/unit Average at 25℃
Balance and Cycle Services	2.37 to 2.40V DC/unit Average at 25℃
self-discharge	The monthly self-discharge rate is less than 2% at 25°C. Please charge the battery before use.
size	166206473MM	233210646MM

Application field

>>Application:

-security system
-controlling device
- Photovoltaic system
- Ocean/Boat
- Solar/wind power generation system
- Electronic appliances and other backup power supplies
- Telephone and telecommunications equipment
- Uninterruptible power supply (UPS)
- emergency lighting
- Telephone switchboard, electrical equipment, medical equipment, instrumentation

customer case
