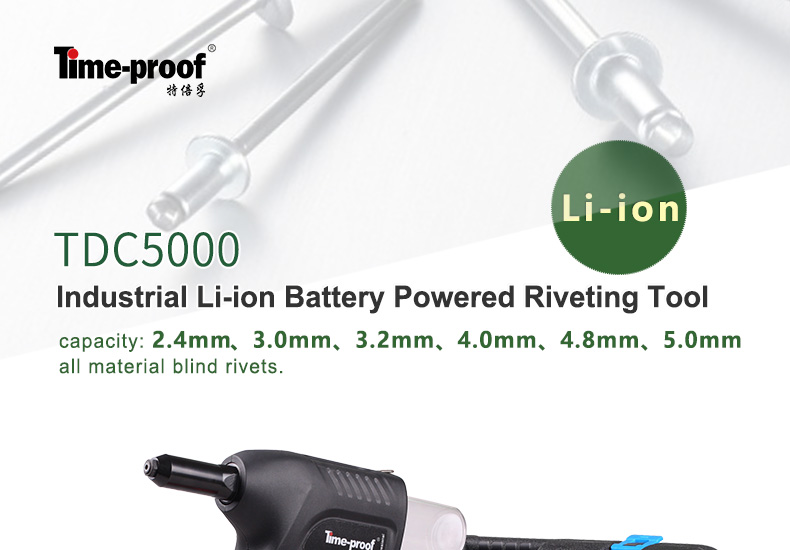

TDC5000 Brushless Rivet Tool Brushless riveting tool

Product Details:

introduce
durable^®pneumatic/hydraulic
Riveting tool series

Innovative and Unique Features
The most notable feature of this tool is the unique design of the tool body - the air cylinder.
The vertical hexagonal cylinder design changes the traditional production method. The cylinder is closed from the top and bottom by six screws instead of the traditional tapping around the cylinder
A body that requires considerable material thickness. The unique cylinder closure method makes the tool relatively lighter.
The unique design also enables the efficient production of rather long tubular profiles from its raw material. With no non-flexible dies, the height of the cylinder can be flexibly calculated to apply a wide range of tool strokes in the most economical way.
The strength of the cylinder is proven adequate by its aviation-grade aluminum alloy material.
The unique cylinder design is patented.

benefit
Help manufacturers organize a wide range of tools and further develop customized tools at a lower cost; Help dealers organize various tools easily; Conduct after-sales services conveniently;

modular design
Here's how to further reduce costs in tool family design
and inventory items necessary for production, maintenance and repair.
The Time-proof™ family of pneumatic riveting tools consists of multiple components
Interchangeable components between different models. it significantly helps
Resellers in service management.

Tool series
commercial series;
Industrial series;
professional series;

Business Series:

The commercial range of riveting tools includes models prefixed with -Z: Z5000, Z5000V, Z5000A, Z5000AV for installing blind rivets up to 4,8/5,0mm Z6400, Z6400V for installing blind rivets up to 6,4mm.
Model codes with the suffix -V designate tools with a vacuum system for holding the blind rivets in the tool changer and automatically blowing off the remaining mandrel after setting.
Model codes with the suffix -A indicate that these tools are custom built with enhanced traction at the expense of travel, paired with Z5000 and Z5000A, Z5000V and Z5000AV.
The appearance of commercial series tools is all black, and the default red trigger.
Commercial series tools are positioned to serve DIY and semi-industrial market segments. Oriented by low cost, arrange production in the most economical way, mass production. Except for a few unimportant part materials, there is no loss of quality in critical parts and parts assemblies, allowing non-professional users to extend tool life with simple basic maintenance.
Life tests on the base model Z5000 showed the tool starting to loosen the set stroke after about 1 second of setting. 120,000 pcs aluminum/steel multigrip 4,8 x 15 blind rivets without washers (two strokes for one rivet). During the test, one set of jaws was replaced due to wear after 54,000 rivets.

Industrial Series:

The industrial series of riveting tools consists of model numbers, those with the prefix -N are rivet installation tools, and those with the prefix -M are rivet nut installation tools:
N240, N240V for setting blind rivets up to 4.0mm
N250, N250V for setting blind rivets up to 4,8/5,0mm
N640C, N640CV, N640G, N640GV For installing blind and structural blind rivets up to 6.4mm
N1100G for setting Monobolt or equivalent to 10 mm
M2308 for mounting blind rivet nuts up to M8
M2312 for mounting blind rivet nuts up to M12
M2312L for setting split nuts with travel up to 16mm
M2314 for mounting blind rivet nuts up to M14
Model codes with the suffix -V designate tools with a vacuum system for holding the blind rivets in the tool changer and automatically blowing off the remaining mandrel after setting.
A model code with the suffix -C indicates that the tool is designed for extra long travel applications setting Monobolt, Interlock, Magnalock, or equivalent; while the suffix -G indicates that the tool is designed for the application of additional traction setting Hemlok or equivalent .
The Industrial Series tools target market segments for general industrial and professional applications. The range includes blind rivet installation tools as well as blind rivet nut/bolt installation tools, clip nut installation tools.
It is the main line of the Time-proof™ line of pneumatic riveting tools.
There are many functional extension head assemblies and custom accessories for various applications in industrial production.
Time-proof has an experienced R&D team to provide customers with fastening solutions.

Professional Series
Professional series riveting tools include model: QH264, for setting lock bolts up to 6.4 mm
QH1100 is used to install locking bolts up to 10 mm. TK164 is used to install quick rivets and hammer rivets up to 6.4 mm. Installation tools and installation equipment.

Professional series riveting tools are continuously developed according to customer needs and promoted by providing fastener installation solution services.
The appearance of Industrial series and Professional series tools adopts blue cylinder arrangement by default.
