2 ethernet Fanless Mini PC Celeron J3160 2GB RAM 64GB SSD Linux Desktop

Supplier: Xuzhou Venoen Technology Co., Ltd
Region: Jiangsu, China
Contact: Mr Robb Ding
Price: $112.00 / >=2 units
Min. Order: 2 units

Click here to contact

Product details

Delivery Detail:	0 days after payment;	Memory:	2GB DDR3L RAM;
CPU:	intel Celeron J3160;	Graphics Card Type:	Integrated Card;
OS:	Pre-install Windows 10;	Resolution:	1920*1080;
Use:	Educational;	Single gross weight:	2 KG;
Place of Origin:	Shenzhen;	Type:	All-In-One;
Widescreen:	Yes;	Certificates:	CE, RoHS, FCC;
Single package size:	25X18X10 cm;	Display port:	2HD ports,support HD 4K;
Package Type:	retail neutral box:30.820.67.5cm 10pcs retail box to one carton:66.83536.2cm;	Screen Size:	No Monitor;
Selling Units:	Single item;	Color:	Black/Silver;
USB Port:	USB 2.04 + USB3.02;	Processor Main Frequency:	1.6GHz;
Lan port:	2*1000M network card, support wake on lan;	Storage:	64GB mSATA SSD;
Brand Name:	VENOEN;	Display Type:	support LED/LCD;
Optical Drive Type:	USB DVD-ROM;	Model Number:	H1/H3-N3160;
Processor Brand:	Intel;	Products Status:	Stock;

2 ethernet Fanless Mini PC Celeron J3160 2GB RAM 64GB SSD Linux Desktop

Product Description

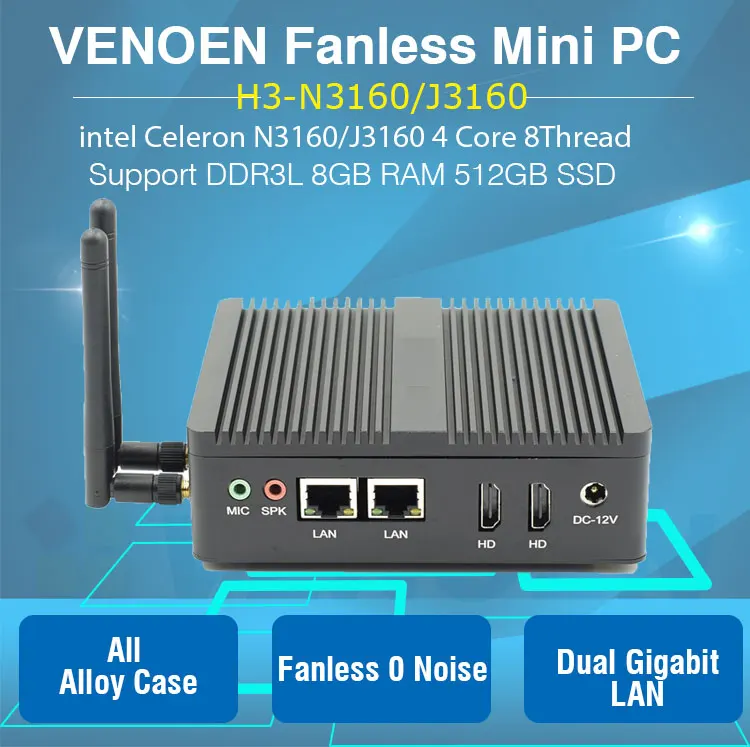

VENOEN H3 Mini PC key Features:

1) Support win7, 8, 10, linux or customize;

2) 2hd+6*USB Multi ports for multi-connections. Support dual display Support Synchronous and Asynchronous dual display, both high resolution.

intel HD Graphics gives you extraordinary visual experience.

3) High-quality pure aluminum Case; Aluminium Alloy case Fanless passive Cooling Quite Mini PC

Mini PC using Fanless design, passive cooling supports 7*24hours operation, fanless technology make it noiseless, provide silent enviroment.

4) 1*mSATA,1*mini-PCIE, 1*SATA, support dual Storage;

5) 1*1000M network card, support wake on lan;

6) DC-IN 12V power supply and AC power adapter, low power consumption.

7) Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal;

For other configuration

Please Click send us inquiry

Or Contact us directly:

salesvenoen.com

00861829731518

Specifications:

General
CPU	Intel® Celeron® Processor J3160 1.6 GHz, Burst to 2.24GHz Quad Core 4 Threads
BIOS Manufacturer	American Megatrends Inc.
Chipset	Braswell SOC Single Chipset
Memory Memory Type	1 x DDR3L SO-DIMM Socket DDR3L(Low Voltage 1.35V)-1600 SDRAM, Max 8GB
Storage	1mSATA 3.0 slot for mSATA SSD 1 SATA 3.0 slot for 2.5 inch HDD or SSD
Operating System	win7/win8/win10/Linux all compatible
Network	2 x Realtek RTL8111E Gigabit LAN Optional 300M WiFi with dual antennas
Audio	Realtek ALC662 HD Audio
Video	Intel Graphics Media Accelerator

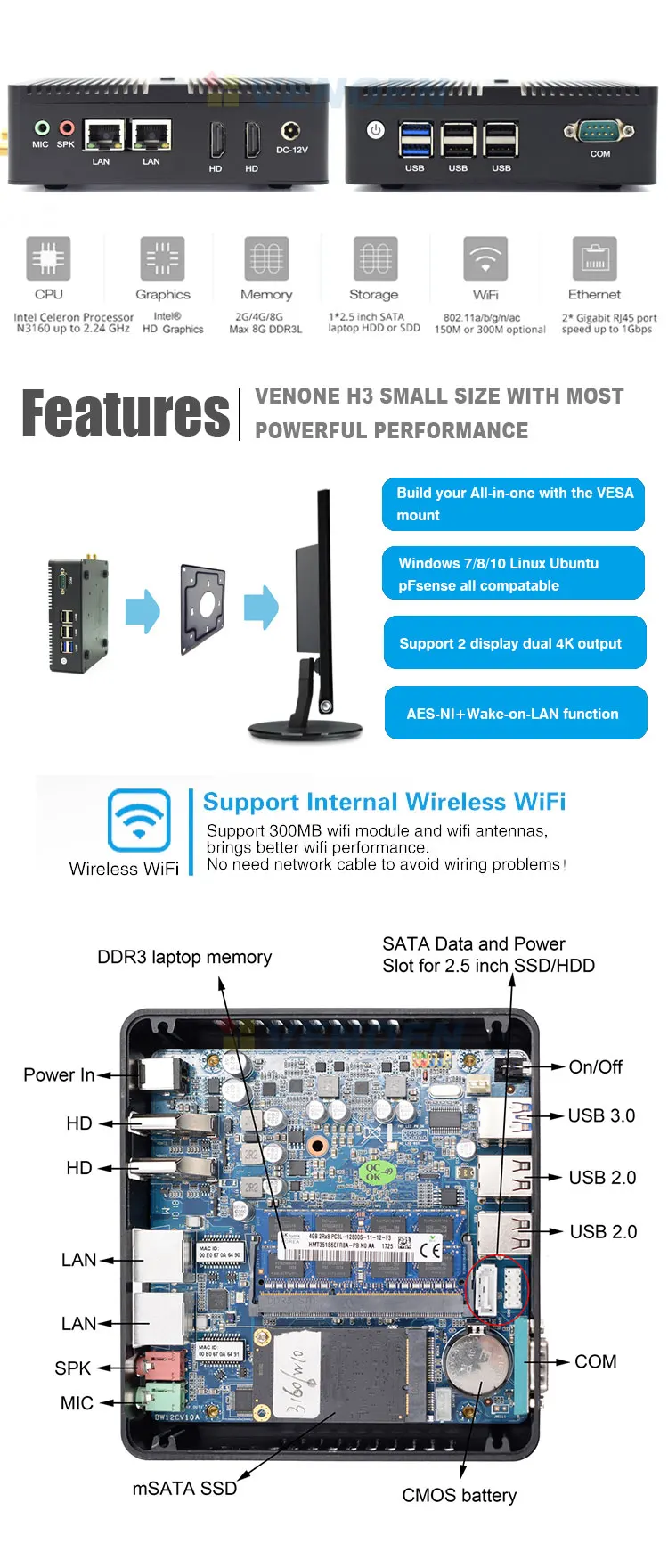

I/O port
Front panel ports	1* Switch ON/OFF, 2USB3.0, 4USB2.0, 1*COM
Backside ports	1* DC IN, 2hd, 2LAN port(RJ-45), 1MIC, 1SPK,
Internal ports	1mini-PCIE port(m-SATA SSD, 3Gbps) 1half height Mini PCI-E Wi-Fi Module
Expansion ports	13 PIN CPU FAN; 1FP; 1*COM
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC 12V/3A External Power Adapter
Temperature	-10℃~55℃
Relative Humidity	0%-95% relative humidity
Watch Dog	Yes
Product Dimension & Details
Size	PC size 13612643mm Package size 30520575mm
Weight	Net 0.75kg, Gross 1.55kg
Consumption	6W
Shell	All black aluminum alloy

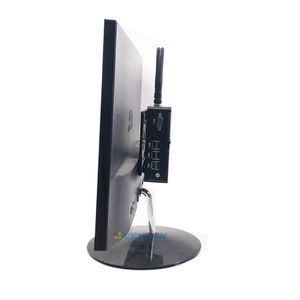

Mounting	VESA Mounting Bracket
Lock	Kensington Lock holes
Package Content
Standard	1Mini PC, 2WiFi Antennas, 1Power Adapter, 1VESA
Optional	1hd Cable, 1hd to DVI Cable, 1*hd to VGA Cable

Please "Click" to send us inquiry

Warranty

Mainboard 2 Year, RAM/SSD 1 Year

Packaging & Shipping

1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.

2.Packaging Ways: Each pc for one neutral box, ten or sixteen neutral box for one carton.

3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.

For a large quantity, we can support to ship by air or by sea.

Our Services

1. OEM Service:

If you want to market your own brand, we supply OEM service, not only on product, but also can customize the package. And for bulk orders, we can supply free LOGO service,but package customize MOQ is 2000pcs.

2. ODM Service:

If you want to make a totally new design we can do it for you too, free ODM service for MOQ 2000units. Charge US$3500 design fee for less than 2000units. ODM including hardware and software.

WHY CHOOSE US

FAQ

1.Q:Can you put my brand name (logo) on these products?

A:Yes, We can support OEM/ODM service, Over 50 units can support printinf logo for you, over 100units can support Customized shell and packing box,the process of customization is following:

1: Provide your specific requirement.

2: Our design engineers draw the design draft.

3: you confirm the design draft.

4. We start produce it.

2.Q: How much do I need to pay for your OEM service?

A: You should pay extra fee,but we will return the fee to you when your order over 100 pieces.

3.Q: What payment method do you accept?

A: T/T, Western Union, PayPal and so on.

4.Q: What is the Minimum Order Quantity (MOQ)?

A: We can sell one piece sample for your test.

5.Q: What is the lead time of your products?

A: 3-7 days for sample, 15 working days for a large quantity.
