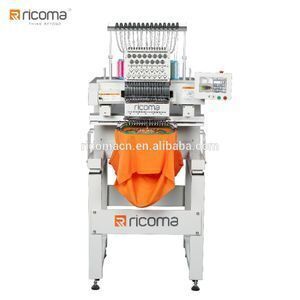

PORTABLE TUBULAR EMBROIDERY MACHINES

WITH 7” HD TRUE COLOR TOUCH SCREEN SYSTEM

                   MAIN FEATURES

1. Designed for embroidery on bulky and large items, such as bags, bed sheets, drapery, towels, and more. Perfect for caps, shirts and any other finished products
2. Maximum speed of 1200 SPM for single head and 1000 SPM for two heads
3. Small and portable for easier desktop placement
4. Newly developed small sewing arm guarantees better embroidery quality on caps and small items
5. Multiple languages available, including English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Thai, Arabic and more
6. User -friendly control interface with useful functions that make it easy to operate and increases efficiency
7. Machine reads DST and DSB formats
8. Hoops sizes are pre-programmed to avoid hitting frames
9. When setting color change sequence, operator is able to add appliqué, sequin, boring or cording. There is no need to change it in the parameters page
10. Built-in key for 172° and 196° for easy machine maintenance
11. Frame offset and frame outlining function keys have been added to the control interface for easy appliqué embroidery and frame change
12. High Definition true color 7” LCD Touch Screen
13. Multi-angle rotational and adjustable control panel bracket for better viewing options
14. New ergonomic touch screen allows easy and comfortable operation by right thumb
15. Recessed USB port to protect USB flash drive
16. Main operation area located on the right side of interface, convenient for right thumb operation
17. One-step trace button directly on the main screen
18. External 100° button and trimming button
19. Maximum embroidery area: 500 x 360 mm, or 20″ x 14″
20. Automatic thread trimmer
21. 270° wide angle cap system
22. USB input or direct transmission from PC via Ethernet port or wireless
23. Networkable and Wi-Fi capable
24. Automatic color change
25. Intelligent thread break detection
26. Pre-sew design trace capable
27. Automatic memory retention
28. Servo motor 150W - the lowest power consumption in the industry
29. Built-in universal power supply, 110V/60Hz or 220V/50Hz self-adaptable worldwide
30. DC36V micro-step motor for driving the X & Y axis to ensure low noise and less vibration
31. Heavy duty steel stand with wheels to ensure both stability and mobility
32. Plywood package
33. Emergency stop button

Specifications:

Hoops/ Frames Included:

2 x round hoops      9cm (3.5”) per head

2 x round hoops      12cm (4.7”) per head

2 x round hoops      15cm (5.9”) per head

2 x round hoops      20cm (9”) per head

2 x square hoops    29x29cm (12x12”)  per head

2 x oval hoops         54x35cm (21x13.5”)  per head

CAP ATTACHMENTS INCLUDED:

2 x cap rings that snap into cap station for preparation and embroidery per head

1 x snap-on and snap-off hoop station per machine for easy preparation of caps

1 x cap driver per head

Optional Device:

1. W2214 (56X40cm)Sash Frame & Extended Table (For MT single head only)

2. Sequin device

3. Boring device

4. Cording device

5 Robot frame

6. Belt hoop

7 .Laser positioning system

8. 8 in1 hoop set

9.Mighty Hoop

10.HoopMaster
