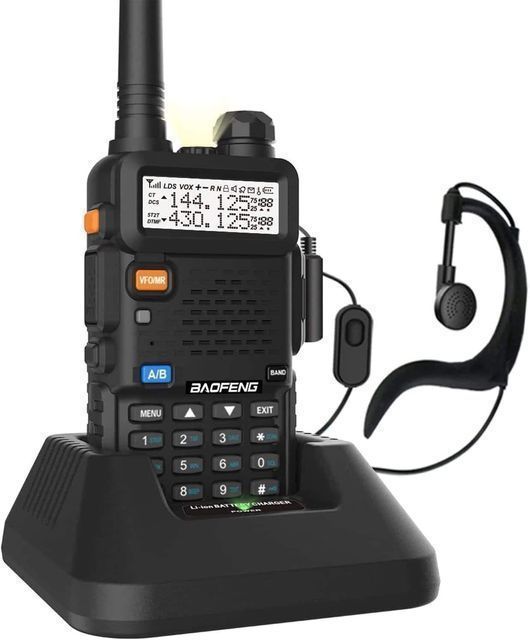

Wireless Walkie Talkie 2 Way Radio Handheld Walkie Talkie 144-148MHz and 420-450MHz Analog Radio Long Range 5-10km

Supplier: Quanzhou Jinsheng Electronic Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Tony Wu
Price: $19.99 / 2 - 2 pieces
$18.99 / 3 - 1999 pieces
$17.49 / >=2000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Supply capacity:	2,000,000 pieces per month	Call range:	5-10KM
brand:	storm	Certificate:	CE FCC Rohs certificate
channel:	128	Battery Quantity:	1 Lithium-ion battery required. (include)

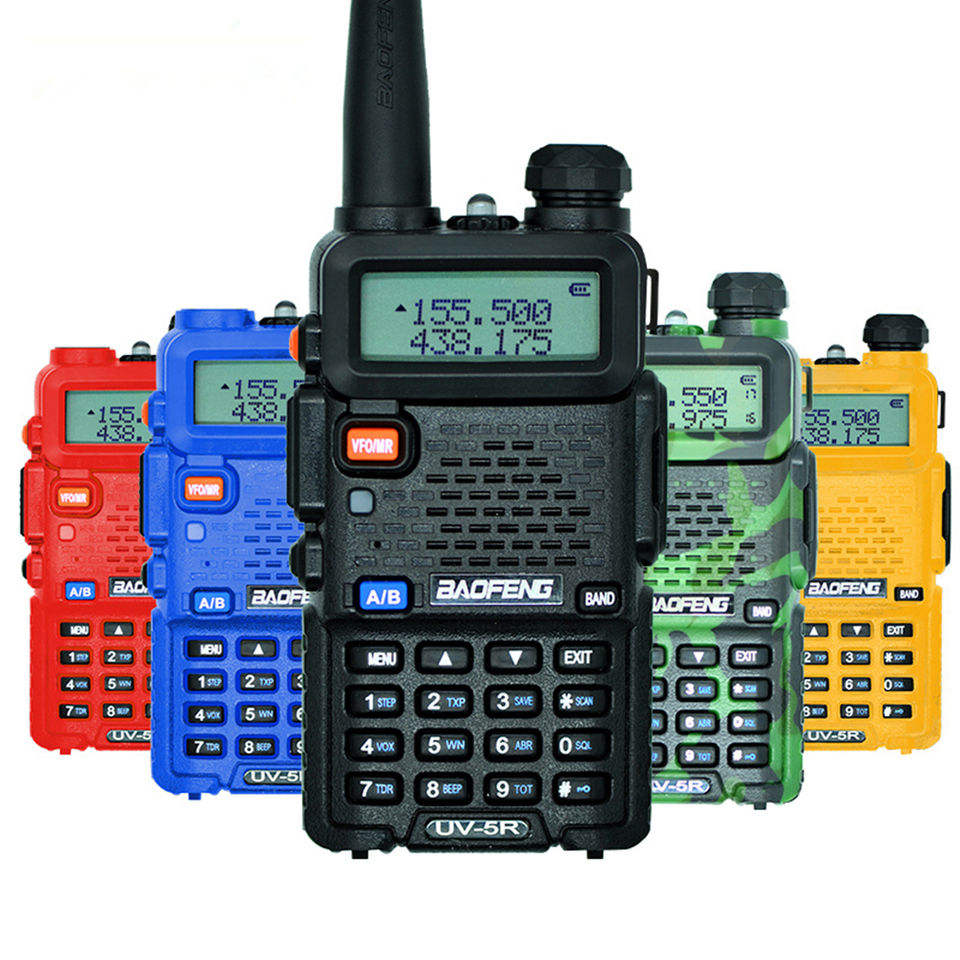

model:	UV-5R	Packaging Details:	Inner foam and outer carton
Operating Voltage:	7.2V	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
frequency:	UHF+VHF 136-174MHz+400-520mhz	Tuner Technology:	UHF
style:	Handheld	Battery:	1800mAh

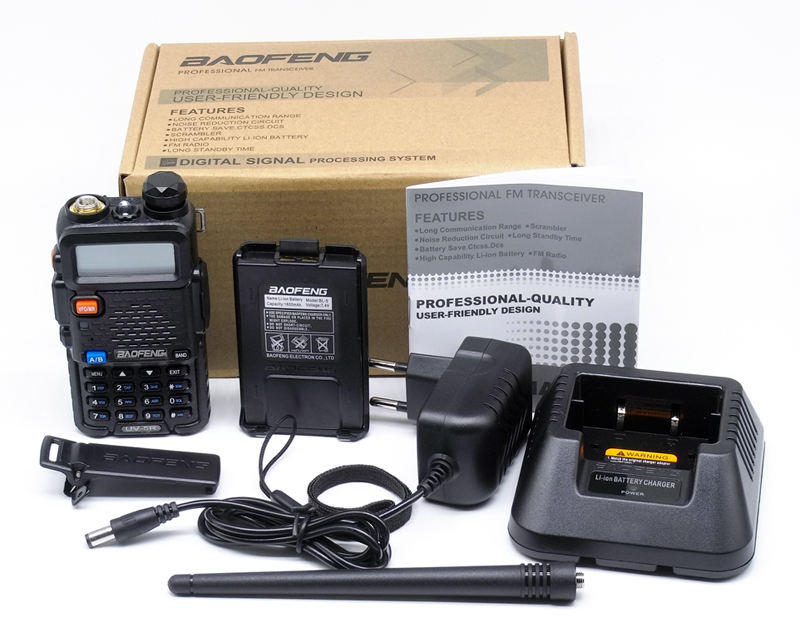

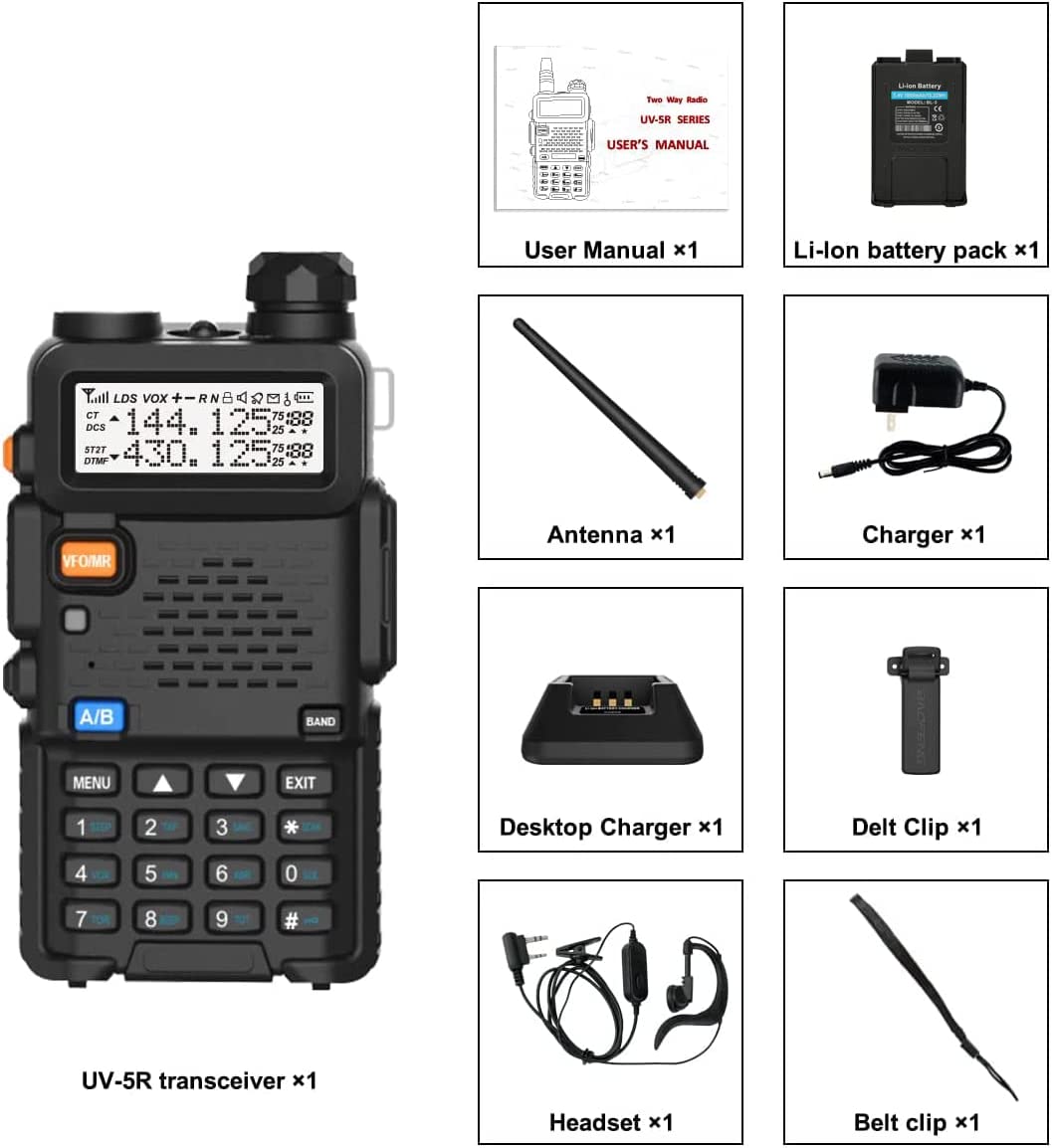

Package preview:		port:	Xiamen
type:	analog radio	Wireless or Wired:	wireless
Origin:	Fujian China

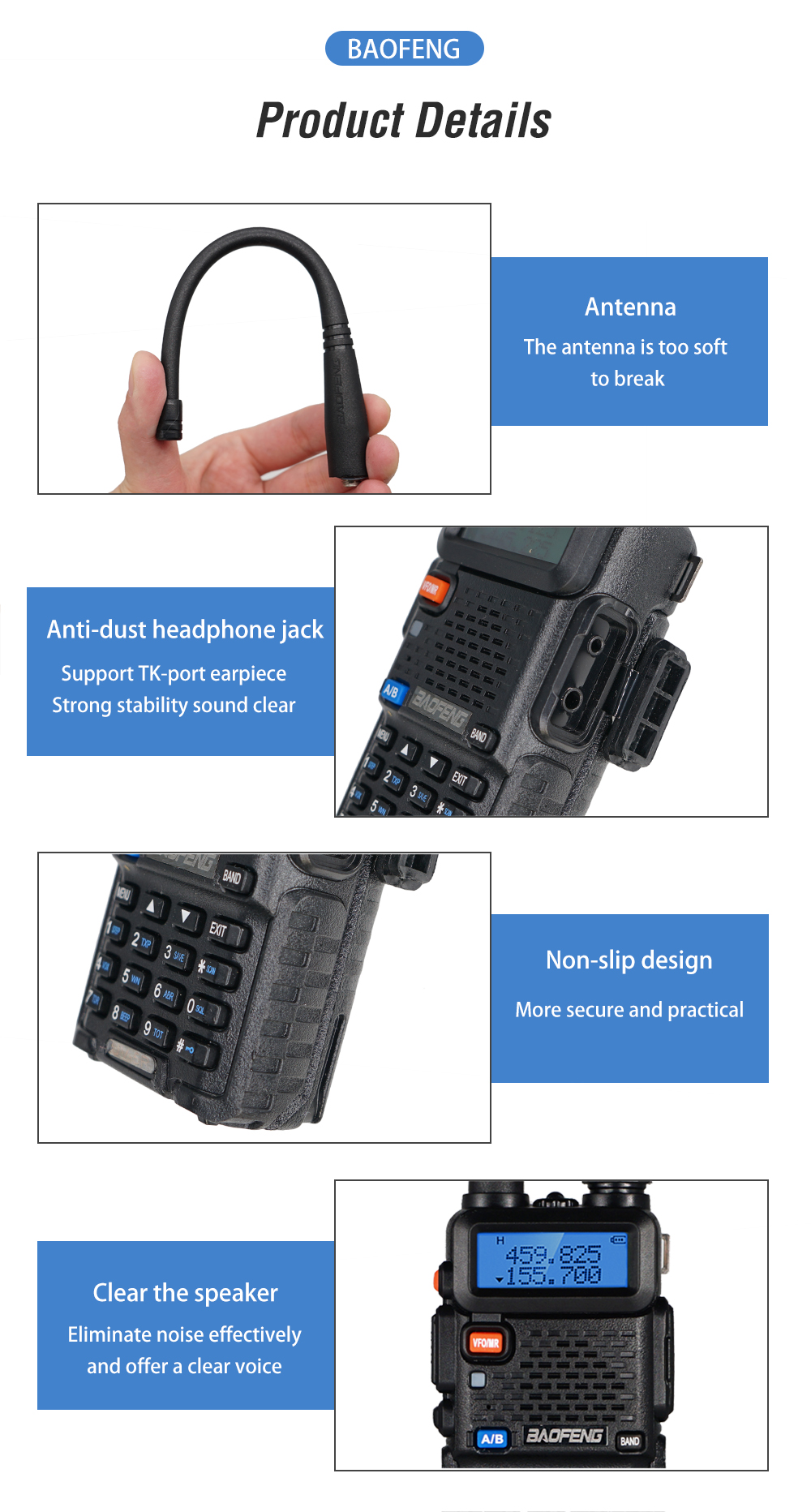

Product Description

Product performance description Product performance introduction

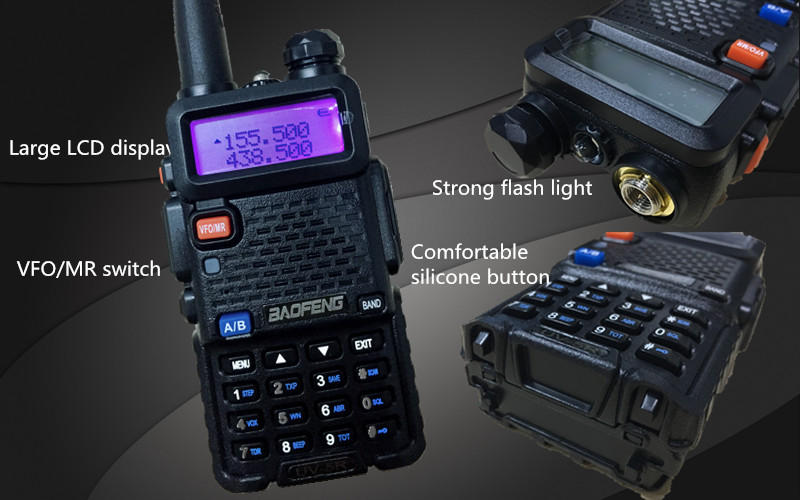

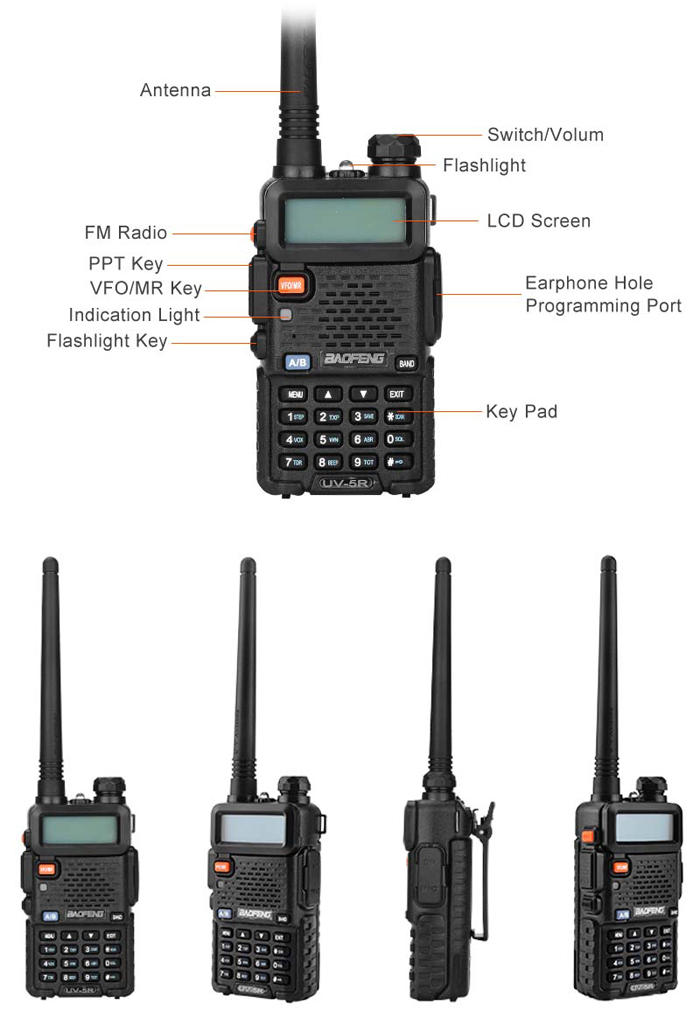

feature:
1. Long communication distance

2. Scramble
3. Noise reduction circuit

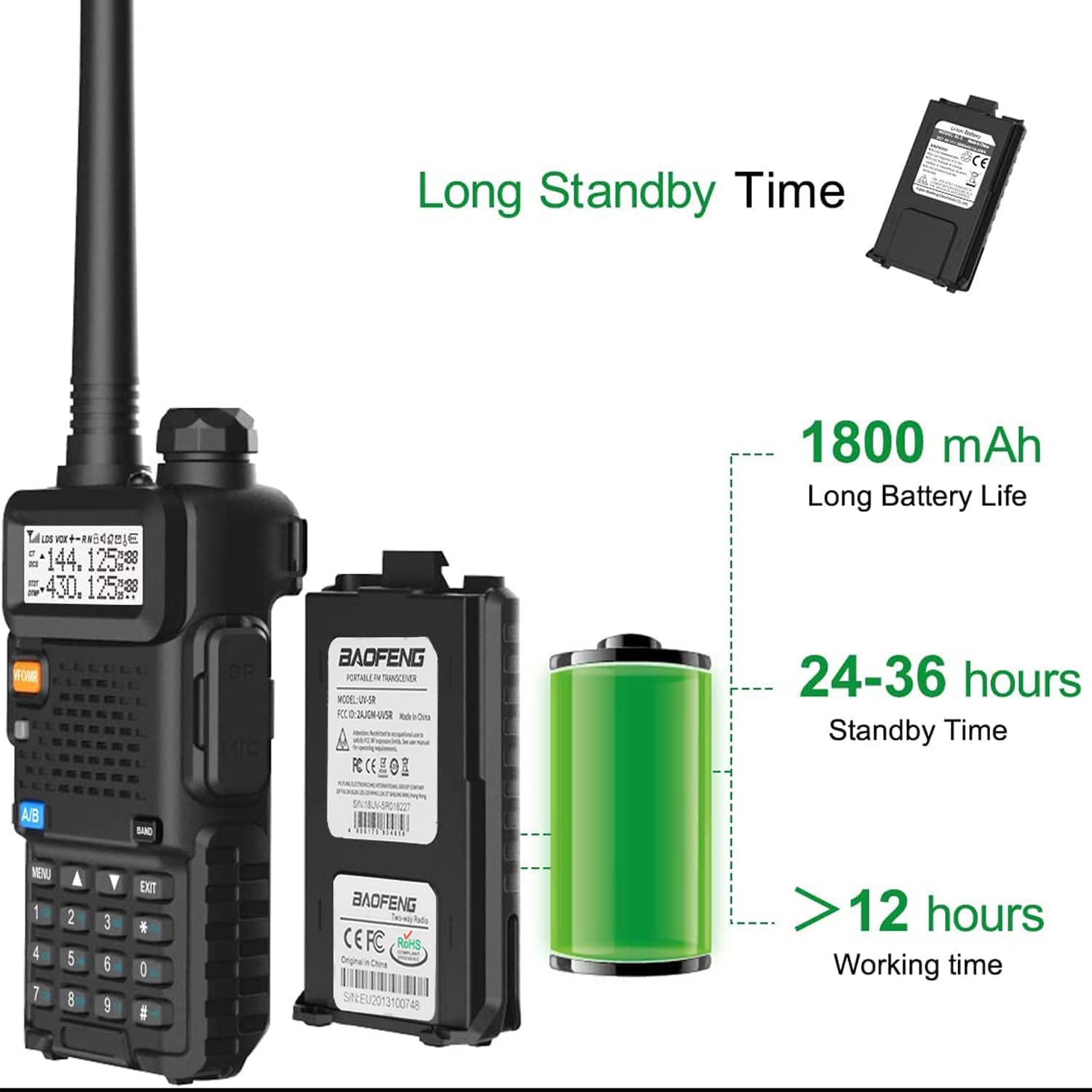

4. Long standby time
5. Power saving

6. CTCSS/DCS
7. Low battery alarm

8. Monitoring function
9. Flashlight function

10. FM radio
11. VOX (Voice Activated Transmission)

12. Busy Channel Lock (BCL)

General:
1:Frequency range: 65-108MHz (FM reception only) 136-174MHZ and 400-480MHZ
2:Channel 128
3: Frequency Stability: 2.5ppm
4: Frequency step: 2.5/5/6.25/10/12.5/25kHz
5: Antenna Impedance: 50Ω
6: Operating temperature: -20°C to +60°C
7: Working voltage DC 7.4V
8: Battery capacity 1800mAh lithium-ion battery
9: Standby power consumption: ≤75mA
10: Reception Consumption: 380mAh
11: Transmission consumption: ≤1.4A
12: Mode of operation: simple or half-duplex

transmitter
1: Output Power: 5W/1W (Max 5W)
2: Modulation type: FM
3: Emission level: 16kΦF3E / 11kΦF3E
4: Maximum deviation: ≤5kHz/≤2.5kHz(W/N)
5: Spurious emission: ≤-60dB

receiver
1: Receiver Sensitivity: -0.2μV (at 12 dB SINAD)
2: Intermodulation: 60dB
3: Audio output: 1000mV
4: Adjacent channel selectivity: 65/60dB

our service:

Q. How to ensure product quality?

A: We always provide pre-production samples for strict testing before mass production; always double check before shipment;

Q. Is sample order available?

A: Yes, available upon request.

Q. How long do you need to prepare samples? A: Depending on different products, it may take 1-7 days.

Q: What payment terms do you accept?

A: For samples, we accept Western Union, MoneyGram or bank wire transfer, payment in advance on Alibaba. For MP orders, bank wire transfers are accepted.

Q. Can we have our logo to be printed on the unit or the package?

A: Test samples for function evaluation, only neutral packing, without any logo

print. For MP order, if you want to print your logo, company name on the product package (custom design package),
Such as gift box, paper card, MOQ is 500pcs for each model. But the exact amount also depends on the exact
Model. Please contact us. You can email us your artwork in AI, EPS, TIFF or CorelDraw format.

Q: what can I do
What if I have more questions to answer? A: Please send us your detailed inquiry. We will reply you within 12 hours.

deliver goods:Can express: Ali Logistics, DHL, UPS, FedEx, EMS, TNT, etc.

Q. How much is the courier cost for samples?
A: The express fee depends on the sample quantity, weight, carton size and which country you want to send to.
You can ask our sales for exact information.

Q. How to ship the goods to us?
A: For sample order, usually delivered by DHL, TNT, FEDEX and other carriers; for MP order, usually by air or sea.
