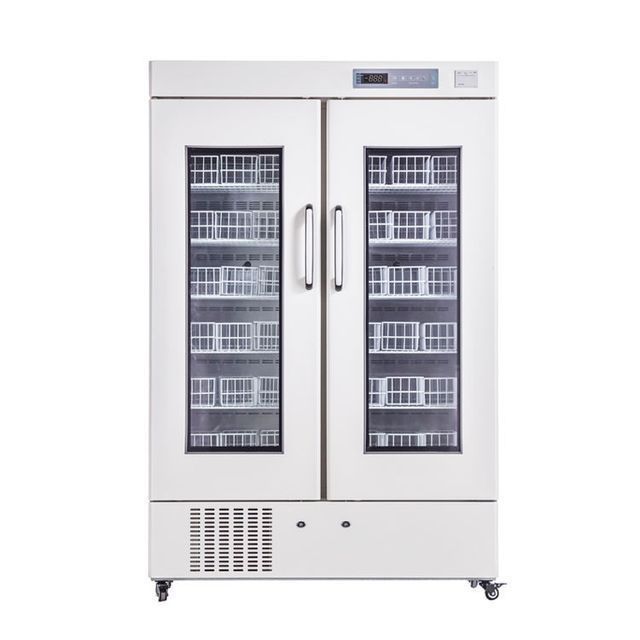

Drawell MBC-4V608 Blood Bank Refrigerator Laboratory Medical Refrigeration Equipment

Supplier: Chongqing Drawell Instrument Co., Ltd.
Region: Chongqing, China
Contact: Ms Fiona Luo
Price: $3699.00 / 1 - 9 pieces
$3673.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Packaging Details:	Standard export wooden box packaging (safety in English)	Warranty:	1 year
Classification:	Laboratory Refrigeration Equipment	Supply capacity:	500 pieces per month
Inner material:	Stainless steel	Origin:	Chongqing, China
Customization support:	OEM production	cool down:	Forced air cooling
shelf:	12	port:	Chongqing/Shanghai/Shenzhen/any port confirmed by buyer and seller
payment terms:	L/C, Western Union, T/T, MoneyGram, PayPal	product name:	MBC-4V608
exhibit:	Digital Display	Package preview:
model:	MBC-4V608	External material:	Color sprayed steel
Internal Dimensions(mm):	11004541325mm	Ambient temperature (°C):	10~32℃
capacity:	608L	temperature range:	4±1℃
brand:	Dravel

Product Description

MBC-4V Series Blood Bank Refrigerator

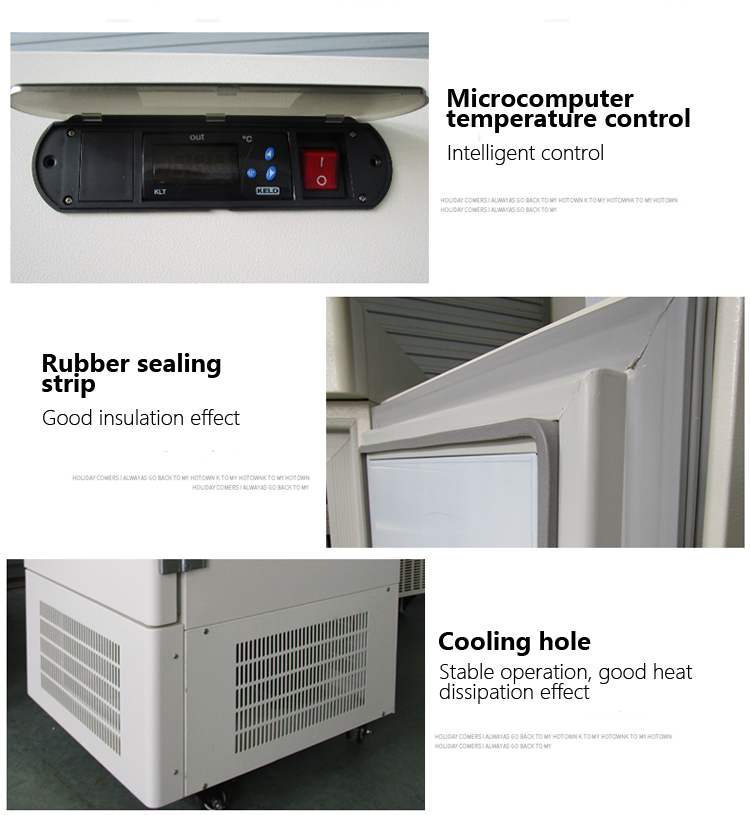

feature:>Precise microprocessor controller ensures that the temperature inside the cabinet is always maintained at 4±1°C. >Specially designed forced air cooling system ensures that the cabinet does not frost and has good temperature uniformity. >Three-layer tempered glass door with heater to avoid condensation. >304 stainless steel inner cavity, easy to use and easy to clean. >Wide voltage range: 187V~242V

Safety:>Security door lock and controller set password to prevent unauthorized access. >Built-in backup battery can display temperature and run up to 72 hours audible and visual alarm system without AC power. >Inner door and automatic on/off cooling fan to prevent cold air from leaking when the door is opened. >Visual and audible alarm system: high/low temperature, power failure, sensor error, door ajar, low battery. >Power failure protection: Delayed start of cooling system after power failure. A Controller error protection: When the controller or two sensors fail, the cooling system will remember the normal working cycle and continue to work according to this memory. >Temperature printer: Automatically print the current temperature inside the car every 10 minutes.

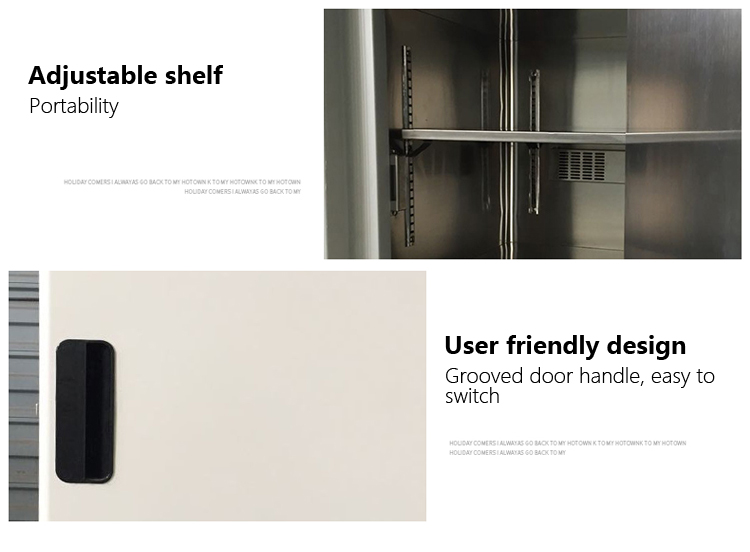

Humanized design:A 4 castors with stoppers for easy moving and fixing. >2 adjustable shelves and 6 blood baskets for easy use. >Specially designed maintenance-free drainage system ensures that there is no water in the cabinet. >Standard 25mm test hole, easy to connect to temperature monitoring system. Auto on/off LED light with manual switch on the control panel.

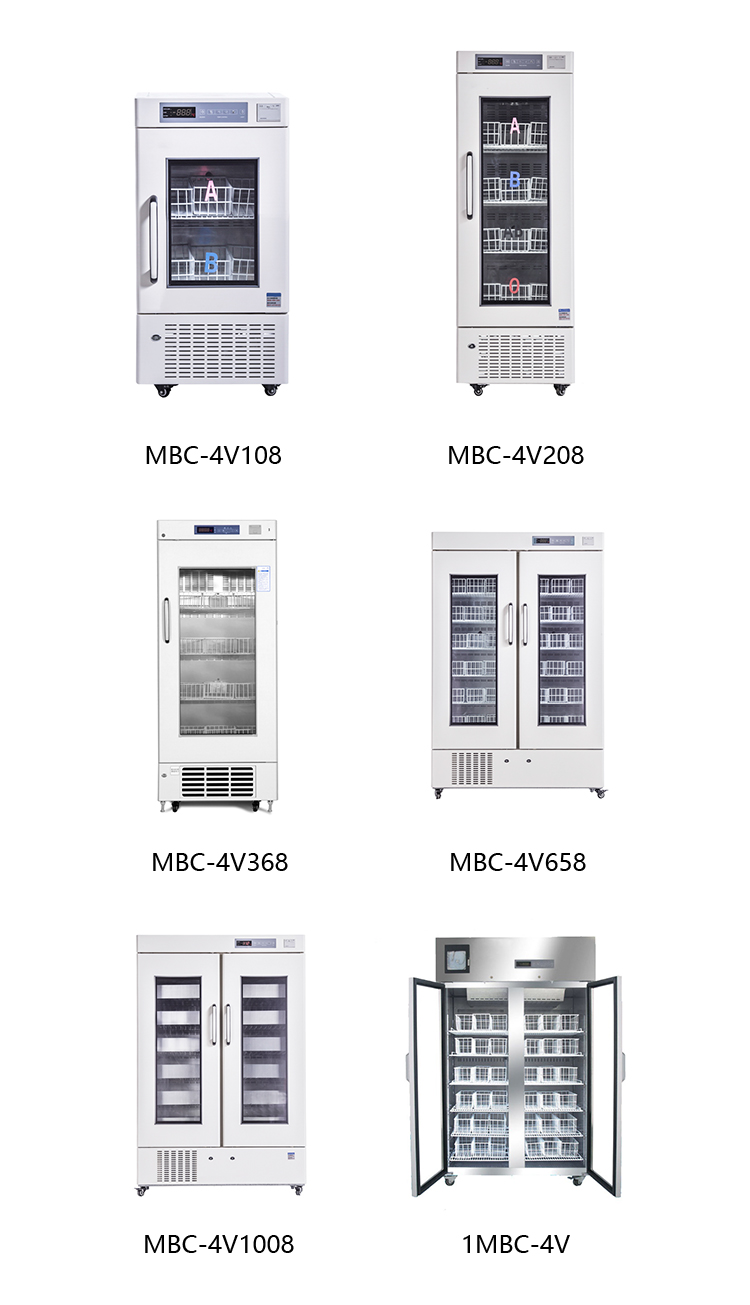

Model	MBC-4V108	MBC-4V208	MBC-4V368	MBC-4V658	MBC-4V1008
shelf/drawer	shelf/2	shelf/4	shelf/4	shelf/12	drawer/12
cool down	Forced air cooling	Forced air cooling	Forced air cooling	Forced air cooling	Forced air cooling
defrosting	car	car	car	car	car
Refrigerant	R134a	R134a	R134a	R134a	R134a
Power Consumption(kWh/24h)	1.95	2.22	4.28	6.31	8.53
Noise (decibel)	49.6 dB(A)	51.2 dB(A)	51.2 dB(A)	51.2 dB(A)	53.6 dB(A)
Ambient temperature (°C)	10~32℃	10~32℃	10~32℃	10~32℃	10~32℃
Temperature range (°C)	4±1℃	4±1℃	4±1℃	4±1℃	4±1℃

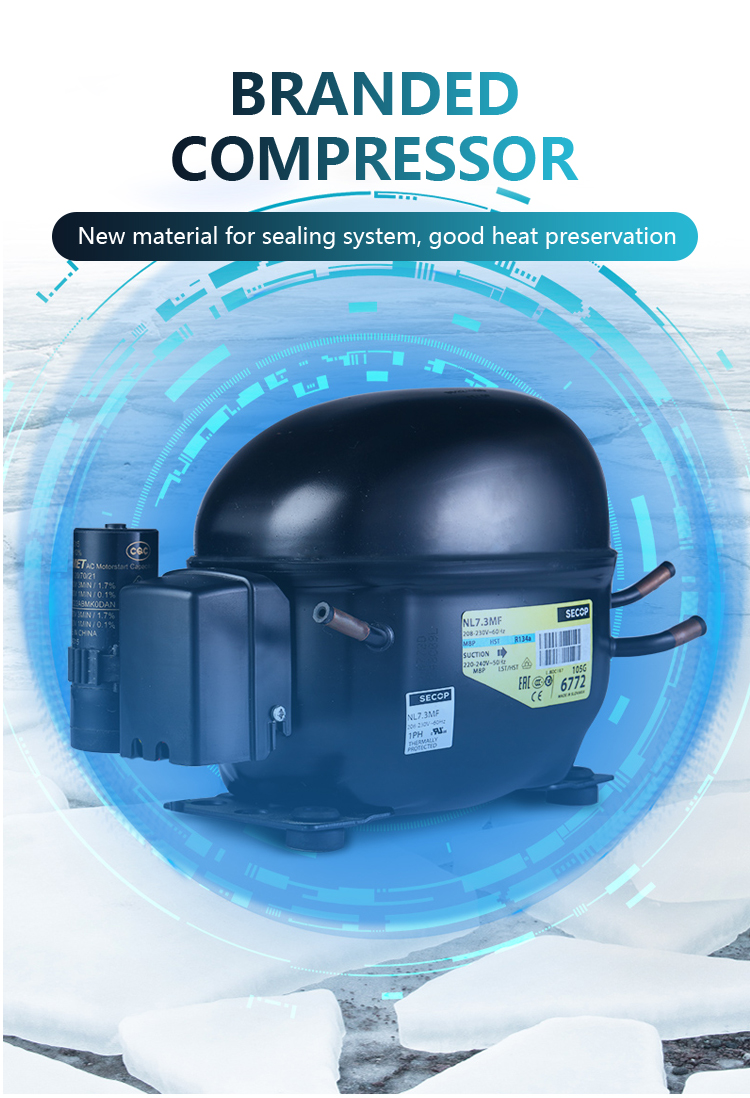

Compressor brand/quantity	Embraco/1	Embraco/1	Embraco/1	SECOP/1	SECOP/1
sensor	negative temperature coefficient	negative temperature coefficient	negative temperature coefficient	negative temperature coefficient	negative temperature coefficient
Temperature Controller	microprocessor	microprocessor	microprocessor	microprocessor	microprocessor
exhibit	Digital Display	Digital Display	Digital Display	Digital Display	Digital Display
Voltage/frequency (V/Hz)	220/50 Hz	220/50 Hz	220/50 Hz	220/50 Hz	220/50 Hz
Power (W)	175W	183W	325	364W	513W
Current (A)	1A	0.8A	2.2A	2.42A	2.37A
interior material	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
exterior material	Color sprayed steel	Color sprayed steel	Color sprayed steel	Color sprayed steel	Color sprayed steel
insulation	PURF	PURF	PURF	PURF	PURF
Volume (L/cu.ft)	108/3.81	208/7.34	368/12.98	658/23.23	1008/35.59
Blood bag (450ml)	66	132	200	360	576
NT./GT. (kg)	74/95	96/120	128/135	202/257	265/335
Dimensions(WDH)(mm)	5406301030	5406401530	785×565×1920	12256401895	12408601895
Internal Dimensions(WDH)(mm)	432462478	432462978	685×429×1380	11004541325	11006841325
Package size(WDH)(mm)	7005851200	5907001700	890×650×2100	13307402120	13259702130
Coal bed methane	0.49	0.70	1.21	2.09	2.74
20GP/40GP/40HQ	32/68/68	27/60/60	21/44/44	12/27/27	8/18/18
high/low temperature	yes	yes	yes	yes	yes
shutdown	yes	yes	yes	yes	yes
thermostat failure	yes	yes	yes	yes	yes
backup battery failure	yes	yes	yes	yes	yes
ambient temperature	10~32℃	10~32℃	10~32℃	10~32℃	10~32℃
Backup battery power failure alarm	72 hours	72 hours	72 hours	72 hours	72 hours
casters	yes	yes	yes	yes	yes
Exterior Door/Type	1/Heating & foam glass door	1/Heating & foam glass door	1/Heating & foam glass door	2/Heating & foam glass door	2/Heating & foam glass door
inner door	2	4		6	6
test hole	1/25MM	1/25MM	1/25MM	1/25MM	1/25MM
thermal printer	yes	yes	yes	yes	yes
Light	to lead	to lead	to lead	to lead	to lead
Logger	Elective	Elective	Elective	Elective	Elective
qualifications	ISO9001, ISO13485, ISO14001, CE	ISO9001, ISO13485, ISO14001, CE	ISO9001, ISO13485, ISO14002, CE	ISO9001, ISO13485, ISO14001, CE	ISO9001, ISO13485, ISO14001, CE
