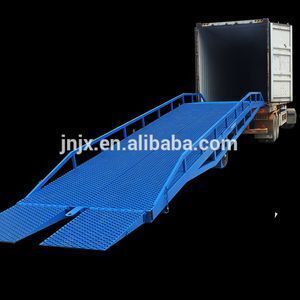

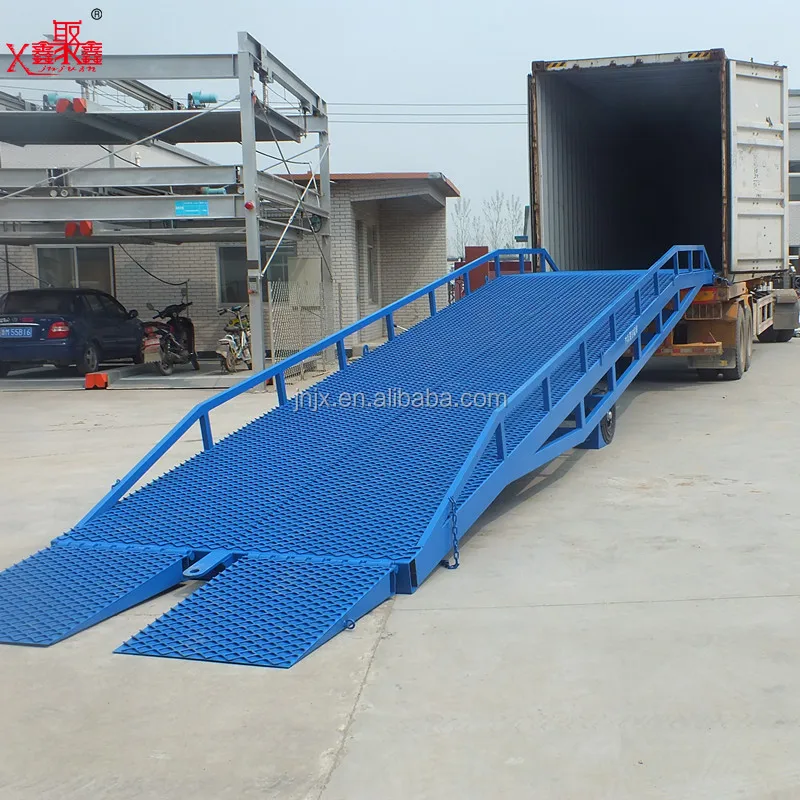

Adjustable CE ISO approved 6-15ton hydraulic cylinder used mobile truck container load unload dock yard ramp for sale

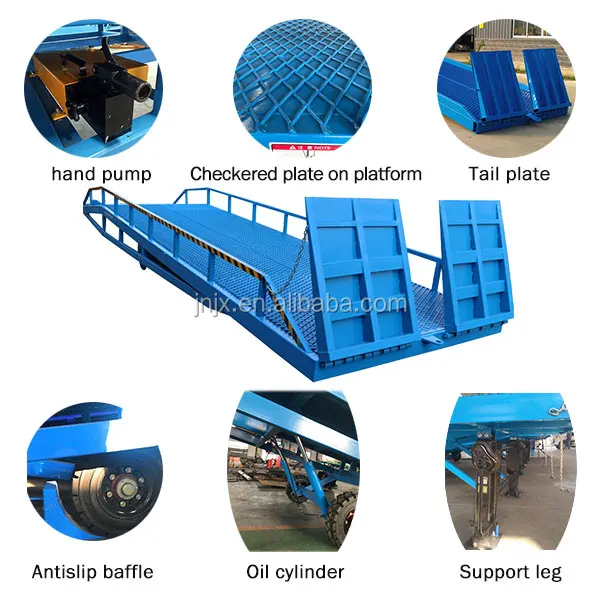

1)Hydraulic system

With handle pump, screw the return valve clockwise.Move the handle stick, to lift the ramp slowly.When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.

2)Heavy-duty mobile chakra

Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.

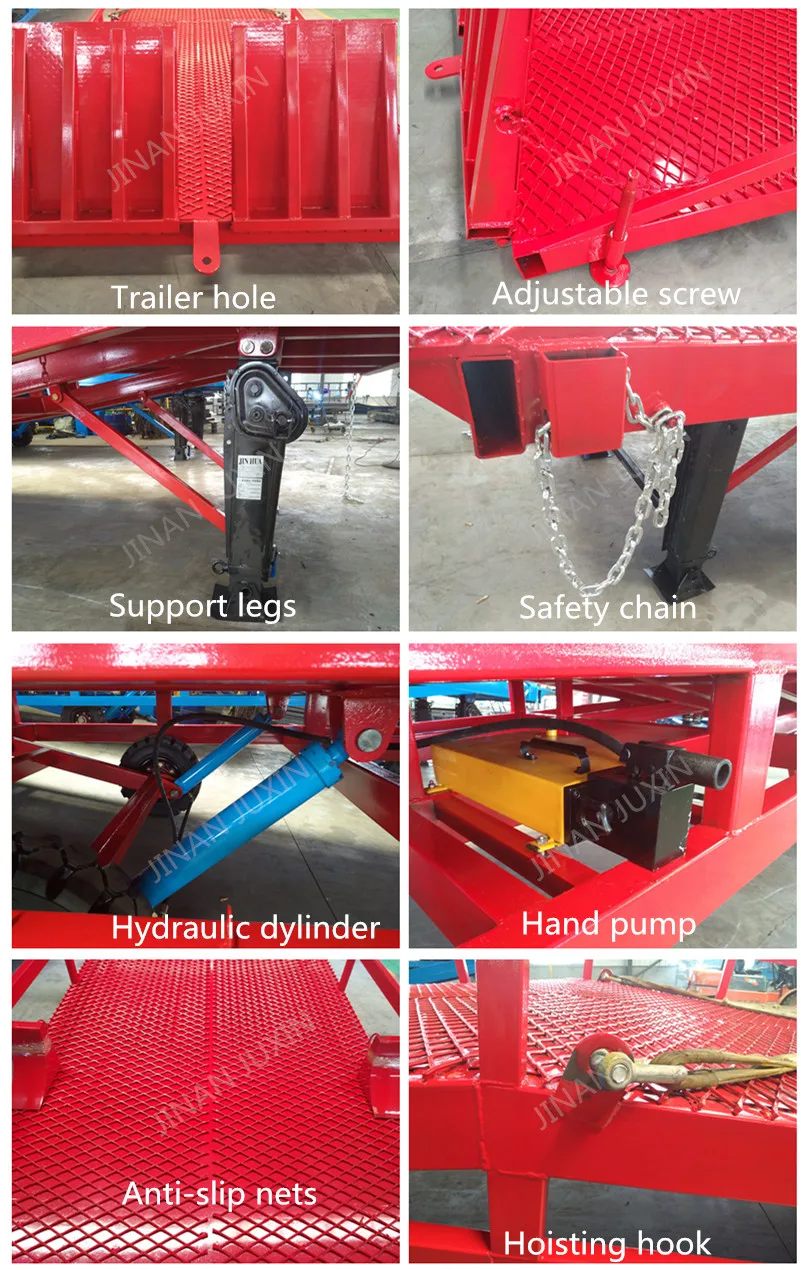

3)Spin adjustable a leg

Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles

4)Manual hydraulic elevator system

Using artificial hydraulic power, don't must exteral electric power can be easily realized cllimbing height adjustment.

5)Fold-down transition board

The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.

6)Hinge transition

Adjustable length of cable chains used to hook vehicles, make cllimbing and vehicles, even shift, always close together joint.

7)Bridge body structure

Bridge body strength, high bearing capacity bridge by high strength manganese steel body skeleton into truss add structure: compound high strength, the characteristics of large carrying capacity.

8)Antiskid steel nets

Laying a layer above the bridge body slippery anilox steel plates. Mesh is distorted and hollow out, not only improved the reliability and work can prevent grease, dirt and ice accumulation.

9)Safety crack-proof valve

In addition to the relief valve, in order to prevent the tubing rupture, occur because of the accident, hydraulic systems of decline set in pipeline rupture types.the valve, when oil will automatically lock.
