Autory G5 Car Level Inclinometer HUD Head Up Display GPS Inclinometer Speedometer Compass Pitch Touch Display

product description

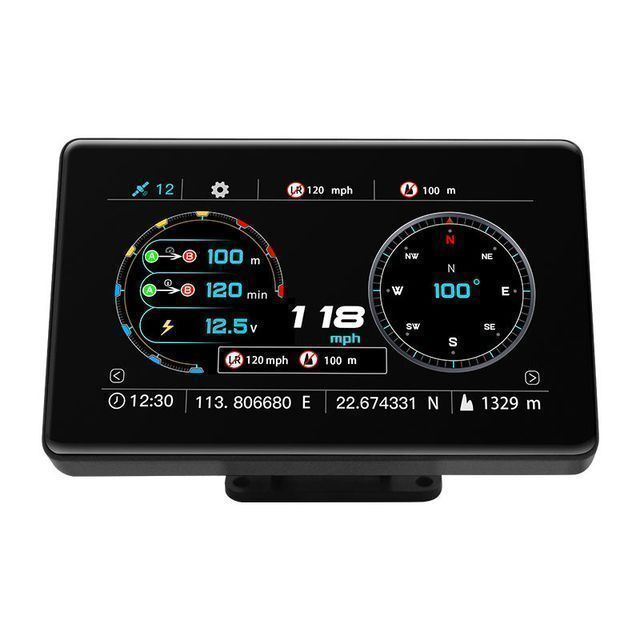

AUTORY G5 is a multi-functional display instrument with various data such as an inclinometer, HUD head-up display, compass, etc., which greatly improves the safety protection level of the product for users and escorts car owners. Obtain satellite data through GPS/Beidou dual-channel module, dual-signal stability and other advantages, common to all models on the market, it is a must-have artifact for self-driving enthusiasts.

main function
1. Driving speed display
2. Driving time display
3. Driving distance display
4. Overspeed alarm
5.Altitude alarm
6. Satellite number display
7. Vehicle roll angle display
8. Vehicle pitch angle display
9. Battery voltage display
10. Latitude and longitude display
11. Altitude display
12. Compass
13. Time display
14. Heading display

main features
1. Suitable for all 10-30V vehicles.
2. Equipped with high-precision dual-channel satellite GPS module.
3. Automatically monitor the driving condition of the vehicle.
4. Adopt high-sensitivity touch screen with high display resolution.
5. Designed with ABS high temperature resistant material.
6. With the car start, stop automatic sleep function.
7. Switch between Chinese, traditional and English.

How to connect to the car

1. Park the car on a level road, install the bracket on the host, and fix it at any position
Put it in the car where it is easy to observe.
2. Connect the power supply, adjust the gradient to the level by hand, and wait
Receive the satellite GPS signal until the data display is normal, then you can drive.

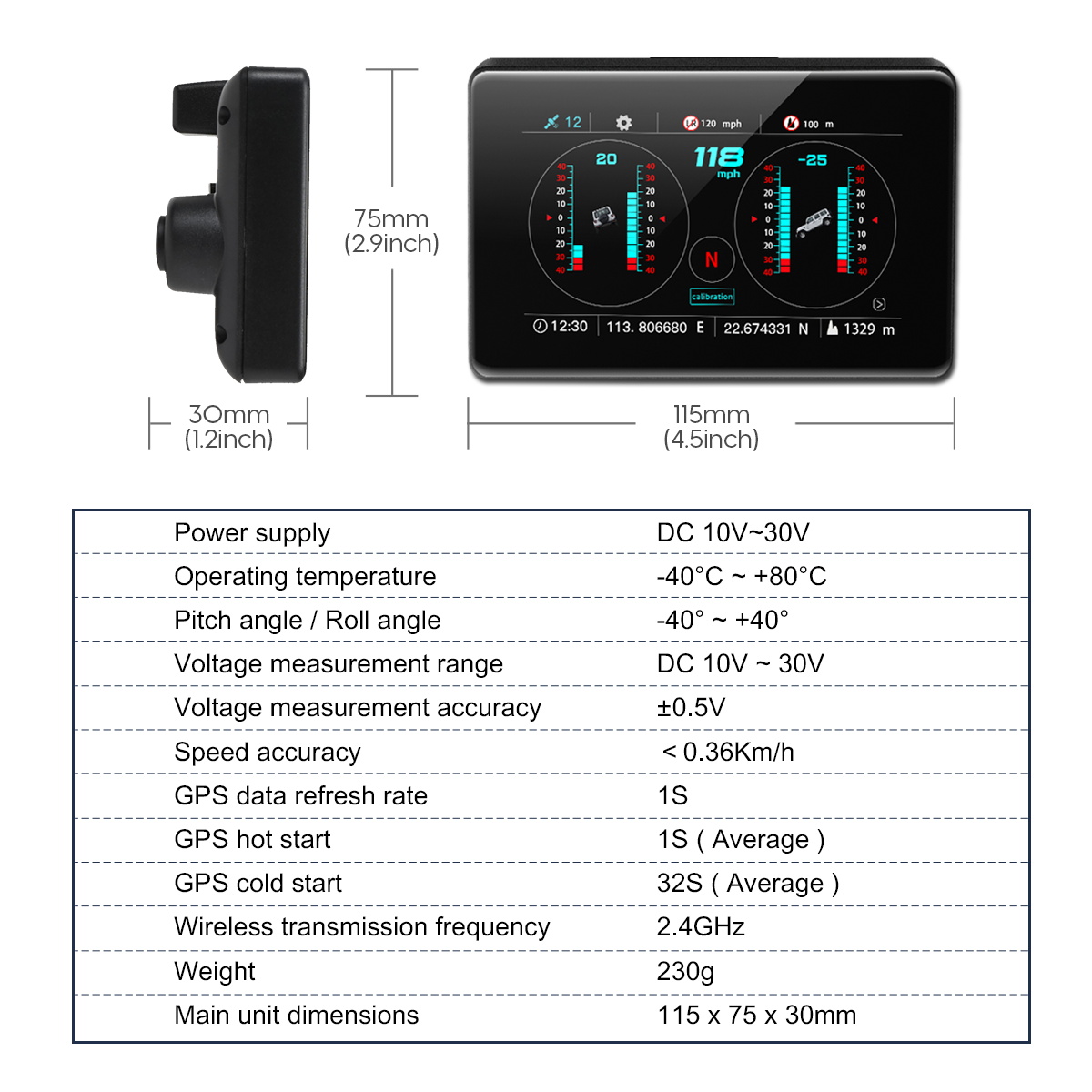

Specification
● Power input: DC10V ~ 30V;
● Voltage measurement range: DC10V ~ 30V
● Voltage measurement accuracy: ±0.5V
● Working temperature: -40°C ~ +80°C
● Vehicle pitch and roll angles: -40° ~ +40°
● Speed ​​accuracy: <0.36Km/h
● GPS cold start time: 32s (average)
● GPS data refresh rate: 1s
●GPS hot start time: 1s (average)
●Product size: 115*75*20mm
●Wireless transmission frequency: 2.4GHz
●Weight: 230g
