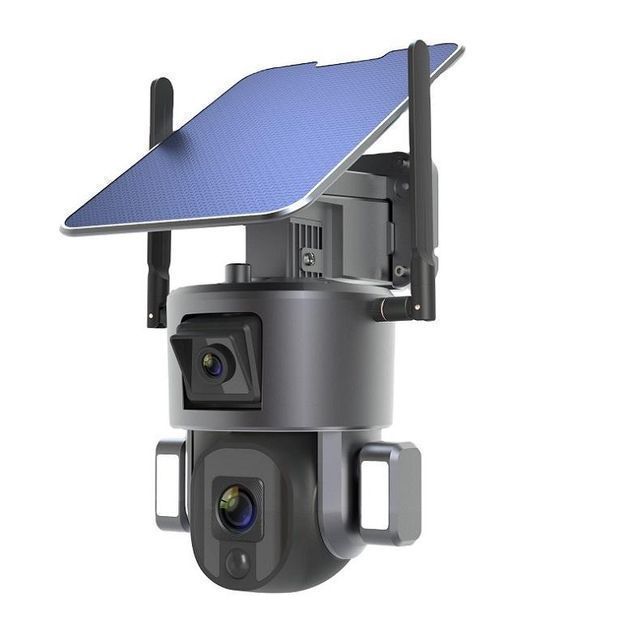

4K Dual Lens Solar Panel IP Camera 4G 8MP Solar Powered Wireless CCTV Optical 10x Zoom Outdoor Wireless Security Cameras

Supplier: Shenzhen Duzhi Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Ambit Que
Price: $100.99 / 2 - 99 sets
$98.99 / 100 - 999 sets
$93.99 / 1000 - 9999 sets
$88.99 / >=10000 sets
Min. Order: 2 sets

Click here to contact

Product details

Solar panels:	6W	Built-in:	Dual cameras
port:	Guangzhou/Shenzhen	Origin:	Guangdong, China
solve:	3840x2160p resolution (dual) 30FPS	Installation method:	integration/separation
PTZ camera lens:	6mm lens/2.8-12mm 4X optical zoom/5-50mm 10X optical zoom optional	brand:	Figure Yixin
Battery:	4pcs 21700 rechargeable batteries	Supply capacity:	1000 sets per day
Storage:	TF card/cloud	4G:	Elective
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Infrared light:	4pcs infrared array+8pcs infrared array
model:	Y5	application:	NiVision

Notice:

1. Contains four 21700 batteries, totaling 20000mA

2.This product has WiFi and 4G versions. There are three lens specifications for the gimbal part, which are 6mm (fixed focus), 4x zoom, and 10x zoom. There are three options, and their prices are also different.

How to set the 4G camera to surf the Internet?

1. After receiving the camera, please charge the solar panel for 10 hours to use5V2Acharger.
2.4G sim card must have traffic data.
3. How to insert the SIM card? Turn off the power of the solar camera, insert the 4g sim card, turn on the power of the solar camera, and reset the surveillance camera. Then wait for 1~3 minutes, let the camera search for 4g sim card data, and then the camera will display a blue indicator light that is always on. (If the red light is on or the blue and red light is flashing, please check your SIM card data.)

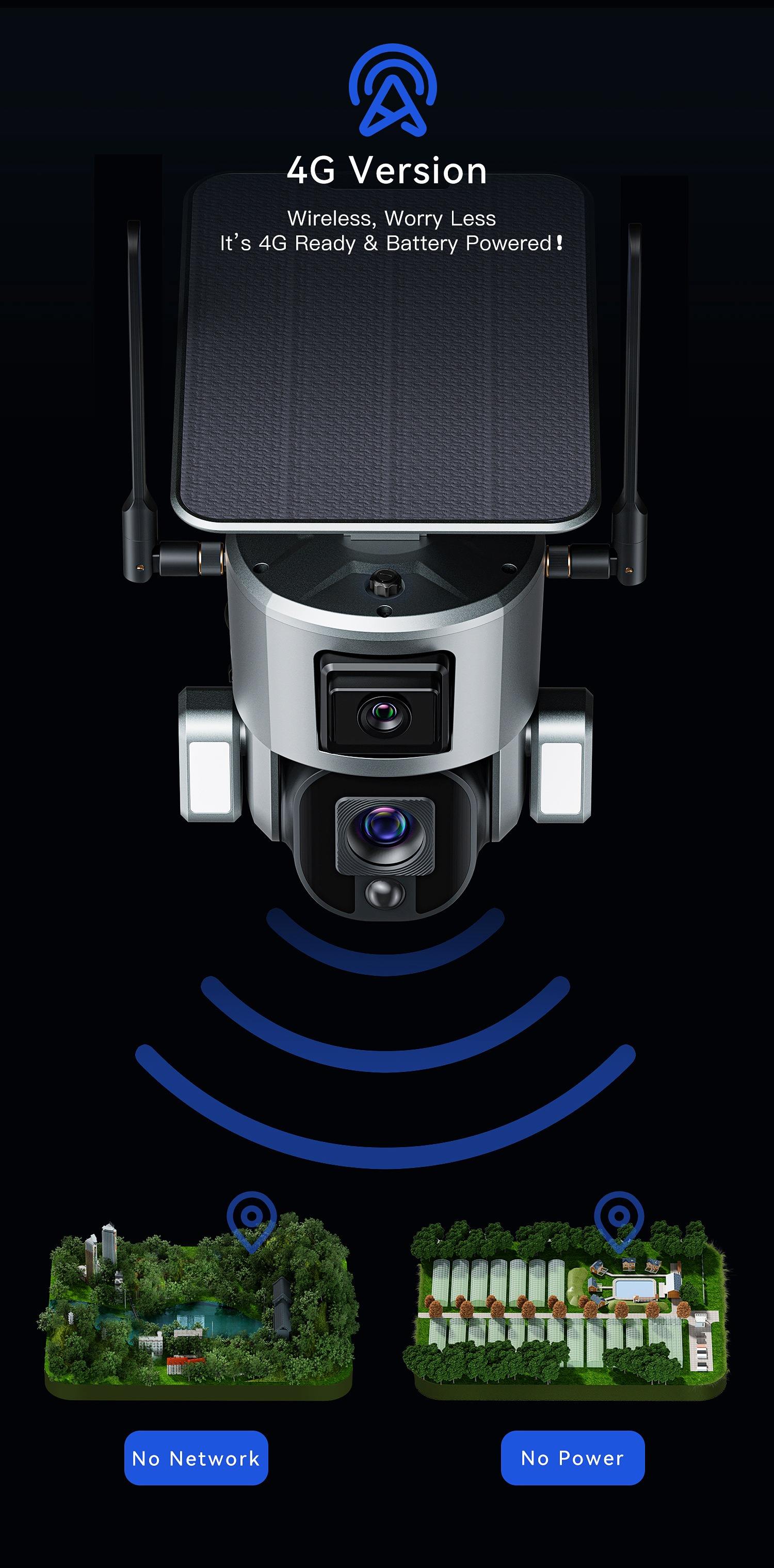

4G version:

This wifi battery outdoor security camera does not support NVR/DVR access.

1.Connection to 3G / GSM / Home WiFi is not supported.No network LAN cables required! No need to set up wifi! No need to connect household wires and cables! You can insert a 4G SIM card and receive data over the Internet. Unable to connect to the wifi network, please pay attention when purchasing.
2. The camera is mainly used in an environment without a network and cannot be powered, but has a SIM card mobile signal and is sunny. You need to put the SIM card into the camera and use the SIM card to access the Internet.
3. The solar camera does not support routers to access the Internet. 4G network camera supports cloud FTP storage!
4. Support mobile applications, iOS and Android systems. View anytime, anywhere. Two-way audio is supported.

4G version available in different countries and regions

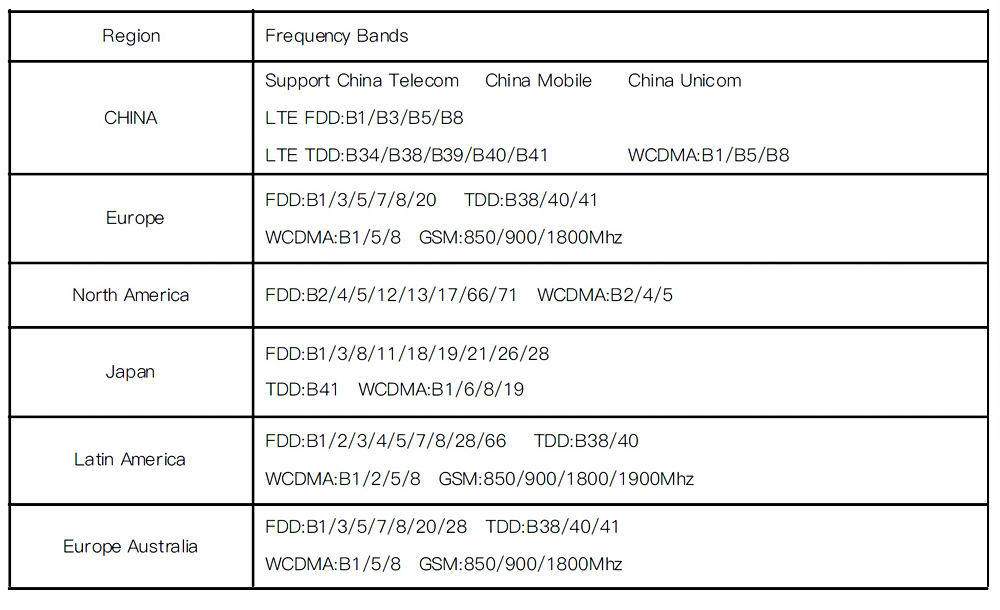

Our devices in different countries will be adapted to the 4G version according to each country. The BAND specifications corresponding to each version are as follows:
1. For North America (United States, Canada, Mexico), use the 4G US version.

2. Australia uses 4G EU/AU version, please select 4G EU version.

3. Some countries in Central America use the Latin version, please contact me for verification.
4. Except for these regions, please choose the 4G EU version.

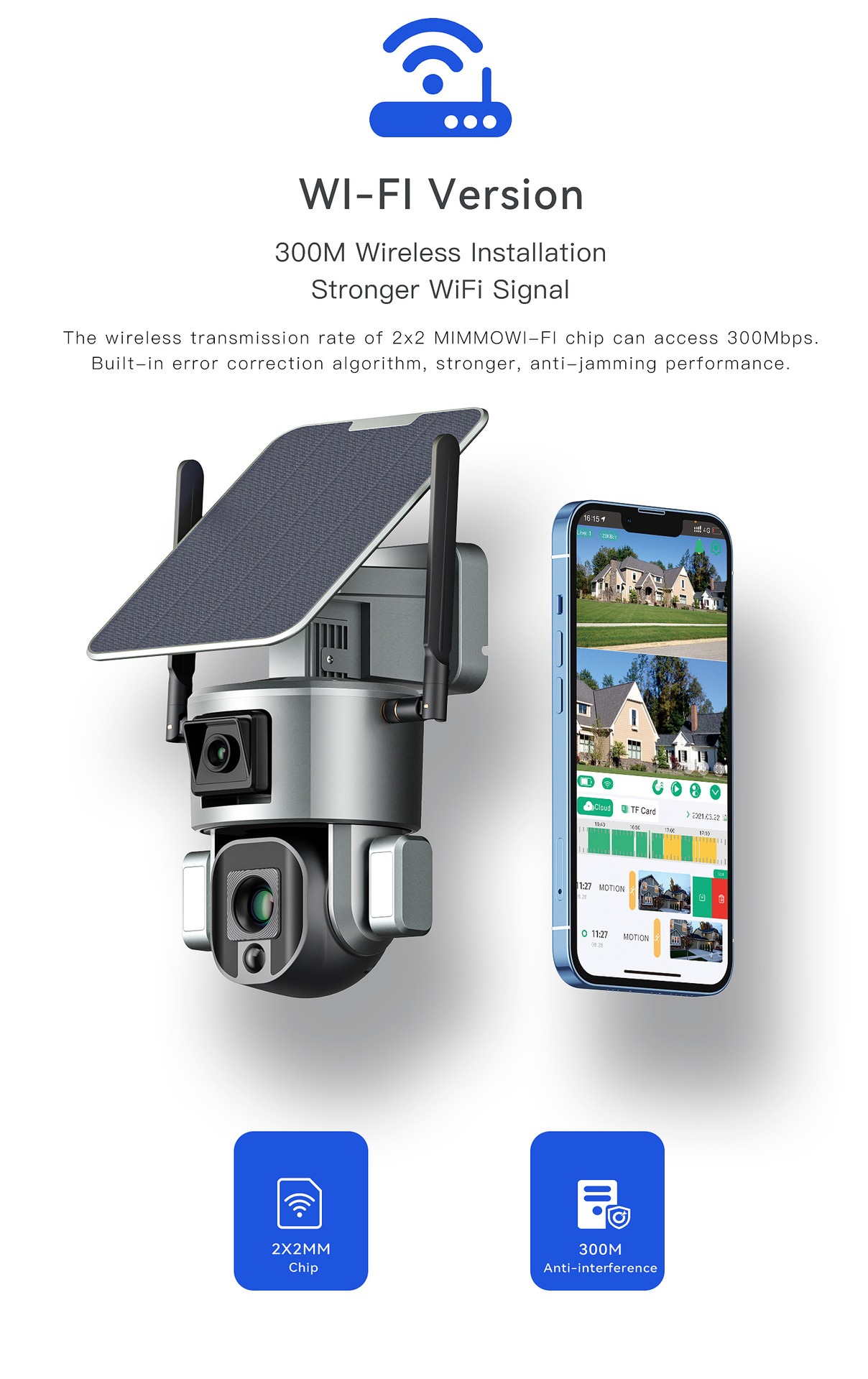

Wireless version:

1. This wifi version only supports 2.Ghz wifi network, does not support 4G SIM card. It is usually necessary to connect the device using a wifi network.

2. This product requires 4 21700 batteries. Comes with batteries.
3. No need to connect household wires and cables! Supports wifi, no LAN cable required.
4. Using solar energy, energy saving and environmental protection, can be installed anywhere (Wifi network required), such as gardens, farms, streets.
5. Uninterrupted solar panel work Rechargeable battery IP wifi camera can work continuously, no need to disassemble the battery can be charged by external solar panel

About Batteries and Solar

This camera uses advanced low power consumption technology. If no motion is detected, the camera will enter sleep mode.
After fully charged, if the camera contains a 20000mAh battery, it can wake up 6000 times by detecting human motion. If it works for 15 seconds at a time and is charged with solar energy, when the sun is sufficient, the supplementary power can wake up 300 times per hour.

Tip:

If the camera wakes up frequently or detects human motion many times, the camera's power will be consumed quickly. It is recommended to charge the camera regularly. The battery in the camera can be charged 500 times. If we charge the camera once a week, the life of the battery can be extended by more than 9 years.
The recommended operating temperature of the camera is 14℉~122℉ (-10℃~50℃). Battery performance may decrease at low temperatures. At -4℉(-20℃), the battery may be exhausted in a short time, and even cannot be charged. it will work fine because
The temperature rises.

Package Included:

1 x Solar Security Camera

2 x Antennas

1 x solar panel

1 x Solar Panel Holder

1 x Mounting accessories (screws, wrench)

1 x USB-C USB Charger Cable

1 x User Manual/User Guide

feature:

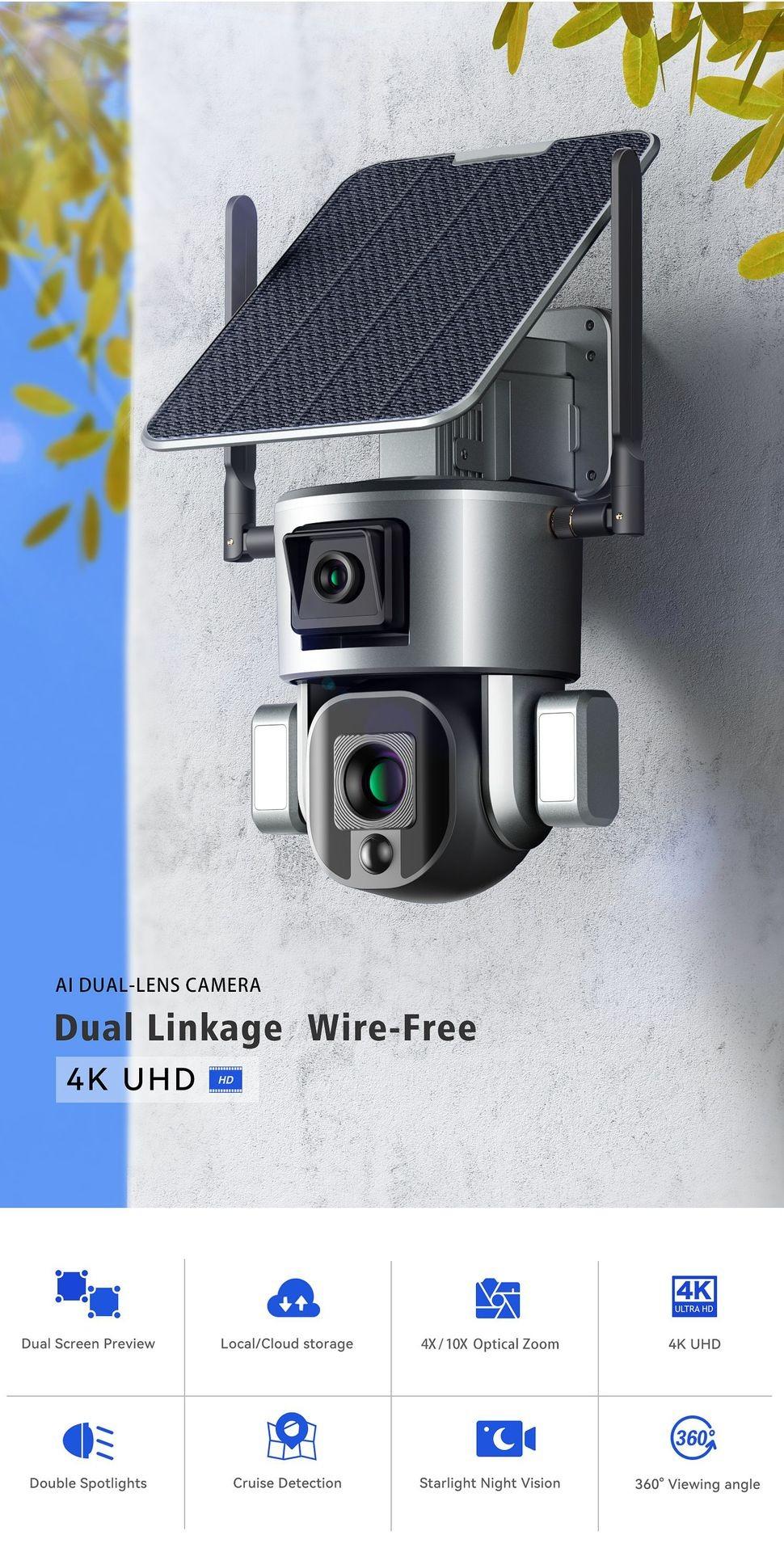

* Dual Ultra HD 4K video quality
* Intelligent power management
* 100% wireless turnkey solution
* Lasts up to 8 months on standby (varies with sunlight conditions)

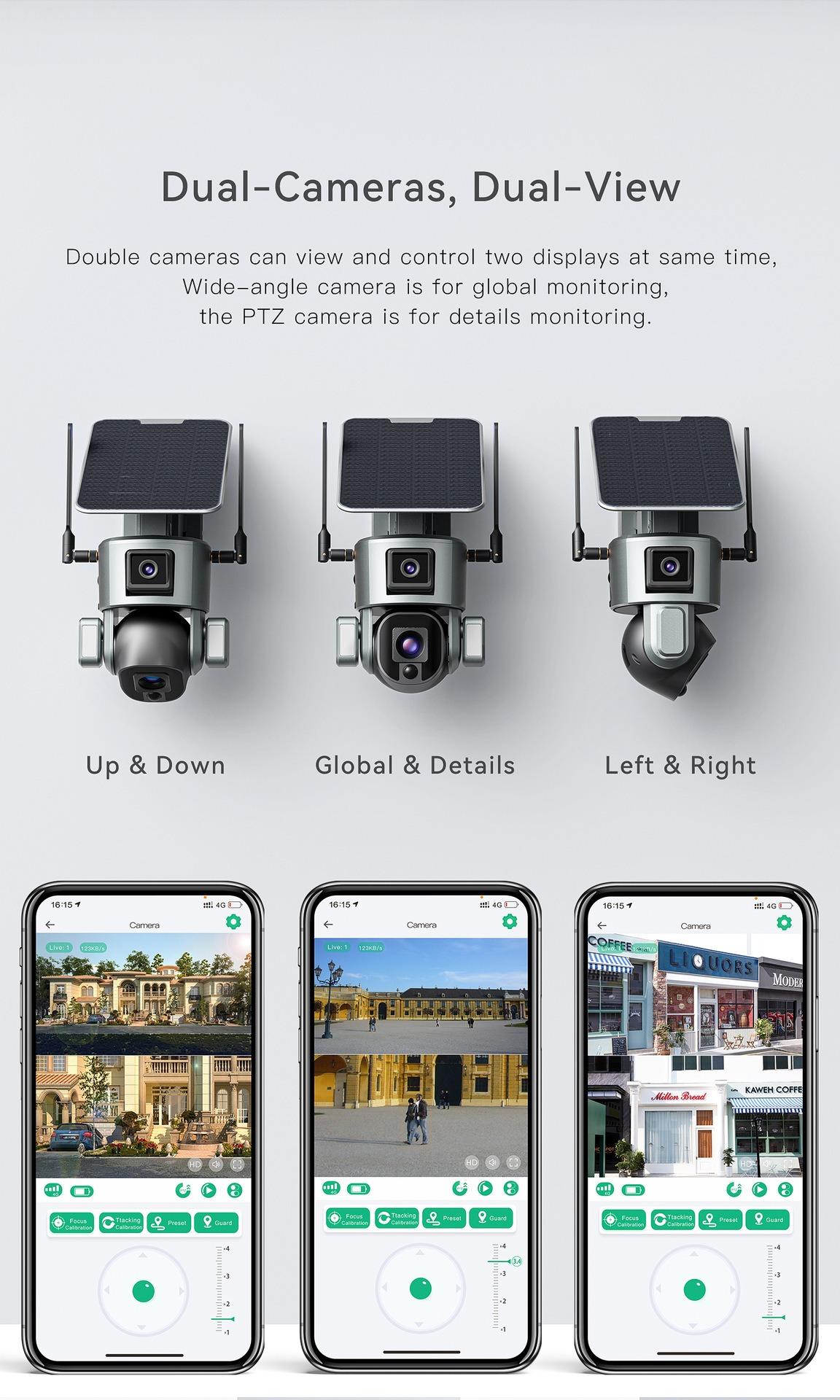

* Dual lens
* 4G / 3G Internet connection - SIM card
* Remote monitoring and playback screen

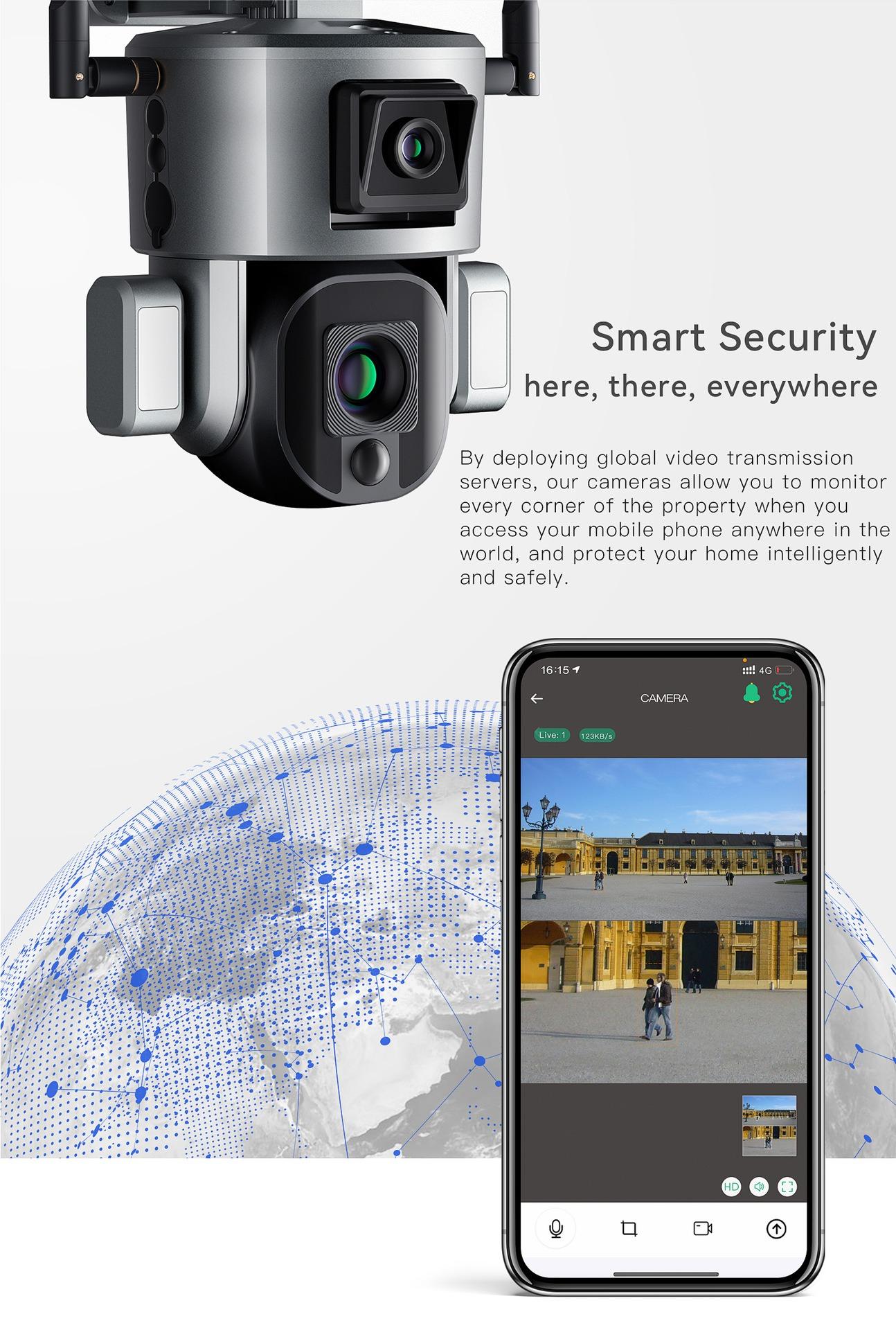

* Live video P2P - iPhone / iPad / Android support
* Receive quick alert popup notifications
* Dual live view screen support

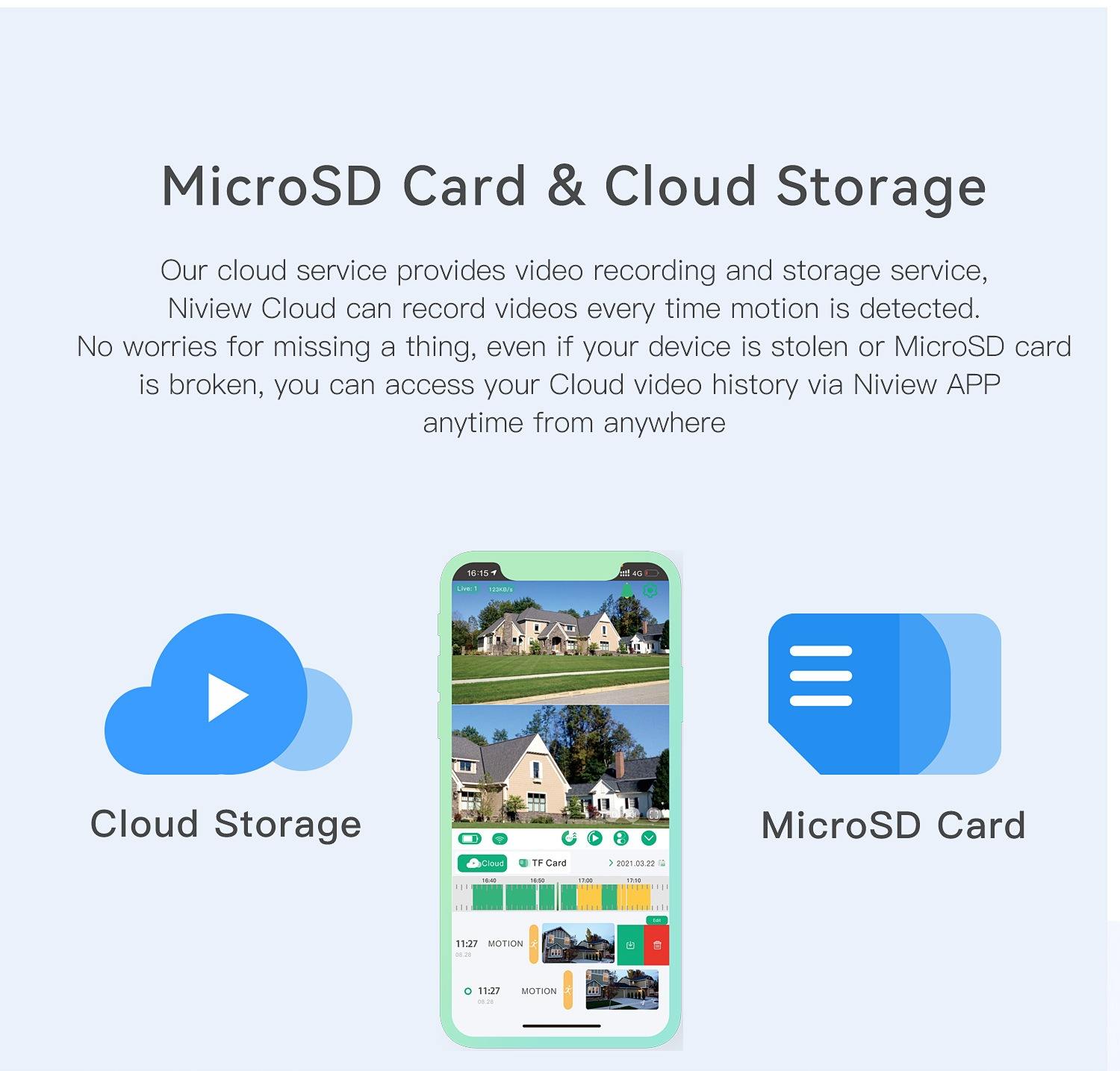

* Cloud storage support/local storage support

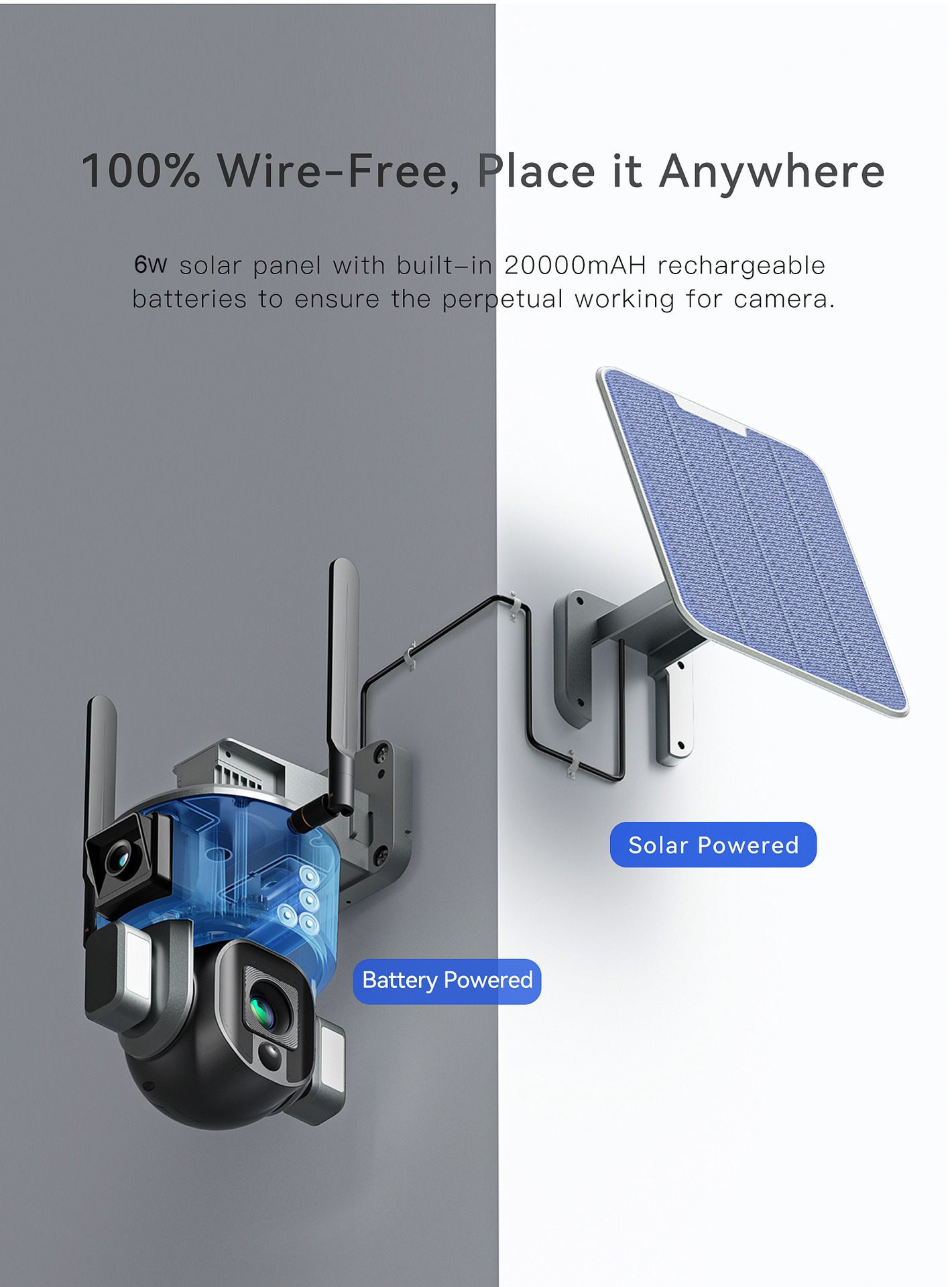

* Adjustable 6W solar panel

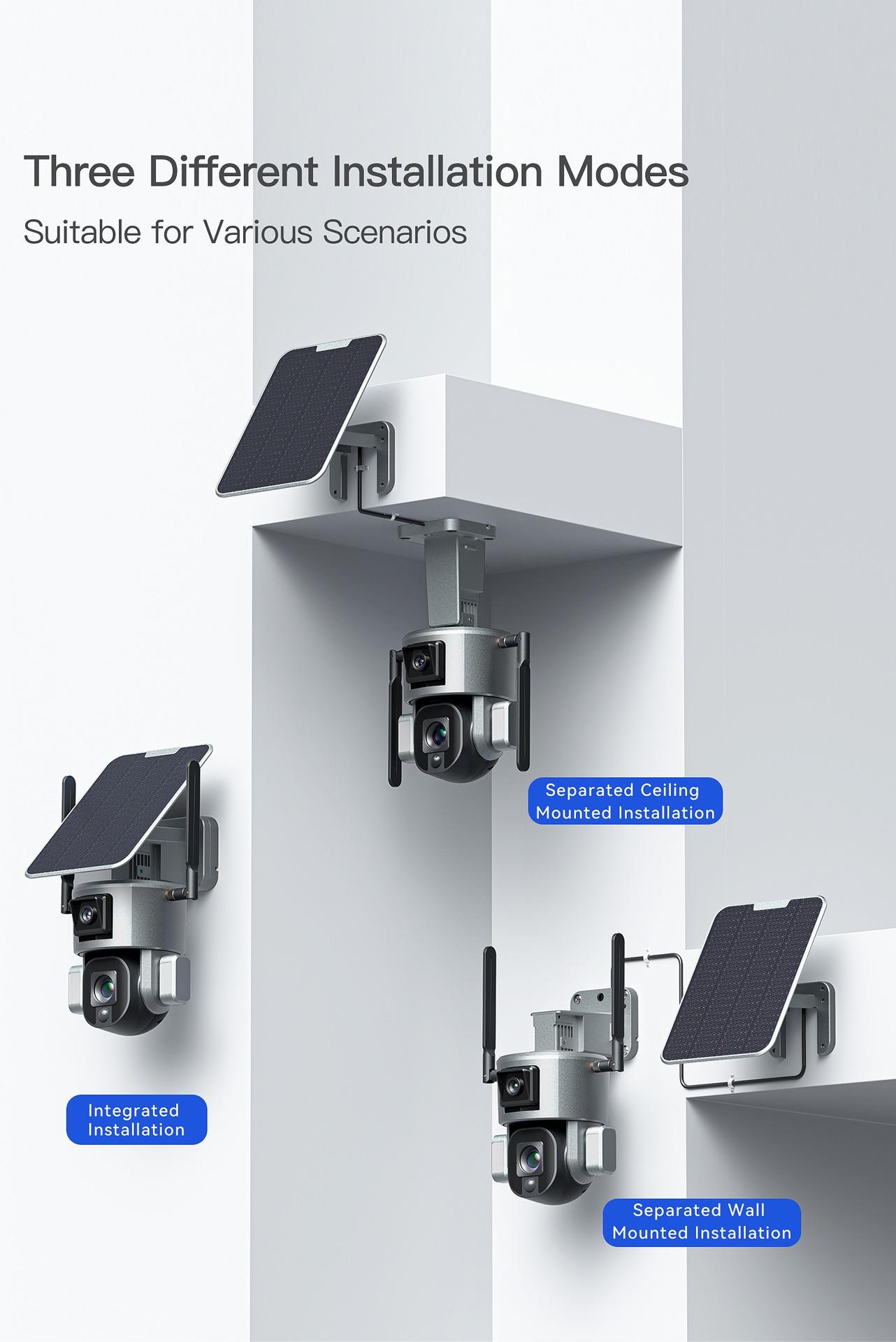

* 3 installation methods

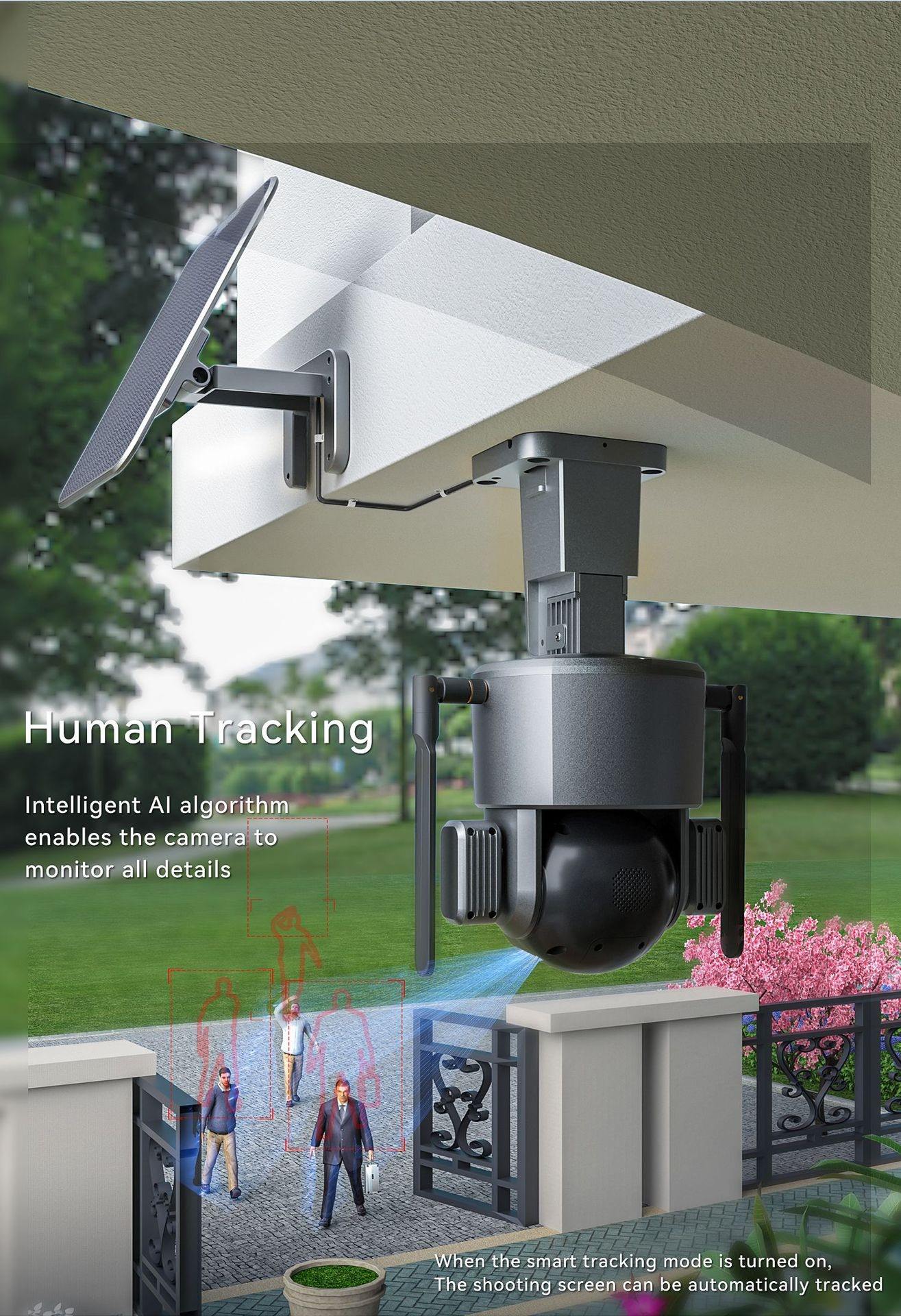

*Intelligent AI human body automatic tracking and detection
* Automatic cruise to the detection point
* Dual Flood Lights - White LED
* Full color LED night vision
* Infrared night vision support
* Fast PIR sensor - heat detection / motion detection
* PTZ lens rotation - remote rotation
* Digital zoom support
* Built-in microphone and speaker
* Two audio communication methods

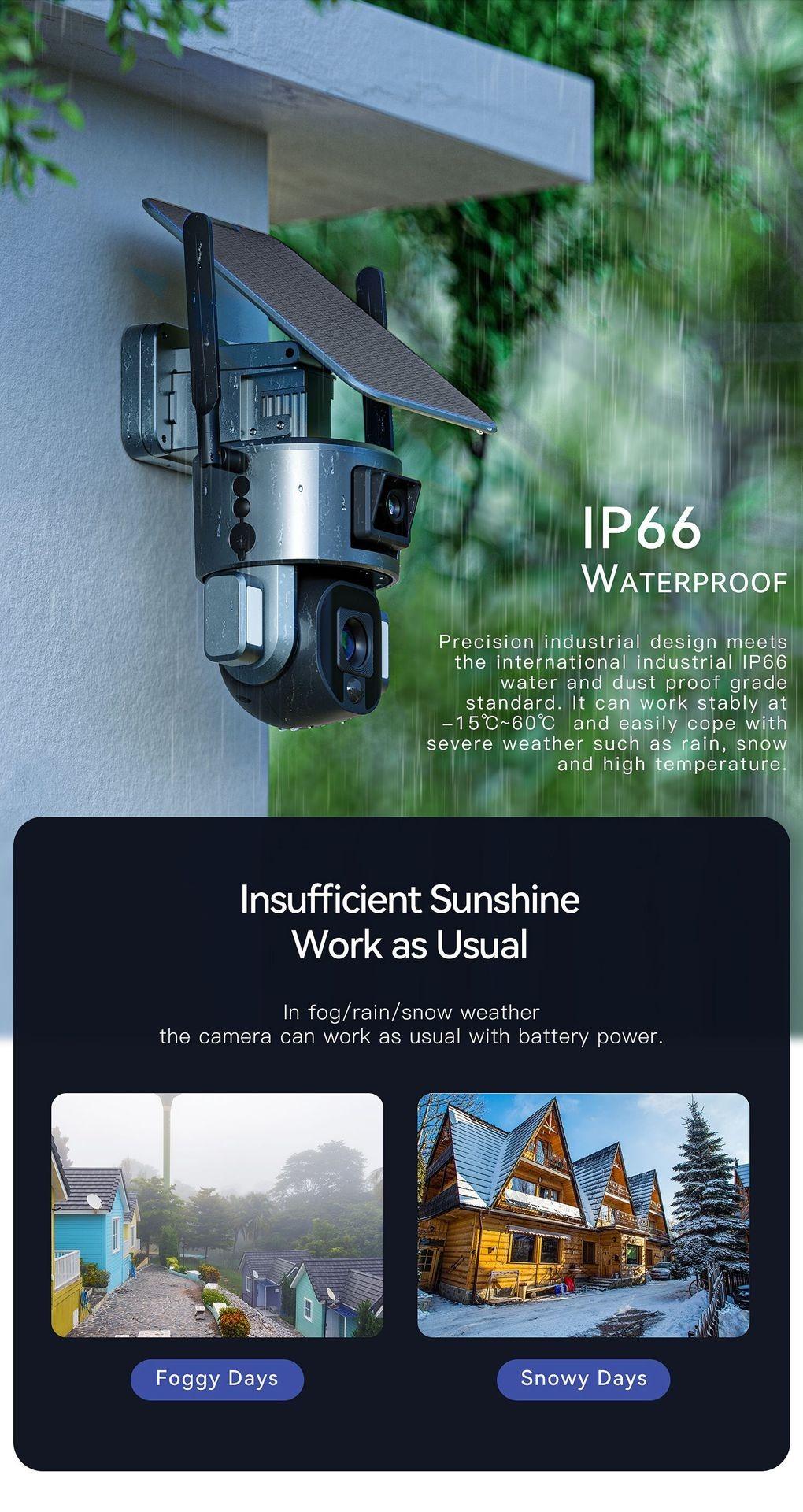

* Waterproof IP66 rating
* Multi-user view support
* Memory card support
* rechargeable battery

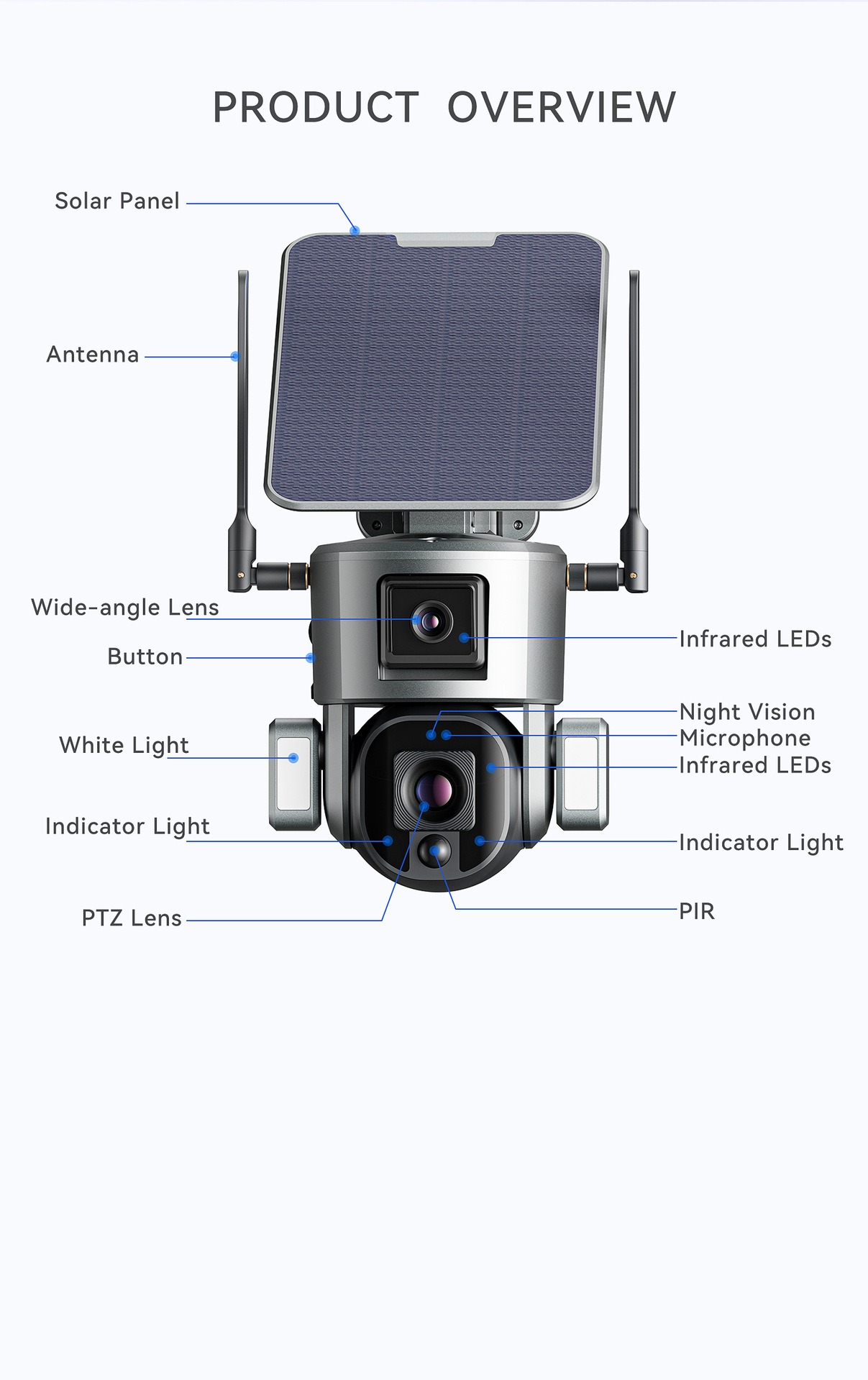

Product parameters

video resolution	3840x2160p resolution (dual) 30FPS
Infrared distance	5-40M
white light	Can light up an area of 50 square meters

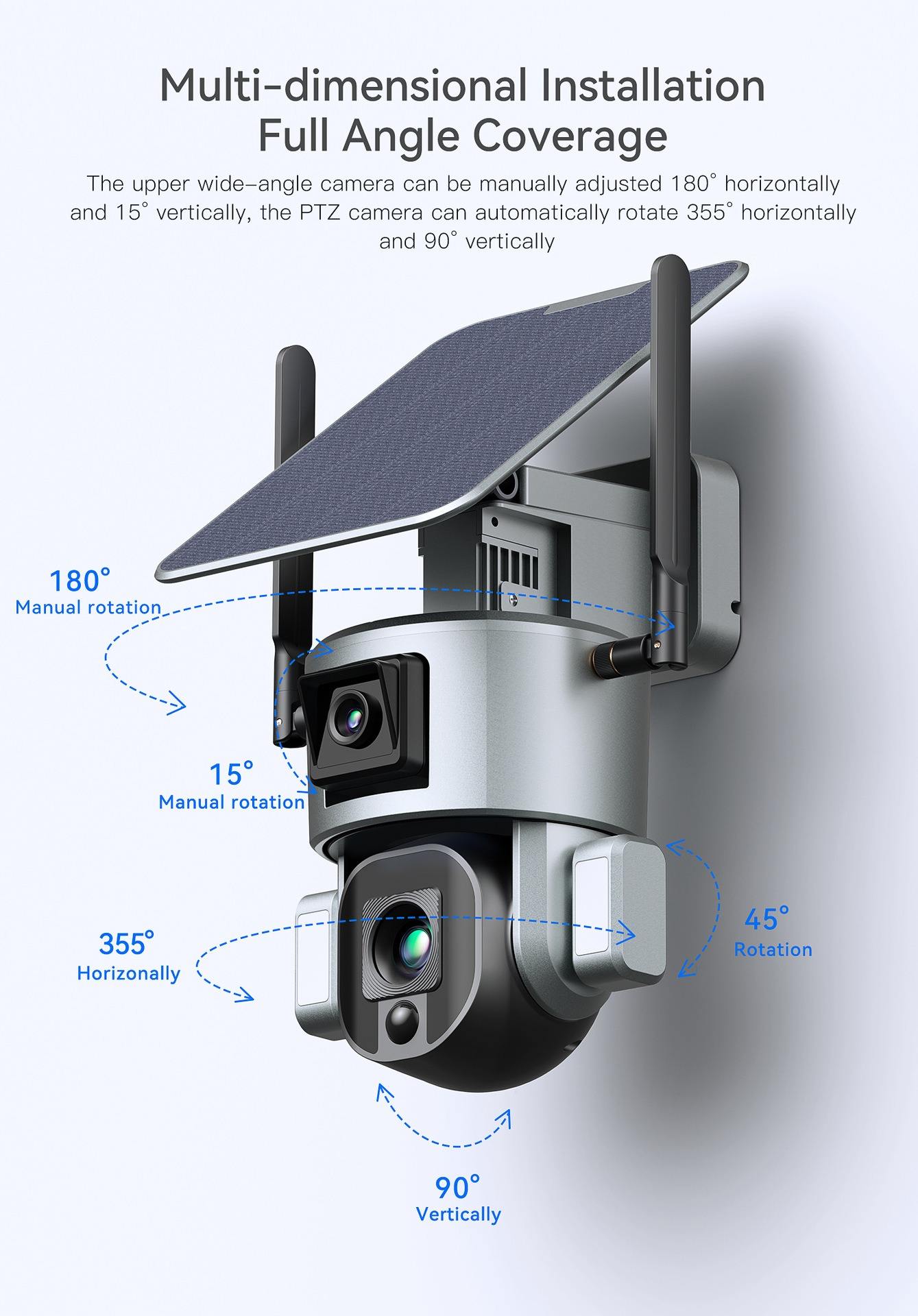

Wide-angle lens	2.5mm/120-degree wide-angle lens (manual adjustment pan 180°/tilt 15°)
PTZ lens	6mm lens/2.8-12mm x optical zoom/5-50 10x optical zoom optional
Gimbal specifications	Pan: 355°/Tilt: 90°, 30°/s
SD card storage	Support up to 128G * (not included)
cloud storage	Supports storage for up to 30 days
Insight	2TOPS, support human, animal, vehicle recognition
audio input	Built-in 38db microphone
Audio output	8Ω3W
recording mode	All day video, alarm video
WiFi module	4G Version: LTD FDD WCDMA WiFi Version: 2.4GHz 802.11b/g/n
System Configuration	Software version IOS7.1, Android 4.0 and above
Material	metallic painted plastic
Battery	20000mAh (21700-5000mah*4PCS) (included)
Solar panels	6W tetrafluoroethylene
Operating temperature	-15°C-55°C
Power Adapter	5V2A
Weight/Dimensions	Camera: 280175175mm Gross weight: 1800g Net weight: 1500g

Product Description

technical analysis:

1.Q: When the night vision is turned on, will the camera turn on a red light?

A: The built-in infrared light makes the camera only show some dim red light when the night vision is turned on, but the image quality is still clear in the dark environment.

2. Q: What is the longest recording time?
A: The camera has three working modes.

The default mode is low power mode. When someone passes by, the camera will automatically start recording for 15 seconds. When people are within the monitoring range, the camera will keep recording. The built-in battery of the camera can work 6000 wake-ups, and the solar energy supplements 250 wake-ups per hour. In theory it can be used all the time.

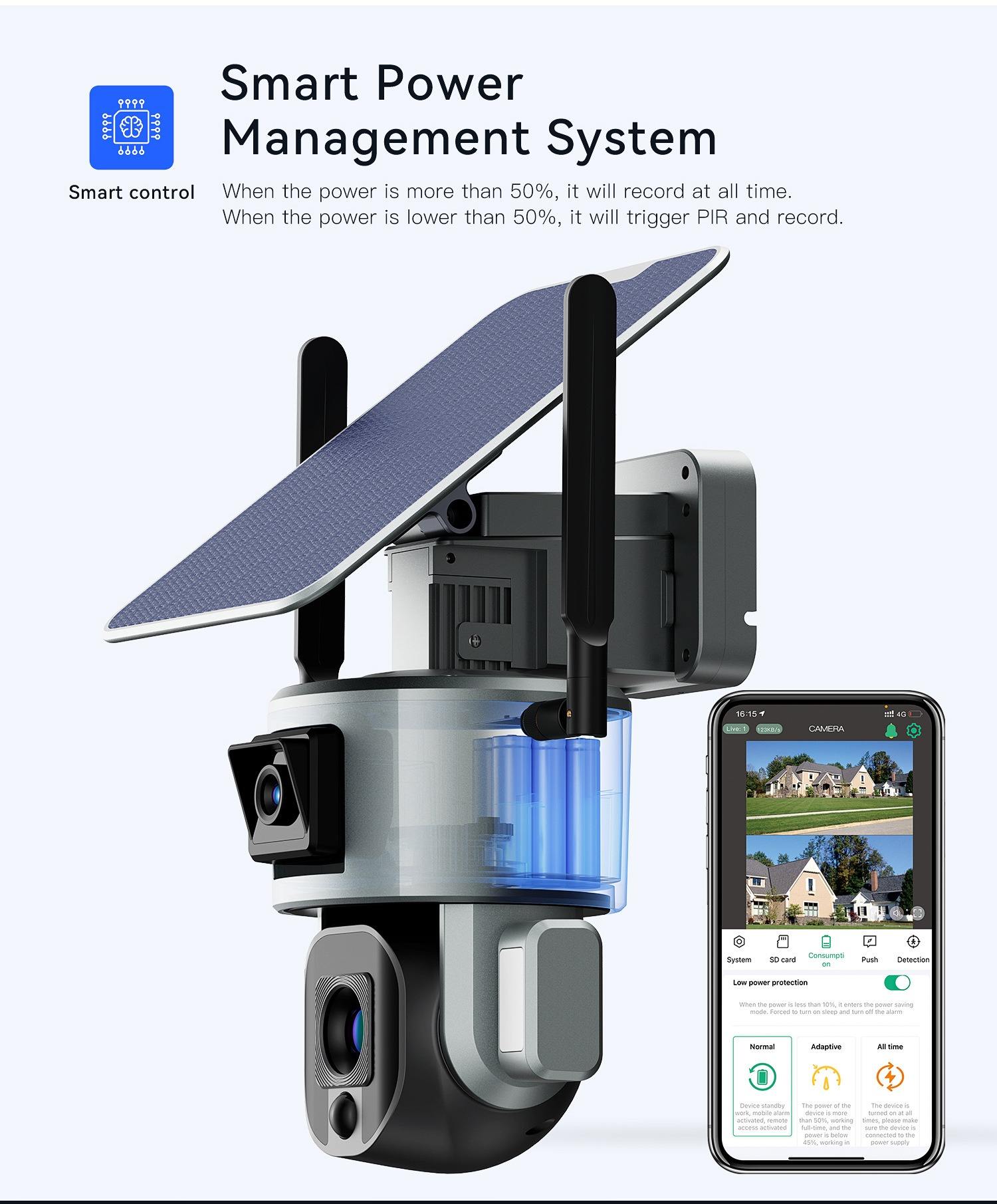

The second mode is adaptive mode. When the battery power exceeds 50%, the camera will record for 24 hours. When the power is lower than 45%, the low power consumption mode is turned on. When someone passes by, the camera will automatically start recording for 15 seconds. When people are within the monitoring range, the camera will keep recording.
The third mode is the full-time mode. In this mode, a continuous power supply is required. At full power, if there is no power supply, it can only work for 36 hours.

3. Q: How to check the video playback status?
A: Click the video playback button in the pull-up control menu on the home page, and select memory card playback or cloud storage playback.

4. Q: What happens if the memory card space is insufficient?
A: The oldest material will be overwritten by the newest. Please back up important videos in time or delete unnecessary videos to free up more space. Alternatively, you can subscribe to a cloud plan.

5. Q: How many cameras can be connected to the same account?
A: You can add 50 cameras, but we recommend adding up to 10 devices for a better experience.

6. Q: Why am I not receiving push notifications on my mobile device?
A: Please make sure you have allowed NiView App to push notifications to your mobile device.

7. Q: How many accounts can a camera be shared with?
Answer: 8 accounts.

8.Q: What should I do if the optical zoom lens is out of focus?
A: In this case, the lens is out of focus due to environmental changes. Please go to the PTZ control interface, set
To the perspective of the farthest reference object, click the Zoom Calibration button and wait 1 minute.

9.Q: What should I do if the gimbal lens tracks the human figure and the tracking is inaccurate and incomplete?
Please click the "Linkage Calibration" button in the upper right corner of the homepage, and the upper and lower cameras will recalibrate the linkage coordinates.

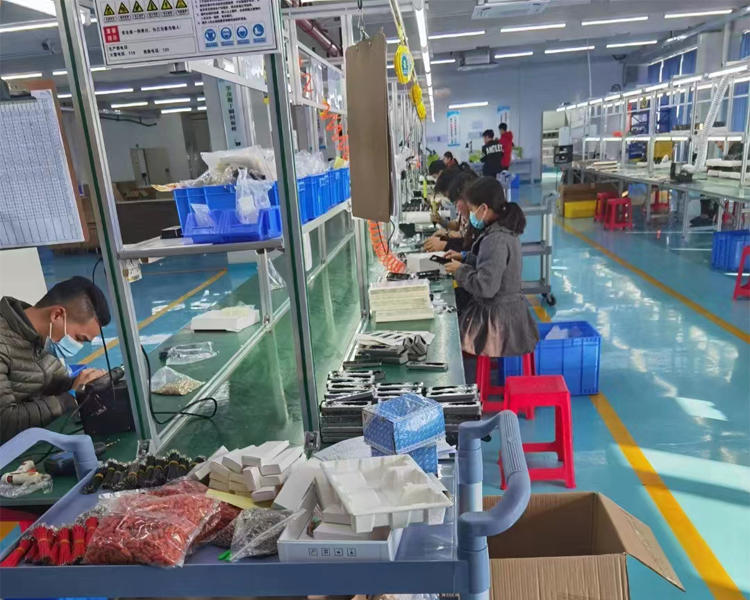

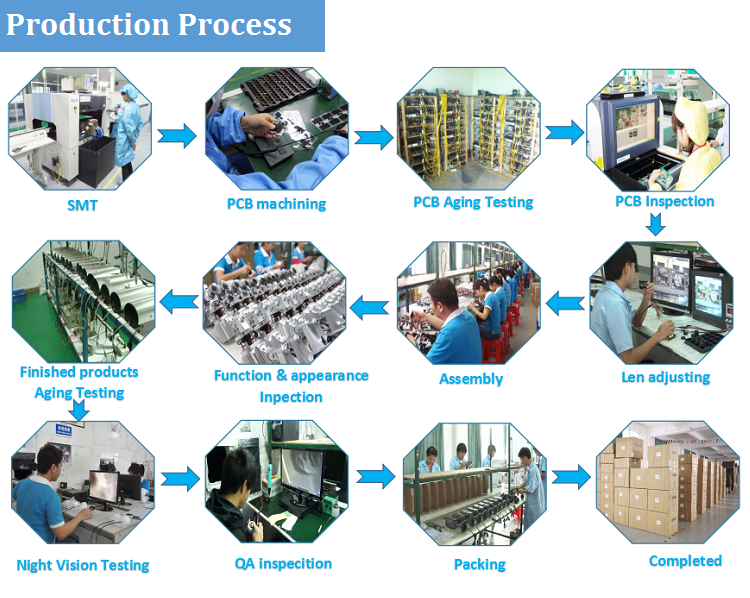

production workshop
