GEN 4 Army Night Vision Infrared military standard night vision infrared military night vision goggles

GEN 4 Army Night Vision Infrared military standard night vision infrared military night vision goggles

2. Product information of Night Vision goggles

Description

 1,This night warfare system is in strict accordance with the military standard manufacturing, with the working temperature range -45℃~70℃ (military level) and the waterproof level IPX6.(The whole set can provide the CMOS night vision technology image analysising software copyright registration certificate.)

2. The bare weight is only 116 g, including a 18650 rechargeable battery so the total weight is 160g, which is the lightest weight night warfare system in special field.

3,Non-infrared mode can reach 36 hours long standby, infrared mode can reach 24 hours long standby, that is suitable for the long time night warfare.

4,This machine uses the very wide field of view and the viewing angle is 39.5 degree.

5,Night OLED screen resolution ratio is 1024X768P, which can be observed at night.

6,The machine is instaled with ultra-low voltage start function.
In extremely low voltage conditions, the machine can still be used normally.

7,Night mode uses the black white OLED displaying imagine, clarity,
recognizing ability, image stability are highly better than the traditional supersecond generation, third generations of microlight image intensifier technology and other light night vision products.

8,Dump truck frame: The material is aviation grade aluminum alloy material, appearance after micro arc oxidation process treatment, and the weight is 98 g, is currently the world’s most light of the Dump truck frame.

9. The fourth generation optoelectronic integrated night combat system vision ratio is 1:1, and the recent automatic focus distance is 12.5CM. It is used scene diversification, which can not only be used in the night fighting against terrorism. Driving soldiers can use it drive
secretly without opening the headlights and do not need any lighting tools to read, for example, books, maps,photos, and changing the equipments at night.

Specification:

bare weight :  116g
Whole machine weight:  160g Include 18650  rechargeable battery

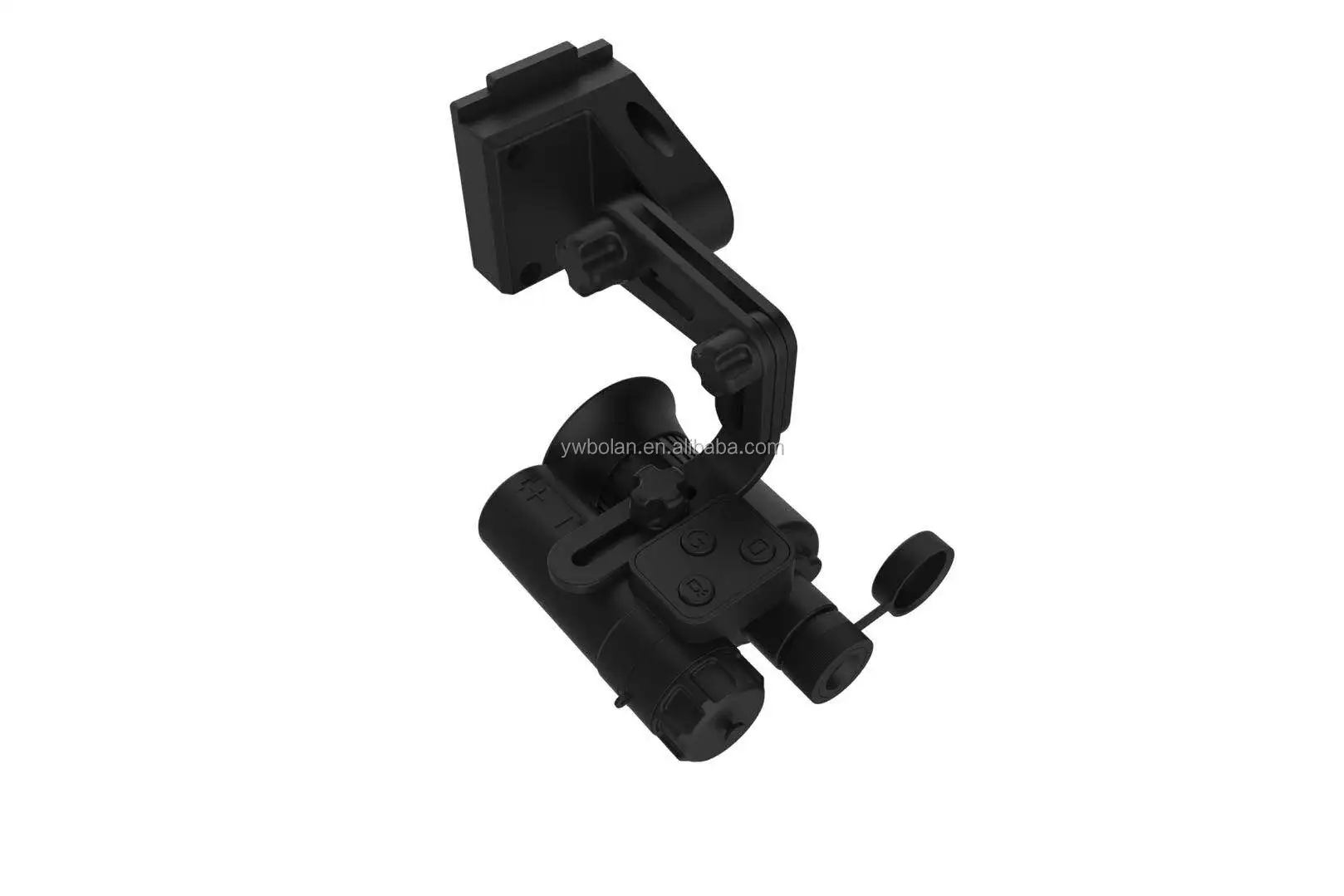

Helmet stents
Material: aluminum Process: microarc oxidation(Subsurface treatment ) 96g
Standby time: 36hours, Infrared mode 24 hours.
Full length of bare machine : 6.6cm
Night vision effective distance:Over 300m (In the dark environment)
Infrared wavelengths :980nm (no red storm)
Infrared working mode: Infrared closed, Low power infrared mode, medium power infrared mode, high power infrared mode
Image sensor : 1/1.9’WYX185C-MM
view point  :39.5°
Recent focus distance: 12.5cm -infinite
Machine core voltage: 2.4V~5.5V Start and work normally undervoltage
power consumption of the movement: 0.9w
OLED screen resolution ratio: 1024*768P Display clearly at night, distinguish enemies effectively
Pixel size: 6um*6um
minimum illumination at night: 0.0013lux
display size: 0.38inch screen
Display brightness: adjustable A key control,there are 9 stalls that adjust the screen brightness for different lighting conditions.
Working temperature: 45℃~70℃ (military level) Working in a very cold environment.
Waterproof level: IPX7

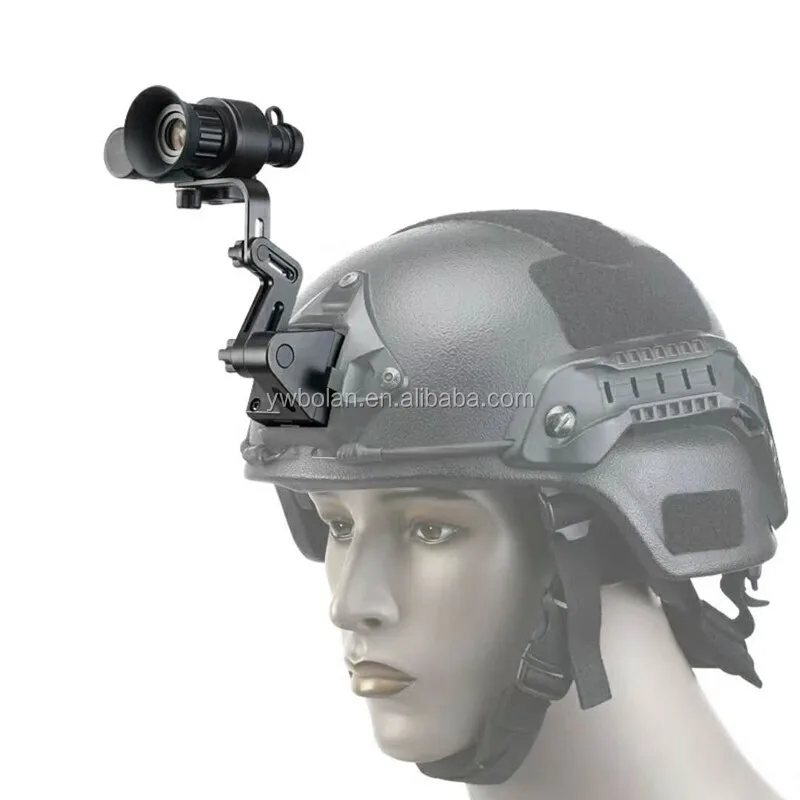

installation: Hand-held, also suitable for various helmets right eye observation at night.
System package
night warfare system(1 PCS)
2 set of special battery,
1 set of special charger, 1 special data cable, 1 special plug,
1 set of factory certificate,
1 set of professional tactical helmet, 1 set of soft helmet, 1 set of soft helmet
1 set of universal helmet bracket 1 pcs waterproof tank

warranty way: Global co-insurance for 2 years.
