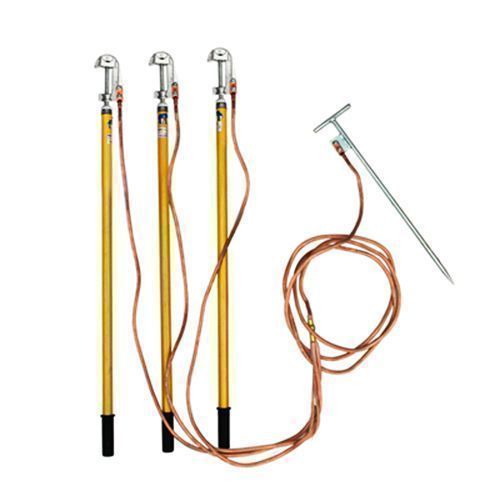

High-quality safety ground wire and ground rod for power grounding device
- 6.79 1 - 1 sets
- 3.58 >=2 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Origin: | Hebei china | Supply capacity: | 20000 sets per month |
| port: | Tianjin | MOQ: | 1 item |
| Package preview: | product name: | grounding equipment | |
| model: | CH-JDX | color: | red\yellow\green |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | size: | custom size |
| Material: | Copper+PVC | brand: | Chen Ji |
| Packaging Details: | Canvas bag and carton or according to customer requirements | usage: | industrial |
| conductor: | stranded copper wire |
---------------------------------------------------- --
Please click on any of the above product pictures for more product information
Product parameters

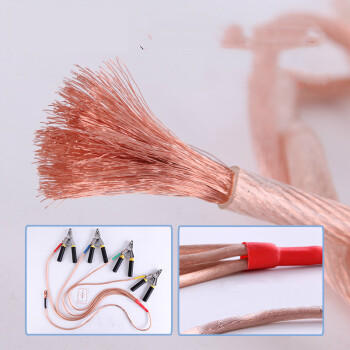

Introduction to Copper Wire Specifications
You can also customize it according to your needs! Welcome to contact us!
Cross-sectional area mm² | 16 | 25 | 35 | 50 | 70 | 95 |
Wire diameter/mm | 5.7 | 7.5 | 8.78 | 11 | 12 | 16 |
Outer diameter/mm | 7.8 | 9.6 | 11.2 | 12.6 | 16.5 | twenty one |
Resistance/mΩ | 1.24 | 0.79 | 0.56 | 0.40 | 0.28 | 0.21 |
Safe current carrying (a) | 100 | 123 | 150 | 210 | 238 | 300 |
---------------------------------------------------- ----------------------------------
Reminder: There may be some errors in manual measurement, please refer to the actual product!

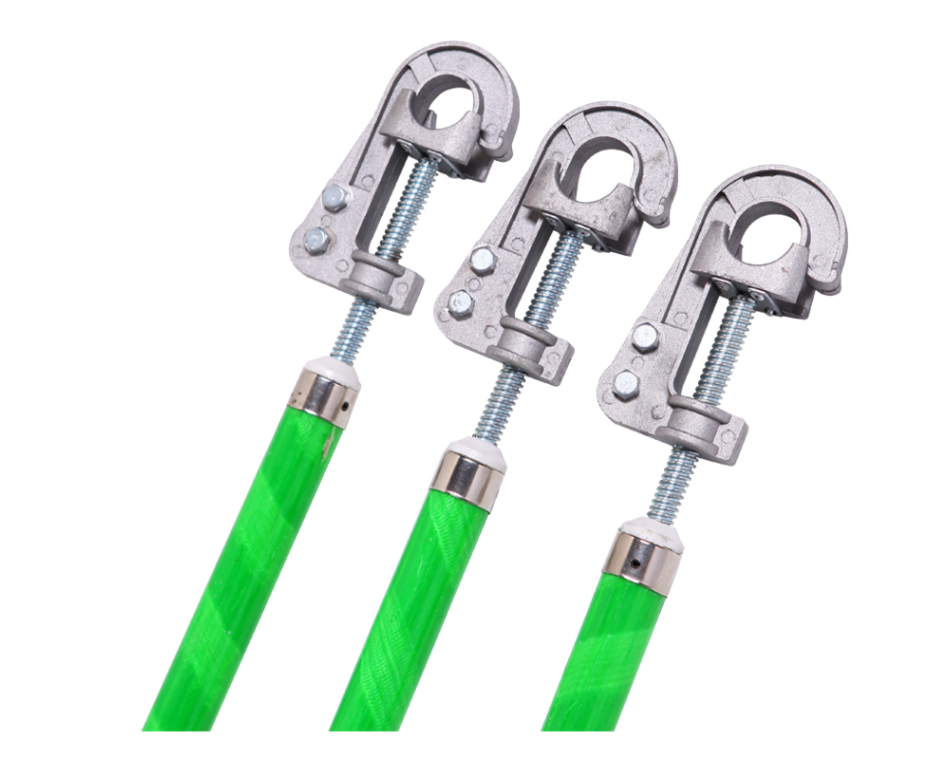

detailed drawing
scope of use

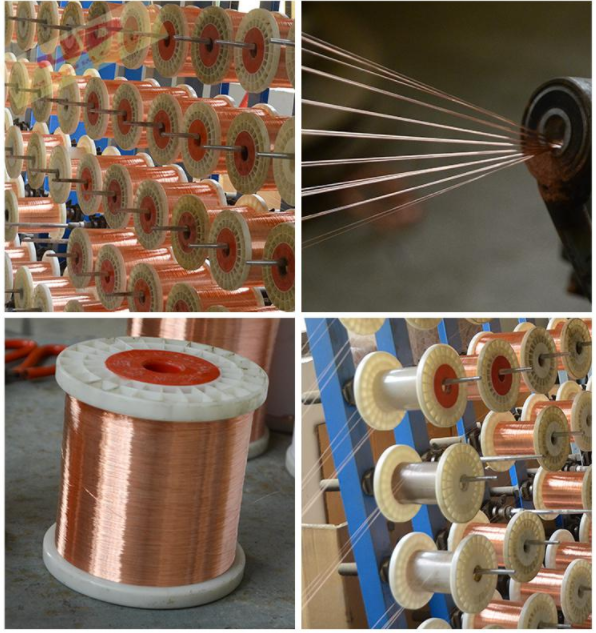

Factory direct sales/quality assurance
---------------------------------------------------- ----------
Portable Annealed Copper Wire Set
---------------------------------------------------- ----------
Voltage ground wire set
---------------------------------------------------- ------
High voltage grounding wire/rod set
333
---------------------------------------------------- --
personal safety line
